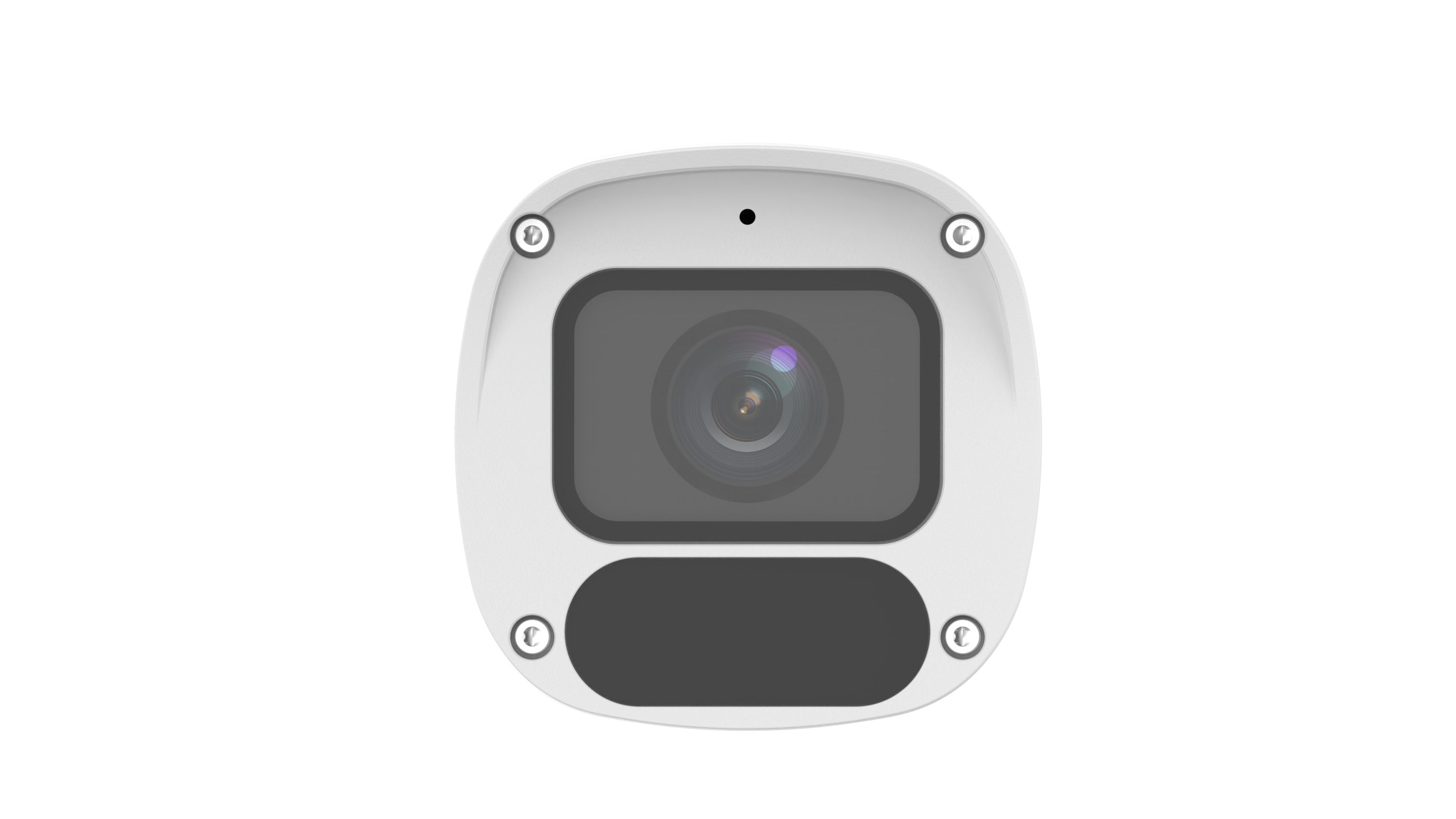

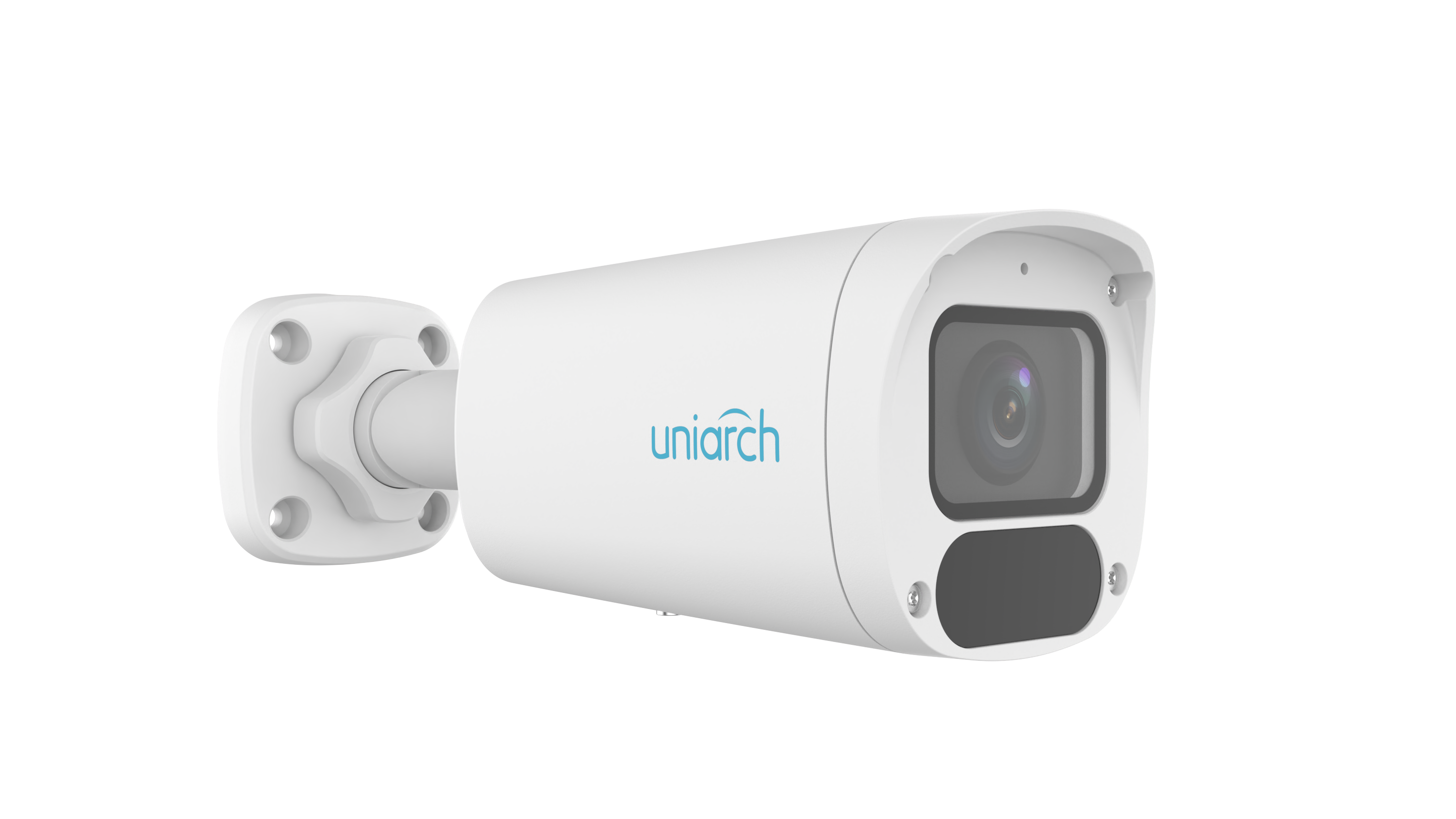

2MP WDR VF IR 子弹型网络摄像机
产品描述
2MP WDR VF IR 子弹型网络摄像机
关键特性
- ● 1080P 高清画质，1/2.7 英寸 CMOS 传感器
- ● 1080P (1920 × 1080)@30/25 fps；720P (1280 × 720)@30/25 fps
- ● 支持 Ultra 265、H.265、H.264、MJPEG 等多种视频格式
- ● 2D/3D 数字降噪 (DNR)
- ● 支持超高速运动检测（人/车检测）
- ● ROI（感兴趣区域）功能，确保低带宽下感兴趣区域的图像质量
- ● 智能红外，红外距离可达 50 米（164 英尺）
- ● 120 dB 真 WDR 技术，即使在强光环境下也能呈现清晰图像
- ● 内置麦克风
- ● 宽工作温度范围：-30 ℃ 至 60 ℃（-22 ℉ 至 140 ℉）
- ● 直流 12 V，支持 PoE (IEEE 802.3af) 供电供应
- ● IP67
技术规格
| Model | IPC-B312-ADZK |
| Camera | |
| Max Resolution | 2 MP |
| Sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 120 dB |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Iris | F1.6 |
| Field of View (H) | 111.0° to 36.6° |
| Field of View (V) | 59.4° to 20.6° |
| Field of View (D) | 130.0° to 42.0° |
| DORI | |
| DORI Distance (Lens) | 2.8 to 12 mm |
| DORI Distance (Detect) | 42.0 m to 180 m (137.8 ft. to 590.6 ft.) |
| DORI Distance (Observe) | 16.8 m to 72.0 m (55.1 ft. to 236.2 ft.) |
| DORI Distance (Recognize) | 8.4 m to 36 m (27.6 ft. to 118.1 ft.) |
| DORI Distance (Identify) | 4.2 m to 18 m (13.8 ft. to 59.1 ft.) |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance (IR) | 50 m (164.0 ft.) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | H.265, H.264, MJPEG, Ultra 265 |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Smart IR | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Cross line, Intrusion (based on human body detection), Ultra motion detection (human/ vehicle detection) |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP, IPv6 |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Client | Uniarch client, Uniarch Care |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57.0 and above,Firefox 58.0 and above,Edge 16 and above |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) Power consumption: Max. 9.6 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 197.4 mm × 73.0 mm × 72.9 mm (7.8" × 2.9" × 2.9") (L × W × H) |
| Weight | 0.51 kg (1.12 lb.) |
| Material | Metal+Plastic+Graphene |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
