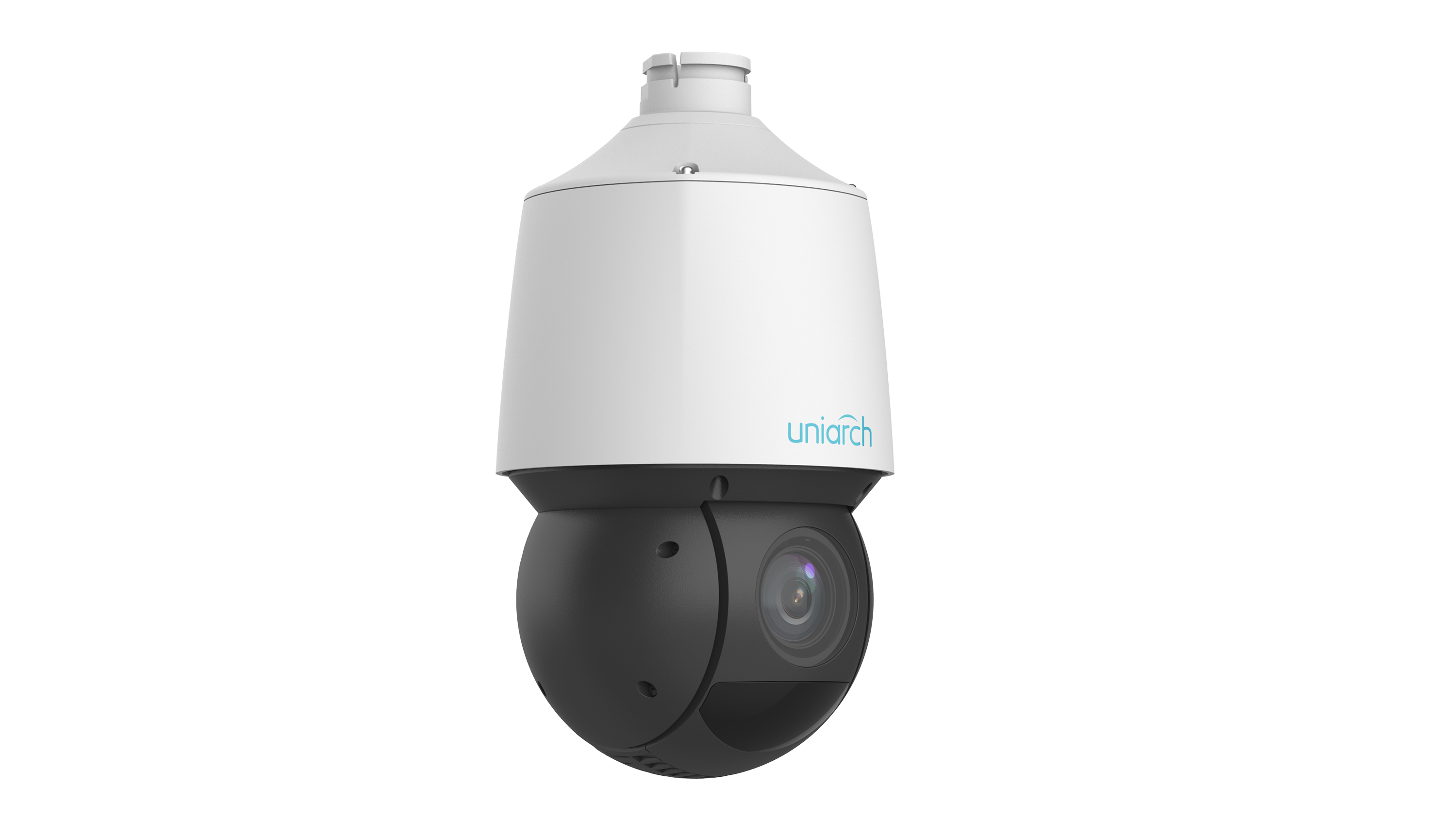

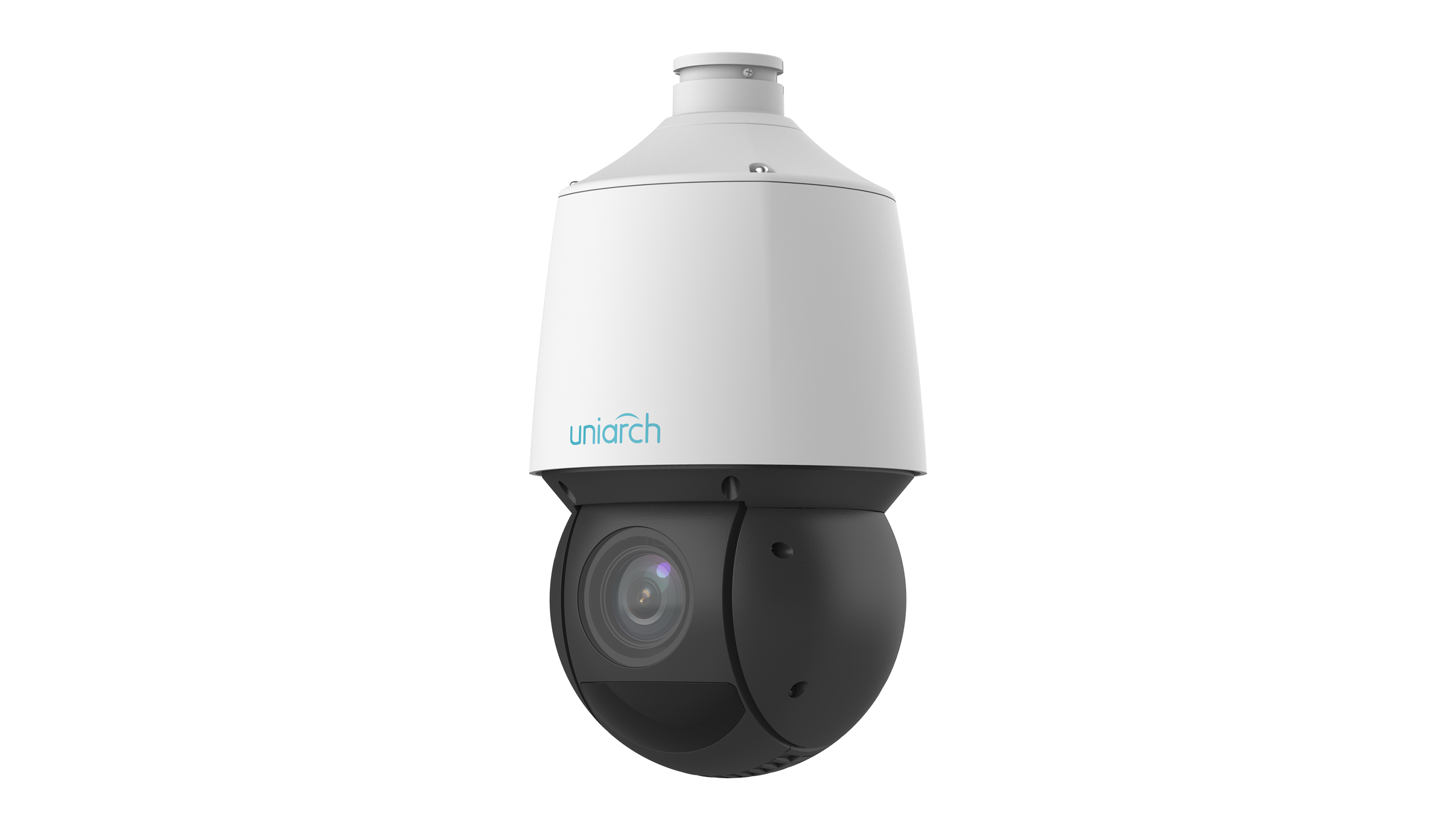

3MP 星光 20 倍红外智能半球网络摄像机
产品描述
3MP 星光 20 倍红外智能半球网络摄像机关键特性
- ● 300万像素，1/2.8英寸CMOS传感器，高品质图像
- ● 主码流分辨率2304 × 1296@30 fps
- ● 20倍光学变焦，可近距离观察拍摄对象
- ● 智能入侵防御，支持误报过滤，包括越线、入侵、进入区域、离开区域检测
- ● 人脸捕捉，自动选择最佳快照
- ● 人流统计，支持人流计数和人群密度监测，适用于不同的统计场景
- ● 高达120 dB的光学宽动态范围 (WDR)
- ● 智能红外，红外照射距离可达100米（328英尺）
- ● 直流12V±25%，PoE+（IEEE 802.3at）
- ● MicroSD卡槽，最大支持256GB
- ● IP66防护等级
技术规格
| Model | IPC-P413-X20K |
| Camera | |
| Sensor | 1/2.8", 3.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Color: 0.003 Lux (F1.7, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >52 dB |
| Lens | |
| Focal Length | 5 to 100 mm |
| Optical Zoom | 20X |
| Iris | F1.7 to F2.8 |
| Field of View (H) | 51.70° to 3.85° |
| Field of View (V) | 30.49° to 2.16° |
| Field of View (D) | 63.60° to 4.54° |
| DORI | |
| DORI Distance (Lens) | 5 to 100 mm |
| DORI Distance (Detect) | 77.6 m to 1551.7 m (254.5 ft. to 5091.0 ft.) |
| DORI Distance (Observe) | 31.0 m to 620.7 m (101.8 ft. to 2036.4 ft.) |
| DORI Distance (Recognize) | 155.5 m to 310.3 m (510.2 ft. to 1018.0 ft.) |
| DORI Distance (Identify) | 7.8 m to 155.2 m (25.6 ft. to 509.2 ft.) |
| Video | |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 3 MP (2304 × 1296), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Intelligent | |
| Face Capture | Support |
| Auto Tracking | Support |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Exception Detection | Object removed, Object Left Behind |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR |
| Illuminator | |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | Up to 100m (328 ft) IR range |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, RTMP, SSL/TLS, IPv6 |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | APP, Uniarch client |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| PTZ | |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | N/A |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Tilt Range | -15° to 90° (auto reverse) |
| Pan Speed | 0.1°/s to 80°/s |
| Tilt Speed | 0.1°/s to 80°/s |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| General | |
| Power | DC 12 V (±25%), PoE+ (IEEE 802.3at) |
| Power Consumption | Max. 20 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø162 mm × 293 mm (Ø 6.4" × 11.5") (Ø × H) |
| Weight | 1.79 kg (3.95 lb.) |
| Working Environment | -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Heater | Support |
| Configurable | |
| P/N | Support |
