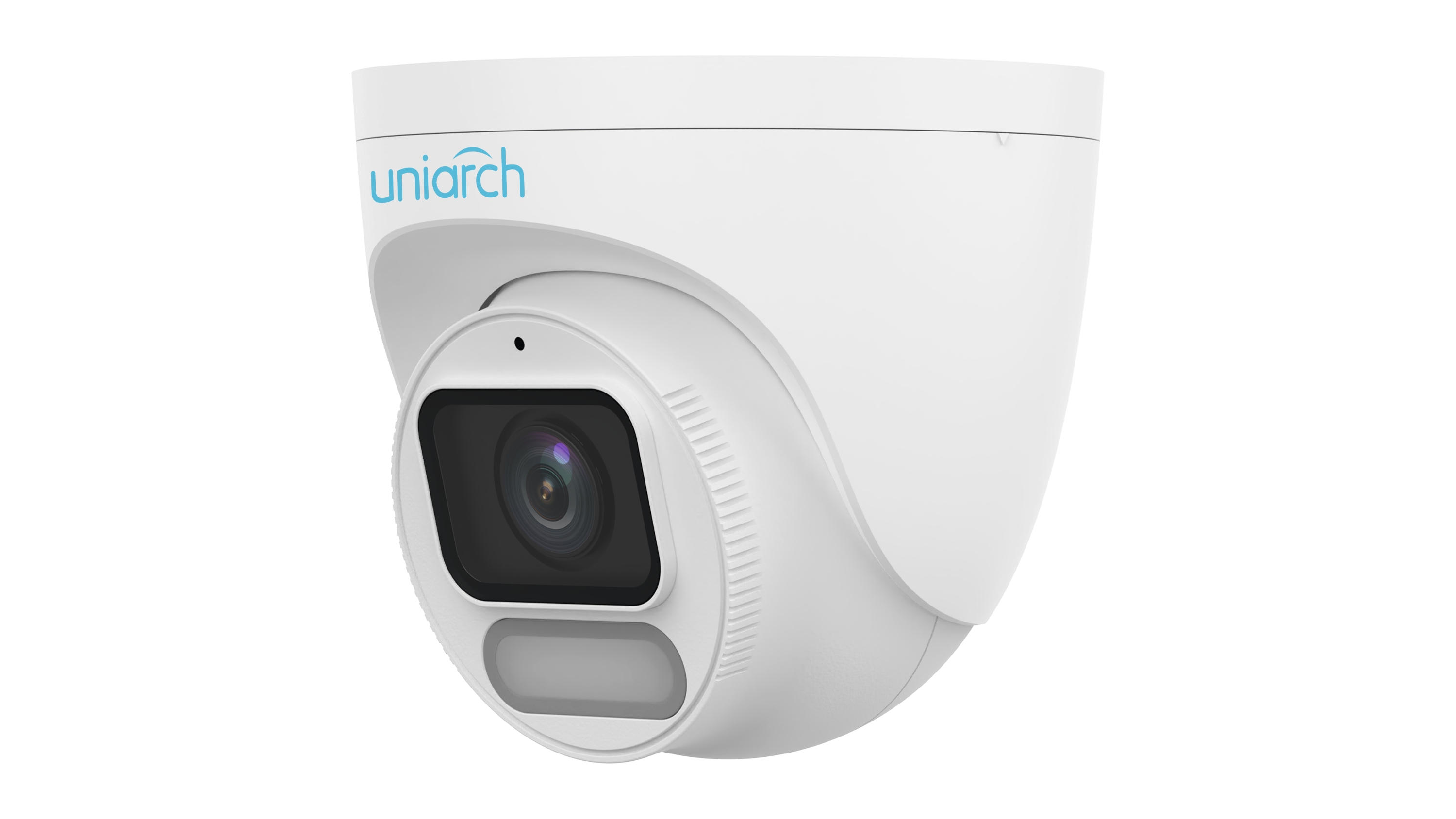

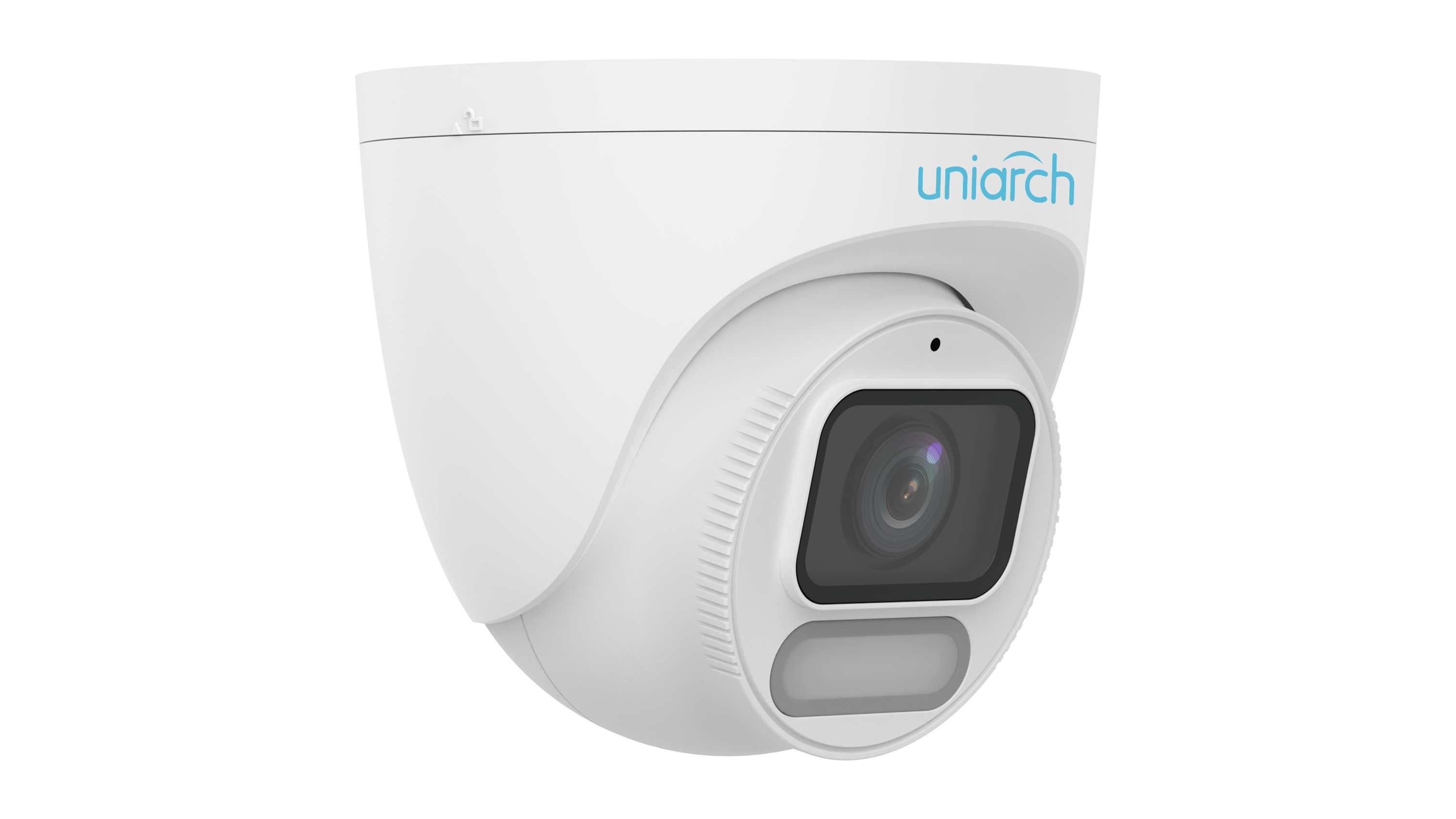

2MP ColorHunter Wise-ISP 固定暖光半球型网络摄像机
产品描述
2MP ColorHunter Wise-ISP 固定暖光半球型网络摄像机关键特性
- ● 1080P 高清画质，配备 1/2.7 英寸 CMOS 传感器和 F1.0 大光圈镜头
- ● 1080P (1920 × 1080)@30 fps；720P (1280 × 720)@30 fps
- ● 支持 Ultra 265、H.265、H.264 和 MJPEG 格式
- ● 支持 ColorHunter 和 Wise-ISP 技术，即使在极低光照条件下也能深度优化色彩、细节和消除拖影
- ● 120 dB 真 WDR 技术，即使在强光环境下也能呈现清晰图像
- ● 支持 9:16 走廊模式
- ● 内置麦克风
- ● 白光模式，暖光模式下有效距离可达 30 米（98.4 英尺）
- ● 支持 MicroSD 卡，最大容量 512 GB
- ● IP67 防护等级
- ● 支持 PoE 供电
- ● 三轴
技术规格
| Model | IPC-T242-ADF28K-WP | IPC-T242-ADF40K-WP |
| Camera | ||
| Max Resolution | 2 MP | |
| Sensor | 1/2.7" CMOS | |
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) | |
| Shutter | Auto/Manual, 1 to 1/100000 s | |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° | |
| S/N | > 52 dB | |
| WDR | 120 dB | |
| Lens | ||
| Focal Length | 2.8 mm | 4.0 mm |
| Iris Type | Fixed | |
| Iris | F1.0 | |
| Field of View (H) | 99.0° | 85.4° |
| Field of View (V) | 53.0° | 47.5° |
| Field of View (D) | 118.0° | 98.5° |
| Lens Type | Fixed | |
| DORI | ||
| DORI Distance (Lens) | 2.8 mm | 4 mm |
| DORI Distance (Detect) | 45.0 m (147.6 ft.) | 64.3 m (211.0 ft.) |
| DORI Distance (Observe) | 18.0 m (59.1 ft.) | 25.7 m (84.3 ft.) |
| DORI Distance (Recognize) | 9.0 m (29.5 ft.) | 12.9 m (42.3 ft.) |
| Illuminator | ||
| Supplemental Light | Warm light | |
| Light On/Off Control | Auto/Manual | |
| Illumination Distance (Warm Light) | 30 m (98.4 ft.) | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 Code Profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
|
| Video Bit Rate | 128 Kbps to 6144 Kbps | |
| U-code | Support | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Up to 4 areas | |
| ROI | Support | |
| Video Stream | Dual streams | |
| Image | ||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |
| Digital Noise Reduction | 2D/3D DNR | |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |
| Dewarping | N/A | |
| HLC | Support | |
| BLC | Support | |
| Defog | Digital defog | |
| Events | ||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |
| Audio | ||
| Audio Compression | G.711U, G.711A | |
| Audio Bitrate | 64 Kbps | |
| Two-way Audio | N/A | |
| Suppression | Support | |
| Sampling Rate | 8 kHz | |
| Storage | ||
| Edge Storage | MicroSD, up to 512 GB | |
| Network Storage | ANR, NAS (NFS) | |
| Network | ||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |
| Client | APP, Uniarch client | |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
| Interface | ||
| Audio I/O | N/A | |
| Alarm I/O | N/A | |
| Serial Port | N/A | |
| Built-in Mic | Support | |
| Built-in Speaker | N/A | |
| WIFI | N/A | |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |
| Video Output | N/A | |
| Certification | ||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
|
| Safety | CE LVD (EN 62368-1) | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); | |
| Protection | IP67 (IEC 60529) | |
| General | ||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |
| Power Consumption | Max. 2.6 W | |
| Power Interface | Ø5.5 mm coaxial power plug | |
| Dimensions | Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H) | |
| Weight | 0.40 kg (0.88 lb.) | |
| Material | Metal + Plastic | |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Surge Protection | 4 KV | |
| Reset Button | Support | |
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian | |
