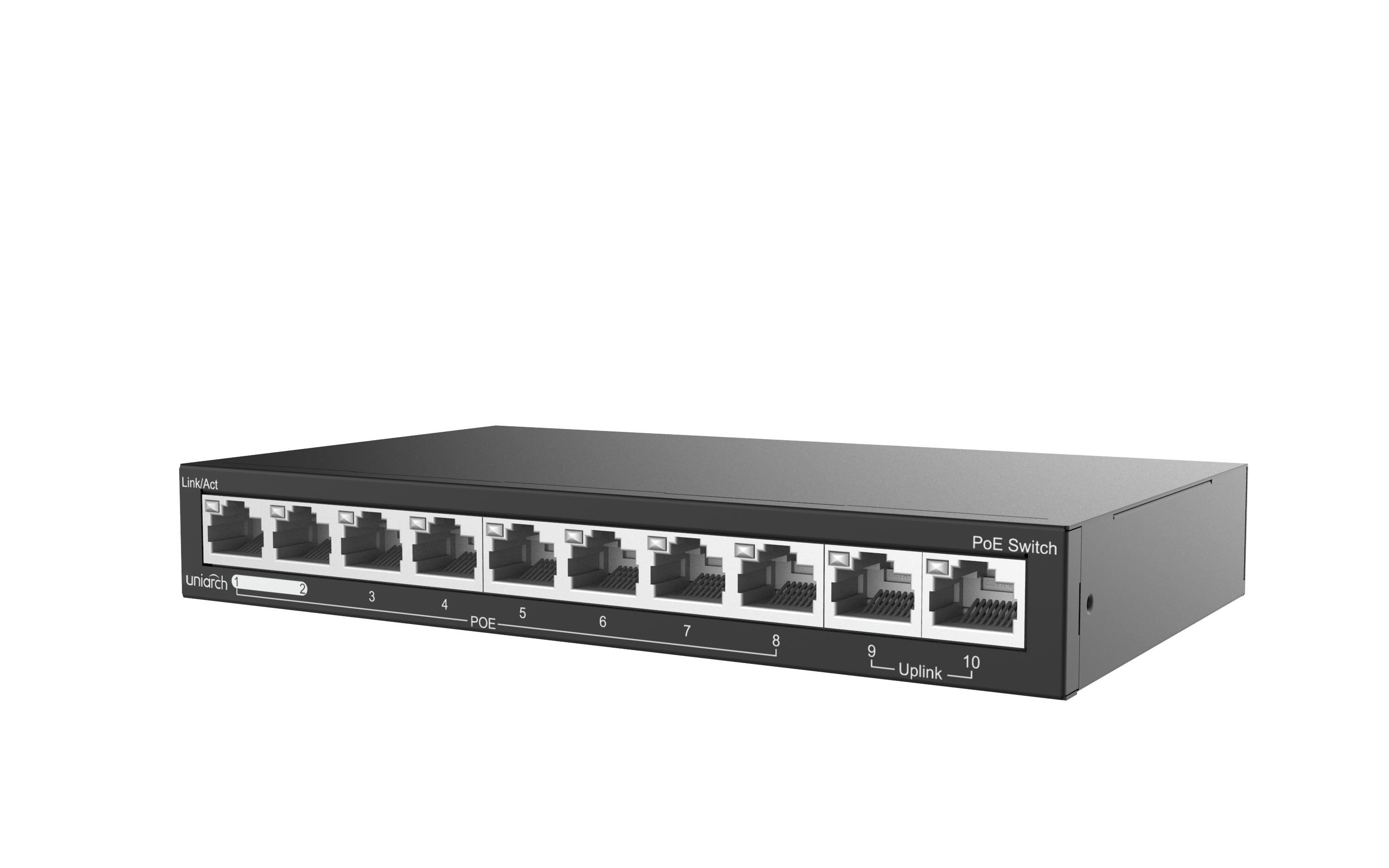

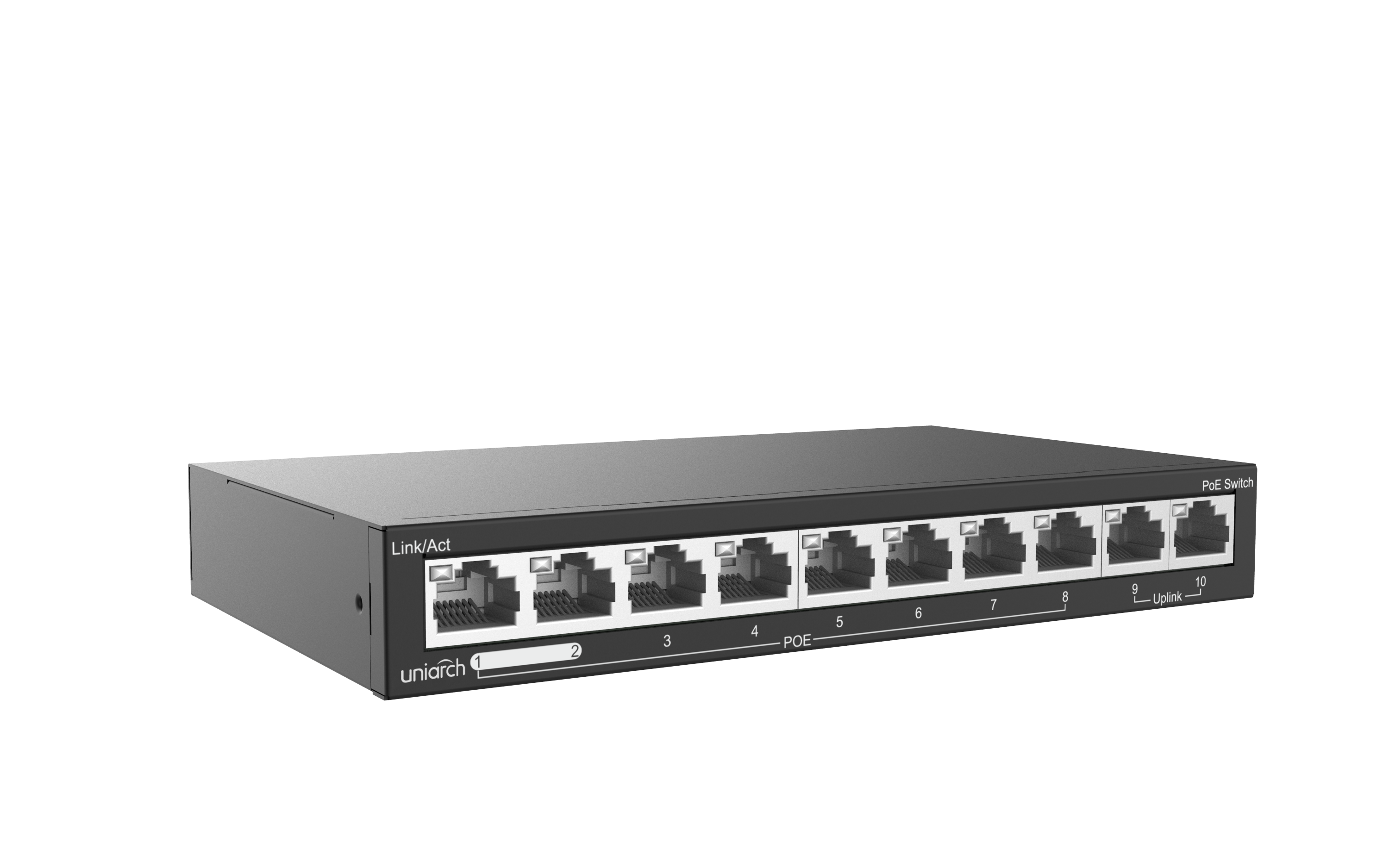

Unmanaged Ethernet Switch(PoE)
产品描述
非网管型以太网交换机（PoE）
端口类型：10 个 100Mbps 网络端口（RJ45），其中 8 个支持 PoE
交换容量：2 Gbps
转发性能：1.49Mpps
MAC 地址：1K
数据包缓冲区：448K 位
前置端口：1 至 2
标准：IEEE802.3、IEEE802.3u、IEEE802.3az、IEEE802.3x、IEEE802.3af、IEEE802.3at
尺寸（宽×深×高）：171 × 101 × 25.5 毫米
工作模式：默认（正常模式）：所有端口均可相互通信；扩展（监控模式）：传输距离最远可达 250 米
关键特性
- ● 多种工作模式满足您的业务需求：普通模式、安全模式和监控模式
- ● 支持端口流量控制
- ● 支持安全模式，所有下行端口仅可与上行端口通信
- ● 监控模式下传输距离可达 250 米
- ● 支持缓冲区优化
- ● 全金属外壳，安全可靠
技术规格
| Model | SW-2110-LP |
| Hardware Specification | |
| Ports Type | 10×100Mbps network ports (RJ45), including 8 PoE ports |
| Switching capacity | 2 Gbps |
| Power Supply | DC 48/51V, powered by adapter( AC 100 to 240V) |
| Forwarding performance | 1.49Mpps |
| MAC | 1K |
| PoE Standard | IEEE 802.3af, IEEE 802.3 at |
| Packet Buffer | 448K bit |
| PoE Mode | ModeB (4578) |
| Max.PoE Power | Max capacity:60W |
| Max capacity for single port: 30W | |
| Prior Ports | 1 to 2 |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Cooling Fans | 0 |
| Max.Power | 65W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Indicator | POWER: |
| Steady on: AC input is normal | |
| Off: No AC input | |
| No PoE Indicator | |
| PoE-MAX： | |
| off ：The POE power supply power of the whole machine is less than 80% of the specification | |
| Steady on : The POE power supply power of the whole machine is greater than 85% of the specification | |
| LINK/ACT： | |
| Off: No link | |
| Steady on: Linked | |
| Flashing: Transmitting data | |
| Dimensions (W×D×H) | 171 × 101 × 25.5 mm |
| Weight | 0.29KG |
| Working Mode | Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters |
| Compliance | |
| NDAA Compliant | Support |
