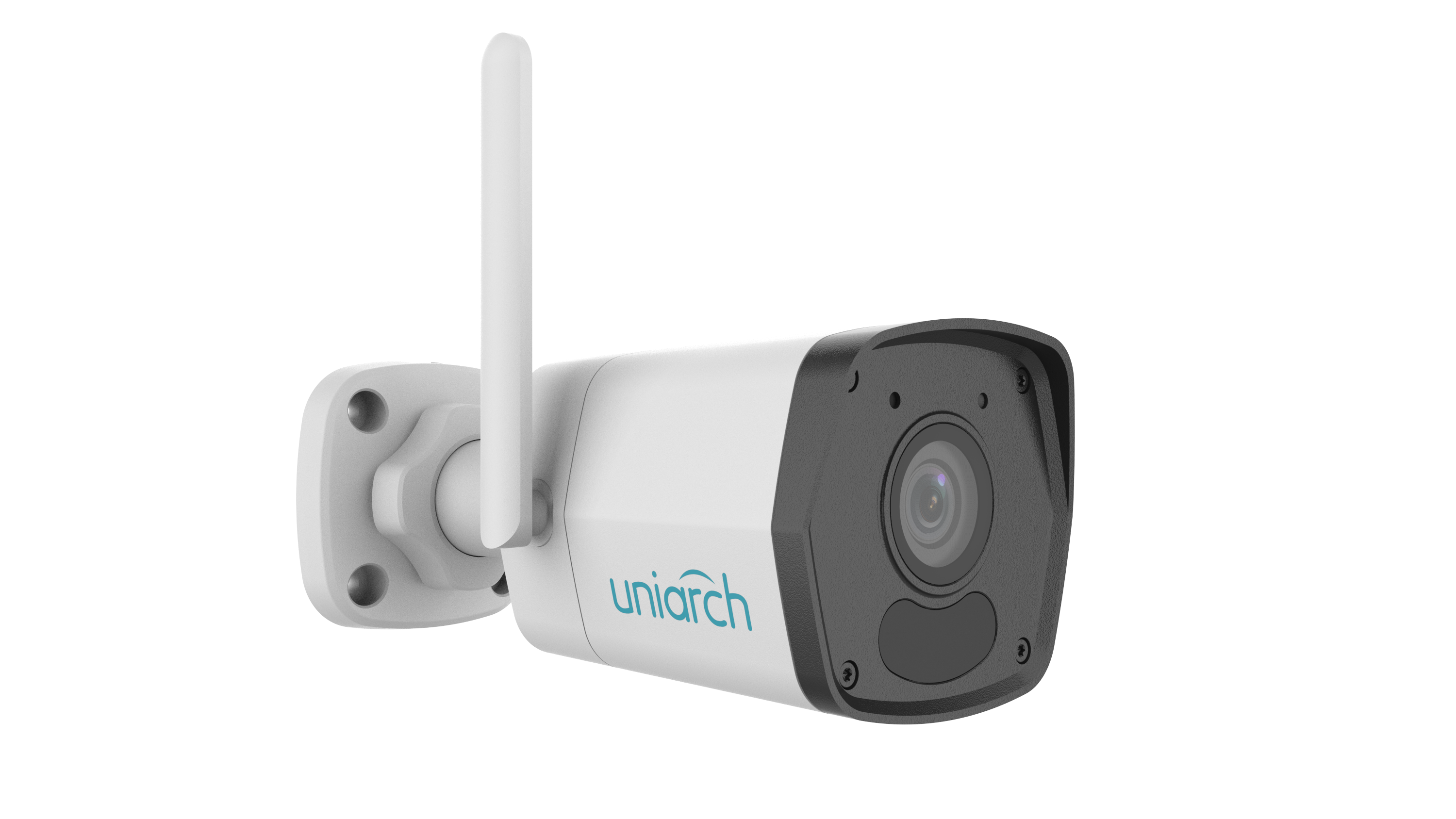

200万像素WiFi红外子弹头摄像头

技术规格

Model	Uho-B1R-M2F3-A	Uho-B1R-M2F4-A
Camera
Max Resolution	2 MP
Sensor	1/2.9" CMOS
Min. Illumination	Colour: 0.01 lux (F2.0 AGC ON) 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N	>52 dB
WDR	DWDR
Lens
Focal Length	2.8 mm	4.0 mm
Iris	F2.0
Field of View (H)	103.0°	77.5°
Field of View (V)	60.7°	43.2°
Field of View (D)	108.4°	89.1°
Iris Type	Fixed
DORI
DORI Distance (Lens)	2.8 mm	4.0 mm
DORI Distance (Detect)	45.0 m (147.6 ft)	66.7 m (218.7 ft)
DORI Distance (Observe)	18.0 m (59.1 ft)	26.7 m (87.6 ft)
DORI Distance (Recognize)	9.0 m (29.5 ft)	13.3 m (43.7 ft)
DORI Distance (Identify)	4.5 m (14.8 ft)	6.7 m (21.9 ft)
Illuminator
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
Supplemental Light	IR
Video
H.264 Code Profile	Baseline profile
Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 1080P (19201080), Max 25fps; 720P (1280720), Max 25fps Sub Stream: 640360,Max 25fps; 2CIF(704288), Max 25fps; CIF(352*288), Max 25fps;
Video Bit Rate	128 Kbps to 2048 Kbps
U-code	Support
OSD	Up to 2 OSDs
Privacy Mask	Support (only NVR)
ROI	Support
Video Stream	Dual streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
BLC	Support
Defog	Digital defog
Events
Basic Detection	Ultra motion detection (based on human body and vehicle detection), High-Decibel detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR
Network
Security	Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
User/Host	Up to 6 users. 2 user levels: administrator and common user
Compatible Integration	API, SDK
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Wi-Fi
Wireless Standards	IEEE802.11b/g/n
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20 MHz Support
Modulation Mode	802.11b: DSSS(CCK, DQPSK, DBPSK) 802.11g/n: OFDM(BPSK, QPSK, QAM16, QAM64)
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±2 dBm@11 Mbps802.11g: 13±2 dBm@54 Mbps802.11n: 13±2 dBm@72.2 Mbps
Receive Sensitivity	802.11b: -85 dBm@11 Mbps (Typical)802.11g: -72 dBm@54 Mbps (Typical)802.11n: -70 dBm@72.2 Mbps (Typical)
Transmission Rate	802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 72.2 Mbps
Interface
Audio I/O	N/A
Video Output	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
Protection	IP67 (IEC 60529)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN IEC 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
General
Power Interface	Ø5.5 mm coaxial power plug
Material	Metal + Plastic
Surge Protection	4 KV
Power	DC 12V±25% Power consumption: Max 3.6W
LED Indicator	1, red/green
Dimensions	171 × 87 ×72 mm (6.7” × 3.4” × 2.8”)
Weight	0.24 kg (0.53 lb)
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Reset Button	Support
