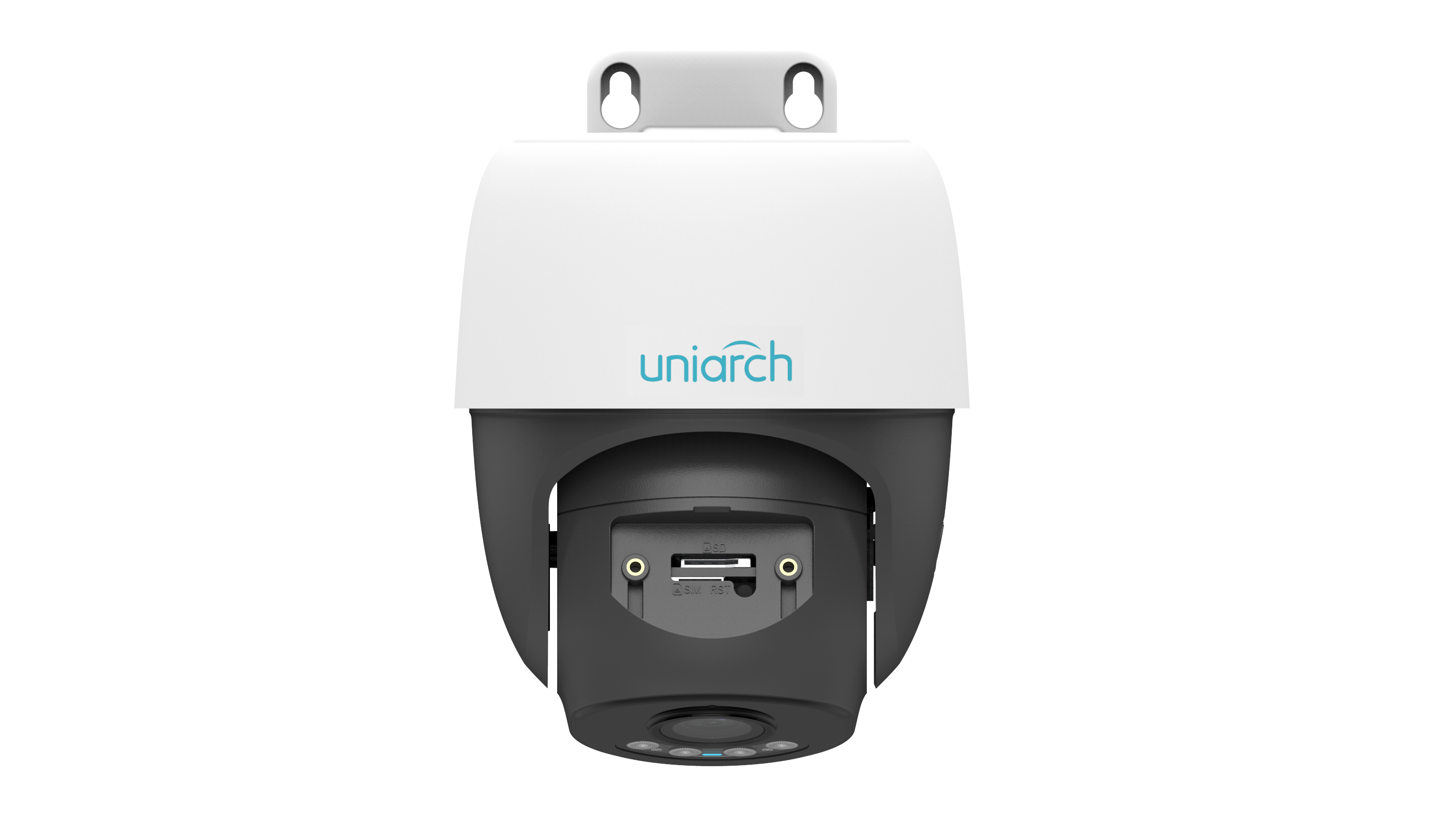

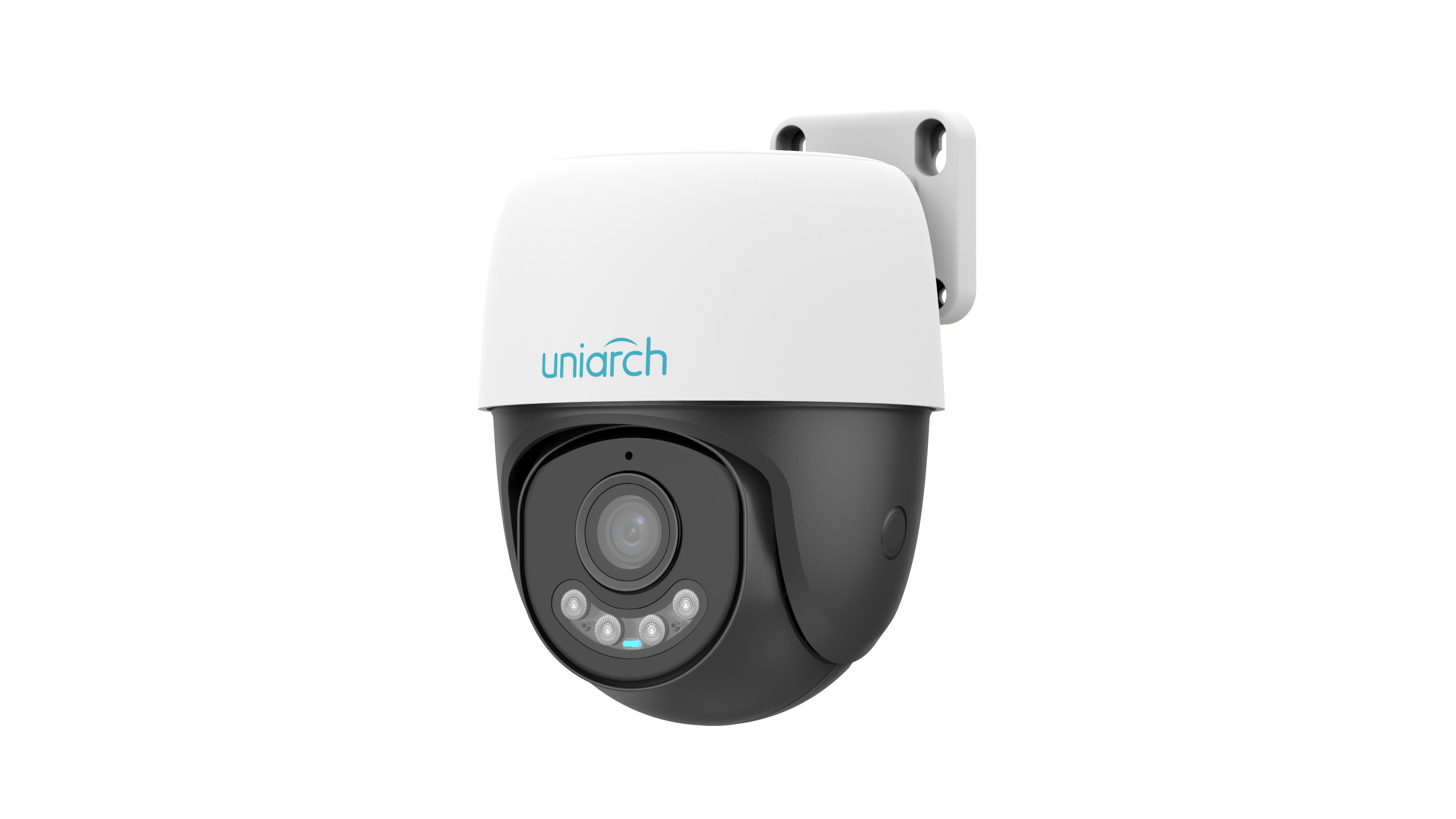

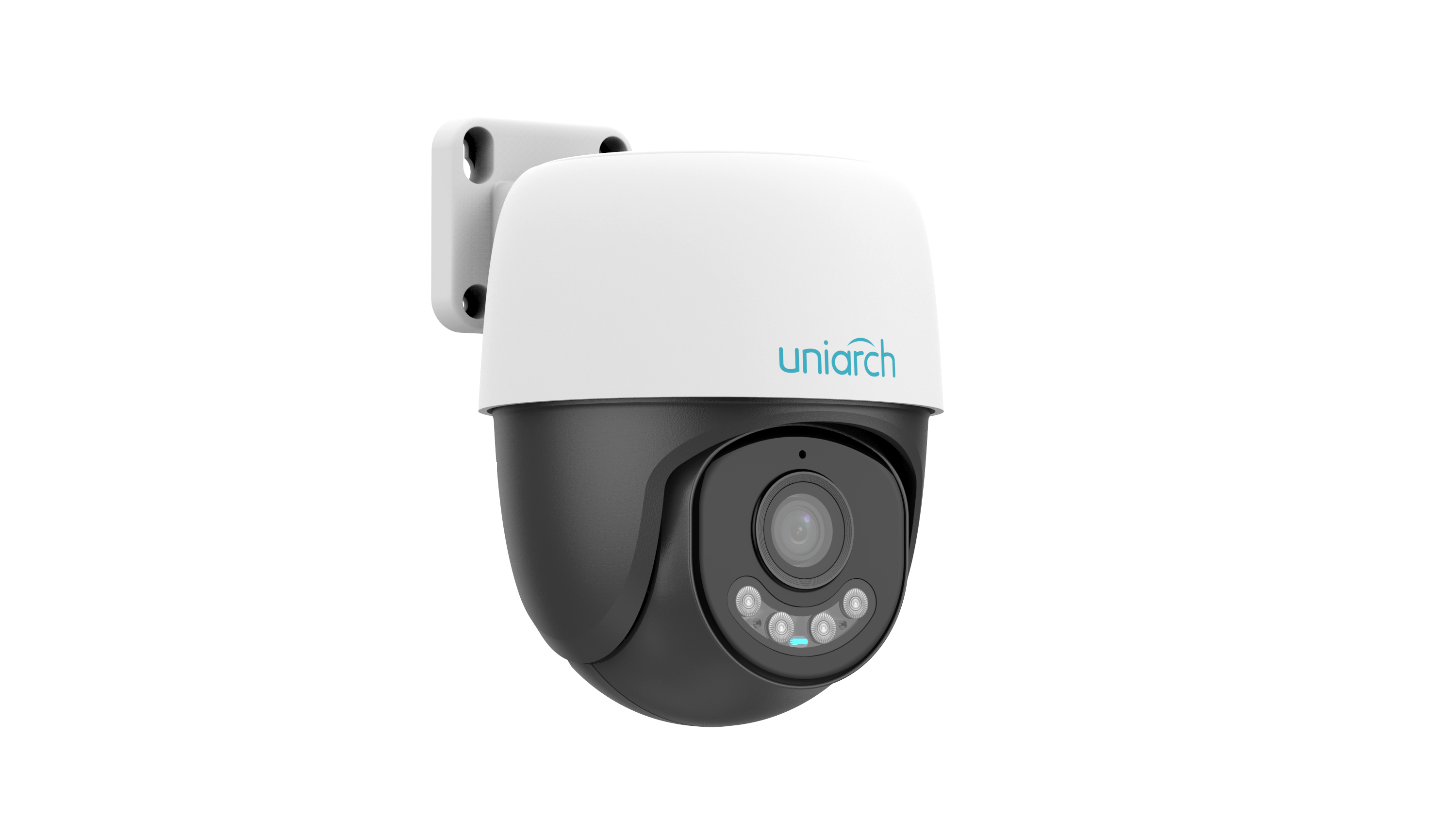

4MP Wise-ISP 无线云台摄像机
产品描述
4MP Wise-ISP 无线云台摄像机
关键特性
- ● 400万像素，1/2.9英寸CMOS传感器，F1.0大光圈镜头，呈现高品质图像
- ● 400万像素 (2560*1440)@25/20fps；300万像素 (2304*1296)@30/25fps；200万像素 (1920*1080)@30/25fps；
- ● 支持Ultra 265、H.265、H.264视频编码
- ● Colorhunter搭载Wise-ISP技术，确保24小时全彩图像
- ● 支持数字WDR（宽动态范围）
- ● 内置麦克风和扬声器，支持双向语音通话，提供更佳的交互体验
- ● 支持声光报警，使警告和警报更加醒目
- ● 暖光模式，有效距离可达30米
- ● 支持最大512GB Micro SD卡
- ● 支持Wi-Fi连接，安装简便
- ● IP66防护等级
技术规格
| Model | Uho-P2C-M4F4 |
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/2.9" CMOS |
| Min. Illumination | Colour: 0.0003Lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| S/N | > 52 dB |
| WDR | DWDR |
| Lens | |
| Digital Zoom | 4X |
| Focal Length | 4.0 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 85.4° |
| Field of View (V) | 47.5° |
| Field of View (D) | 98.5° |
| Lens Type | Fixed |
| DORI | |
| DORI Distance (Lens) | 4.0mm |
| DORI Distance (Detect) | 64.3 (210.9 ft) |
| DORI Distance (Observe) | 25.7 (84.4 ft) |
| DORI Distance (Recognize) | 12.9 (42.2 ft) |
| DORI Distance (Identify) | 6.4 (21.1 ft) |
| Illuminator | |
| Supplemental Light | Warm light |
| Illumination Distance (Warm Light) | 30 m (98.4 ft.) |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 |
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Support (only NVR) |
| ROI | Support |
| Video Stream | Dual streams |
| Image | |
| Smart Illumination | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | N/A |
| Defog | Digital defog |
| Events | |
| Basic Detection | Human body detection, Motion detection, Audio detection |
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Intelligent | |
| Auto Tracking | Support |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR |
| Network | |
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna |
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP |
| Compatible Integration | API |
| Client | APP, Uniarch client |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Wi-Fi | |
| Wireless Standards | IEEE802.11b/g/n/ax |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz Support |
| Modulation Mode | 802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA |
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK |
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS9 |
| Receive Sensitivity | 802.11b: -76 dBm@11 Mbps (Typical)802.11g: -65 dBm@54Mbps (Typical)802.11n: -61 dBm@MCS7, HT40 (Typical)802.11ax: -54 dBm@MCS9, HE40 (Typical) |
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps |
| PTZ | |
| Pan Range | 0° ~ 345° |
| Pan Speed | 1°/s ~ 40°/s Preset speed: 40°/s |
| Tilt Range | 0° ~ 90° |
| Tilt Speed | 1°/s ~ 30°/s Preset speed: 30°/s |
| Number of Presets | 20 |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) |
| Safety | CE LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU) ; |
| Protection | IP66 (IEC 60529) |
| General | |
| Power Consumption | Max 6.5W |
| Power | DC 12V±25% |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Φ109mm*141mm*151mm (Φ4.3”x 5.6”x 6.0”) |
| Weight | 0.39kg (0.85lb) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| LED Indicator | 1, red/blue |
