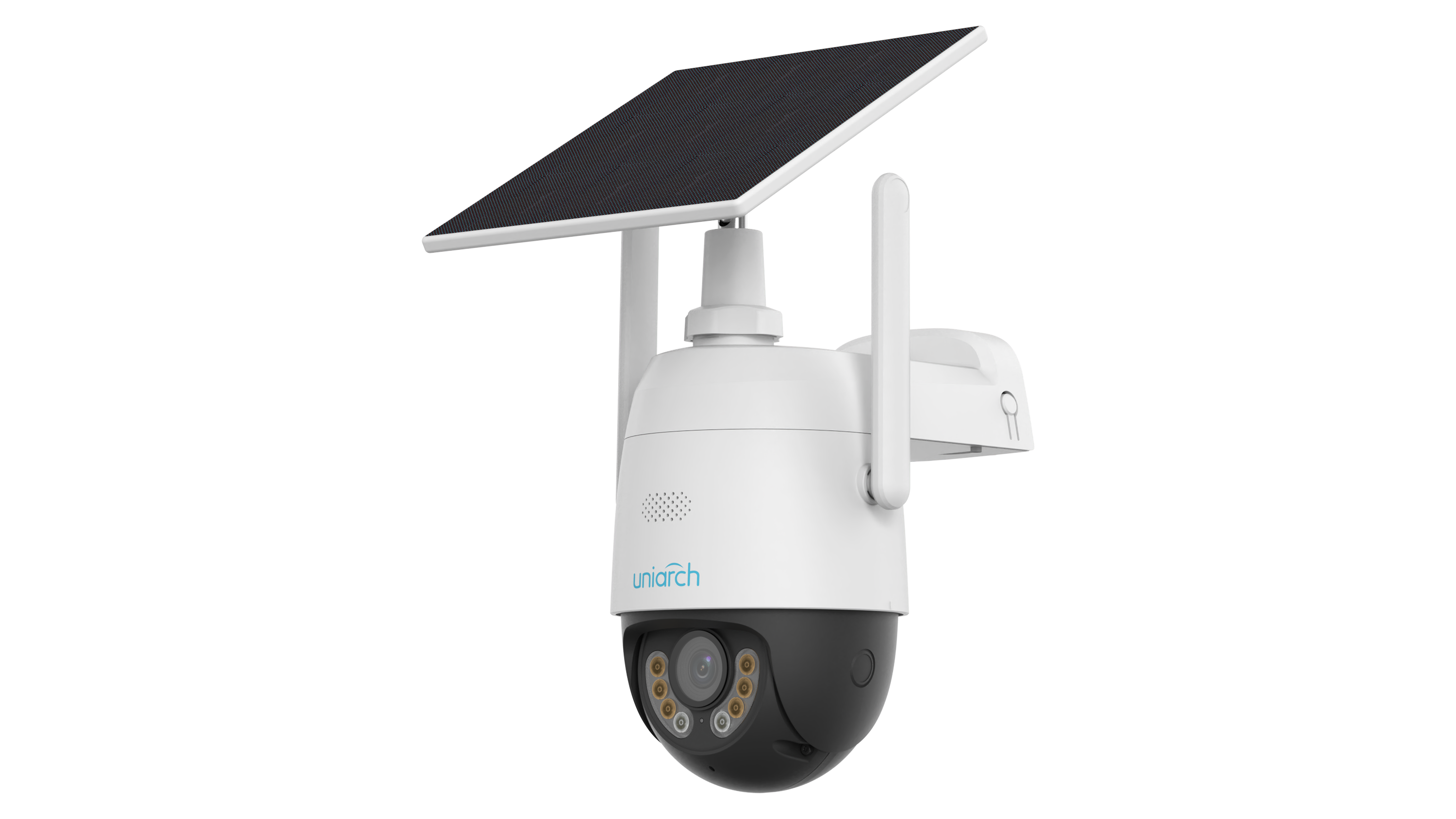

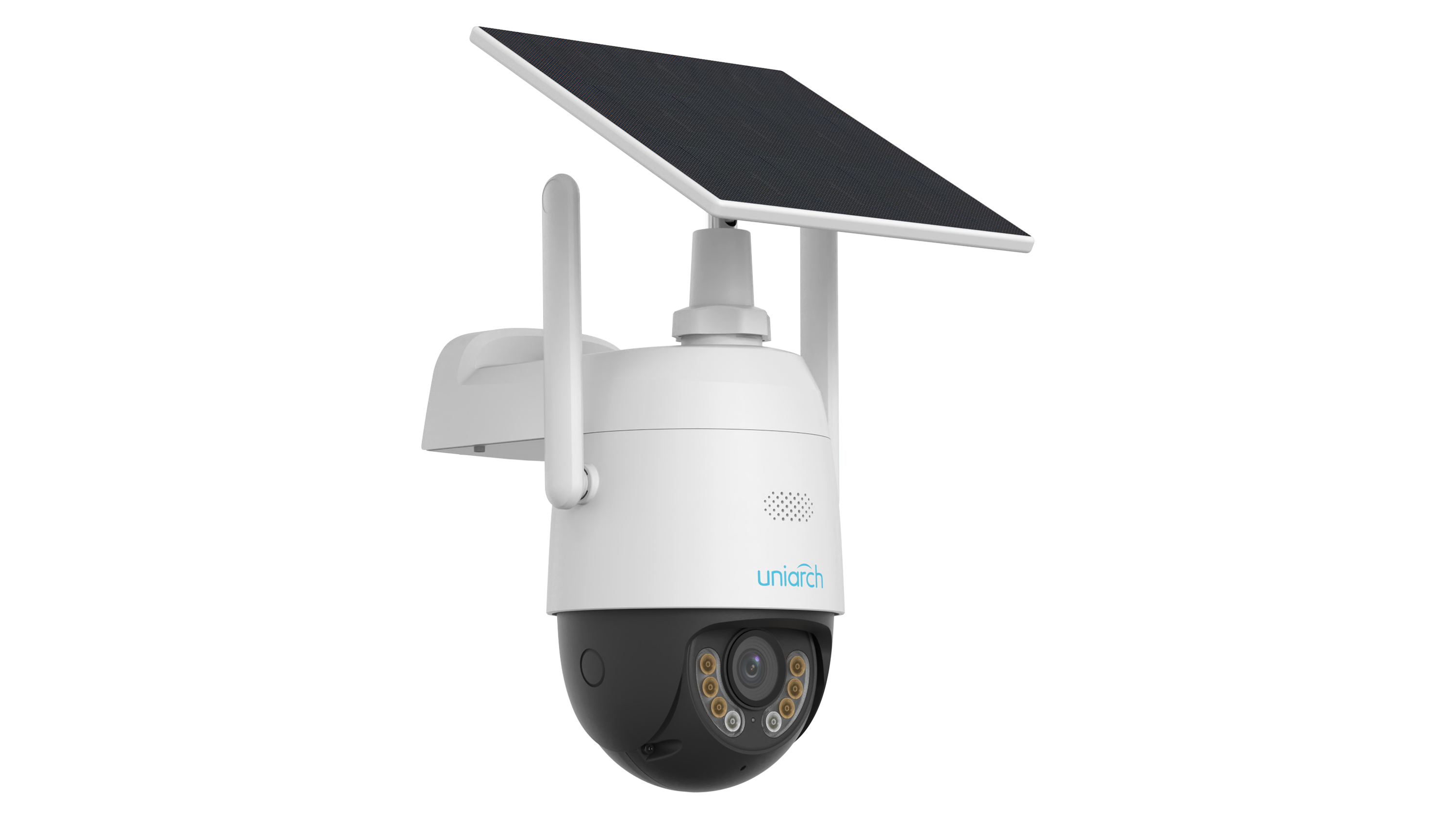

3MP 4G 太阳能电池 PT 摄像机
产品描述
3MP 4G 太阳能电池 PT 摄像机
关键特性
- ● 300万像素，1/2.8英寸CMOS传感器，高品质图像
- ● 主码流分辨率2304*1296@15fps
- ● 支持4G网络接入
- ● 支持Ultra 265和H.265视频编码
- ● 内置麦克风和扬声器，支持双向语音通话，提供更佳的互动体验
- ● 智能红外，红外和暖光照射距离均可达30米（98英尺），适用于更多场景
- ● 支持最大512GB Micro SD卡
- ● IP66防护等级
- ● 正面采用石墨烯材质，散热性能更佳，更环保
- ● 支持标准夜景和极光夜景模式
技术规格
| Model | Uho-P2G-M3F4D-LA |
| Camera | |
| Max Resolution | 3 MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Colour: 0.001Lux (F1.0, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | > 52 dB |
| WDR | N/A |
| Lens | |
| Focal Length | 4.0 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 87.5° |
| Field of View (V) | 46.3° |
| Field of View (D) | 92.4° |
| Lens Type | Fixed |
| DORI | |
| DORI Distance (Lens) | 4.0mm |
| DORI Distance (Detect) | 62.1 (203.6ft) |
| DORI Distance (Observe) | 24.8 (81.5ft) |
| DORI Distance (Recognize) | 12.4 (40.7ft) |
| DORI Distance (Identify) | 6.2 (20.4ft) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 30 m (98.4 ft.) |
| Illumination Distance (Warm Light) | 30 m (98.4 ft.) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto |
| Video | |
| Video Compression | Ultra 265, H.265 |
| Frame Rate | Main Stream: 3MP (2304*1296), Max 15fps; 720P (1280*720), Max 15fps; D1 (720*576), Max 15fps; |
| Video Bit Rate | 256 Kbps to 1024 Kbps |
| U-code | Support |
| OSD | Up to 1 OSD |
| ROI | N/A |
| Video Stream | Single stream |
| Image | |
| White Balance | Auto |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal |
| Dewarping | N/A |
| HLC | N/A |
| BLC | N/A |
| Events | |
| Basic Detection | Ultra motion detection |
| General Function | RTSP authentication, User authentication, HTTP authentication |
| Intelligent | |
| Auto Tracking | N/A |
| Audio | |
| Audio Compression | G.711U |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR |
| Network | |
| 4G Network Frequency | LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD: B38/B40/B41 |
| 4G Network Standard | LTE-FDD, LTE-TDD |
| 4G Card Type | Nano-SIM |
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, HTTP, SSL/TLS |
| Compatible Integration | API |
| Client | APP, Uniarch client |
| Solar Panel | |
| Output Voltage | 5 V |
| Output Current | 1 A |
| Output Power | 5 W |
| Structure / Environment | |
| Battery Capacity | 10 Ah |
| PTZ | |
| Pan Range | 0° ~ 345° |
| Pan Speed | 1°/s ~ 40°/s Preset speed: 40°/s |
| Tilt Range | 0° ~ 90° |
| Tilt Speed | 1°/s ~ 30°/s Preset speed: 30°/s |
| Number of Presets | N/A |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet (For testing purposes only, cable connection is not available.) |
| Certification | |
| EMC | CE EMC (EN 50130-4,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) |
| Safety | CE LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP66 (IEC 60529) |
| General | |
| Power Consumption | Max 4.0W AOV mode: 100mW |
| Power | DC 12V±25% |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Φ118mm*170mm*263mm (Φ4.6”x 6.7”x 10.4”) |
| Weight | 1.06kg (2.33lb) |
| Working Environment | 0 ℃ to 50 ℃ (32 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | 0 ℃ to 50 ℃ (32 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| LED Indicator | 1, green |
