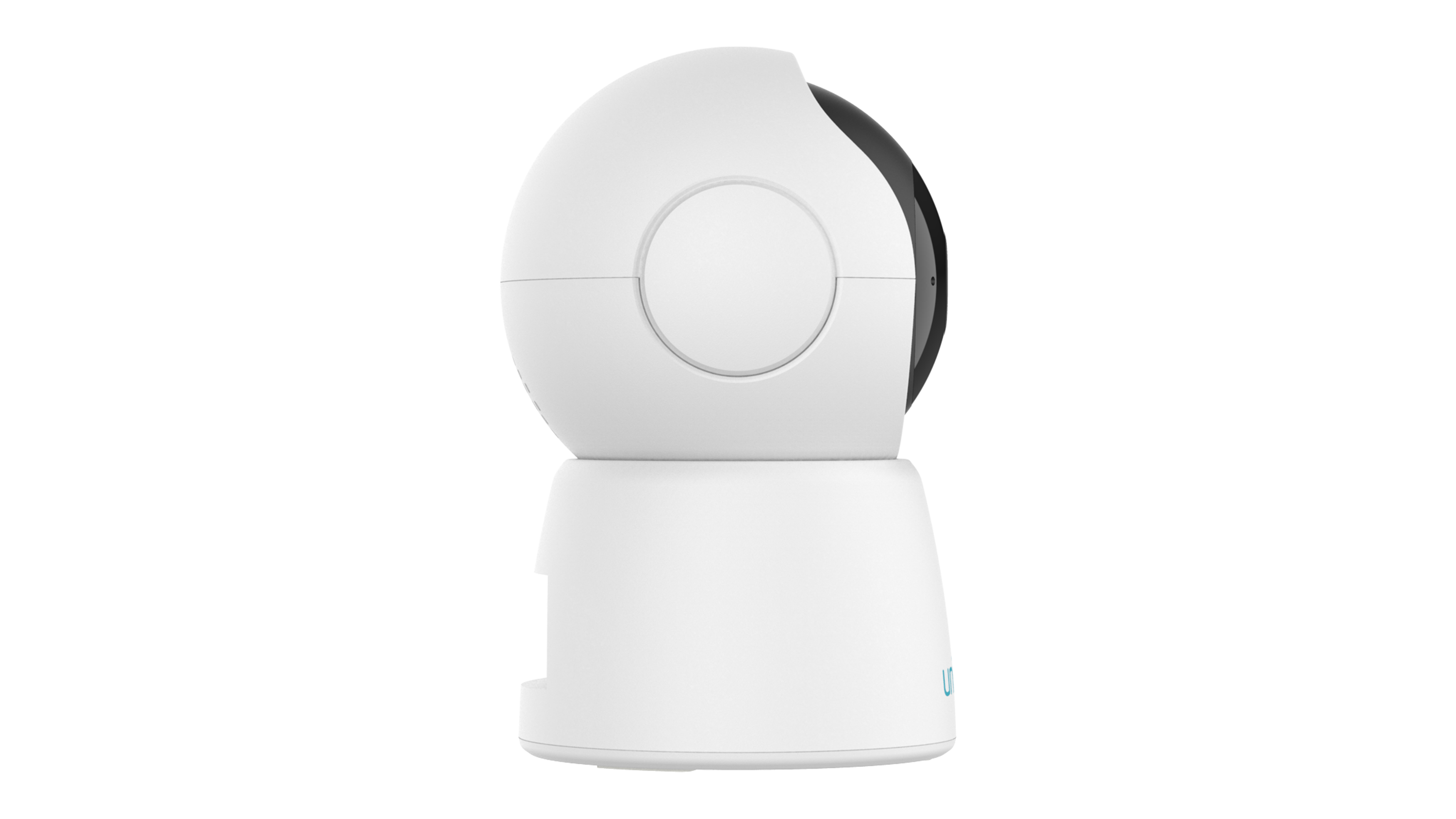

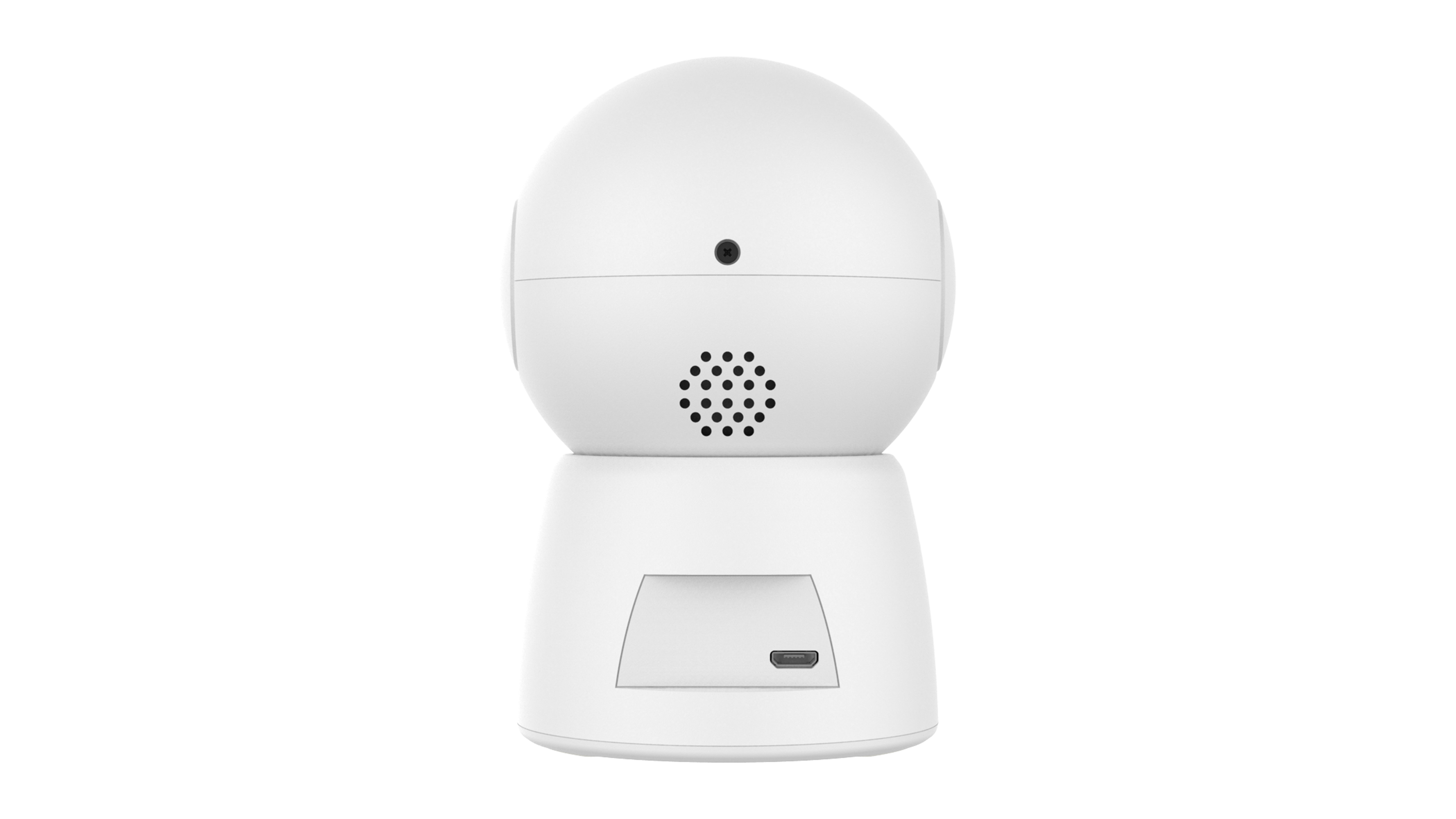

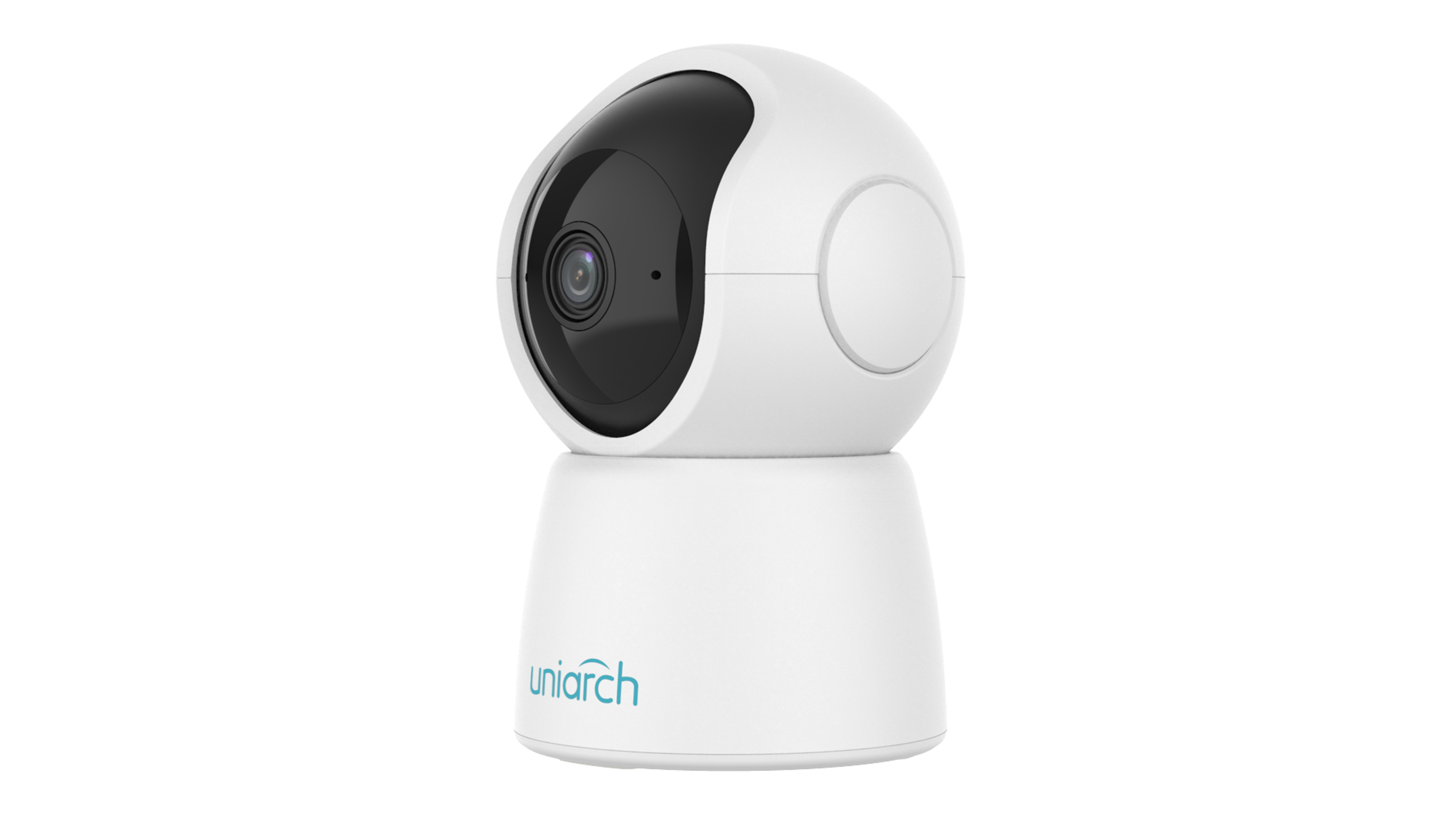

4MP Wi-Fi室内云台摄像机
产品描述
4MP Wi-Fi室内云台摄像机
最高分辨率：4MP
传感器：1/3.0英寸CMOS
焦距：4.0毫米
光圈：F2.0
红外照射距离：最远可达10米（33英尺）
关键特性
- ● 400万像素，1/3英寸CMOS传感器，成像质量高
- ● 400万像素 (2560*1440)@25/20fps；300万像素 (2304*1296)@30/25fps；200万像素 (1920*1080)@30/25fps
- ● 支持Ultra 265、H.265、H.264视频编码
- ● 内置麦克风和扬声器，支持双向语音通话，提供更佳的互动体验
- ● 红外夜视功能，红外夜视距离可达10米（33英尺）
- ● 支持512GB Micro SD卡
- ● 支持Wi-Fi连接，安装简便
技术规格
| Model | Uho-S2-M4 |
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/3.0''CMOS |
| Min. Illumination | Colour: 0.01 lux (F2.0, AGC ON) |
| 0 lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1/4 to 1/100000 s |
| S/N | >52 dB |
| WDR | DWDR |
| Lens | |
| Focal Length | 4.0 mm |
| Iris Type | Fixed |
| Iris | F2.0 |
| Field of View (H) | 79.0° |
| Field of View (V) | 42.3° |
| Field of View (D) | 85.1° |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance (IR) | Up to 10m (33ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 |
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; |
| Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support |
| OSD | Up to 2 OSDs |
| Privacy Mask | Support (only NVR) |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | N/A |
| Defog | Digital defog |
| Events | |
| Basic Detection | Human body detection, Motion detection, Audio detection |
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Intelligent | |
| Auto Tracking | Support |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR |
| Network | |
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna |
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP |
| Compatible Integration | API |
| Client | APP, Uniarch client |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Wi-Fi | |
| Wireless Standards | IEEE802.11b/g/n |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | 20 MHz Support |
| Modulation Mode | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM/HT | |
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK |
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps |
| Receive Sensitivity | 802.11b: -90 dBm@11 Mbps (Typical)802.11g: -75 dBm@54 Mbps (Typical)802.11n: -74 dBm@150 Mbps (Typical) |
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps |
| PTZ | |
| Pan Range | 0° ~ 340° |
| Pan Speed | 17°/s ~ 50°/s |
| Preset speed: 50°/s | |
| Tilt Range | -5° ~ 55° |
| Tilt Speed | 17°/s ~ 50°/s |
| Preset speed: 50°/s | |
| Number of Presets | 20 |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) |
| FCC (FCC 47 CFR part15 B) | |
| RF | FCC ID (FCC CFR 47 part15 C) |
| CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) | |
| Safety | CE LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| General | |
| Power | DC 5V/1.5A |
| Micro USB interface | |
| Dimensions | Φ80 x 120mm (Ø3.1” x 4.8”) |
| Weight | 0.18kg(0.40lb) |
| Working Environment | -10℃~55℃(-14°F ~ 131°F)，Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -10℃~55℃(-14°F ~ 131°F)，Humidity: ≤95% RH (non-condensing) |
| Reset Button | Support |
| LED Indicator | 1, red/blue |
