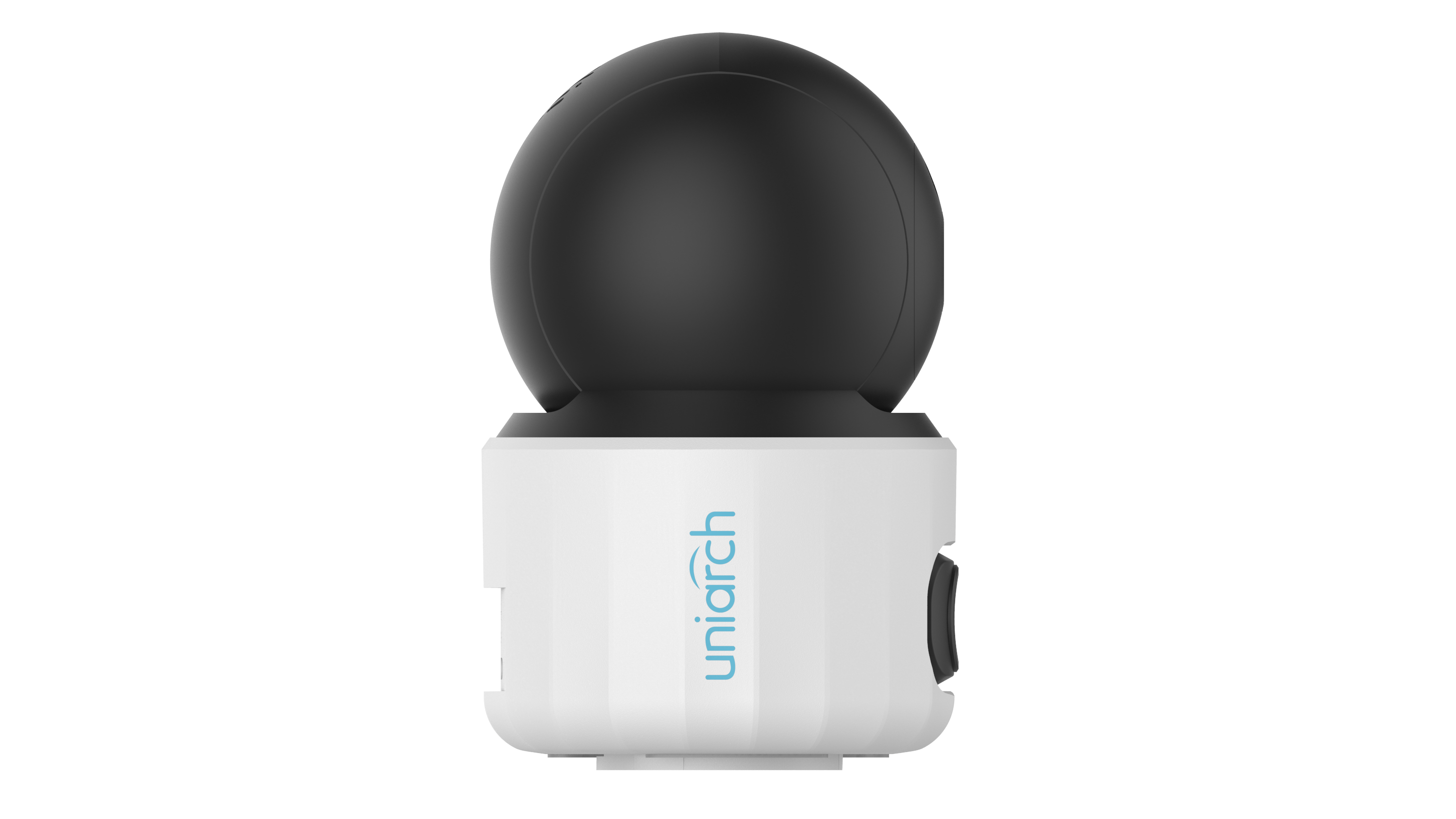

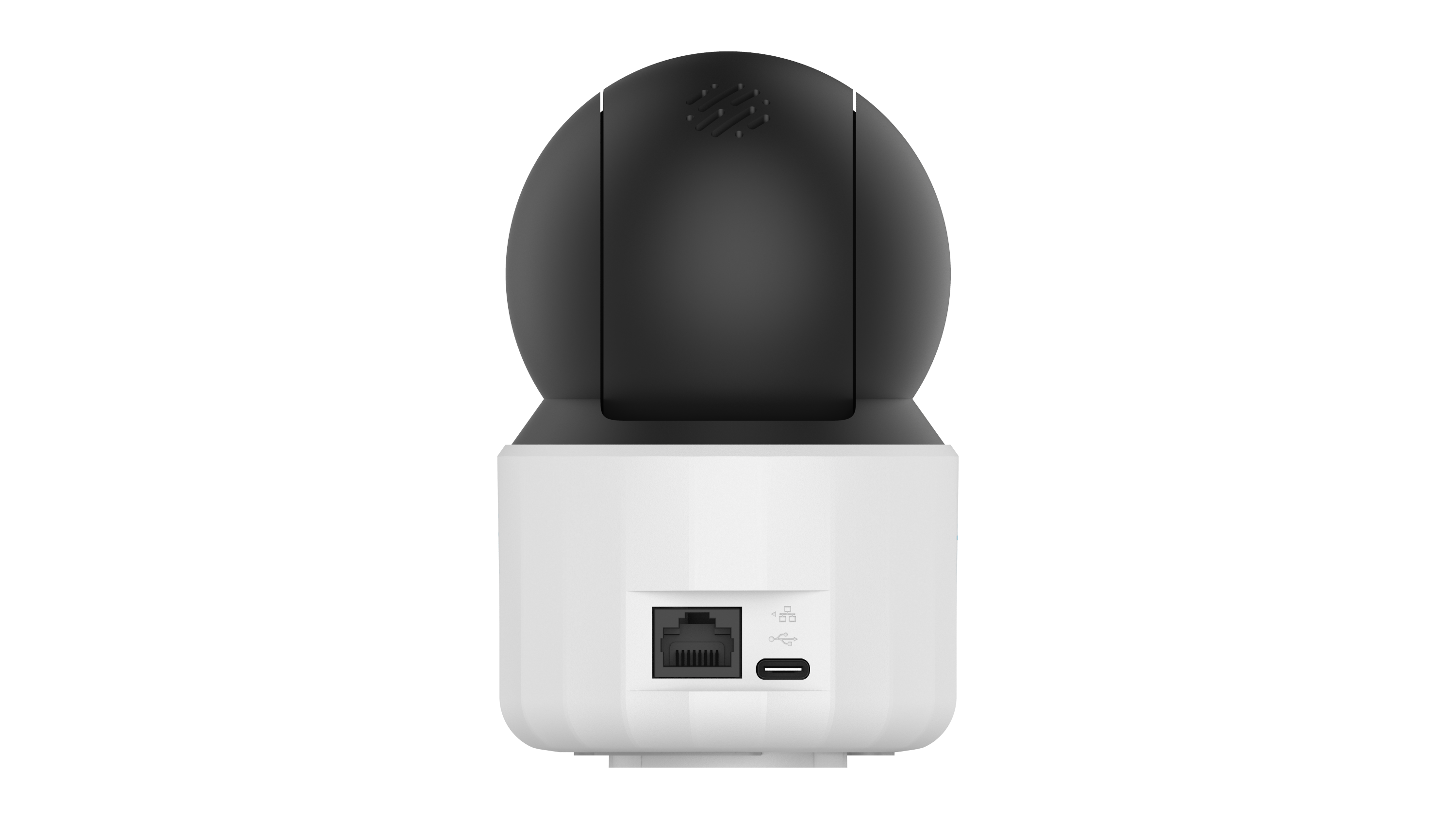

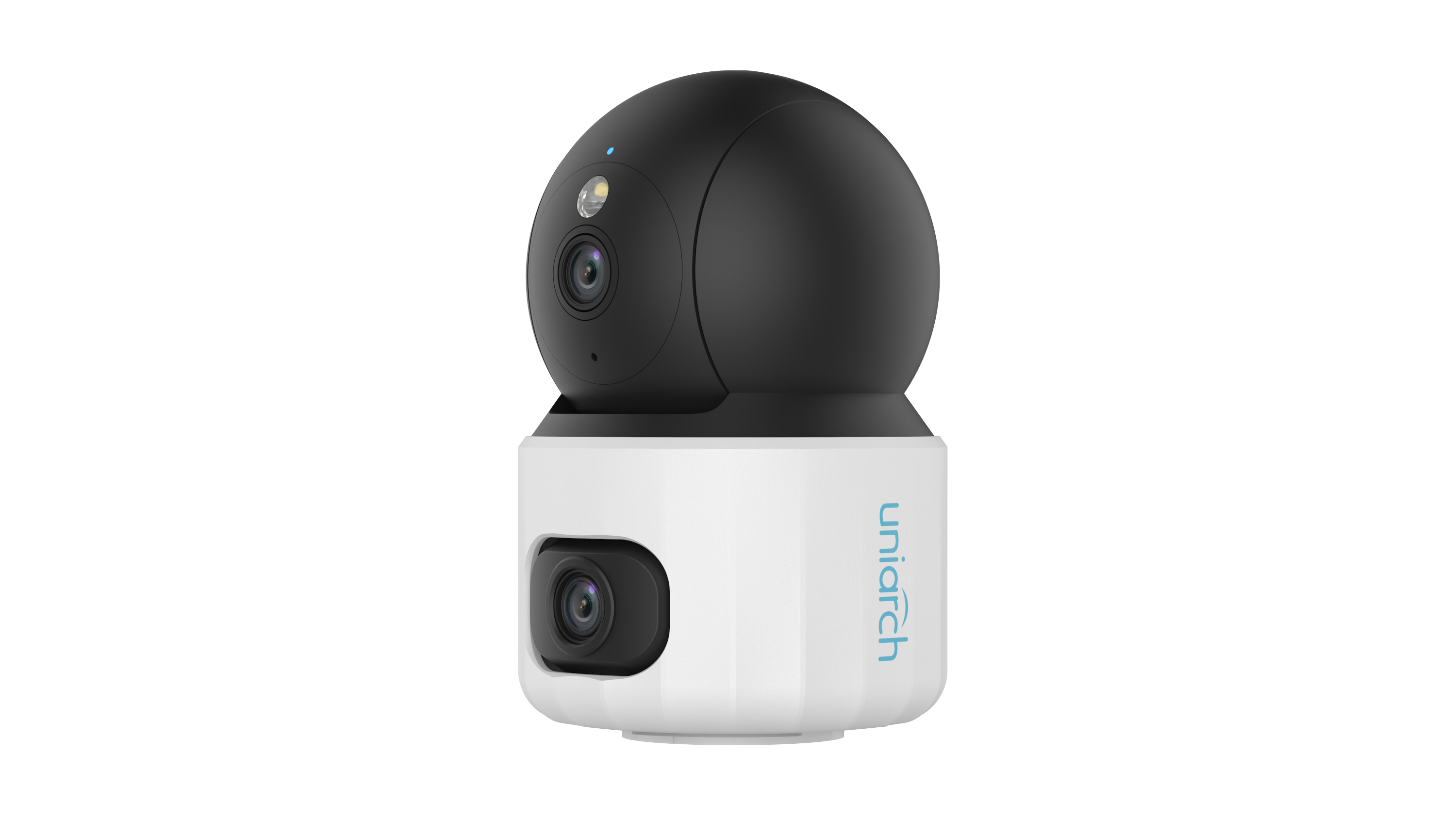

3MP+3MP 双镜头室内云台摄像机
产品描述
3MP+3MP 双镜头室内云台摄像机
关键特性
- ● 固定摄像机和云台摄像机集成，双通道单IP，可同时查看整体情况和细节
- ● 支持Ultra 265、H.265、H.264视频编码
- ● 支持数字宽动态范围（WDR）
- ● 内置麦克风和扬声器，支持双向语音通话，提供更佳的交互体验
- ● 支持声光报警，使报警更加醒目
- ● 智能红外，红外和暖光照射距离均可达10米（33英尺），适用于更多场景
- ● 红外和暖光照明可应对不同场景，实现全彩照明
- ● 支持最大512GB Micro SD卡
- ● Wi-Fi连接，安装简便
技术规格
| Model | Uho-S3S-M33F36D | ||
| Channel | Panorama | Detail | |
| Camera | |||
| Sensor | 1/2.8" CMOS | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Shutter | Auto/Manual, 1 to 1/100000 s | ||
| S/N | > 52 dB | ||
| WDR | DWDR | ||
| Lens | |||
| Digital Zoom | N/A | 4X | |
| Iris | F2.0 | ||
| Field of View (H) | 109.2° | 55.1° | |
| Field of View (V) | 57.9° | 29.3° | |
| Field of View (D) | 117.8° | 62.6° | |
| Lens Type | Fixed | ||
| DORI | |||
| DORI Distance (Lens) | 2.8 mm | 6.0 mm | |
| DORI Distance (Detect) | 51.4 m (168.7 ft) | 110.2 m (361.6 ft) | |
| DORI Distance (Observe) | 20.6 m (67.5 ft) | 44.1 m (144.6 ft) | |
| DORI Distance (Recognize) | 10.3 m (33.7 ft) | 22.0 m (72.3 ft) | |
| DORI Distance (Identify) | 5.1 m (16.9 ft) | 11.0 m (36.2 ft) | |
| Illuminator | |||
| Illumination Distance (IR) | 10 m (32.8 ft.) | ||
| Illumination Distance (Warm Light) | N/A | 10 m (32.8 ft.) | |
| Light On/Off Control | Auto/Manual | ||
| Wavelength | 850 nm | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264 | ||
| Frame Rate-Main Stream | 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; 720P (1280*720), Max 15fps; | ||
| Frame Rate-Sub Stream | 640*360,Max 15fps; 2CIF(704*288), Max 15fps; CIF(352*288), Max 15fps; | ||
| Video Bit Rate | 128 Kbps to 2048 Kbps | ||
| ROI | Up to 8 areas | ||
| OSD | Up to 4 OSDs | ||
| Privacy Mask | Support (only NVR) | ||
| Video Stream | Dual streams | ||
| Image | |||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | ||
| Digital Noise Reduction | 2D/3D DNR | ||
| Smart IR | Support | ||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | ||
| HLC | N/A | ||
| BLC | N/A | ||
| Defog | Digital defog | ||
| Events | |||
| Basic Detection | Motion detection, Ultra motion detection (human/ vehicle/ pet), Loud sound detection, Crying detection, Tampering alarm | ||
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||
| Audio | |||
| Audio Compression | G.711U, G.711A | ||
| Audio Bitrate | 64 Kbps | ||
| Two-way Audio | Support | ||
| Suppression | Support | ||
| Sampling Rate | 8 kHz | ||
| Storage | |||
| Edge Storage | MicroSD, up to 512 GB | ||
| Network Storage | ANR | ||
| Network | |||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna | ||
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP | ||
| Compatible Integration | API | ||
| Client | APP, Uniarch client | ||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||
| Wi-Fi | |||
| Wireless Standards | IEEE802.11b/g/n/ax | ||
| Frequency Range | 2.4 GHz to 2.4835 GHz | ||
| Channel Bandwidth | 20/40 MHz Support | ||
| Modulation Mode | 802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA |
||
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | ||
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS9 | ||
| Receive Sensitivity | 802.11b: -76 dBm@11 Mbps (Typical)802.11g: -65 dBm@54Mbps (Typical)802.11n: -61 dBm@MCS7, HT40 (Typical)802.11ax: -54 dBm@MCS9, HE40 (Typical) | ||
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps | ||
| PTZ | |||
| Pan Range | N/A | 0° ~ 355° | |
| Pan Speed | N/A | 17°/s ~ 50°/s Preset speed: 50°/s |
|
| Tilt Range | 0° ~ 15° | -15° ~ 90° | |
| Tilt Speed | N/A | 17°/s ~ 50°/s Preset speed: 50°/s |
|
| Number of Presets | 20 | ||
| Interface | |||
| Built-in Mic | Support | ||
| Built-in Speaker | Support | ||
| WIFI | Support | ||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | ||
| Video Output | N/A | ||
| Certification | |||
| EMC | CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC (FCC 47 CFR part15 B) |
||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) |
||
| Safety | CE LVD (EN 62368-1) | ||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||
| General | |||
| Power | DC 5V/1.5A USB type-C interface |
||
| Dimensions | Φ83 x 127mm (Ø3.3” x 4.8”) | ||
| Working Environment | -10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing) | ||
| Storage Environment | -10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing) | ||
| Surge Protection | N/A | ||
| Reset Button | Support | ||
| LED Indicator | 1, red/blue | ||
