IP Cameras › IPC-D312-ADZK
IPC-D312-ADZK
view 1
view 2
view 3
UniarchWDR VF IR Dome

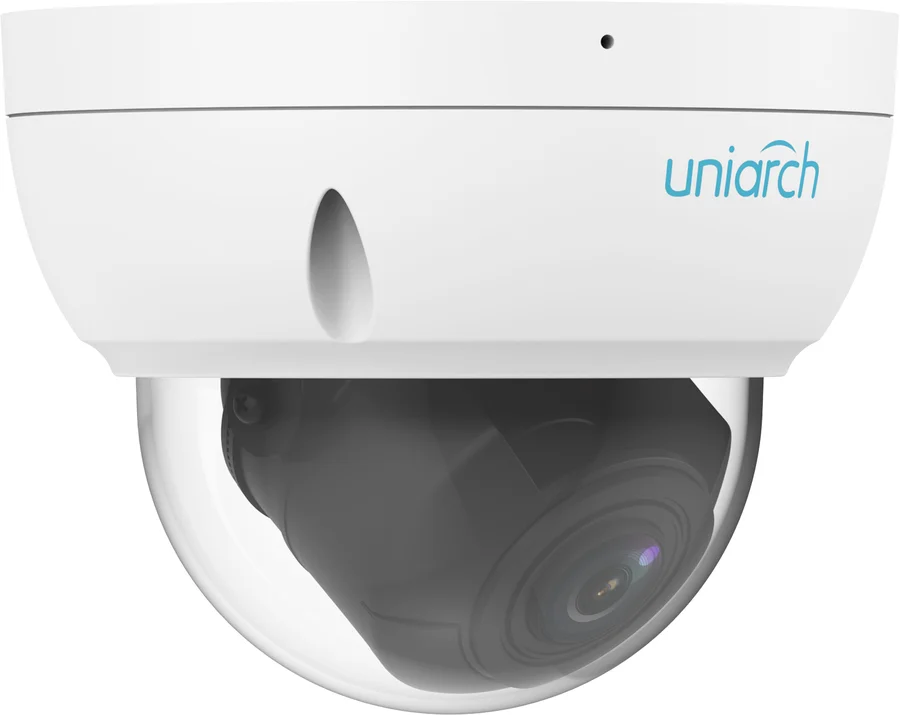

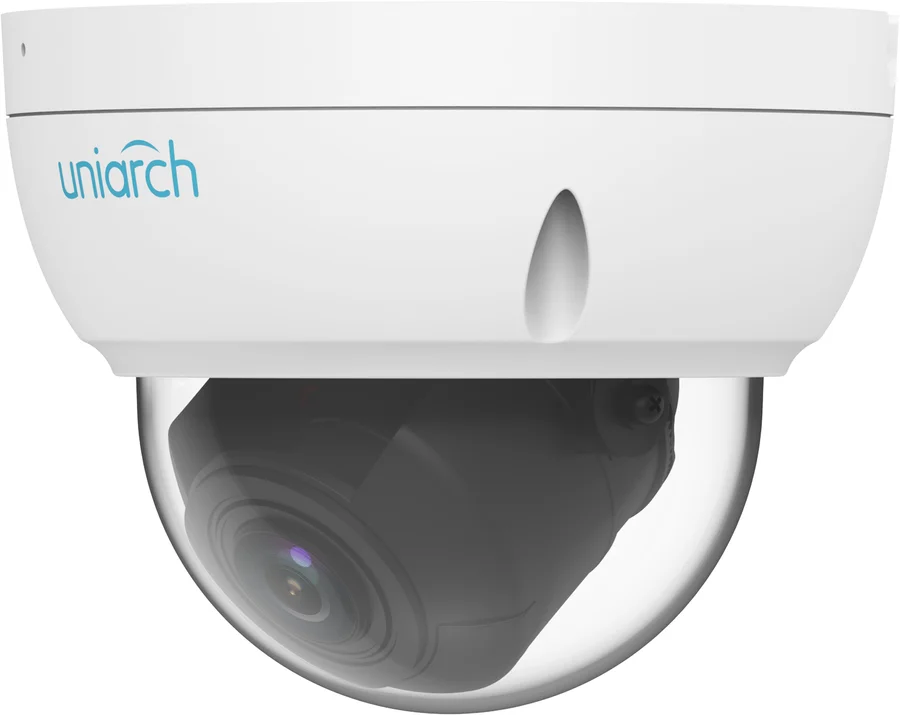

2MP WDR VF IR Dome

IPC-D312-ADZK

2MP motorized varifocal (2.8–12mm) IR dome network camera — 120dB true WDR, ultra motion detection, Smart IR up to 30m, IK10 vandal-resistant, IP67 outdoor body.

2 MP · 1080P@30fps2.8–12mm · motorized varifocal, 4.3XUltra Motion · human/vehiclePoE / DC12V · dual powerIP67 · outdoorIK10 · vandal-resistantMic · built-in audio
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67IK10ONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
30 mIR night vision
IK10Vandal resistant
8.0 WMax power
-30~60°CWorking temperature

The Uniarch IPC-D312-ADZK is a 2MP dome network camera with a motorized varifocal lens (2.8–12 mm, 4.3X zoom) that lets the field of view be adjusted remotely after installation — no re-mounting needed to reframe the shot. It combines 120 dB true WDR for strong-light scenes, ultra motion detection (human/vehicle classification), a built-in mic, and Smart IR night vision up to 30 m. The metal body is IK10 vandal-resistant and IP67 outdoor-rated, and powers over a single PoE cable or DC 12V, with a −30 °C to 60 °C working range.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Schools & transit stationsIK10 vandal-resistant housing withstands impact and tampering in high-traffic public areas, while the motorized zoom lets you fine-tune the shot after mounting.
Hallways & low ceilingsThe low-profile dome shape sits flush on a ceiling and blends into the surroundings — less obtrusive than a bullet camera indoors.
Parking lots & vehicle gatesUltra motion detection tells people from vehicles, cutting false alerts from a busy lot down to the movement that actually matters.
Storefronts facing strong sunlight120 dB true WDR keeps both the bright doorway and the shaded interior visible in the same frame, instead of one washing out the other.
Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat outdoors, day after day.
Sites needing local backupThe built-in mic picks up nearby audio, and MicroSD edge storage keeps a local backup even where an NVR is also recording.
Not the right pick if you need…
  • Full-color night vision — this is IR-only, night video is black & white, not color
  • Two-way talk — it has a built-in mic but no speaker
  • Wi-Fi — this is a wired RJ45 camera
  • A one-time fixed focal length choice at purchase — the zoom on this model is motorized and adjustable on site, not a pick-one-at-checkout fixed lens
  • Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.7" CMOS sensor
1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
2D/3D DNR (digital noise reduction)
Support ultra motion detection (human/vehicle detection)
ROI (region of interest) ensures image quality in areas of interest with low bandwidth
Smart IR, up to 30 m (98.4 ft.) IR distance
120 dB true WDR technology enables clear image in strong light scene
Built-in mic
Wide temperature range: −30 °C to 60 °C (−22 °F to 140 °F)
DC 12 V, PoE (IEEE 802.3af) power supply
IP67

Dual Light: two ways to see the night

Switchable Auto/Manual — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Because this model has a motorized 2.8–12 mm varifocal lens, each capability spans a range — from the widest zoom setting to full telephoto, not a single fixed number.

Detectsomething is there
WIDE (2.8mm)42.0 m137.8 ft
TELE (12mm)180 m590.6 ft
Observewhat is happening
WIDE (2.8mm)16.8 m55.1 ft
TELE (12mm)72.0 m236.2 ft
Recognizesomeone you know
WIDE (2.8mm)8.4 m27.6 ft
TELE (12mm)36 m118.1 ft
Identifya stranger's face
WIDE (2.8mm)4.2 m13.8 ft
TELE (12mm)18 m59.1 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution2 MP
Sensor1/2.7" CMOS
Min. IlluminationColor: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
Adjustment AnglePan: 3° to 360°, Tilt: 0° to 70°, Rotate: 3° to 360°
S/N> 52 dB
WDR120 dB

Lens

Focal Length2.8 to 12 mm
IrisF1.6
Field of View (H)111.0° to 36.6°
Field of View (V)59.4° to 20.6°
Field of View (D)130.0° to 42.0°

DORI

DORI Distance (Lens)2.8 to 12 mm
DORI Distance (Detect)42.0 m to 180 m (137.8 ft. to 590.6 ft.)
DORI Distance (Observe)16.8 m to 72.0 m (55.1 ft. to 236.2 ft.)
DORI Distance (Recognize)8.4 m to 36 m (27.6 ft. to 118.1 ft.)
DORI Distance (Identify)4.2 m to 18 m (13.8 ft. to 59.1 ft.)

Illuminator

Supplemental LightIR
Illumination Distance (IR)30 m (98.4 ft.)
Wavelength850 nm
IR On/Off ControlAuto/Manual

Video

Video CompressionH.265, H.264, MJPEG, Ultra 265
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamDual streams


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IRSupport
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog

Events

Basic DetectionMotion detection, Tampering alarm, Audio detection, Cross line, Intrusion (based on human body detection), Ultra motion detection (human/vehicle detection)
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP, IPv6
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
ClientUniarch client, Uniarch Care
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/ON/A
Alarm I/ON/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

ProtectionIP67 (IEC 60529); IK10 (IEC 62262)
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
SafetyCE-LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 8.0 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H)
Weight0.66 kg (1.46 lb.)
MaterialMetal + Plastic
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
DimensionsØ128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H)
Weight0.66 kg (1.46 lb.)
MaterialMetal + Plastic
Mount adjustmentPan 3–360° · Tilt 0–70° · Rotate 3–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-H-IN-V2Junction box for metal turret camera (support wiring from behind)
TR-JB07/WM03-F-IN-V2Wall mounting assembling bracket with back hole for 3 inch hemisphere
TR-WM03-B-IN-V2Wall mounting assembling bracket for 3 inch hemisphere
TR-A01-INNPT 3/4" waterproof cable gland
HS-207SSunshade shell for zoom dome
TR-UC08-C-V2Bullet & dome corner mounting bracket
TR-CM24-INDome pendent mounting bracket (indoor)
TR-SE24-A-INDome pendent mounting pole, 500 mm
TR-SE24-INDome pendent mounting pole, 200 mm

Related Solutions & Products

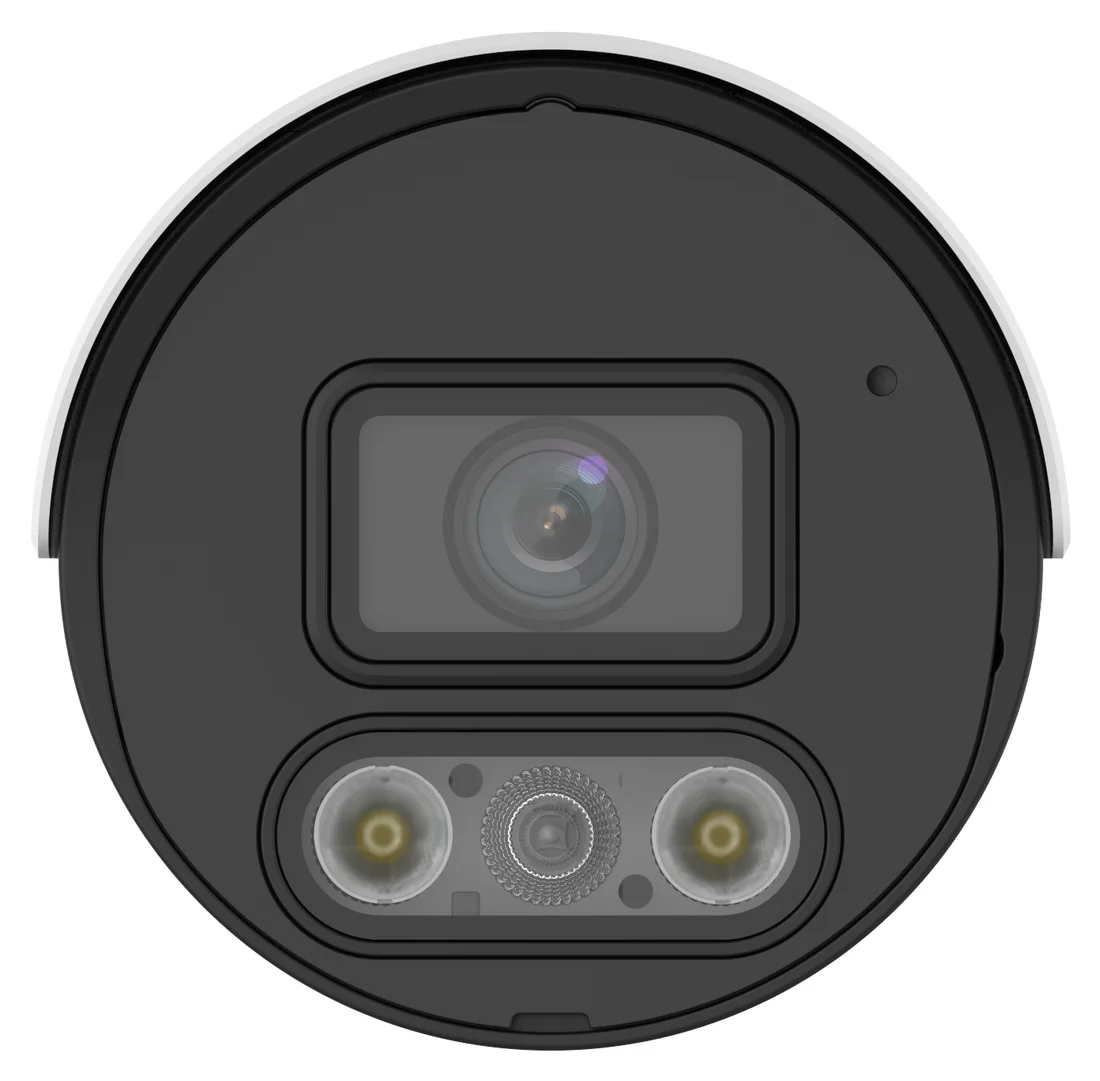

Chain Store Security solution
Solution · Chain Store Security
A chain store: till point, stockroom door, shop front — and forty other branches exactly like it. A fixed dome / turret like this one is the piece that does the looking.
Supermarket Security solution
Solution · Supermarket Security
A supermarket: checkouts, high-value aisles, goods-in door, cash office. A fixed dome / turret like this one is the piece that does the looking.
IPC-D314-ADZK
IPC-D314-ADZK · 4MP
Same family, 4MP instead of 2MP — the resolution step that decides your storage bill.

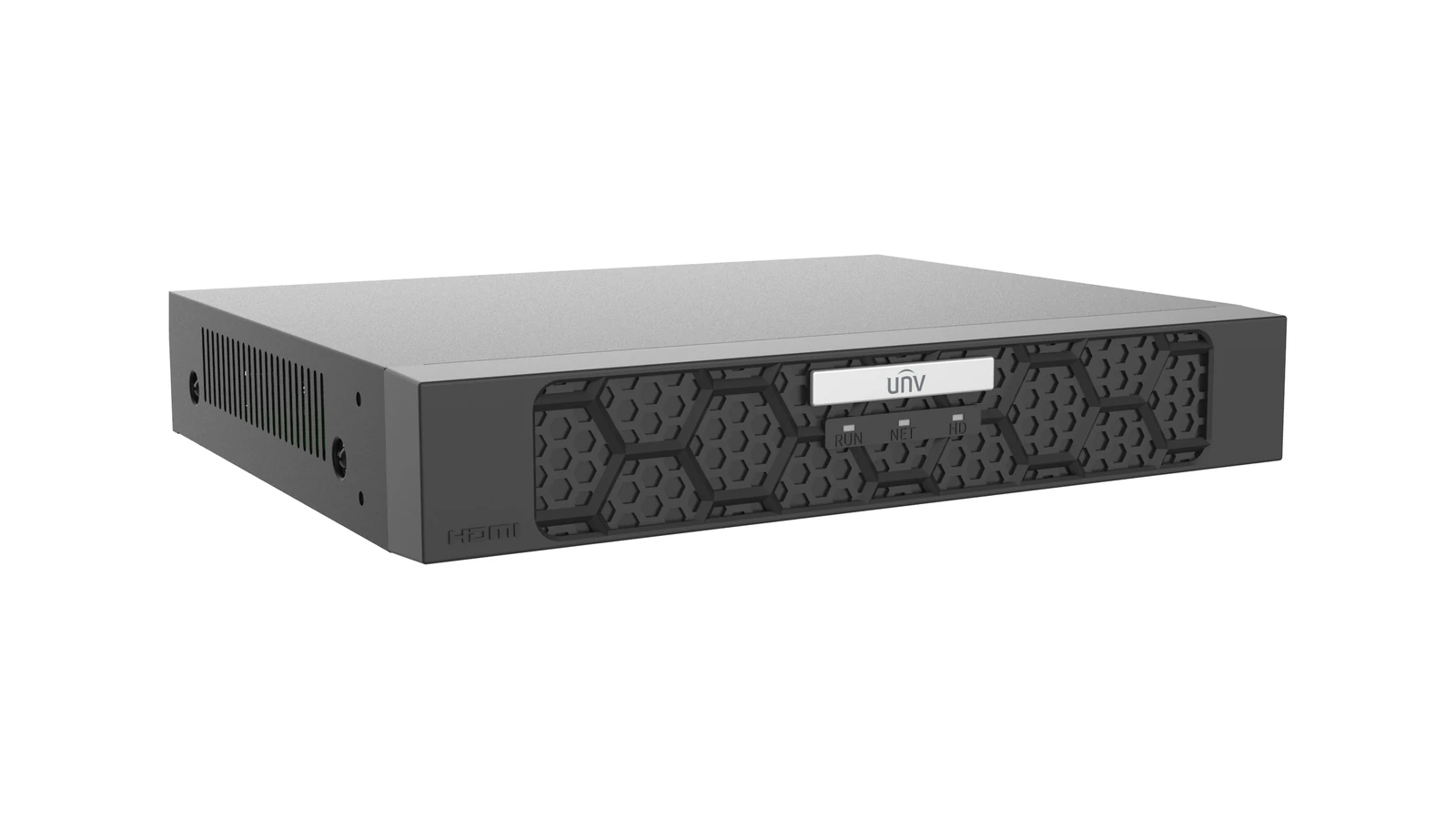

NVR501-04B-P4 / NVR501-08B-P8
