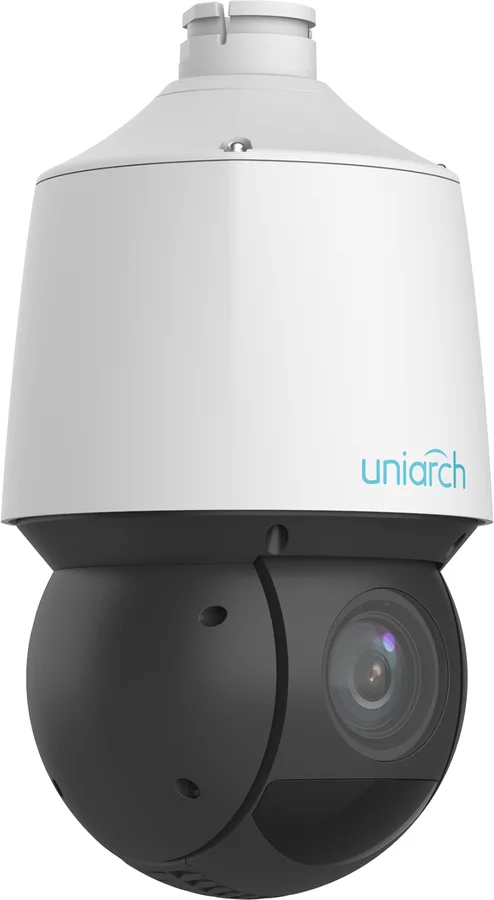

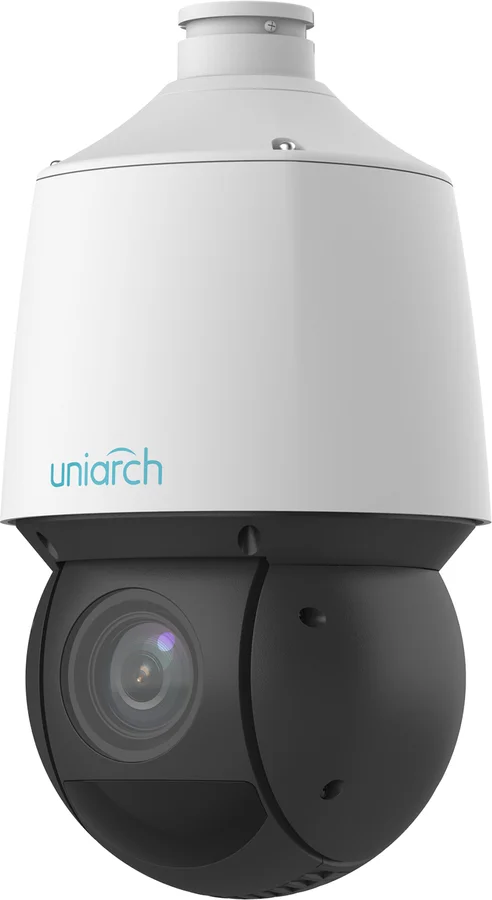

Uniarch20X Network PTZ Dome

3MP 20X Network PTZ Dome

IPC-P413-X20K

Name: Uniarch IPC-P413-X20K
Brand: Uniarch

3MP network PTZ dome camera with 20X optical zoom — auto tracking, smart intrusion prevention, people counting, Smart IR up to 100m, IP66 outdoor body.

3 MP · 2304×1296@30fps20X · optical zoom, 5–100mmAuto Tracking · follows motionSmart IR · up to 100mPoE+ / DC12V · dual powerIP66 · outdoor

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:IP66ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

20XOptical zoom

100 mIR night vision

IP66Outdoor rated

360°Pan range (endless)

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Parking lots & large yards20X optical zoom reads a license plate or a face from far across the lot — one PTZ camera can cover what several fixed cameras would need.

Perimeters & fence linesSmart intrusion prevention (cross line, intrusion, enter/leave area) tells people from vehicles and filters false alarms from blowing leaves or small animals.

Retail entrances & mallsPeople counting tracks footfall and crowd density for staffing and layout decisions, without a separate counting sensor.

Warehouse & industrial sitesIP66 body and a −40 °C to 65 °C working range with a built-in heater keep the head working through heat, dust and freezing winters.

Unattended sites needing automated coverageUp to 1024 presets and 16 patrol routes let the camera automatically sweep a large area on a schedule, without an operator at the joystick.

Moving-target trackingAuto tracking keeps the camera pointed at a moving person or vehicle automatically, following the target across the field of view.

Not the right pick if you need…

Audio — this model has no built-in mic, speaker, or audio I/O of any kind
Wi-Fi — this is a wired RJ45 camera
A fixed, unchanging field of view — this is a moving PTZ head, not a fixed-mount camera
A low-cost simple installation — PTZ cameras cost more and need PoE+ (802.3at), not standard PoE
Alarm in/out wiring for sirens or sensors — this model's datasheet lists Alarm I/O as N/A

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Because this model has a 20X zoom lens (5–100 mm), each capability spans a range — from the widest zoom setting to full telephoto, not a single fixed number.

Detectsomething is there

WIDE (5mm)77.6 m254.5 ft

TELE (100mm)1551.7 m5091.0 ft

Observewhat is happening

WIDE (5mm)31.0 m101.8 ft

TELE (100mm)620.7 m2036.4 ft

Recognizesomeone you know

WIDE (5mm)155.5 m510.2 ft

TELE (100mm)310.3 m1018.0 ft

Identifya stranger's face

WIDE (5mm)7.8 m25.6 ft

TELE (100mm)155.2 m509.2 ft

Note: the Recognize row's wide-end figure (155.5 m) is higher than Observe's wide-end figure (31.0 m) in the manufacturer's own datasheet — the opposite of the usual Detect > Observe > Recognize > Identify order. Reproduced verbatim from the source datasheet; flagged for manufacturer confirmation.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/2.8", 3.0 megapixel, progressive scan, CMOS
Min. Illumination	Color: 0.003 Lux (F1.7, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 52 dB

Lens

Focal Length	5 to 100 mm
Optical Zoom	20X
Iris	F1.7 to F2.8
Field of View (H)	51.70° to 3.85°
Field of View (V)	30.49° to 2.16°
Field of View (D)	63.60° to 4.54°

DORI

DORI Distance (Lens)	5 to 100 mm
DORI Distance (Detect)	77.6 m to 1551.7 m (254.5 ft. to 5091.0 ft.)
DORI Distance (Observe)	31.0 m to 620.7 m (101.8 ft. to 2036.4 ft.)
DORI Distance (Recognize)	155.5 m to 310.3 m (510.2 ft. to 1018.0 ft.)
DORI Distance (Identify)	7.8 m to 155.2 m (25.6 ft. to 509.2 ft.)

Video

Privacy Mask	24 areas, up to 4 areas per scene
Video Compression	H.265, H.264, MJPEG
Frame Rate	Main Stream: 3 MP (2304×1296), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps · Third Stream: D1 (720×576), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs

Intelligent

Auto Tracking	Support
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring
Exception Detection	Object removed, Object Left Behind


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Tampering alarm, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Illuminator

IR On/Off Control	Auto/Manual
Wavelength	850 nm
Illumination Distance (IR)	Up to 100 m (328 ft.) IR range

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, RTMP, SSL/TLS, IPv6
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

PTZ

Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Patrol Stay Time	15 s to 1800 s
Home Position	Support
Pan Range	360° (endless)
Tilt Range	-15° to 90° (auto reverse)
Pan Speed	0.1°/s to 80°/s
Tilt Speed	0.1°/s to 80°/s

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

General

Power	DC 12 V (±25%), PoE+ (IEEE 802.3at)
Power Consumption	Max. 20 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø162 mm × 293 mm (Ø6.4" × 11.5") (Ø × H)
Weight	1.79 kg (3.95 lb.)
Working Environment	-40 °C to 65 °C (-40 °F to 149 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Heater	Support

Configurable

P/N

Support
