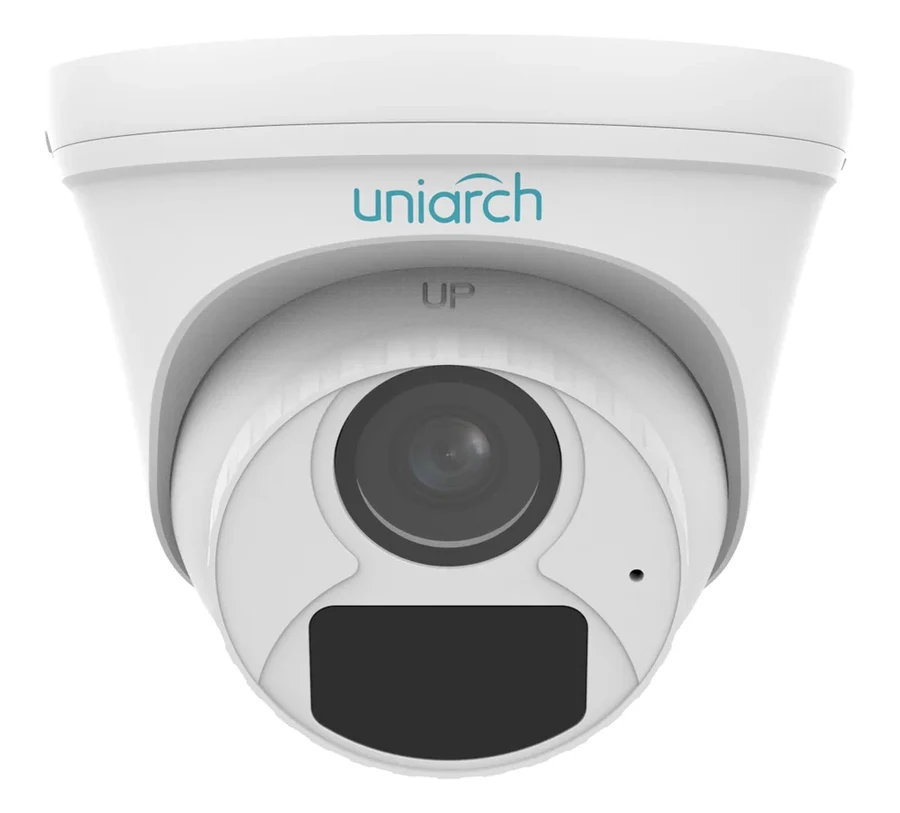

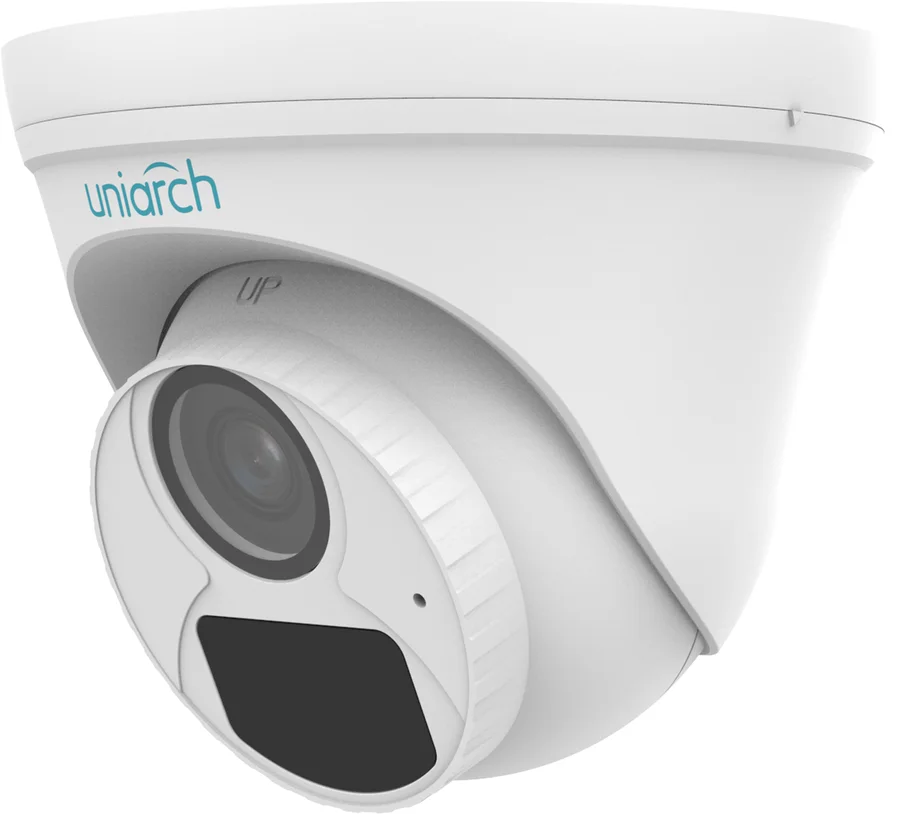

UniarchHD IR Fixed Eyeball

2MP HD IR Fixed Eyeball

IPC-T122-APF28K

Name: Uniarch IPC-T122-APF28K
Brand: Uniarch

2MP fixed IR eyeball network camera — up to 30m smart infrared night vision, built-in mic, IP67 outdoor body, MicroSD storage.

2 MP · 1080P@25fpsUltra 265 · low bandwidthSmart IR · up to 30mPoE / DC12V · dual powerIP67 · outdoorMic · built-in audio

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

IP67Outdoor rated

3.2 WMax power

-30~60°CWorking temperature

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsSee who enters, and the built-in mic picks up what is said at the counter — the low-profile eyeball shape blends into a ceiling or corner.

Home gates & yardsSmart IR turns on at night for discreet black-and-white night vision — the camera watches without lighting up the scene.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat outdoors, day after day.

Sites needing local backupA built-in MicroSD slot keeps footage on the camera itself — useful as a backup even where an NVR is also recording.

Small offices & receptionUltra 265 compression keeps recordings small — more days of footage on the same NVR disk.

Kiosks & quick retrofitsOne PoE cable does power + video — no electrician needed on site, quick to install and move.

Not the right pick if you need…

Full-color night vision — this is IR-only, night video is black & white, not color
Two-way talk — it has a built-in mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom or an alternate lens option — this model has a fixed 2.8 mm lens only
Vandal-resistant IK rating — this model's datasheet lists no IK protection rating (IP67 dust/water rating only)
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	2 MP
Sensor	1/2.9" CMOS
Min. Illumination	Color: 0.02 Lux (F2.1, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	2.8 mm
Iris	F2.1
Iris Type	Fixed
Field of View (H)	101.1°
Field of View (V)	55.0°
Field of View (D)	111.0°

DORI

DORI Distance (Detect)	45.0 m (147.6 ft.)
DORI Distance (Observe)	18.0 m (59.1 ft.)
DORI Distance (Recognize)	9.0 m (29.5 ft.)
DORI Distance (Identify)	4.5 m (14.8 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	Up to 30 m (98 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080), max. 25 fps; 720P (1280×720), max. 25 fps · Sub Stream: D1 (720×576), max. 25 fps; 640×360, max. 25 fps; 2CIF (704×288), max. 25 fps; CIF (352×288), max. 25 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Protocols	IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
User/Host	Up to 32 users. 2 user levels: administrator and common user
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

Protection	IP67 (IEC 60529)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 3.2 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø118 mm × 97 mm (Ø4.6" × 3.8") (Ø × H)
Weight	0.27 kg (0.60 lb.)
Material	Graphene + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for plastic turret camera (support wiring from behind)

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendent mounting pole, 200 mm

TR-SE24-A-INDome pendent mounting pole, 500 mm

TR-CM24-INDome pendent mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for fix-dome, mini fix-dome & plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for fix-dome, mini fix-dome & plastic turret camera

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-WM07P-BDome wall mounting plastic bracket
