IP Cameras › IPC2318LE-ADF28(40)KM-WP
IPC2318LE-ADF28(40)KM-WP
view 1

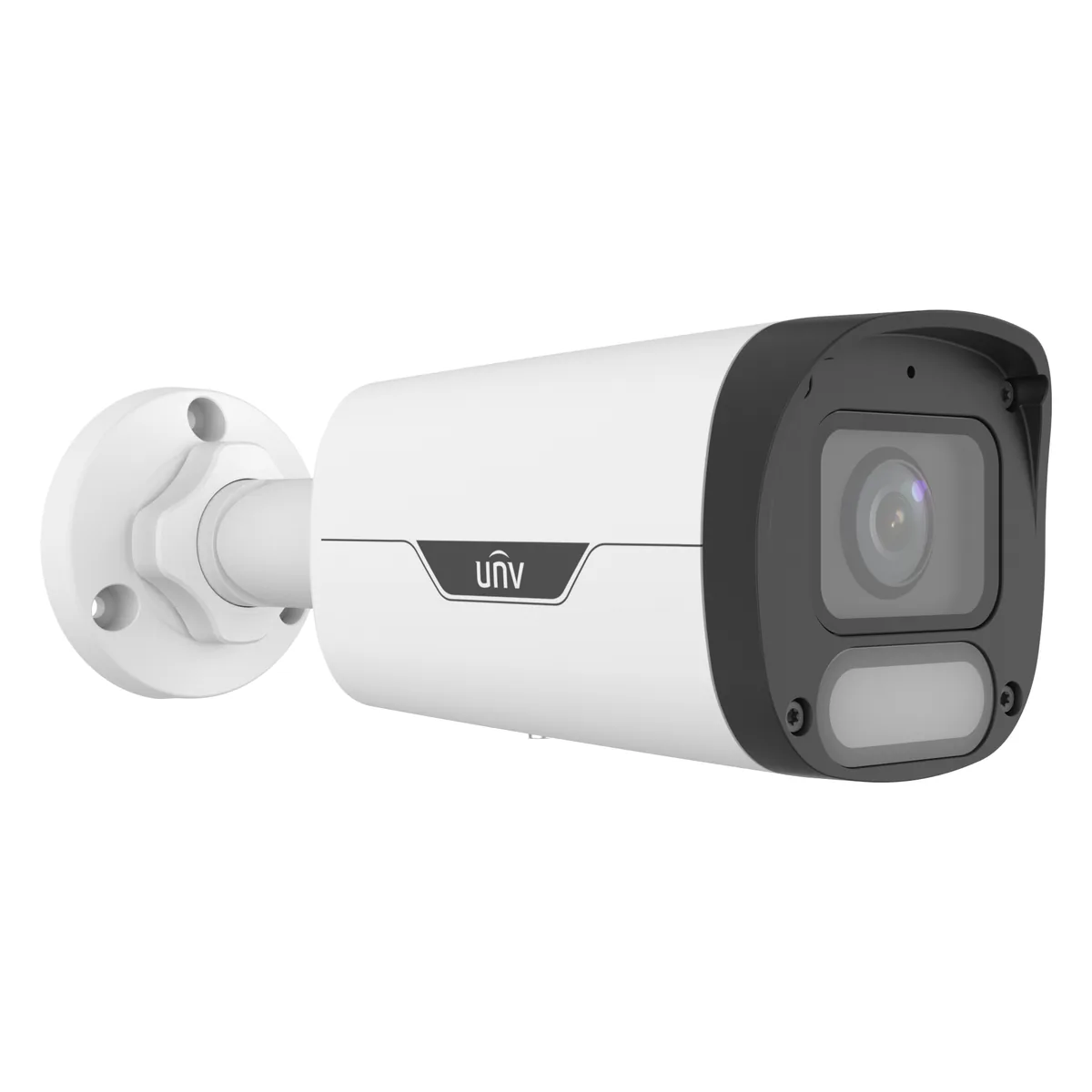

view 2

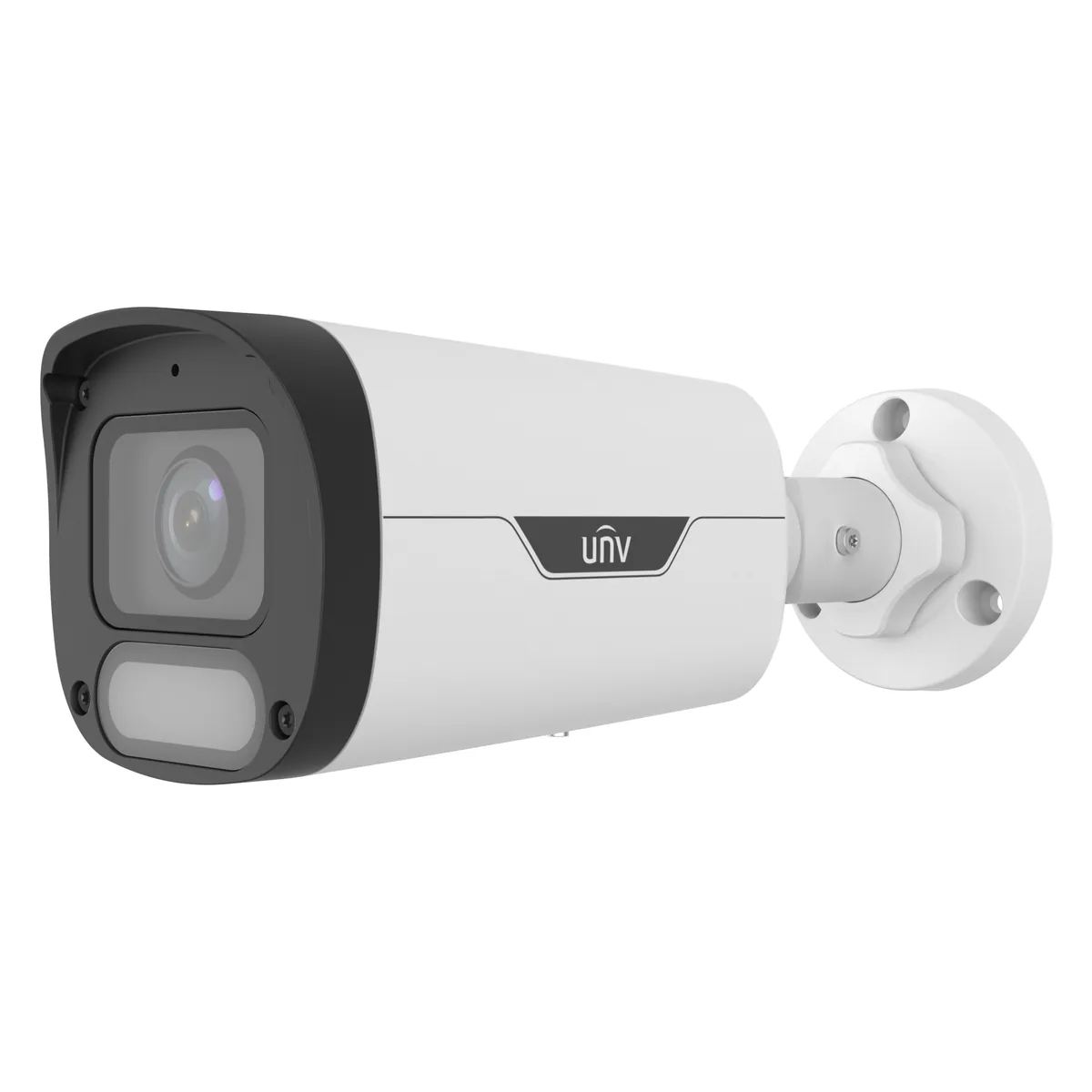

view 3
Uniview · BulletOwLView Series · ColorHunter
8MP ColorHunter Bullet · OwLView Series

IPC2318LE-ADF28(40)KM-WP

8MP fixed bullet network camera with ColorHunter and Wise-ISP — F1.0 large aperture delivers 24-hour full-color images, 120dB true WDR, PoE single-cable install, IP67 outdoor body.

8 MP · 3840×2160@20fpsF1.0 · large apertureColorHunter · 24h full colorUltra 265 · low bandwidthPoE · 802.3afIP67 · outdoorMicroSD · up to 512 GB
CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE
ADF28KM (2.8 mm, 111° view) covers a very wide area near the camera — doorways, small yards, shop fronts. ADF40KM (4.0 mm, 94° view) trades width for reach — driveways, corridors, fence lines. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67ONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
0.0003 LuxColor sensitivity
30 mWarm light range
120 dBTrue WDR
IP67Outdoor rated

The Uniview IPC2318LE-ADF28(40)KM-WP is an 8MP fixed bullet network camera from the OwLView series, built around a 1/1.8" CMOS sensor with an F1.0 large-aperture lens. ColorHunter with Wise-ISP technology keeps images in full color around the clock, backed by 120dB true WDR and a built-in warm light rated to 30 m for extra illumination after dark. It runs on a single PoE cable, records to a MicroSD card up to 512GB, and carries an IP67 outdoor rating; it is offered with two fixed lenses — 2.8 mm (ADF28KM, wider view) or 4.0 mm (ADF40KM, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsColorHunter keeps faces and colors visible around the clock, and the built-in mic picks up what is said at the counter. ADF28KM's 111° view covers a small shop from one corner.
Home gates & yardsThe warm light switches on automatically at night, showing visitors in full color instead of black-and-white silhouettes.
Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat; ADF40KM's 90 m detect range watches long fence lines.
Residential compoundsUltra motion detection is based on human body and vehicle detection, so alerts fire for people and cars — not stray animals or moving branches.
Small offices & receptionUltra 265 compression keeps 8MP recordings compact — more days of footage on the same NVR disk or MicroSD card.
Kiosks & fuel stationsOne PoE cable does power and video, and edge recording to a MicroSD card keeps footage running even if the network drops.
Not the right pick if you need…
  • Covert / invisible night vision — there is no IR illuminator, only visible warm light
  • Two-way talk — it has a mic but no speaker
  • Wi-Fi — this is a wired RJ45 camera
  • Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
  • Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 8 MP, 1/1.8" CMOS sensor and F1.0 large aperture lens
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG compression
ColorHunter with Wise-ISP technology ensures 24-hour full-color images
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
White light, up to 30 m (98.4 ft.) warm light distance
MicroSD, up to 512 GB
IP67 protection
Supports PoE power supply
3-axis adjustment

ColorHunter + Wise-ISP: how it stays in color all night

Two technologies working together — no IR switch to flip.

COLORHUNTER + WISE-ISP

F1.0 large aperture + AI image processing — color at 0.0003 lux

The 1/1.8" sensor and F1.0 lens let in far more light than a typical bullet camera; Wise-ISP then processes that light in real time to render 24-hour full-color video — no need to drop to black-and-white after dark.

WARM LIGHT

Extra light when the scene is too dark for ColorHunter alone

Built-in warm light reaches up to 30 m (98.4 ft.), switching Auto or Manual. It supplements ColorHunter in near-total darkness and doubles as a visible deterrent.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there
63 m206.7 ft
Observewhat is happening
25.2 m82.7 ft
Recognizesomeone you know
12.6 m41.3 ft
Identifya stranger's face
6.3 m20.7 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28KM = 2.8 mmADF40KM = 4.0 mm

Camera

Max Resolution8 MP
Sensor1/1.8" CMOS
Min. IlluminationColor: 0.0003 Lux (F1.0, AGC ON)
ShutterAuto/Manual, 1 ~ 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N> 52 dB
WDR120 dB

Lens

Focal LengthADF28KM · 2.8 mmADF40KM · 4.0 mm
Iris TypeFixed
IrisF1.0
Field of View (H)ADF28KM · 111.0°ADF40KM · 94.2°
Field of View (V)ADF28KM · 63.0°ADF40KM · 51.0°
Field of View (D)ADF28KM · 131.0°ADF40KM · 111.7°
Lens TypeFixed

DORI

DORI Distance (Lens)ADF28KM · 2.8 mmADF40KM · 4 mm
DORI Distance (Detect)ADF28KM · 63.0 m (206.7 ft.)ADF40KM · 90.0 m (295.3 ft.)
DORI Distance (Observe)ADF28KM · 25.2 m (82.7 ft.)ADF40KM · 36.0 m (118.1 ft.)
DORI Distance (Recognize)ADF28KM · 12.6 m (41.3 ft.)ADF40KM · 18.0 m (59.1 ft.)
DORI Distance (Identify)ADF28KM · 6.3 m (20.7 ft.)ADF40KM · 9.0 m (29.5 ft.)

Illuminator

Supplemental LightWarm light
Illumination Distance (Warm Light)30 m (98.4 ft.)
Light On/Off ControlAuto/Manual

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps · Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamDual streams


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IlluminationSupport
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog
Image StabilizationN/A

Events

Basic DetectionMotion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Smart Intrusion Prevention (Lite)Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users, 2 user levels: administrator and common user
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ · Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)

General

PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 3.9 W
Power InterfaceØ5.5 mm coaxial power plug
Dimensions206 mm × 73 mm × 73 mm (8.1" × 2.9" × 2.9") (L × W × H)
Weight0.48 kg (1.06 lb.)
MaterialMetal
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
Dimensions206 × 73 × 73 mm (8.1" × 2.9" × 2.9")
Weight0.48 kg (1.06 lb.)
MaterialMetal
Mount adjustmentPan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-B-INSmall bullet junction box (Elegant White)
TR-A01-INNPT 3/4" waterproof cable gland
TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only
TR-UC08-C-V2Bullet & dome corner mounting bracket

Related Solutions & Products

Construction Site Security solution
Solution · Construction Site Security
A construction site: no mains power yet, a gate, material stacks, the tower-crane base. A fixed IR bullet like this one is the piece that does the looking.
Warehouse & Logistics Security solution
Solution · Warehouse & Logistics Security
A distribution yard: fence line, dock doors, racking aisles, trailer park. A fixed IR bullet like this one is the piece that does the looking.

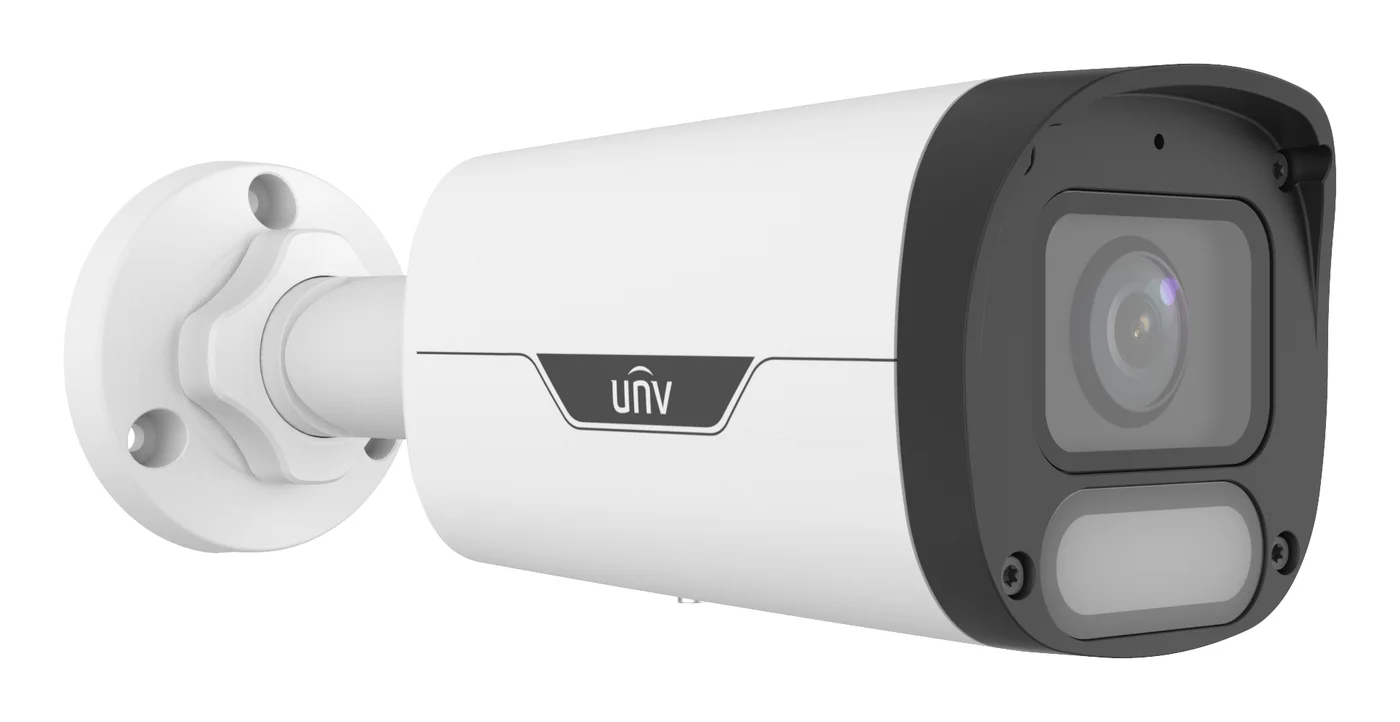

IPC2314LE-ADF28(40)KM-WP
