IP Cameras › IPC245LP-ADF40(60)KC-WP
IPC245LP-ADF40(60)KC-WP
view 1

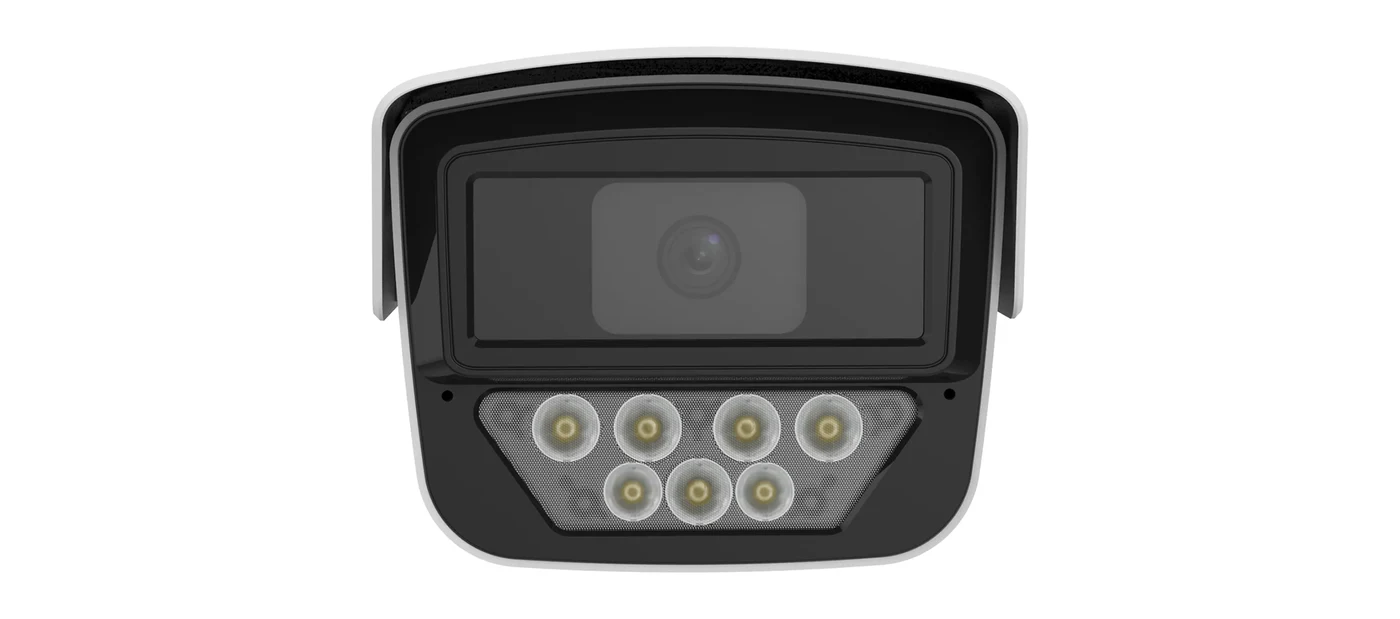

view 2

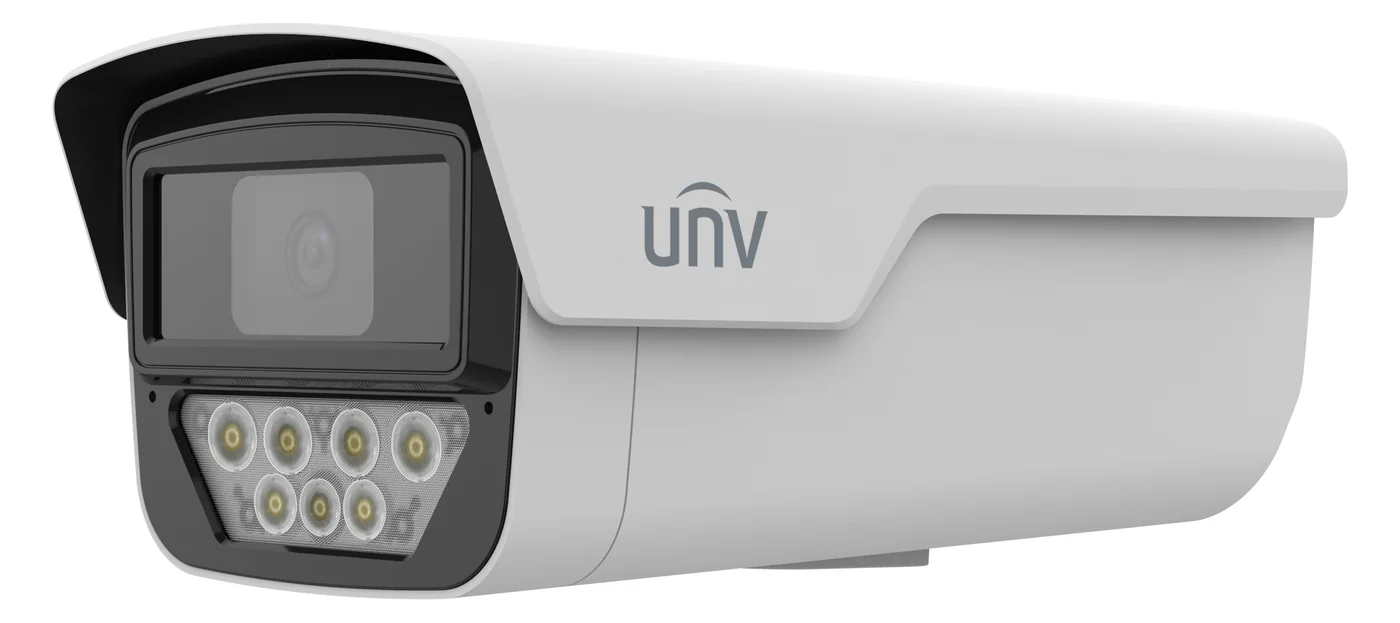

view 3
Uniview · BulletColorHunter · Wise-ISP
5MP ColorHunter Fixed Bullet · Wise-ISP

IPC245LP-ADF40(60)KC-WP

5MP fixed bullet network camera with ColorHunter and Wise-ISP — warm-light night vision up to 50 m from 7 warm LEDs (5 for illumination + 2 dedicated warning lights), built-in mic & speaker, PoE, IP67 outdoor body.

5 MP · 2880×1620@25fpsUltra 265 · low bandwidthColorHunter · with Wise-ISPWarm Light · 50m, 7 warm LEDsPoE · 802.3afMic+Speaker · 2-way audio
CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE
ADF40KC (4.0 mm, 113.5° diagonal FoV) covers a wide area near the camera. ADF60KC (6.0 mm, 71.0° diagonal FoV) trades width for reach — longer fence lines and driveways. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCUL/CULRoHSWEEEIP67ONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
50 mWarm light distance
F1.0Large aperture lens
IP67Outdoor rated
5.0 WMax power (PoE)

The Uniview IPC245LP-ADF40(60)KC-WP is a 5MP fixed bullet network camera with ColorHunter and Wise-ISP, pairing a 1/1.8" CMOS sensor and F1.0 large-aperture lens for full-color detail down to 0.0003 Lux. It illuminates with warm light up to 50 m from an array of 7 warm LEDs — 5 for supplementary night lighting and 2 dedicated to visual warning — and adds built-in mic and speaker for two-way audio, PoE (or DC 12V) power, and an IP67 outdoor rating for -30°C to 60°C operation. It ships with two fixed lens options: 4.0 mm (ADF40KC, wider view) or 6.0 mm (ADF60KC, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Detail in near-darkness without extra lightingThe 1/1.8" sensor, F1.0 lens and ColorHunter with Wise-ISP hold color and detail down to 0.0003 Lux — parking lots, loading areas and perimeters at dusk or under sodium lighting.
Narrow corridors & loading aisles9:16 corridor mode rotates the image to fit tall, narrow spaces without wasted frame — hallways, aisles, loading bay entrances.
Long perimeter fences & drivewaysADF60KC's narrower 6.0 mm lens watches long fence lines and driveways from a distance.
Gates & entrances that need a visible presence at nightWarm light reaches 50 m for full-color night vision, and 2 of the camera's 7 warm LEDs are dedicated to visual warning per the datasheet — the site is lit, not hidden.
Small shops needing two-way audioBuilt-in mic and speaker support two-way talk — warn or greet visitors remotely through the camera itself.
Sites wanting simple PoE install + local backupSingle-cable PoE (802.3af) powers and connects the camera, while MicroSD edge storage up to 512 GB keeps footage on the camera even if the network drops.
Not the right pick if you need…
  • Covert, discreet night surveillance — this model has no infrared LEDs; supplemental lighting is visible warm light only, so the scene is lit rather than hidden at night
  • Solar or battery-only power — this model needs PoE (802.3af) or a wired DC 12V adapter, it does not run on solar or battery
  • Wi-Fi connection — there is no Wi-Fi radio; it connects via wired RJ45 Ethernet only
  • Optical zoom — the lens is fixed (4.0 mm or 6.0 mm, chosen at purchase)
  • Serial/RS-485 control wiring — Serial Port: N/A on this model

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 5 MP, 1/1.8" CMOS sensor and F1.0 large aperture lens
5 MP (2880 × 1620)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic and speaker
Warm light, up to 50 m (164.0 ft.) warm light distance
7 warm lights (5 for supplementary lighting + 2 for warning purposes)
MicroSD, up to 512 GB
IP67 protection
Supports PoE power supply

7 Warm LEDs: illumination + dedicated warning

Auto/Manual switchable — per the manufacturer's datasheet, the array splits 5 LEDs for lighting and 2 for warning.

NIGHT VISION (5 LEDs)

Full-color low-light vision with Wise-ISP

5 of the 7 warm LEDs project warm light up to 50 m (164.0 ft.), paired with the 1/1.8" F1.0 large-aperture lens and ColorHunter with Wise-ISP for full-color detail down to 0.0003 Lux.

WARNING (2 LEDs)

2 dedicated warning LEDs, separate from the illumination array

Per the official datasheet, 2 of the camera's 7 warm LEDs are dedicated to warning purposes rather than scene lighting — a visible signal that the site is monitored.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there
62.1 m203.7 ft
Observewhat is happening
24.8 m81.4 ft
Recognizesomeone you know
12.4 m40.7 ft
Identifya stranger's face
6.2 m20.4 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF40KC = 4.0 mmADF60KC = 6.0 mm

Camera

Max Resolution5 MP
Sensor1/1.8" CMOS
Min. IlluminationColor: 0.0003 Lux (F1.0, AGC ON)
ShutterAuto/Manual, 1 ~ 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N> 52 dB
WDR120 dB

Lens

Focal LengthADF40KC · 4.0 mmADF60KC · 6.0 mm
Iris TypeFixed
IrisF1.0
Field of View (H)ADF40KC · 96.1°ADF60KC · 61.8°
Field of View (V)ADF40KC · 52.2°ADF60KC · 33.5°
Field of View (D)ADF40KC · 113.5°ADF60KC · 71.0°

DORI

DORI Distance (Lens)ADF40KC · 4 mmADF60KC · 6 mm
DORI Distance (Detect)ADF40KC · 62.1 m (203.7 ft.)ADF60KC · 93.1 m (305.5 ft.)
DORI Distance (Observe)ADF40KC · 24.8 m (81.4 ft.)ADF60KC · 37.2 m (122.1 ft.)
DORI Distance (Recognize)ADF40KC · 12.4 m (40.7 ft.)ADF60KC · 18.6 m (61.0 ft.)
DORI Distance (Identify)ADF40KC · 6.2 m (20.4 ft.)ADF60KC · 9.3 m (30.5 ft.)

Illuminator

Supplemental LightWarm light
Light On/Off ControlAuto/Manual
Illumination Distance (Warm Light)50 m (164.0 ft.)

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 5 MP (2880 × 1620), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 25 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps · Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IlluminationSupport
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog

Intelligent

Smart Intrusion Prevention (Lite)Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Events

Basic DetectionMotion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz

Network

ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users, 2 user levels: administrator and common user
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientUNV-Link, UNV-Link Pro, EZStation
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ · Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Interface

Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O1/1
Serial PortN/A
Built-in MicSupport
Built-in SpeakerSupport
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4); FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)

General

PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 5.0 W
Power InterfaceØ5.5 mm coaxial power plug
Dimensions255 mm × 125 mm × 105 mm (10.0" × 4.9" × 4.1") (L × W × H)
Weight0.87 kg (1.92 lb.)
MaterialGraphene + Plastic
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
Dimensions255 × 125 × 105 mm (10.0" × 4.9" × 4.1")
Weight0.87 kg (1.92 lb.)
MaterialGraphene + Plastic

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-WM06-C-INWall mounting bracket for 6-inch bullet camera
TR-UM06-A-INBullet camera desktop bracket
TR-UP06-B-INBullet pole mounting bracket
