IP Cameras › IPC3234EA-AHDZK(X4K)-I1
IPC3234EA-AHDZK(X4K)-I1
view 1
view 2
view 3

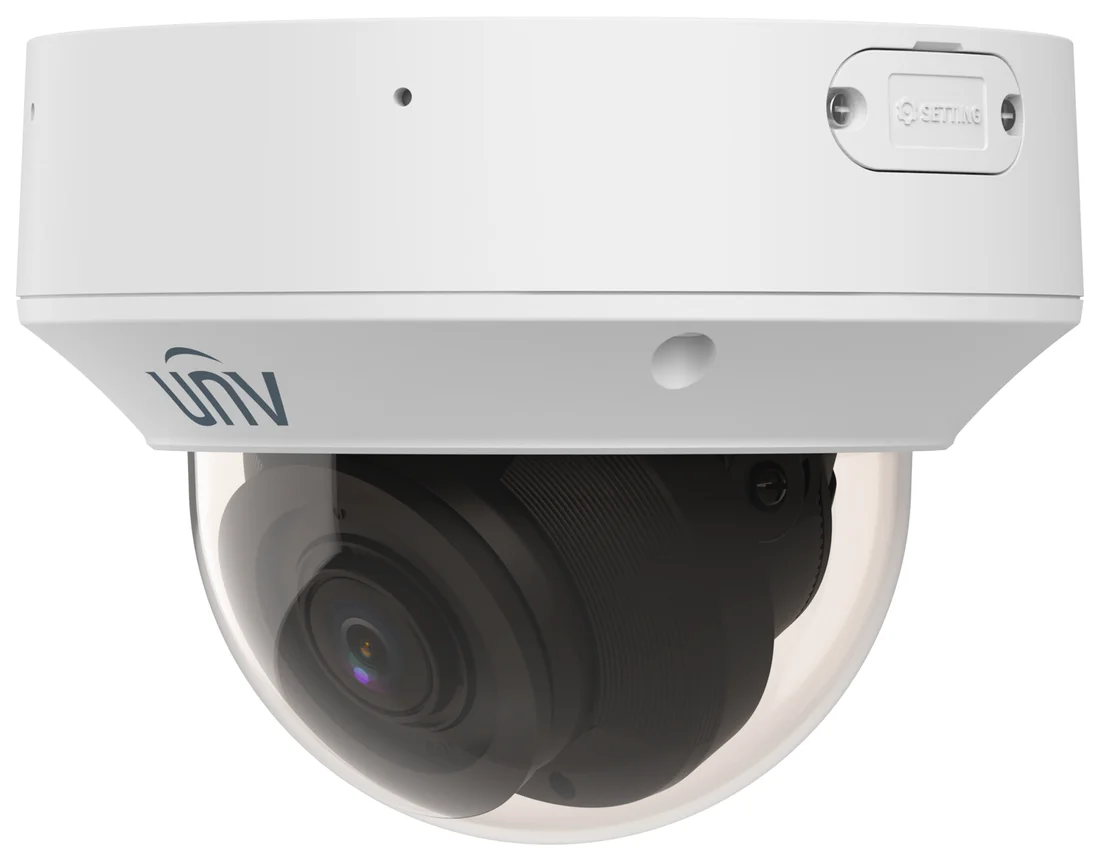

Uniview · Dome4MP LightHunter WDR
4MP LightHunter WDR Dome · Motorized Zoom

IPC3234EA-AHDZK(X4K)-I1

4MP LightHunter WDR network dome camera with 140 dB wide dynamic range, Smart IR night vision, and a motorized zoom lens — choose 2.8-12 mm wide coverage (AHDZK) or 8-32 mm long-range reach (AHDX4K).

4 MP · 2688×1520@60fpsUltra 265 · H.265/H.264/MJPEG140 dB · optical WDRPoE+ · 802.3af / DC 12V ±25%IP67 · IK10 · outdoor + vandal-resistantmicroSD · up to 512 GB edge storageMic & Speaker · built-in two-way audio
CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE
AHDZK (2.8-12 mm, up to 106.6° view) is a motorized 4X zoom lens that covers a wide area up close and can tighten in for moderate reach — lobbies, retail floors, driveways. AHDX4K (8-32 mm, up to 42.6° view) is a motorized 4X telephoto zoom built for long-range identification — parking lot entrances, perimeters, distant gates. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67IK10ONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
4 MPResolution
140 dBOptical WDR
40 mSmart IR distance
IK10Vandal-resistant

The Uniview IPC3234EA is a 4MP LightHunter WDR network dome camera built around a 1/1.8" CMOS sensor and a motorized 4X zoom lens. It combines up to 140 dB optical WDR, Smart IR night vision to 40 m, and metadata analysis (human/vehicle attributes, face recognition, intrusion prevention, people counting) in an IP67/IK10 body powered over PoE+. It is offered with two lens options: AHDZK (2.8-12 mm, wide coverage) or AHDX4K (8-32 mm, long-range reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Parking lots & vehicle gatesAHDX4K's 8-32 mm zoom reaches license plates and faces at distance; metadata analysis tags vehicle attributes automatically.
Retail & access verificationFace recognition can match against up to 100,000 faces across 16 libraries — flag known staff or blocklisted visitors on arrival.
Perimeters & warehouse yardsSmart intrusion prevention (cross line, intrusion, enter/leave area) filters false alarms by classifying human, vehicle and non-motor vehicle.
Malls & transit hubsPeople counting tracks flow and crowd density for different statistical scenarios — occupancy trends without a separate sensor.
Dusk corridors & mixed lightingLightHunter sensor plus 140 dB WDR keep color detail readable in near-dark and harsh backlight scenes.
Harsh or vandal-prone sitesIP67 + IK10 body shrugs off rain, dust and impact; PoE+ does power and video over one cable.
Not the right pick if you need…
  • A simple fixed-focus lens — this is a motorized 4X zoom lens (2.8-12 mm or 8-32 mm), not a fixed 2.8/4 mm lens
  • Wi-Fi — this is a wired RJ45 camera
  • A visible warm-light deterrent — this model uses invisible 850 nm Smart IR only, no white-light illuminator
  • Battery or solar power — PoE+ / DC 12V wired power only
  • 8MP/4K resolution — this camera is 4MP (2688 × 1520)

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/1.8" CMOS sensor
2688 × 1520@60 fps in the main stream, offering smoother live video and more details
Ultra 265, H.265, H.264, MJPEG
Wise-ISP technology, comprehensive improvement in image quality
Metadata analysis: supports human body, motor vehicle and non-motor vehicle image capture and attribute collection, realizes data visualization management, allows users to get target information for further data analysis
Supports front-end comparison, supports blocklist and allowlist comparison, increases the concurrent detection number up to 120
Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
LightHunter technology ensures ultra high image quality in low illumination environment
Up to 140 dB optical WDR (wide dynamic range)
DC 12 V, PoE (IEEE 802.3af) power supply
Wide voltage range of ±25% in DC

Built for the dark: LightHunter WDR + Smart IR

Two complementary low-light technologies — this model has no visible warm-light illuminator.

SMART IR MODE

Invisible infrared — night vision without lighting up the scene

Smart IR reaches up to 40 m (131.2 ft.) at 850 nm, with Auto/Manual control — steady coverage after dark with no visible light source.

LIGHTHUNTER MODE

Ultra-low-light color imaging with wide dynamic range

The LightHunter sensor holds color detail down to 0.0003 Lux (AHDZK, F1.2) / 0.0005 Lux (AHDX4K, F1.6) with AGC on, and up to 140 dB optical WDR balances bright and dark areas in the same frame.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Because each lens is a motorized 4X zoom, every value spans a range from wide to full telephoto. Switch the lens buttons above to compare.

Detectsomething is there
68.0-166.2 m223.0-545.2 ft
Observewhat is happening
27.2-66.5 m89.2-218.1 ft
Recognizesomeone you know
13.6-33.2 m44.6-109.0 ft
Identifya stranger's face
6.8-16.6 m22.3-54.5 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ZK = 2.8-12 mmX4K = 8-32 mm

Camera

Sensor1/1.8" CMOS
Min. IlluminationZK · Color: 0.0003 Lux (F1.2, AGC ON), BW: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IRX4K · Color: 0.0005 Lux (F1.6, AGC ON), BW: 0.0003 Lux (F1.6, AGC ON), 0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
WDR140 dB
S/N> 56 dB

Lens

Focal LengthZK · 2.8 to 12 mmX4K · 8 to 32 mm
Optical Zoom4X
IrisZK · F1.2X4K · F1.6
Field of View (H)ZK · 106.6° to 51.3°X4K · 42.6° to 15.2°
Field of View (V)ZK · 56.9° to 28.6°X4K · 23.5° to 8.9°
Field of View (D)ZK · 131.1° to 63.1°X4K · 52.4° to 17.9°
Iris TypeP-iris

DORI

DORI Distance (Detect)ZK · 68.0 m to 166.2 m (223.0 ft. to 545.2 ft.)X4K · 124.1 m to 496.6 m (407.3 ft. to 1629.1 ft.)
DORI Distance (Observe)ZK · 27.2 m to 66.5 m (89.2 ft. to 218.1 ft.)X4K · 49.7 m to 198.6 m (163.1 ft. to 651.6 ft.)
DORI Distance (Recognize)ZK · 13.6 m to 33.2 m (44.6 ft. to 109.0 ft.)X4K · 24.8 m to 99.3 m (81.4 ft. to 325.8 ft.)
DORI Distance (Identify)ZK · 6.8 m to 16.6 m (22.3 ft. to 54.5 ft.)X4K · 12.4 m to 49.7 m (40.7 ft. to 162.9 ft.)

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
Video Bit Rate128 Kbps to 16 Mbps
ROISupport
Video StreamTriple streams
Privacy MaskUp to 8 areas (8 blacks / 8 mosaics)
OSDUp to 10 OSDs
Frame Rate-Main Stream4 MP (2688 × 1520), max. 60 fps
Frame Rate-Sub Stream1080P (1920 × 1080), max. 60 fps
Frame Rate-Third StreamD1 (720 × 576), max. 60 fps

Intelligent

RecognitionFace recognition: Max support 16 face libraries; Max supports 100000 faces in face library
Metadata AnalyseSupport human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection
Exception DetectionZK · Object removed, Object Left Behind, Scene change, Defocus detectionX4K · Object removed, Object Left Behind
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People CountingSupport people flow counting and crowd density monitoring


White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLCSupport
Smart IRSupport
DefogDigital defog

Events

Basic DetectionZK · Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detectionX4K · Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication, Alarm input, Alarm output

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate16 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3
Compatible IntegrationAPI, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation, UNV-Link, UNV-Link Pro
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Illuminator

Illumination Distance (IR)40 m (131.2 ft.)
IR On/Off ControlAuto/Manual
Wavelength850 nm

Interface

Audio I/O2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O3/2
Serial Port1 × RS485
Built-in MicSupport, built-in mic × 2
Built-in SpeakerSupport
Network1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet

Certification

EMCCE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002)

General

PowerDC 12 V (±25%), PoE+ (IEEE 802.3af)
Power ConsumptionZK · 17 WX4K · 18 W
Power InterfaceØ5.5 mm coaxial power plug
Built-in DC12V OutputSupport
DimensionsØ148 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H)
WeightZK · 1.01 kg (2.23 lb.)X4K · 1.06 kg (2.34 lb.)
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Reset ButtonSupport
HeaterSupport

Configurable

P/NSupport

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
DimensionsØ148 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H)
Weight1.01 kg (2.23 lb.) AHDZK / 1.06 kg (2.34 lb.) AHDX4K

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB04-C-INJunction box for 323 Series Fix-dome (support wiring from behind)
TR-JB07/WM04-B-IN4 inch back hole hemisphere wall mounting assembling bracket
TR-WM04-IN4 inch hemisphere wall mounting bracket
TR-FM152-A-INIn-ceiling bracket for 323 Series Fix-dome
TR-SM04-INSwitch box adapter for 323 Series Fix-dome
TR-A01-INNPT 3/4" waterproof cable gland
TR-UP06-INUniversal pole mounting bracket
TR-UC08-CBullet & dome corner mounting bracket
