Uniview · Eyeball8MP ColorHunter · Dual Light

8MP ColorHunter IR Eyeball · Dual Light

IPC3618LE-ADF28(40)KC-DL

Name: Uniview IPC3618LE-ADF28(40)KC-DL
Brand: Uniview

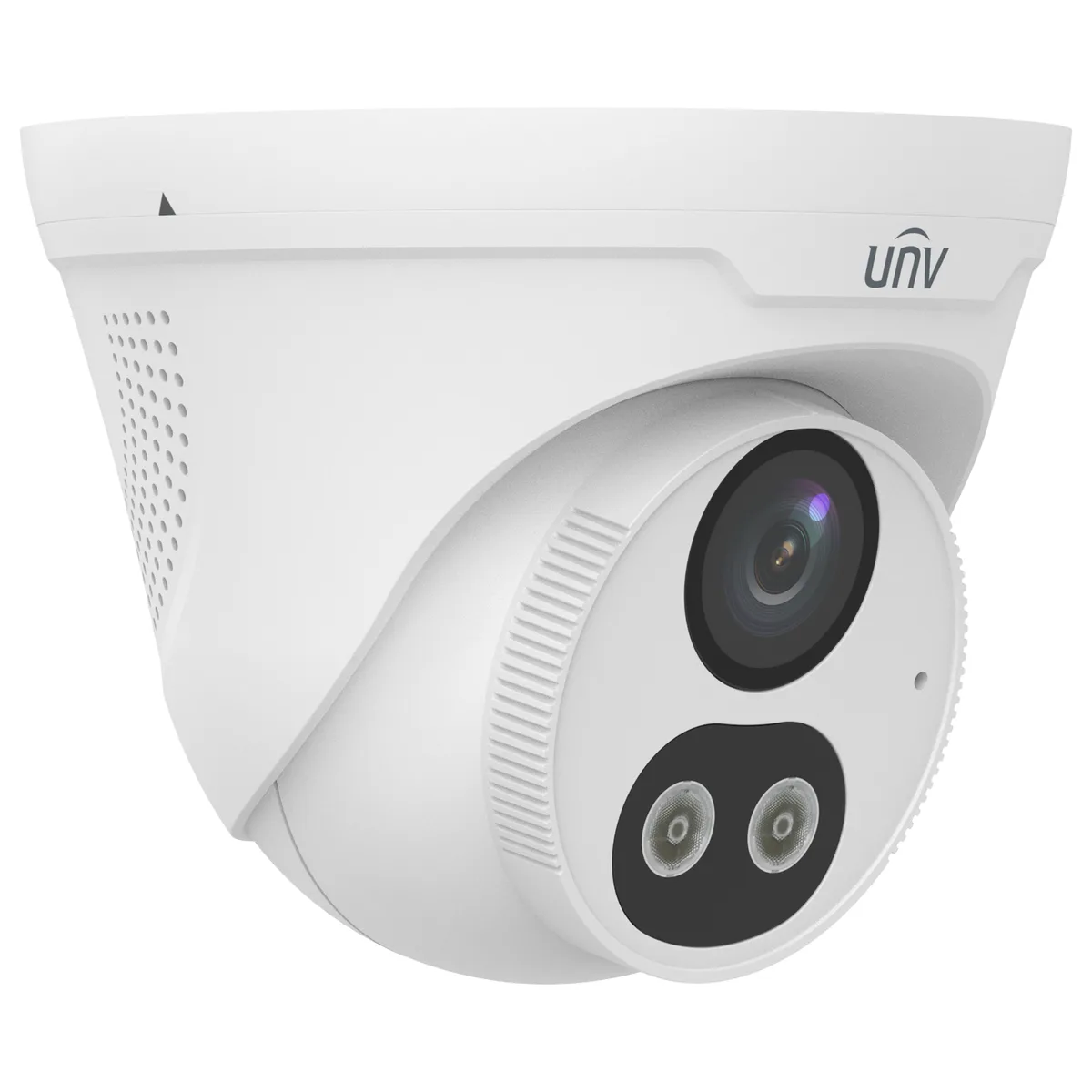

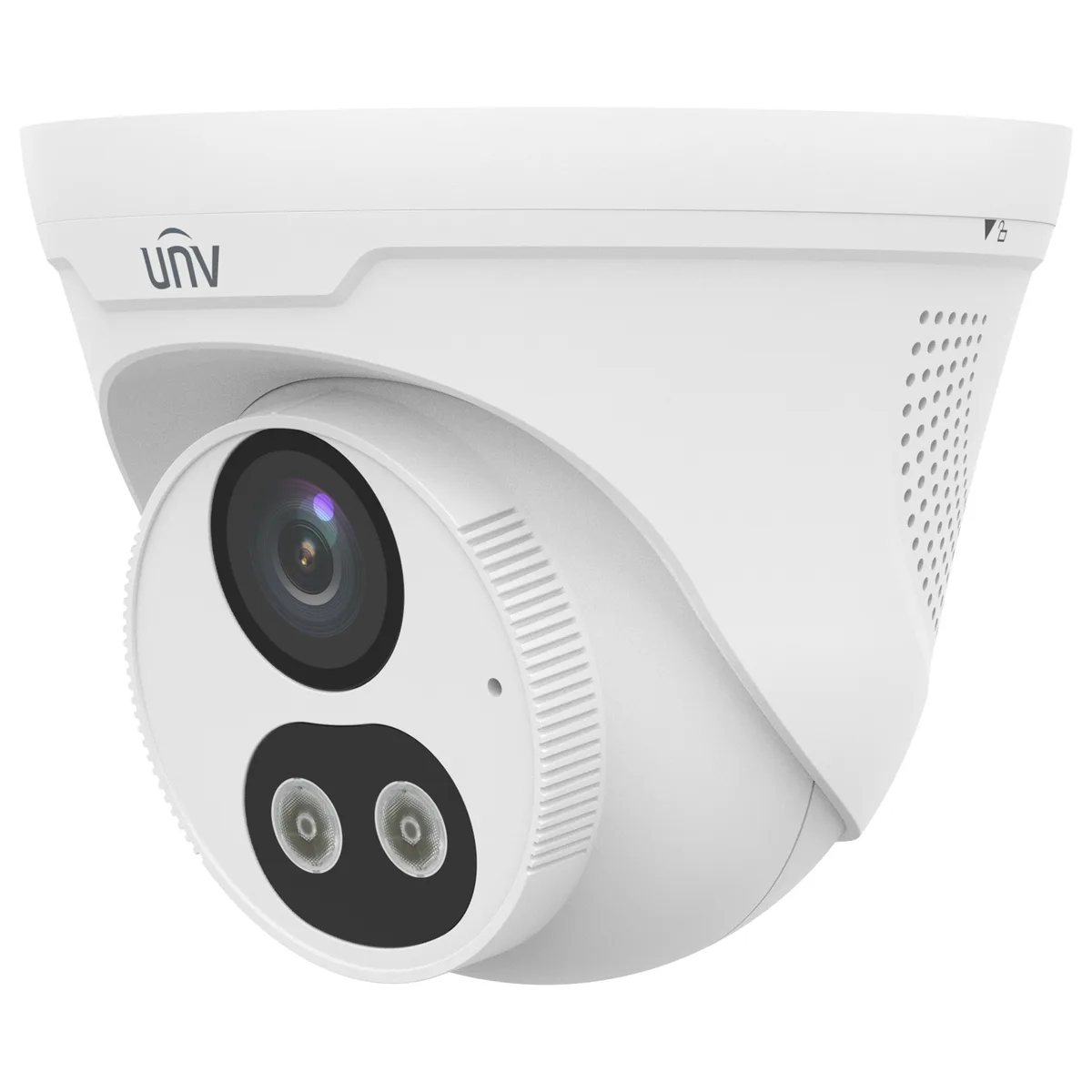

8MP fixed dual-light eyeball network camera — ColorHunter full-color night vision with IR + warm light, PoE single-cable install, built-in mic & speaker, IP67 outdoor body.

8 MP · 3840×2160@20fpsUltra 265 · low bandwidthDual Light · IR 30m + warm 30mPoE · 802.3afIP67 · outdoorMic & Speaker · two-way audio

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28KC (2.8 mm, 98.7° view) covers a wide area near the camera — doorways, small rooms, shop counters. ADF40KC (4.0 mm, 83.1° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCUL/CULRoHSWEEEIP67ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

30 mWarm light

IP67Outdoor rated

5.2 WPoE max power

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsSee customers in full color even at night with ColorHunter dual light, and talk to them directly through the built-in mic and speaker.

Home gates & yardsThe dual-light system lights up at night — visitors are visible in full color and intruders know they are seen.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. ADF40KC watches long fence lines.

Residential compoundsCross line and intrusion detection, based on human body detection, raise alerts for people — not for stray animals or moving branches.

Small offices & receptionUltra 265 compression keeps 8MP recordings small — more days of footage on the same NVR disk, plus two-way audio at the front desk.

Kiosks & fuel stationsOne PoE cable does power + video — no electrician needed at the pole, quick to install and move.

Not the right pick if you need…

Wi-Fi — this is a wired RJ45 camera
Optical zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Analog video output — this is a network-only camera, no analog output port
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28KC = 2.8 mmADF40KC = 4.0 mm

Camera

Max Resolution	8 MP
Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 56 dB
WDR	120 dB

Lens

Focal Length	ADF28KC · 2.8 mmADF40KC · 4.0 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	ADF28KC · 98.7°ADF40KC · 83.1°
Field of View (V)	ADF28KC · 53.9°ADF40KC · 48.0°
Field of View (D)	ADF28KC · 103.6°ADF40KC · 86.5°
Lens Type	Fixed

DORI

DORI Distance (Lens)	ADF28KC · 2.8 mmADF40KC · 4 mm
DORI Distance (Detect)	ADF28KC · 87.0 m (285.3 ft.)ADF40KC · 124.2 m (407.6 ft.)
DORI Distance (Observe)	ADF28KC · 34.8 m (114.2 ft.)ADF40KC · 49.7 m (163.1 ft.)
DORI Distance (Recognize)	ADF28KC · 17.4 m (57.1 ft.)ADF40KC · 24.8 m (81.4 ft.)
DORI Distance (Identify)	ADF28KC · 8.7 m (28.5 ft.)ADF40KC · 12.4 m (40.7 ft.)

Illuminator

Supplemental Light	Dual light
Illumination Distance (IR)	30 m (98.4 ft.)
Illumination Distance (Warm Light)	30 m (98.4 ft.)
Wavelength	850 nm
Light On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Image Stabilization	N/A

Events

Basic Detection	Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 5.2 W (without speaker)
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø118 mm × 96 mm (Ø4.6" × 3.8") (Ø × H)
Weight	0.32 kg (0.71 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese

IPC3618LE-ADF28(40)KC-DL

Is this the right camera for you?

Worried about counterfeits? Order under your own company name.

Using your own freight forwarder? No problem.

Key Features

ColorHunter Dual Light: two ways to see the night

Invisible infrared — discreet black & white night vision

Visible warm light — ColorHunter full-color and active deterrence

How far can it see? (DORI)
