IP Cameras › IPC3635LB-ADZK-H
IPC3635LB-ADZK-H
view 1

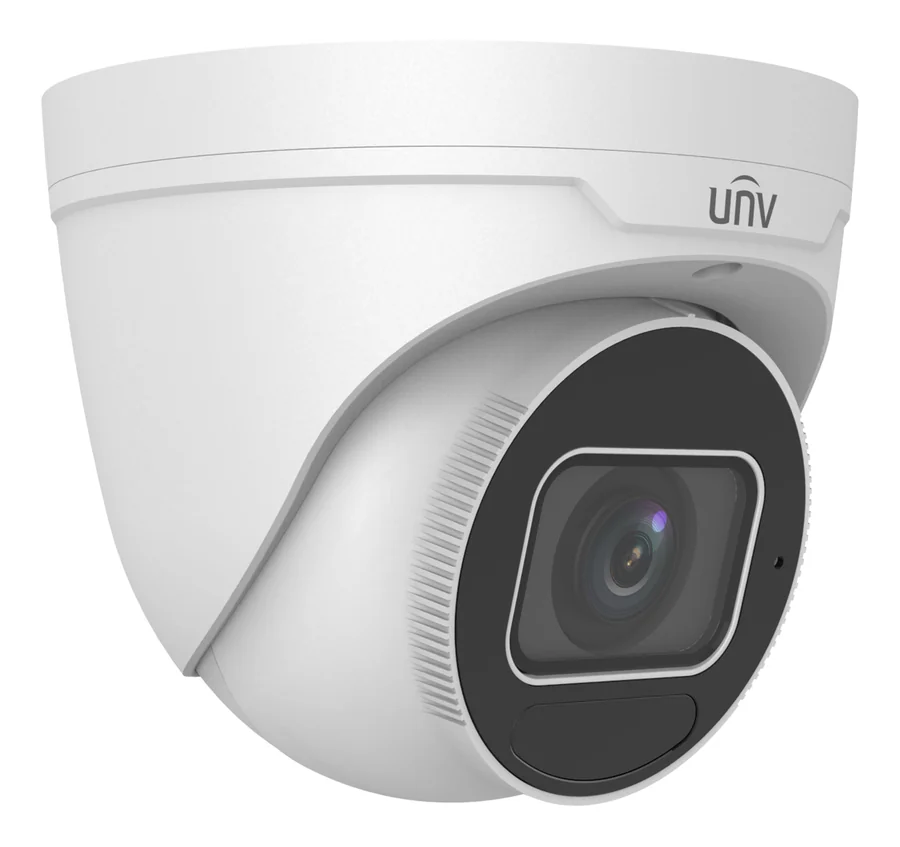

view 2

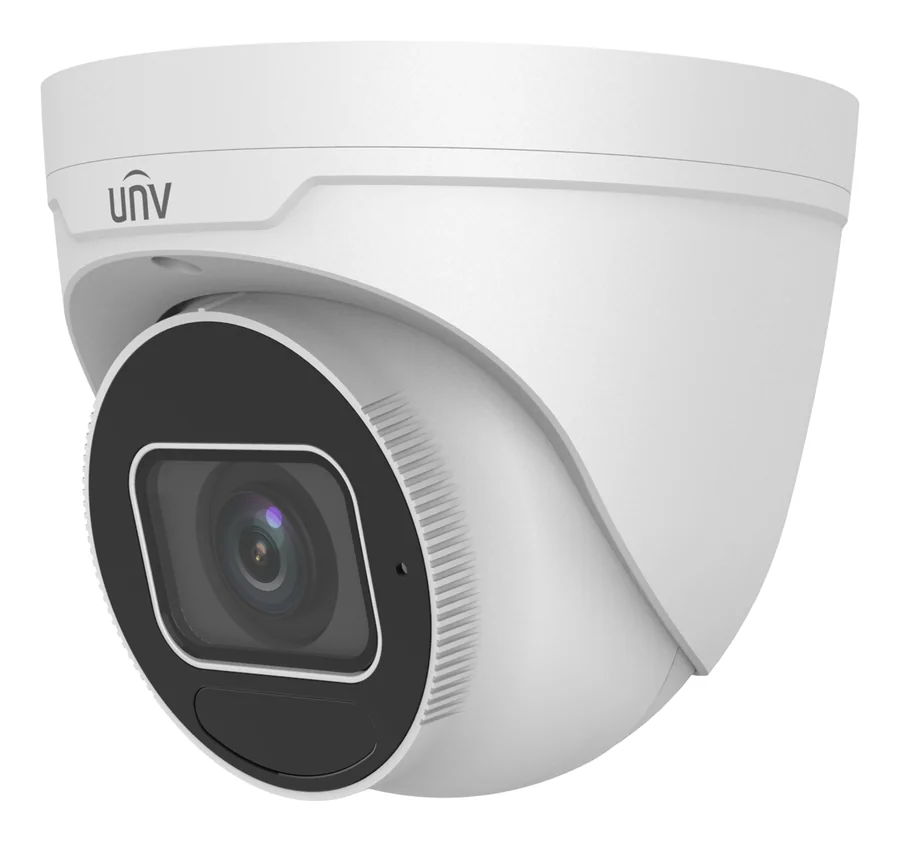

view 3
Uniview · Dome5MP · Motorized Zoom
5MP HD IR VF Dome

IPC3635LB-ADZK-H

5MP motorized varifocal (2.8–12mm) IR dome network camera — 120dB true WDR, ultra motion detection, Smart IR up to 40m, built-in mic, IP67 outdoor body, NDAA-compliant.

5 MP · 2880×1620@25fps2.8–12mm · motorized zoom, ~4.3XUltra Motion · human/vehiclePoE / DC12V · dual powerIP67 · outdoorMic · built-in audioNDAA · compliant construction
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCCBUL/CULRoHSWEEEIP67ONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
40 mIR night vision
120 dBTrue WDR
7.5 WMax power
-30~60°CWorking temperature

The Uniview IPC3635LB-ADZK-H is a 5MP dome network camera with a motorized varifocal lens (2.8–12 mm, about 4.3X zoom) that lets the field of view be adjusted remotely after installation, combined with 120 dB true WDR for strong-light scenes and ultra motion detection (human/vehicle classification) plus cross line and intrusion detection based on human body detection. It has a built-in mic, MicroSD edge storage up to 512 GB, and powers over a single PoE cable or DC 12V, with an IP67 outdoor rating and a −30 °C to 60 °C working range. Smart IR reaches up to 40 m at night, and the camera is NDAA-compliant.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long driveways & fence linesThe 2.8–12 mm motorized zoom can be tuned remotely after mounting — narrow the view to reach further down a driveway without re-aiming the bracket.
Parking lots & vehicle gatesUltra motion detection tells people from vehicles, cutting false alerts from a busy lot down to the movement that actually matters.
Storefronts facing strong sunlight120 dB true WDR keeps both the bright doorway and the shaded interior visible in the same frame, instead of one washing out the other.
Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat outdoors, day after day.
Shops & reception areasThe built-in mic picks up what is said at the counter, and MicroSD edge storage keeps a local backup even where an NVR is also recording.
Quick retrofits & ceiling/pole installsOne PoE cable does power + video — no electrician needed on site, quick to install and reframe later thanks to the motorized zoom.
Not the right pick if you need…
  • Full-color night vision — this is IR-only, night video is black & white, not color
  • Two-way talk — it has a built-in mic but no speaker
  • Wi-Fi — this is a wired RJ45 camera
  • A one-time fixed focal length choice at purchase — the zoom on this model is motorized and adjustable on site, not a pick-one-at-checkout fixed lens
  • Vandal-resistant IK rating — this model's datasheet lists no IK protection rating (IP67 dust/water rating only)
  • Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 5 MP, 1/2.7" CMOS sensor
5 MP (2880 × 1620)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Smart IR, up to 40 m (131.2 ft.) IR distance
MicroSD, up to 512 GB
IP67 protection
Supports PoE power supply
3-axis

Night Vision: Smart Infrared

Switchable Auto/Manual — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 40 m (131.2 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Because this model has a motorized 2.8–12 mm varifocal lens, each capability spans a range — from the widest zoom setting to full telephoto, not a single fixed number.

Detectsomething is there
WIDE (2.8mm)63.0 m206.7 ft
TELE (12mm)270.0 m885.8 ft
Observewhat is happening
WIDE (2.8mm)25.2 m82.7 ft
TELE (12mm)108.0 m354.3 ft
Recognizesomeone you know
WIDE (2.8mm)12.6 m41.3 ft
TELE (12mm)54.0 m177.2 ft
Identifya stranger's face
WIDE (2.8mm)6.3 m20.7 ft
TELE (12mm)27.0 m88.6 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution5 MP
Sensor1/2.7" CMOS
Min. IlluminationColor: 0.001 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N> 52 dB
WDR120 dB

Lens

Focal Length2.8 to 12 mm
Iris TypeFixed
IrisF1.6
Field of View (H)96.4° to 32.7°
Field of View (V)51.3° to 18.6°
Field of View (D)101.2° to 37.2°

DORI

DORI Distance (Lens)2.8 to 12 mm
DORI Distance (Detect)63.0 m to 270.0 m (206.7 ft. to 885.8 ft.)
DORI Distance (Observe)25.2 m to 108.0 m (82.7 ft. to 354.3 ft.)
DORI Distance (Recognize)12.6 m to 54.0 m (41.3 ft. to 177.2 ft.)
DORI Distance (Identify)6.3 m to 27.0 m (20.7 ft. to 88.6 ft.)

Illuminator

Supplemental LightIR
Illumination Distance (IR)40 m (131.2 ft.)
Wavelength850 nm
IR On/Off ControlAuto/Manual

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 5 MP (2880×1620), max. 25 fps; 4 MP (2560×1440), max. 25 fps; 3 MP (2304×1296), max. 30 fps; 1080P (1920×1080), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog

Events

Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users, 2 user levels: administrator and common user
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)

General

PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 7.5 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H)
Weight0.66 kg (1.46 lb.)
MaterialMetal
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Reset ButtonSupport
Web Client Language4 Languages: English, Russian, Spanish, Vietnamese

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
DimensionsØ129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H)
Weight0.66 kg (1.46 lb.)
MaterialMetal
Mount adjustmentPan 0–360° · Tilt 0–75° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-H-IN-V2Junction box for metal turret camera (support wiring from behind)
TR-A01-INNPT 3/4" waterproof cable gland
TR-SE24-INDome pendent mounting pole, 200 mm
TR-SE24-A-INDome pendent mounting pole, 500 mm
TR-CM24-INDome pendent mounting bracket (indoor)
TR-UC08-C-V2Bullet & dome corner mounting bracket
TR-JB07/WM03-F-IN-V2Wall mounting assembling bracket with back hole for 3 inch hemisphere
TR-WM03-B-IN-V2Wall mounting assembling bracket for 3 inch hemisphere
TR-JB03-J-INJunction box for metal turret camera (support wiring from behind)
TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only
