Uniview · PTZ CameraLightHunter · 33× PTZ Dome

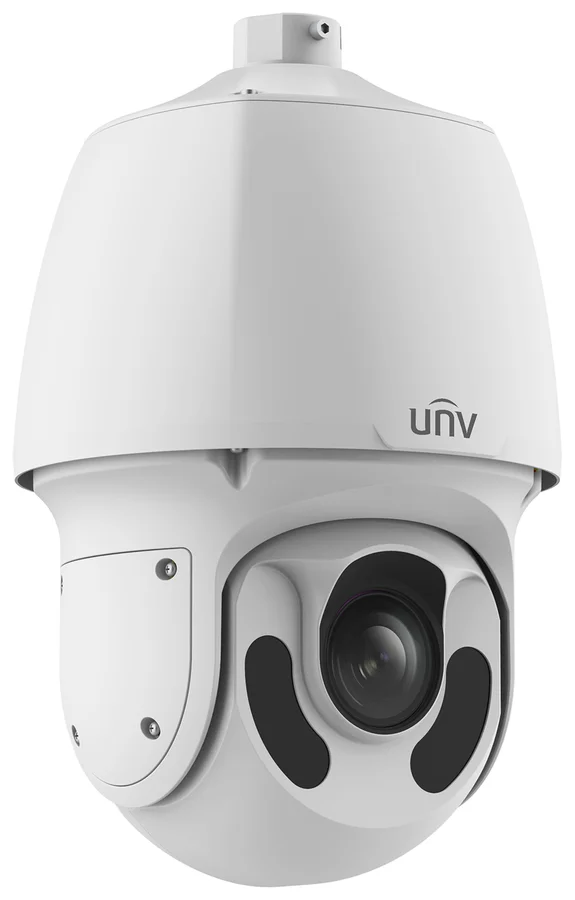

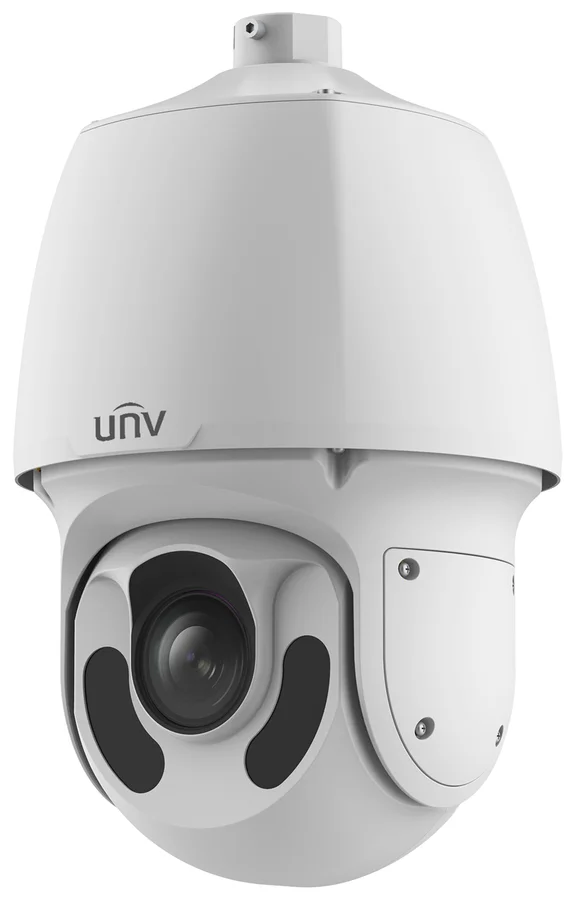

2MP 33× LightHunter Network PTZ Dome Camera

IPC6622SR-X33-VF

Name: IPC6622SR-X33-VF
Brand: Uniview

A 2MP PTZ dome with 33× optical zoom and LightHunter low-light imaging — Smart Intrusion Prevention classifies people, vehicles and non-motor traffic while Smart IR reaches 150 m after dark.

1920×1080 · main stream @60fps33×/16× · optical / digital zoomSmart Intrusion · human/vehicle/non-motor classes120 dB · WDRIP66 · weatherproof housing-40~70°C · wide operating range

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile TONVIF Profile M

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

2 MPResolution, 1080P main stream

33×Optical zoom (4.5-148.5 mm)

150 mSmart IR distance

120 dBWDR, wide dynamic range

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Perimeter & fence linesSmart Intrusion Prevention covers cross line, intrusion, and enter/leave area detection with human / non-motor vehicle / vehicle classification and false-alarm filtering; 33× zoom lets one pole cover a long fence line.

Parking lots & logistics yardsPeople counting with crowd density monitoring tracks flow across the lot, while 33× zoom reads plates and details at distance; 360° endless pan covers a full yard from a single pole.

Road junctions & approach roads120 dB WDR handles headlight glare and strong backlight at junctions; at full 33× telephoto the DORI Identify range reaches 218.8 m, useful for reading vehicle detail from a distance.

Night & low-light approachesLightHunter keeps color detail down to 0.001 Lux (F1.5) before it gets fully dark, Smart IR then reaches 150 m, and heatwave reduction keeps hot pavement or rooftops from smearing the image.

Campus & estate patrol routesRoute Patrol (16 patrols × 32 actions) and Recorded Patrol (16 × 128 actions) automate coverage of multiple points, backed by 1024 presets and Preset Patrol (16 × 64 presets) for repeatable rounds.

Harsh outdoor mountsIP66 sealing, -40 °C to 70 °C operation, 6 kV surge protection and a built-in heater keep the unit running through cold winters and hot summers alike.

Not the right pick if you need…

No built-in microphone or speaker — audio I/O (1 in / 1 out) is present, but two-way audio needs your own external mic and speaker wired to the terminals.
No Wi-Fi (WIFI: N/A) — this is a wired PTZ; plan a Cat5e/6 run to the mounting point, there is no wireless option on this model.
Max power draw is 53.72 W — standard 802.3af PoE (15.4 W) will not run it; use PoE+/PoE++, or the AC 24 V / DC 24 V power option instead.
Single 2MP telephoto channel with no wide-angle overview lens on this unit — for full-scene coverage plus zoom detail, pair it with a fixed or panoramic camera.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 52 dB

Lens & Field of View

Focal Length	4.5 to 148.5 mm
Optical Zoom	33X
Digital Zoom	16X
Iris	F1.5 to F4.0
Field of View (H)	56.2° to 2.6°
Field of View (V)	33.5° to 1.4°
Field of View (D)	69.1° to 3.1°

DORI

DORI Distance (Lens)	4.5 to 148.5 mm
DORI Distance (Detect)	72.9 m to 2187.9 m (239.2 ft. to 7178.2 ft.)
DORI Distance (Observe)	29.2 m to 875.2 m (95.7 ft. to 2871.3 ft.)
DORI Distance (Recognize)	14.6 m to 437.6 m (47.9 ft. to 1435.7 ft.)
DORI Distance (Identify)	7.3 m to 218.8 m (24.0 ft. to 717.8 ft.)

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 1080P (1920×1080), max. 60 fps · Sub Stream: 1080P (1920×1080), max. 60 fps · Third Stream: D1 (720×576), max. 60 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
Privacy Mask	24 areas, up to 4 areas per scene
OSD	Up to 10 OSDs

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 KHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network & Security

User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ · Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Intelligent

Exception Detection	Object removed, Object Left Behind
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring

PTZ

Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Number of Presets	1024
Preset Image Freeze	Support
Preset Patrol	16 patrols, up to 64 presets for each patrol
Patrol Stay Time	15 s to 1800 s
Home Position	Support
Pan Range	360° (endless)
Pan Speed	0.1°/s to 200°/s
Tilt Range	-15° to 90° (auto reverse)
Tilt Speed	0.1°/s to 200°/s


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog
Heatwave Reduction	Support

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p] · 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
WIFI	N/A
Alarm I/O	2/1
Serial Port	1 × RS485
Built-in Mic	N/A
Built-in Speaker	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	1 BNC (for debugging)

Illuminator

Illumination Distance (IR)	150 m (492.1 ft.)
IR On/Off Control	Auto/Manual
Wavelength	850 nm

Certification

EMC	CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020) · FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) · UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-ROHS (2011/65/EU; (EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power	AC 24 V±25%, DC 24 V±25%, PoE (PSE Required)
Power Consumption	Max. 53.72 W
Power Interface	Wires with cold-pressed terminal
Dimensions	Ø227 mm × 384.8 mm (Ø8.9" × 15.1") (Ø×H)
Weight	5.39 kg (11.88 lb.)
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection	6 kV
Reset Button	Support
Web Client Language	22 Languages
Heater	Support
