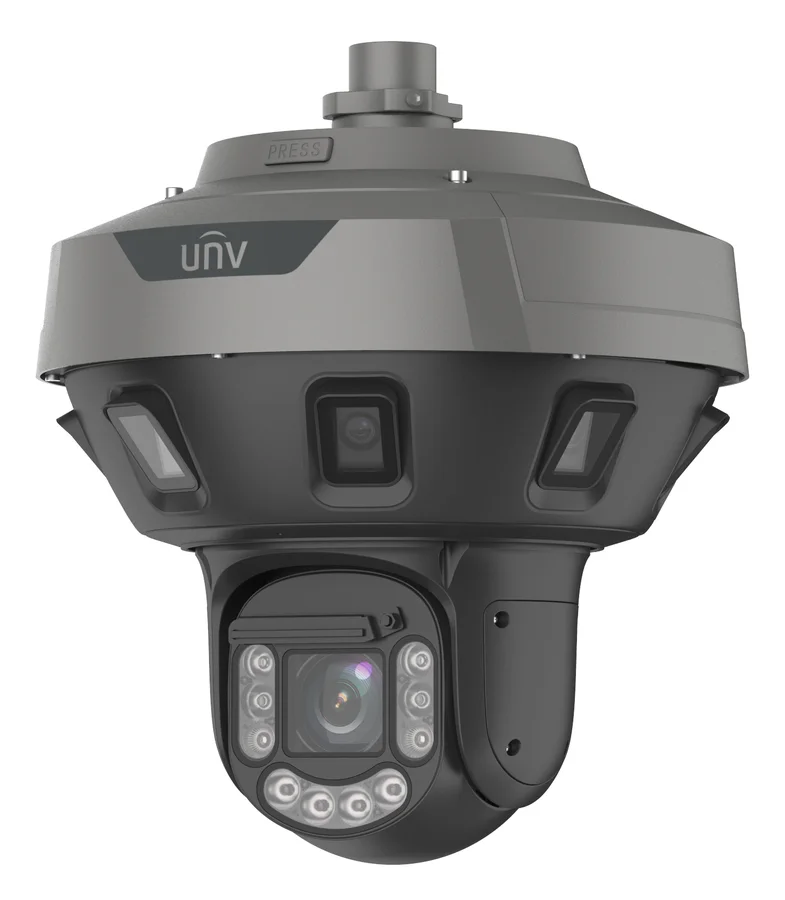

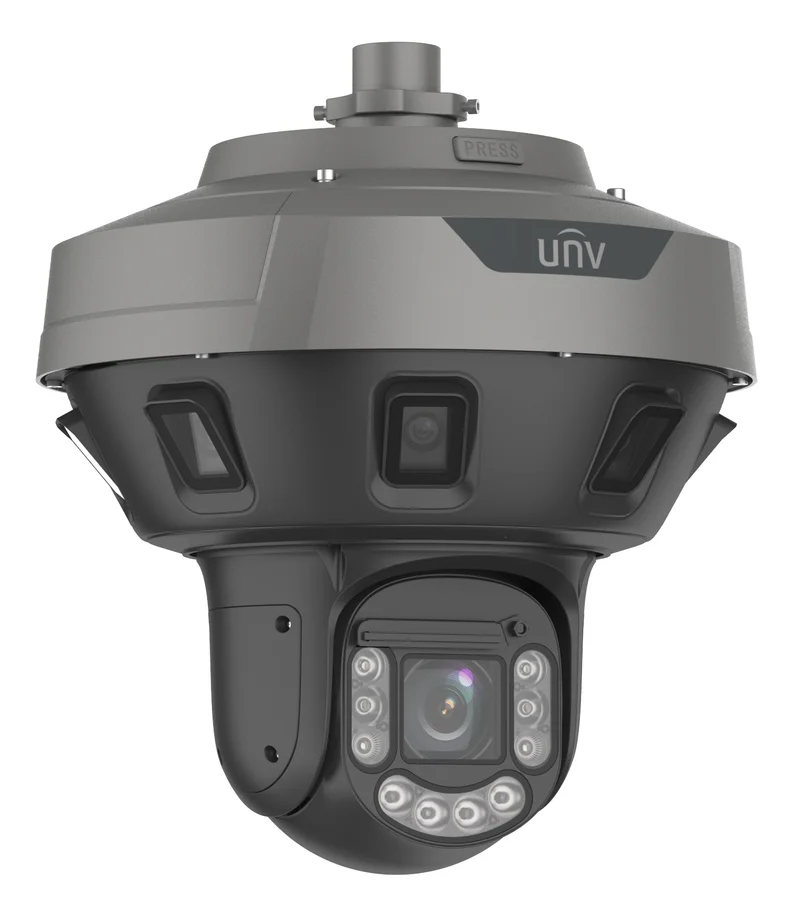

Uniview · Panoramic PTZTiangong · Panoramic Linkage

16MP+4MP Panoramic-Linkage PTZ · 25× Auto-Tracking

IPC96342EFW-X25-E8-W-VH3

Name: IPC96342EFW-X25-E8-W-VH3
Brand: Uniview

One unit watches everything and zooms into anything: an 8-sensor 16MP panorama covers 360° with no blind spot, while the 25× detail PTZ automatically locks onto and tracks people and vehicles — day, night, rain or heat shimmer.

8192×1800 · panorama @30fps2688×1520 · detail @60fpsAuto-Track · with handoverFace DB · 16 libs · 100k facesIP67 · IK10 · vandal-proof housing-40~70°C · with wiper & heater logic

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile T

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

16 MPPanorama (8-sensor stitching)

25×Optical zoom, detail channel

200 mIR distance (+100 m warm light)

±0.04°Encoder precision, smooth PT

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

City squares & plazasOne pole, whole square: the 16MP panorama covers 360° with a 110° vertical field — no blind spot even at a 6 m mounting height — while multi-zone people counting and crowd-density detection watch the flow.

Perimeter with auto-trackingPerimeter intrusion on both channels with person/vehicle classification; when something crosses the line, the 25× detail channel locks on and tracks it automatically — and hands over tracking beyond the panorama's edge.

Road intersectionsMixed-traffic detection classifies cars, two-wheelers and pedestrians; adaptive glare suppression tames headlights at night and heat-haze reduction keeps summer asphalt from smearing the image.

Stadiums & scenic areasDraw a box anywhere in the panorama and the detail channel zooms there instantly; gyroscopic stabilization keeps the long-zoom image steady on a swaying pole in the wind.

Night, long rangeStarlight sensors (0.0003 lux panorama / 0.0005 lux detail) keep color late into the night; when it gets truly dark, 200 m IR and a 100 m warm light take over — the warm light also feeds full-color capture for face and plate evidence.

Harsh outdoor mountsIP67 sealing, IK10 vandal resistance, -40 °C to 70 °C operation, 6 kV surge protection, a wiper for rain and a snow-removal mode — built for the pole nobody wants to climb twice.

Not the right pick if you need…

No PoE on this class of machine — it needs a dedicated DC 24 V or DC 36 V supply (max. 135 W). Plan power cabling and a suitable outdoor PSU at the pole before ordering.
12.5 kg and Φ380 mm: this is a heavy-duty unit that needs the dedicated Tiangong brackets (pole / pendant / wall) and a rigid pole — not a light camera arm.
The panorama channel has no WDR and no zoom — harsh backlight scenes and distant detail are the detail channel's job. If all you need is simple zoom patrol, a classic single-lens PTZ costs far less.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

8-sensor stitched 360° panorama with dynamic seam adjustment — 16 MP (8192×1800) @30fps; flexible 180°/270°/360° coverage

4 MP 25× optical-zoom detail channel (2688×1520 @60fps) with Wise-ISP ultra-low-light processing

Panoramic-detail linkage: box-select or click a target in the panorama, the detail channel zooms, centers and auto-tracks — with handover tracking and one-click calibration

Tracking-based snapshot with structured attribute extraction; face detection with face-body association, 16 databases / 100,000 faces on-device

Perimeter intrusion (4 modes) with person / motor / non-motor classification on the detail channel; people counting and crowd density on both channels

±0.04° encoder with automatic deviation correction; pan 288°/s, tilt 200°/s, 1024 presets, 16 patrols

Gyroscopic image stabilization, heat-haze reduction, adaptive glare suppression, digital defog

Integrated audio-visual alarm: strobe + customizable voice messages, two built-in speakers, two-way audio

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows are channel-specific:PANORAMA = 16MP 360° channelDETAIL = 4MP 25× PTZ channel

Camera

Sensor	1/1.8" high-sensitivity CMOS (both channels)
Max Resolution	OPTICAL · 16 MP (8192×1800)THERMAL · 4 MP (2688×1520)
Min. Illumination	OPTICAL · Color: 0.0003 Lux (F1.0, AGC ON)THERMAL · Color: 0.0005 Lux (F1.2, AGC ON); IR: 0.0003 Lux
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	OPTICAL · —THERMAL · 120 dB
S/N	> 56 dB

Lens & Field of View

Focal Length	OPTICAL · 2 mm (fixed)THERMAL · 6.0–150.0 mm
Optical / Digital Zoom	OPTICAL · — / —THERMAL · 25× / 8×
Field of View (H)	OPTICAL · 360°THERMAL · 59.91°(W) – 3.89°(T)
Field of View (V)	OPTICAL · 110°THERMAL · 35.92°(W) – 2.19°(T)

Illuminator

IR Distance	OPTICAL · —THERMAL · 200 m (656.2 ft.)
Warm Light Distance	OPTICAL · —THERMAL · 100 m (328.1 ft.)
Light Control	OPTICAL · —THERMAL · Auto / Manual


White Balance	Auto, Auto2, Sodium lamp, Area WB, Outdoor, Locked, Fine tune
Defog	OPTICAL · —THERMAL · Digital defog
Flip	OPTICAL · —THERMAL · Normal / Flip vertical / 180° / Flip horizontal
HLC / BLC	Support
Heat-Haze Reduction	OPTICAL · —THERMAL · Support

Video

Main Stream	OPTICAL · 16 MP (8192×1800) @30fpsTHERMAL · 4 MP (2688×1520) @60fps
Video Compression	Ultra 265, H.265, H.264, MJPEG · U-code
Video Bit Rate	128 Kbps to 16 Mbps
Streams	Triple streams per channel · single-IP dual-channel output
Privacy Mask	OPTICAL · 8 areas (black/mosaic)THERMAL · 24 areas, up to 8 per scene
Sub Stream	OPTICAL · 2560×560 @30fpsTHERMAL · 1080P / 720P / D1 / 640×360, max. 60fps
Third Stream	OPTICAL · 2048×452 @30fpsTHERMAL · 720×576 / 704×288 / 640×360 / 352×288, max. 60fps
ROI	Up to 8 areas
OSD	Up to 10 OSDs
Plugin-Free Live View	Support
Max Live Bandwidth	50 Mbps · up to 20 bitstreams

Audio

Audio I/O	2 in / 2 out · built-in two speakers
Two-way Audio	Support · G.711A/U · noise suppression
Sampling Rate	8 kHz / 16 kHz
Audio Bitrate	128 Kbps

Intelligent

Panoramic-Detail Linkage	Box-select in panorama → detail channel zooms, centers & tracks · one-click calibration · handover tracking
Auto Tracking	OPTICAL · —THERMAL · Person / motor / non-motor classification · auto return after set duration
Smart Intrusion Prevention	Cross line, intrusion, enter/leave area · false-alarm filtering with classification
People Counting	Flow statistics & crowd density · multi-zone
Face	OPTICAL · —THERMAL · Detection + capture + attributes · face-body association · 16 libraries / 100,000 faces on-device
Image Aids	Gyroscopic stabilization · heat-haze reduction · adaptive glare suppression · digital defog
Audio-Visual Alarm	Linked strobe + customizable voice messages

PTZ

Pan / Tilt Range	OPTICAL · —THERMAL · 0°–360° / -15°–90°
Pan / Tilt Speed	OPTICAL · —THERMAL · 0.1–288°/s / 0.1–200°/s
Presets & Patrols	OPTICAL · —THERMAL · 1024 presets · 16 patrols × 64 presets
Positioning	OPTICAL · —THERMAL · ±0.04° encoder · 3D positioning · home position · preset image freeze · snow-removal mode

Events

Basic Detection	OPTICAL · Motion, ultra motion, tampering alarm, audio detectionTHERMAL · Motion, ultra motion, tampering, audio, object removed, object left behind
General Function	Watermark, IP address filtering, alarm input/output, access policy, ARP protection, RTSP/HTTP authentication, user authentication

Network & Security

Protocols	IPv4/v6, TCP/UDP, RTSP/RTMP, HTTP/HTTPS, DHCP, PPPoE, NTP, UPnP, 802.1x, SNMP, QoS, SSL/TLS, FTP, SMTP, DNS/DDNS
Integration	ONVIF (Profile S/G/T/M) · API · SDK · EZStation, UNV-Link, UNV-Link Pro
Security	TLS 1.3/1.2 · HTTPS · strong password · RTSP/HTTP digest auth · log export · up to 32 users
Storage	MicroSD up to 512 GB · ANR · NAS (NFS)
Users	Up to 32 users · administrator + common levels
Web Browser	Plug-in live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Web Client Languages	22 languages

Interface

Alarm I/O	7 in / 3 out
Audio I/O	2 in (1 kΩ) / 2 out (600 Ω)
Serial	1 × RS485
Network	1 × RJ45 1000M Base-TX
[object Object]	Wires with cold-pressed terminal

Certification

EMC / Safety	UL 62368-1 · CAN/CSA C22.2 No.62368-1 · CE-LVD (EN IEC 62368-1)
Environment	CE-RoHS · WEEE
Protection	IP67 (IEC 60529) · IK10 (IEC 62262, except front window)

Dimensions	Φ380 mm × 436.6 mm (Φ15.0" × 17.2")
Weight	12.5 kg (27.6 lb.)
Power	DC 24 V (±25%) / DC 36 V (±25%) · max. 135 W
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing
Protection	IP67 · IK10 (except front window) · 6 kV surge
Wiper	[object Object]
