IP Cameras › Uho-B2D-M3F3(4)D
Uho-B2D-M3F3(4)D
view 1

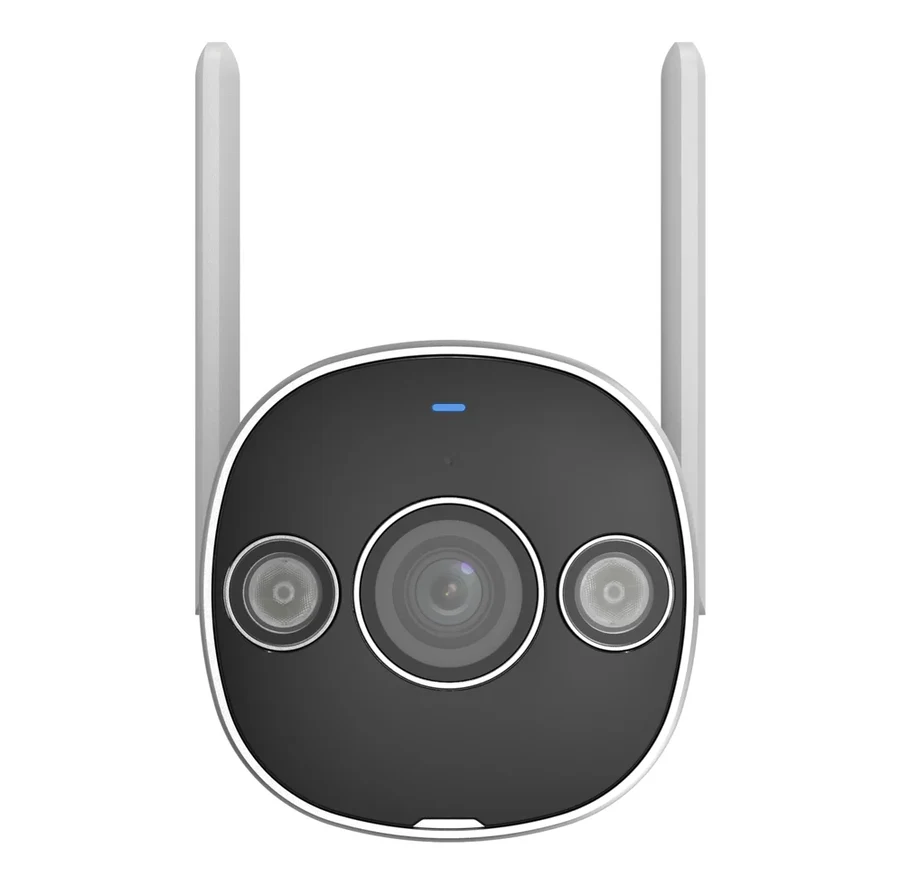

view 2

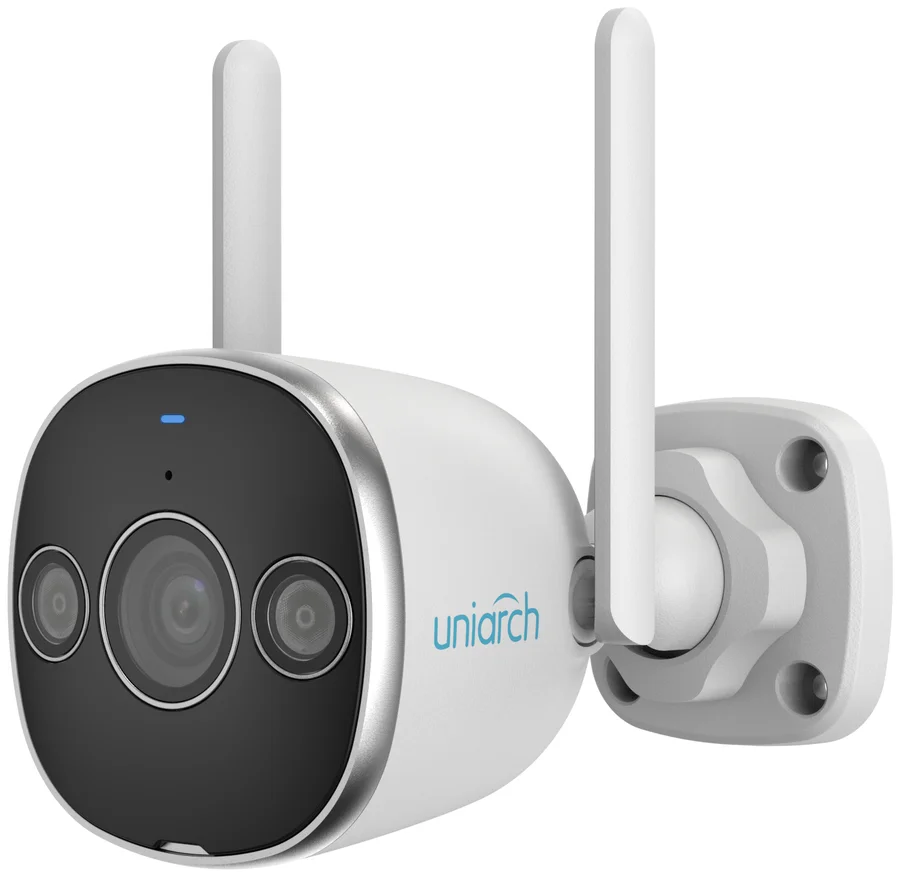

view 3
UniarchWi-Fi Dual-Light Bullet
3MP Wi-Fi Dual-Light Bullet

Uho-B2D-M3F3(4)D

3MP fixed-lens Wi-Fi bullet camera — no network cable to the camera, just power and connect over 2.4GHz Wi-Fi. IR night vision + warm light for full-color alerts, two-way audio, IP67 outdoor body.

3 MP · 1296P@25fpsWi-Fi · 2.4GHz built-in antennaDual Light · IR 20m + warm 10mDC12V · adapter powerIP67 · outdoorTwo-Way Audio · mic + speaker
CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE
M3F3D (2.8 mm, 108.5° view) covers a wide area near the camera — doorways, small yards, driveway entrances. M3F4D (4.0 mm, 87.3° view) trades width for reach — long driveways, fence lines, further gates. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
20 mIR night vision
10 mWarm light
IP67Outdoor rated
5.7 WMax power

The Uniarch Uho-B2D-M3F3(4)D is a 3MP Wi-Fi bullet camera built for sites where running a network cable isn't practical. It powers from a standard DC12V adapter and connects over built-in 2.4GHz Wi-Fi — no PoE switch or NVR cabling required, just a power outlet nearby. It combines dual-light illumination (20m IR + 10m warm light, switchable), ultra motion detection, two-way audio (mic and speaker), and an IP67 metal-and-plastic body rated for −30°C to 60°C. It is offered with two fixed lenses: 2.8mm (M3F3D, wider view) or 4.0mm (M3F4D, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Rentals & sites without spare network runsNo PoE switch or NVR cable run needed — plug into any nearby outlet and join the site Wi-Fi. Move it to a new spot without touching a cable.
Home gates & yardsThe warm light switches on at night for full-color footage of visitors, and two-way audio lets you speak to them directly from the app.
Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat outdoors, day after day. M3F4D watches long fence lines.
Checking in from your phonePair it with the Uniarch APP for live view, push alerts and playback from anywhere — no NVR required for basic remote viewing.
Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.
Quick DIY installsNo electrician or cable-puller needed — mount, plug in, and connect to Wi-Fi from the app in a few minutes.
Not the right pick if you need…
  • PoE power — this camera has no PoE port, it needs its own outlet with the included DC12V adapter
  • Always-on color night vision — full color only shows when the warm light is on (manual or event-triggered); the discreet IR-only mode is black & white
  • Vandal resistance — the datasheet lists IP67 ingress protection only, no IK impact rating
  • A one-time fixed focal length choice at purchase — the lens is fixed (2.8 or 4.0 mm), chosen when you order, not zoomable on site
  • Rock-solid connectivity regardless of Wi-Fi signal — performance depends on the strength of the site's 2.4GHz Wi-Fi signal at the mounting spot

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 3MP, 1/3.0" CMOS sensor and F1.6 aperture lens
3MP (2304×1296)@25/20 fps; 2MP (1920×1080)@30/25 fps; 720P (1280×720)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Built-in mic
Built-in speaker
Smart IR, up to 20m (66ft) IR distance
Warm Light, up to 10m (33ft) warm light distance
Support Dual Light mode, switch between IR and warm lights when the preset is triggered
Supports 512 GB Micro SD card
Wi-Fi connection and easy installation
IP67 protection
3-Axis adjustment

Dual Light: two ways to see the night

Switchable Auto/Manual, or auto-switch when a preset is triggered — set it per site.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 20 m (66 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording.

WARM LIGHT MODE

Visible warm light — full-color footage and active deterrence

Warm light up to 10 m (33 ft.) keeps faces and clothing colors visible at night — and tells visitors and intruders the area is watched.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there
46.7 m153.1 ft
Observewhat is happening
18.7 m61.2 ft
Recognizesomeone you know
9.3 m30.6 ft
Identifya stranger's face
4.7 m15.3 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:F3 = 2.8 mmF4 = 4.0 mm

Camera

Max Resolution3 MP
Sensor1/3.0" CMOS
Min. IlluminationColour: 0.003 lux (F1.6, AGC ON), 0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N> 52 dB
WDRDWDR

Lens

Focal LengthF3 · 2.8 mmF4 · 4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)F3 · 108.5°F4 · 87.3°
Field of View (V)F3 · 62.9°F4 · 47.4°
Field of View (D)F3 · 118.1°F4 · 101.0°

DORI

DORI Distance (Detect)F3 · 46.7 m (153.1 ft.)F4 · 66.7 m (218.7 ft.)
DORI Distance (Observe)F3 · 18.7 m (61.2 ft.)F4 · 26.7 m (87.5 ft.)
DORI Distance (Recognize)F3 · 9.3 m (30.6 ft.)F4 · 13.3 m (43.7 ft.)
DORI Distance (Identify)F3 · 4.7 m (15.3 ft.)F4 · 6.7 m (21.9 ft.)

Illuminator

Supplemental LightDual light
Illumination Distance (IR)20 m (65.6 ft.)
Illumination Distance (Warm Light)10 m (32.8 ft.)
Wavelength850 nm
IR On/Off ControlAuto/Manual

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 3MP (2304×1296), max. 25 fps; 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate128 Kbps to 2048 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskSupport (only NVR)
ROIUp to 8 areas
Video StreamDual streams


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
DewarpingN/A
HLCN/A
BLCN/A
DefogDigital defog

Events

Basic DetectionMotion detection, Ultra motion detection, Audio detection, Tampering alarm
General FunctionIP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR

Network

Wi-Fi2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
ProtocolsIPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible IntegrationAPI, SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
ClientAPP, Uniarch client
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless StandardsIEEE802.11b/g/n
Frequency Range2.4 GHz to 2.4835 GHz
Channel Bandwidth20 MHz Support
Modulation Mode802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM/HT
Wi-Fi Security64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 14±1.5 dBm@54 Mbps; 802.11n: 12.5±1.5 dBm@150 Mbps
Receive Sensitivity802.11b: -90 dBm@11 Mbps (Typical); 802.11g: -75 dBm@54 Mbps (Typical); 802.11n: -74 dBm@150 Mbps (Typical)
Transmission Rate802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps

Interface

Audio I/ON/A
Alarm I/ON/A
Built-in MicSupport
Built-in SpeakerSupport
WIFISupport
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

ProtectionIP67 (IEC 60529)
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
RFFCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
SafetyCE LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

PowerDC 12 V±25%
Power ConsumptionMax. 5.7 W
Power InterfaceØ5.5 mm coaxial power plug
MaterialMetal + Plastic
Dimensions148 × 78 × 78 mm (5.8" × 3.1" × 3.1") (L × W × H)
Weight0.31 kg (0.68 lb.)
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
LED Indicator1, red/blue

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
Dimensions148 × 78 × 78 mm (5.8" × 3.1" × 3.1")
Weight0.31 kg (0.68 lb.)
MaterialMetal + Plastic
Mount adjustmentPan 0–360° · Tilt 0–90° · Rotate 0–360°
