IP Cameras › Uho-P2C-M4F4
Uho-P2C-M4F4
view 1

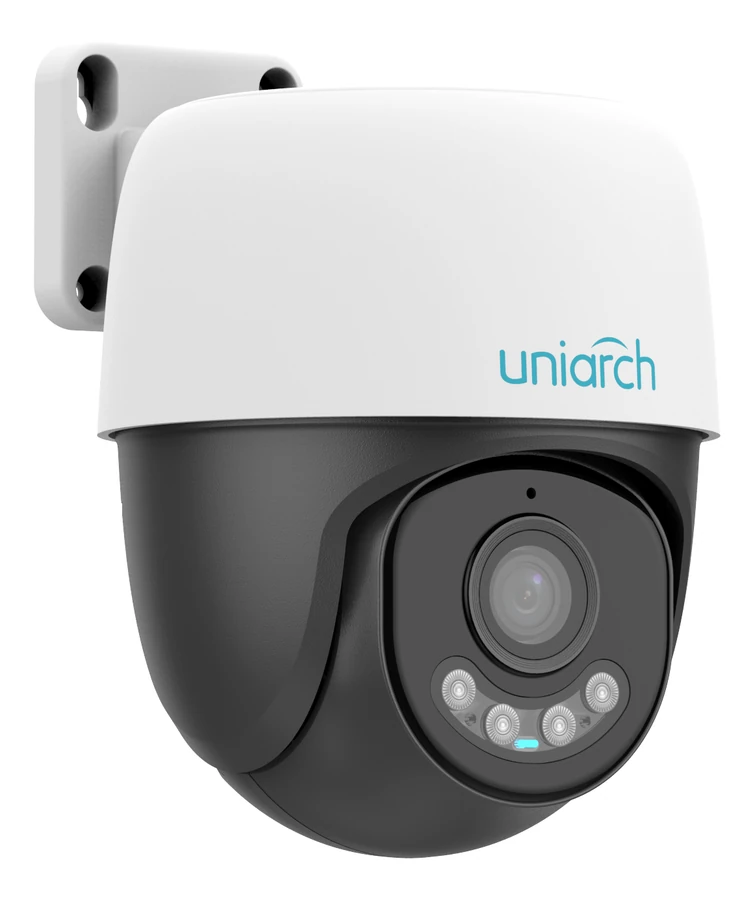

view 2

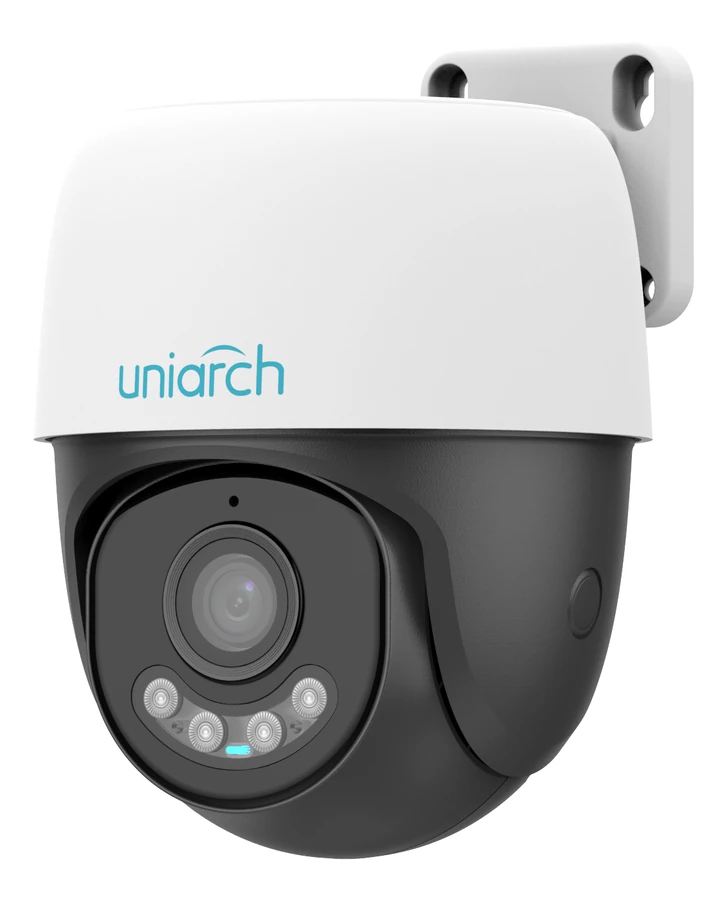

view 3

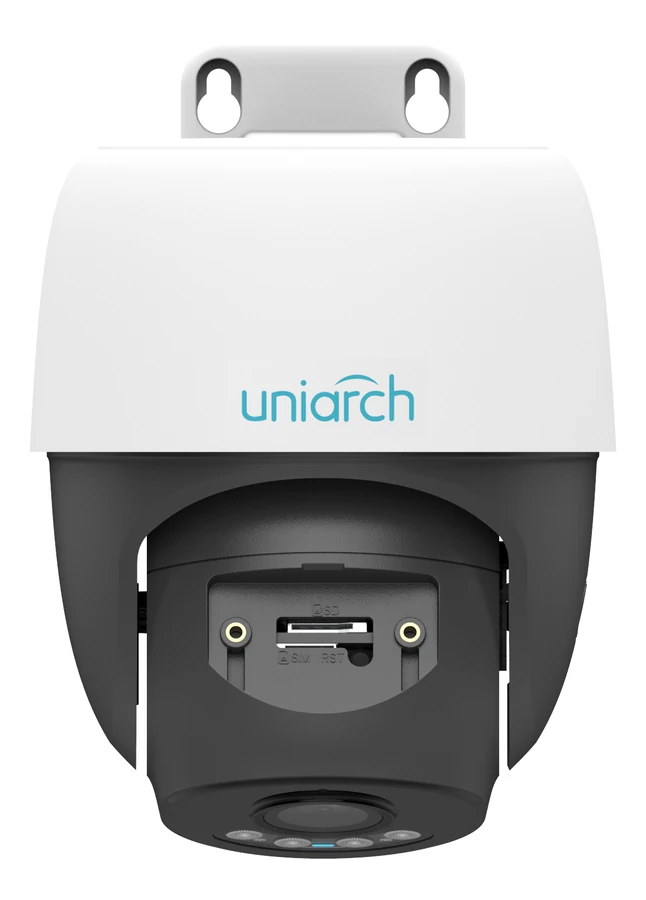

view 4
UniarchFull-Color Wi-Fi PT
4MP Full-Color Wi-Fi PT Camera

Uho-P2C-M4F4

4MP Wi-Fi pan-tilt camera — 24-hour full-color video via Colorhunter with Wise-ISP, warm-light illumination to 30m, and a built-in sound-and-light alarm. No PoE, no NVR — just power and 2.4GHz Wi-Fi.

4 MP · 2560×1440 @25fpsFull Color · 24-hour ColorhunterSound + Light · alarm deterrentPan-Tilt · 345° / 90°, 20 presetsTwo-way Audio · mic + speakerIP66 · outdoor
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP66
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
4 MPFull-color resolution
345°Pan range
30 mWarm-light range
IP66Outdoor rated

The Uniarch Uho-P2C-M4F4 is a 4MP Wi-Fi pan-tilt camera that uses Colorhunter with Wise-ISP to keep video in full color 24 hours a day, powered by a warm-light illuminator rated to 30m instead of infrared. It connects over built-in 2.4GHz Wi-Fi — no PoE switch or NVR cabling needed — and combines a built-in mic and speaker for two-way audio with a sound-and-light alarm you can trigger to make an intruder's presence known. The IP66 metal-and-plastic body pans 345° and tilts 90° from a fixed 4.0mm, F1.0 lens, with edge storage up to 512GB via MicroSD.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Warning off intruders, not just recording themThe built-in sound-and-light alarm lets the camera flash and sound off on its own, making its presence known instead of only capturing footage after the fact.
Night footage that still shows colorColorhunter with Wise-ISP and a warm-light illuminator keep faces, vehicle colors and clothing visible in color at night, instead of the black-and-white image typical of IR cameras.
Covering a wide area from one mount345° pan and 90° tilt with 20 presets let one camera sweep a yard, driveway and gate instead of needing several fixed cameras.
Talking to whoever is at the doorThe built-in mic and speaker support two-way audio, so you can warn off a stranger or answer a visitor straight from the app.
Rentals & sites without spare network runsNo PoE switch or NVR cable run needed — plug into any nearby outlet and join the site Wi-Fi.
Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.
Not the right pick if you need…
  • PoE power — this camera has no PoE port, it needs its own outlet with a DC12V adapter
  • Covert, invisible night lighting — the illuminator is warm (visible) light, not IR; anyone nearby can see it switch on
  • True optical zoom — the lens is fixed at 4.0 mm with only 4X digital zoom, not a motorized optical zoom lens
  • IK-rated impact resistance — this datasheet lists IP66 ingress protection only, no IK vandal-resistance rating
  • Confirmed ONVIF / third-party NVR integration — the datasheet lists API-level integration only, ONVIF is not mentioned

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4MP, 1/2.9" CMOS sensor and F1.0 large aperture lens
4MP (2560×1440)@25/20fps; 3MP (2304×1296)@30/25fps; 2MP (1920×1080)@30/25fps
Ultra 265, H.265, H.264
Colorhunter with Wise-ISP technology ensures 24-hour full-color images
Support digital WDR (Wide Dynamic Range)
Built-in Mic & Speaker, support two-way audio, offer better interaction
Support sound and light warning, makes warning and alarming more noticeable
Warm Light, up to 30m warm light distance
Supports 512 GB Micro SD card
Wi-Fi connection and easy installation
IP66 ingress protection

Night vision: full color, not infrared

Colorhunter + Wise-ISP + warm light keep every hour of footage in color.

WARM LIGHT MODE

Visible warm-light illumination — full-color video around the clock

Colorhunter with Wise-ISP processes the image while a warm-light illuminator lights the scene up to 30 m (98.4 ft.) — faces, clothing and vehicle colors stay visible at night. This model has a warm-light illuminator only, no infrared module, so the light is visible rather than covert.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there
64.3 m210.9 ft
Observewhat is happening
25.7 m84.4 ft
Recognizesomeone you know
12.9 m42.2 ft
Identifya stranger's face
6.4 m21.1 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution4 MP
Sensor1/2.9" CMOS
Min. IlluminationColour: 0.0003 Lux (F1.0, AGC ON)
ShutterAuto/Manual, 1 to 1/100000 s
S/N> 52 dB
WDRDWDR

Lens

Digital Zoom4X
Focal Length4.0 mm
Iris TypeFixed
IrisF1.0
Field of View (H)85.4°
Field of View (V)47.5°
Field of View (D)98.5°
Lens TypeFixed

DORI

DORI Distance (Lens)4.0mm
DORI Distance (Detect)64.3 m (210.9 ft.)
DORI Distance (Observe)25.7 m (84.4 ft.)
DORI Distance (Recognize)12.9 m (42.2 ft.)
DORI Distance (Identify)6.4 m (21.1 ft.)

Illuminator

Supplemental LightWarm light
Illumination Distance (Warm Light)30 m (98.4 ft.)

Video

Video CompressionUltra 265, H.265, H.264
Frame RateMain Stream: 4MP (2560×1440), max. 25 fps; 3MP (2304×1296), max. 30 fps; 2MP (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskSupport (only NVR)
ROISupport
Video StreamDual streams


Smart IlluminationSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°
DewarpingN/A
HLCN/A
BLCN/A
DefogDigital defog

Events

Basic DetectionHuman body detection, Motion detection, Audio detection
General FunctionIP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Auto TrackingSupport

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR

Network

Wi-Fi2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna
ProtocolsIPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible IntegrationAPI
ClientAPP, Uniarch client
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless StandardsIEEE802.11b/g/n/ax
Frequency Range2.4 GHz to 2.4835 GHz
Channel Bandwidth20/40 MHz Support
Modulation Mode802.11b: DSSS(CCK); 802.11g/n: OFDM; 802.11ax: OFDMA
Wi-Fi Security64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 16±1.5 dBm@54 Mbps; 802.11n: 16±1.5 dBm@MCS7; 802.11ax: 16±1.5 dBm@MCS9
Receive Sensitivity802.11b: -76 dBm@11 Mbps (Typical); 802.11g: -65 dBm@54 Mbps (Typical); 802.11n: -61 dBm@MCS7, HT40 (Typical); 802.11ax: -54 dBm@MCS9, HE40 (Typical)
Transmission Rate802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps; 802.11ax: up to 270 Mbps

PTZ

Pan Range0° ~ 345°
Pan Speed1°/s ~ 40°/s
Preset speed: 40°/s
Tilt Range0° ~ 90°
Tilt Speed1°/s ~ 30°/s
Preset speed: 30°/s
Number of Presets20

Interface

Audio I/ON/A
Alarm I/ON/A
Built-in MicSupport
Built-in SpeakerSupport
WIFISupport
Network1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
RFFCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
SafetyCE LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
ProtectionIP66 (IEC 60529)

General

PowerDC 12 V±25%
Power ConsumptionMax. 6.5 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsΦ109 mm × 141 mm × 151 mm (Φ4.3" × 5.6" × 6.0")
Weight0.39 kg (0.85 lb.)
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
LED Indicator1, red/blue

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
DimensionsΦ109 mm × 141 mm × 151 mm (Φ4.3" × 5.6" × 6.0")
Weight0.39 kg (0.85 lb.)
Pan / Tilt RangePan 0°–345° · Tilt 0°–90°

Related Solutions & Products

Construction Site Security solution
Solution · Construction Site Security
A construction site: no mains power yet, a gate, material stacks, the tower-crane base. An outdoor Wi-Fi camera like this one is the piece that does the looking.
Residential Community Security solution
Solution · Residential Community Security
A gated community: vehicle gate, pedestrian gate, playground, block entrances. An outdoor Wi-Fi camera like this one is the piece that does the looking.

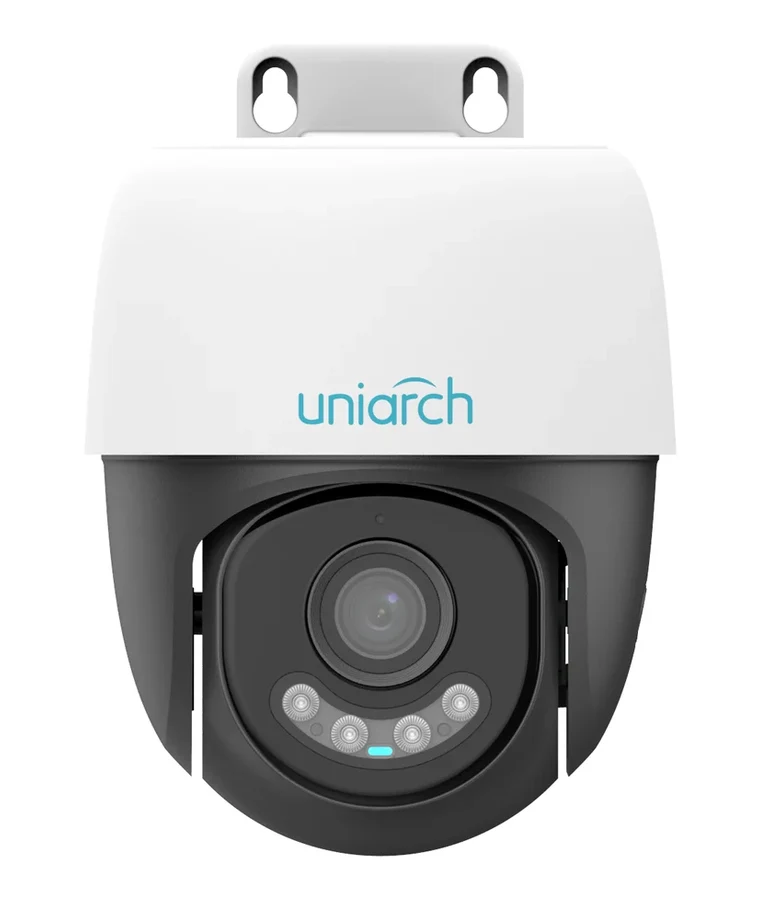

Uho-P2A-M3F4D
Uho-P2A-M3F4D · 3MP
Same family, 3MP instead of 4MP — the resolution step that decides your storage bill.

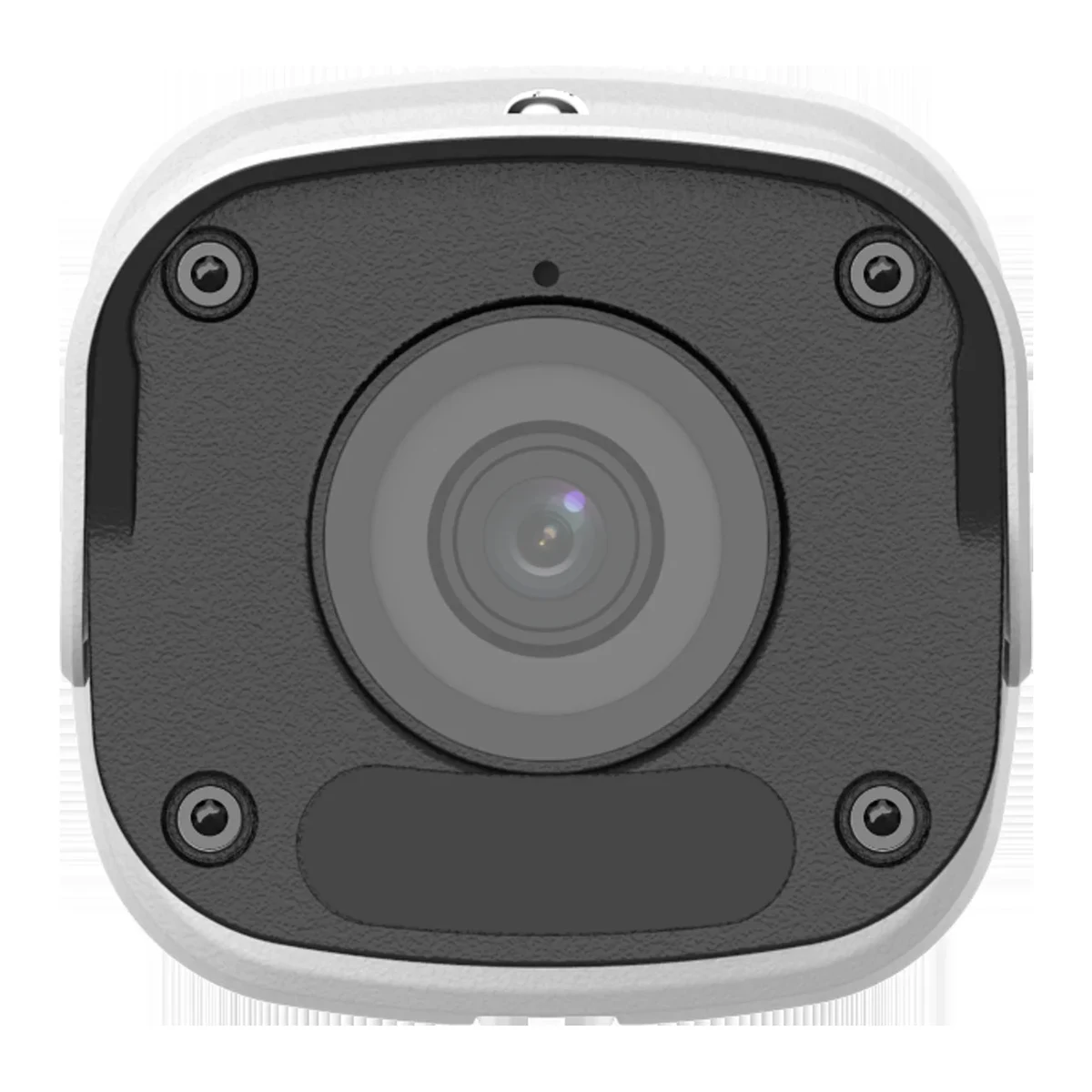

IPC2122LB-ADF28(40)KM-H
