UniarchE2 Series · 1× SATA HDD

1-HDD Network Video Recorder · E2 Series

NVR-104 / 110 / 116E2

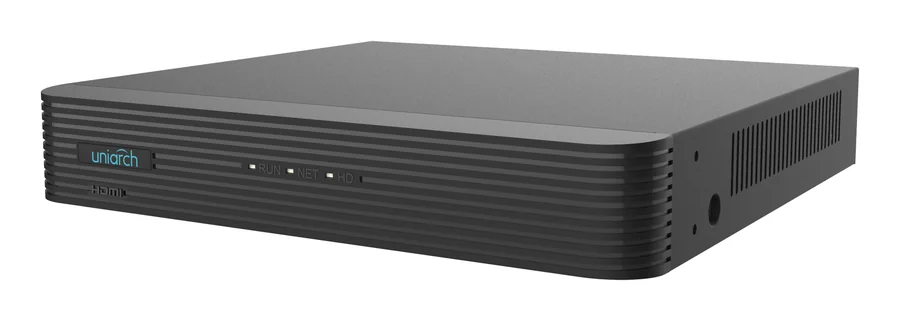

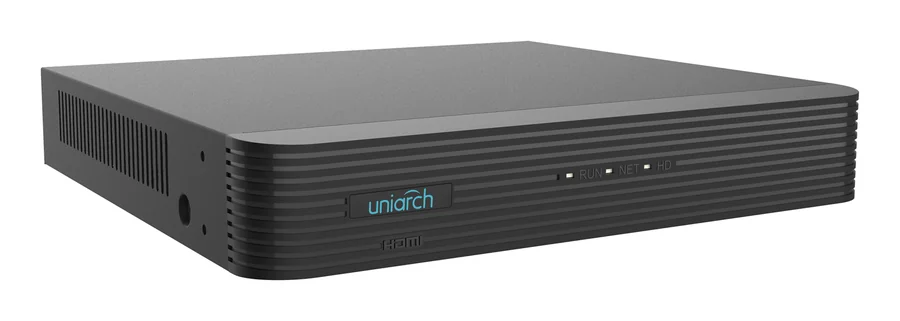

Name: Uniarch NVR-104 / 110 / 116E2
Brand: Uniarch

4 / 10 / 16-channel network video recorder — Ultra 265 compression, 4K HDMI output, records cameras up to 8MP, works with third-party ONVIF cameras.

8MP · max recordingUltra 265 · low storage4K HDMI · + VGA simultaneous1× SATA · up to 8 TBONVIF · S / G / T profiles21 languages · local interface

CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE

Rule of thumb: count your cameras, then leave room to grow — a shop with 3 cameras runs happily on the 104E2; pick the 110E2 or 116E2 if you may add cameras later. Highlighted rows in the spec table below show every difference between the three.

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4/10/16Channel options

64 MbpsIncoming bandwidth

8 TBMax HDD capacity

4KHDMI output

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Small shops & homesThe 4-ch 104E2 plus four dual-light cameras is a complete starter kit — one disk, one screen, done.

Growing businessesBuy channels you don't use yet: the 110E2/116E2 lets you add cameras later without replacing the recorder.

Remote viewing on phoneP2P protocol built in — the owner checks the shop from a phone app without a fixed IP or network skills.

Local-language interface21 GUI languages including Spanish (Latin America), Portuguese (Brazil) and French — your customer operates it in their own language.

Longer video retentionUltra 265 roughly halves file size versus H.264 — the same 8 TB disk keeps weeks more footage.

Mixed-brand projectsONVIF Profile S/G/T means existing third-party IP cameras keep working — no need to replace the whole site.

Not the right pick if you need…

PoE ports — cameras need a separate PoE switch (we bundle one at combo price)
A second hard disk or RAID — this series has a single SATA bay
Gigabit uplink — the network port is 10/100M (fine for 16 cameras at 64 Mbps total)
Alarm in/out wiring for sirens or sensors
Audio input — it has a 3.5mm audio output only (camera-side mics still record)

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Saves your disk. Plays with any camera.

The two capabilities that decide whether an entry NVR feels cheap or smart.

ULTRA 265

Half the storage, same image

Ultra 265 compression cuts recording size dramatically versus H.264 — on the same 8 TB disk you keep footage for weeks longer, or record more cameras at higher resolution.

ONVIF S · G · T

Third-party cameras welcome

Full ONVIF conformance (Profile S, G, T) means existing IP cameras on site keep working — upgrade the recorder today, replace cameras on your own schedule.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the three models:NVR-104E2 · 4-chNVR-110E2 · 10-chNVR-116E2 · 16-ch

Decoding

Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	104E2 · 1×4K@30, 2×6MP@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 4×1080P@30110E2 · 1×4K@30, 2×6MP@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080P@30, 8×720P@30, 10×D1116E2 · 1×4K@30, 2×6MP@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080P@30, 8×720P@30, 16×D1
Decoding Note	The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width
Audio Compression	G.711A, G.711U

Network

Incoming Bandwidth	64 Mbps
Outgoing Bandwidth	32 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video / Audio I/O

IP Video Input	104E2 · 4-ch110E2 · 10-ch116E2 · 16-ch
HDMI Output	4K (3840×2160)/30 Hz, 1920×1080/60·50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
VGA Output	1920×1080/60·50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
3.5mm Audio Output	1-ch
Liveview Display	104E2 · 1/4110E2 · 1/4/6/8/9/10116E2 · 1/4/6/8/9/16
Corridor Mode Screen	104E2 · 3/4110E2 · 3/4/5/7/9/10116E2 · 3/4/5/7/9/10/12/16

Recording

Recording Resolution	8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback (Local)	104E2 · 4-ch110E2 · 10-ch116E2 · 16-ch

Smart Features

VCA Detection by IPC	SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
VCA Search	Behavior Search
Smart by IPC	Total 4-ch (SIP supports channel 1-4, Alarm only, no image)

Local Interface

GUI Language

21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian

Hard Disk

SATA	1 SATA Interface
Capacity	Up to 8 TB for each HDD (the maximum HDD capacity varies with environment temperature)

External Interface

Network Interface	1 × RJ45 10 M/100 M self-adaptive Ethernet
USB	Rear panel: 2 × USB 2.0
Power Supply	DC 12 V / 2 A

General

Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 3 W
Weight (without HDD)	≤ 1 kg (2.2 lb)
Dimensions	260 mm × 243 mm × 46 mm (10.2" × 9.6" × 1.8")

Certification

Certification	CE; FCC; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B
