UniviewNVR504-E-IQ Series · 4× SATA HDD (RAID)

4-HDD Network Video Recorder · NVR504-E-IQ Series

NVR504-16 / 32 / 64E-IQ

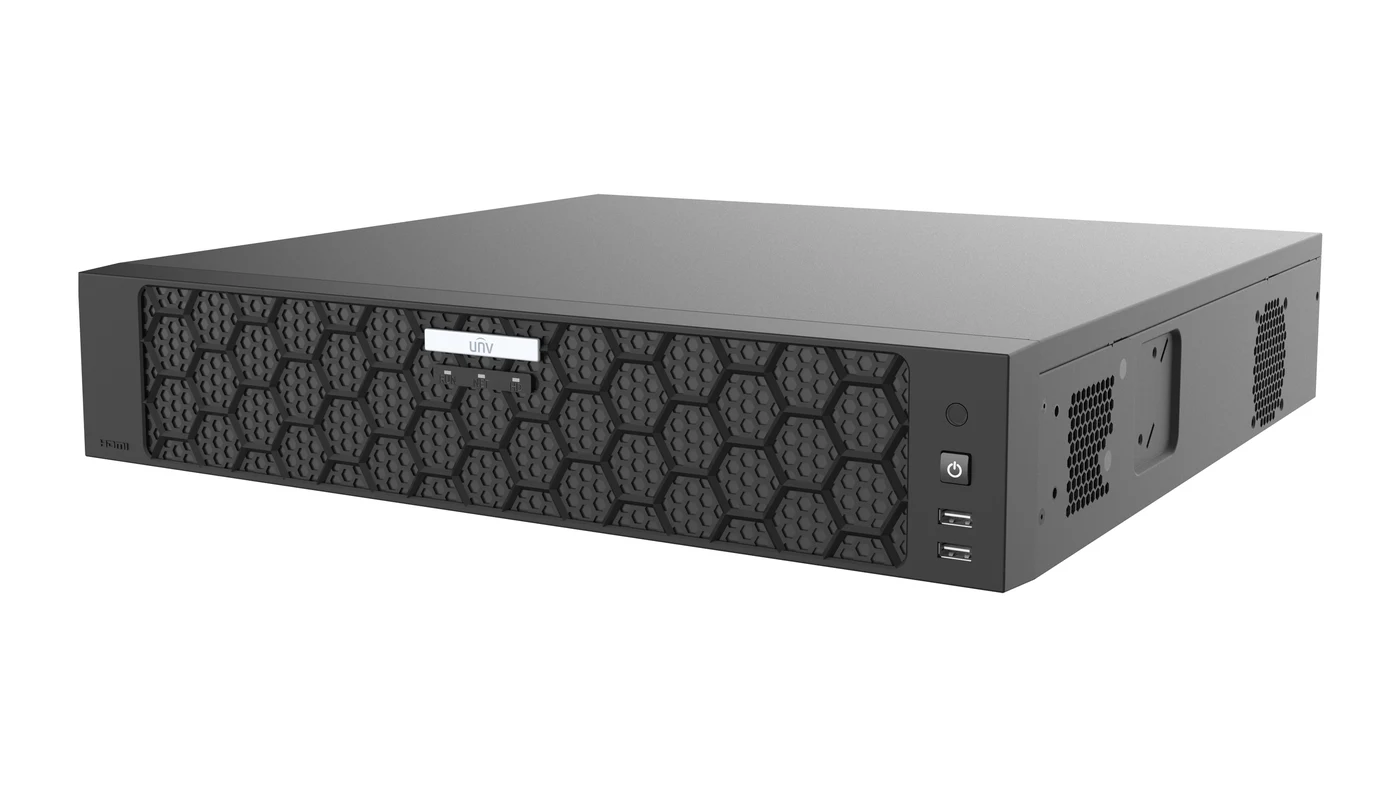

Name: Uniview NVR504-16 / 32 / 64E-IQ
Brand: Uniview

16 / 32 / 64-channel network video recorder — four SATA bays with RAID 0/1/5 support for redundant storage, Ultra 265 compression, dual independent 4K HDMI/VGA output, records cameras up to 32MP, with onboard Face Detection, Vehicle Detection (LPR) and AI smart search.

32MP · max recordingUltra 265 · low storage4× SATA · up to 24 TB eachRAID 0/1/5 · redundant storageAI Search · face & vehicle detection38 languages · local interface

CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE

Rule of thumb: count your cameras across the whole site, then leave room to grow — 16 channels covers a single building; step up to the 32E-IQ or 64E-IQ if you're combining several buildings, a large campus, or expect to add cameras later. Highlighted rows in the spec table below show every difference between the three.

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

16/32/64Channel options

384 MbpsIncoming bandwidth (Smart Off)

4×24 TBSATA bays, max capacity each

2× 4KIndependent HDMI outputs

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Large sites & multi-building campuses16, 32 or 64 channels in one box covers a full warehouse, factory floor, or multi-building campus without stacking multiple recorders.

Uptime-critical storageDisk Group and Redundant Storage with RAID 0, 1 or 5 across the four bays mean a single failed drive doesn't take the recording offline — built for sites where continuous coverage matters.

Two independent monitor outputsHDMI1+VGA1 and HDMI2+VGA2 run as two separate output pairs at the same time — put the full wall on one screen and a secondary control view on another, without extra hardware.

Growing camera countsBuy channels you don't use yet: the 32E-IQ or 64E-IQ lets you add cameras later without replacing the recorder.

Remote viewing on phoneP2P protocol built in — the manager checks every site from a phone app without a fixed IP or network skills.

Local-language interface38 GUI languages including Spanish (Latin America), Portuguese (Brazil) and French — your customer operates it in their own language.

Quick incident lookup across many channelsBuilt-in Face Detection, Vehicle Detection (LPR) and Temperature Detection feed AcuSearch, AcuTrack and Face Snapshot Search — jump straight to the clip you need instead of scrubbing hours of footage across up to 64 channels.

Not the right pick if you need…

PoE ports — cameras need a separate PoE switch (this recorder has no built-in PoE ports)
A fifth hard disk or more — this series tops out at 4 SATA bays (up to 96 TB total with four 24 TB drives)
RAID 6 or RAID 10 — the Disk Array Type on this series supports RAID 0, 1 and 5 only
A single unified 4-way display — HDMI1/VGA1 and HDMI2/VGA2 are two independent output pairs, not four synced views of one layout
DC-only power sites — this recorder runs on AC 100–240V mains, with no DC input option

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the three models:NVR504-16E-IQ · 16-chNVR504-32E-IQ · 32-chNVR504-64E-IQ · 64-ch

Decoding

Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	16E-IQ · Smart Off: 2×32MP@30, 4×16MP@30, 5×12MP@30, 8×4K@30, 10×6MP@30, 12×5MP@30, 16×4MP@30 \| Smart On: 1×32MP@30, 3×16MP@30, 4×12MP@30, 6×4K@30, 8×6MP@30, 9×5MP@30, 12×4MP@30, 16×3MP@3032E-IQ · Smart Off: 2×32MP@30, 4×16MP@30, 5×12MP@30, 8×4K@30, 10×6MP@30, 12×5MP@30, 16×4MP@30, 20×3MP@30, 32×1080P@30 \| Smart On: 1×32MP@30, 3×16MP@30, 4×12MP@30, 6×4K@30, 8×6MP@30, 9×5MP@30, 12×4MP@30, 16×3MP@30, 24×1080P@30, 32×720P@3064E-IQ · Smart Off: 2×32MP@30, 4×16MP@30, 5×12MP@30, 8×4K@30, 10×6MP@30, 12×5MP@30, 16×4MP@30, 20×3MP@30, 32×1080P@30, 64×720P@30 \| Smart On: 1×32MP@30, 3×16MP@30, 4×12MP@30, 6×4K@30, 8×6MP@30, 9×5MP@30, 12×4MP@30, 16×3MP@30, 24×1080P@30, 48×720P@30, 64×D1
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length or width
Audio Compression	G.711A, G.711U

Network

Incoming Bandwidth	Smart Off: 384 Mbps / Smart On: 200 Mbps
Outgoing Bandwidth	Smart Off: 384 Mbps / Smart On: 200 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input	16E-IQ · 16-ch32E-IQ · 32-ch64E-IQ · 64-ch
RCA Audio Input	1-ch
Peripheral Input — POS	All channels

Video/Audio Output

HDMI Output	4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	2-ch
Liveview Display	16E-IQ · 1/4/6/8/9/1632E-IQ · HDMI1 and VGA1: 1/4/6/8/9/16/25/32; HDMI2 and VGA2: 1/4/6/8/9/1664E-IQ · HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64; HDMI2 and VGA2: 1/4/6/8/9/16
Corridor Mode Screen	16E-IQ · 3/4/5/7/9/10/12/1632E-IQ · HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/1664E-IQ · HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16
Two-way Audio	1-ch, RCA (Using the audio input and output)
Snapshot	FTP/Schedule/Event Snapshot; 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)

Recording

Recording Resolution	32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback	32-ch
Synchronous Playback in Local	16-ch

Smart Function

Smart by IPC	All channels (up to 16 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Smart by NVR	Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
Smart by NVR Analyzer Mode	Mixed Mode (Face Recognition+Mixed-Traffic Dection+AcuSearch/AcuTrack), Mixed Mode (SIP+UMD), Modes cannot active simultaneously, only one mode can active at a time.
VCA Search	AcuSearch, AcuTrack, Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
AcuSearch	All channels with UNV SIP/UMD Camera
AcuTrack	All channels with UNV SIP/UMD Camera
by NVR	Up to 16-ch with UNV Face Detection Camera, Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)
Search by Image	Support
Vehicle Picture Library	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR with normal cameras	Up to 8-ch with normal camera (UNV and Third-part brand, 8-ch 2MP, 4-ch 4MP, 2-ch 4K)
UMD by NVR with normal cameras	Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)
Capacity of Snapshot Records	3 millions records for face snapshot, 2 millions records for vehicle snapshot, 2 millions records for SIP

Alarm

General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA	4 SATA Interfaces
Capacity	Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40°C)
Disk Group	Support
Redundant Storage	Support
Disk Array Type	RAID 0, 1, 5

External Interface

Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Network Working Mode	Muli-access,load balance,network fault-tolerance
USB	Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485	1
RS232	1
Alarm In	16-ch
Alarm Out	10-ch
eSATA	1
Power Output	12 V
Power Supply	AC 100~240V

Working Environment

Working Temperature	-10 °C ~ +55 °C (+14 °F ~ +131 °F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 35 W

Dimensions

Weight (without HDD)	≤ 5.5 Kg (12.1 lb)
Height	2U
Dimensions	442 mm × 432 mm × 86 mm (17.4" × 17.0" × 3.4")

Certification

Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

Compliance

NDAA Compliant
