UniviewB Series · 8× SATA HDD · 2U Rack

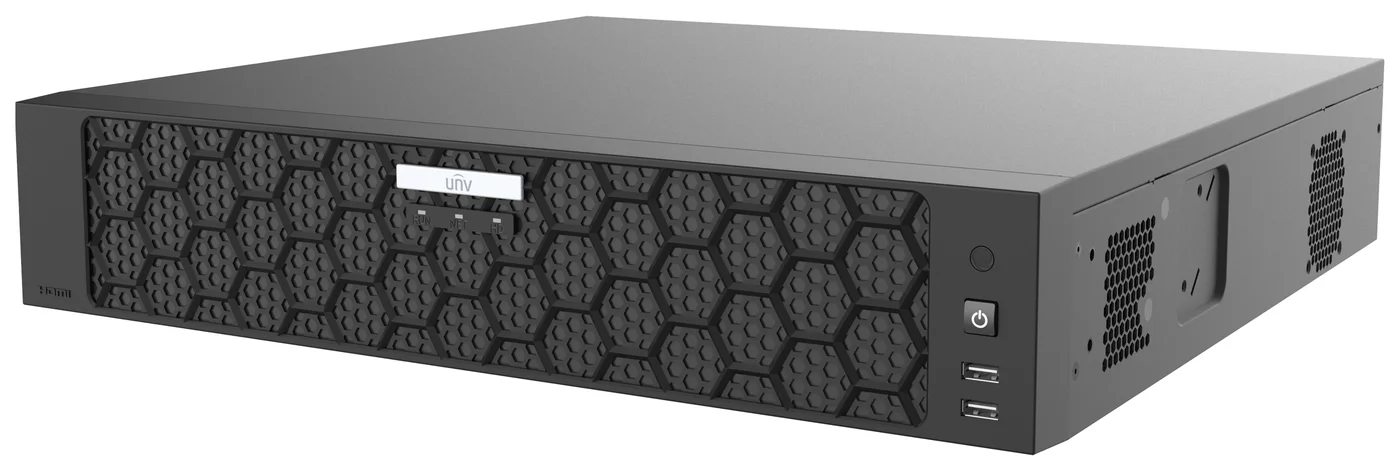

8-HDD Rack-Mount Network Video Recorder · B Series

NVR508-16 / 32 / 64B

Name: Uniview NVR508-16 / 32 / 64B
Brand: Uniview

16 / 32 / 64-channel 2U rack-mount network video recorder — 8 SATA bays with RAID 1/5, records cameras up to 16MP, Ultra 265 compression, ONVIF certified for third-party IP cameras.

16MP · max recordingRAID 1/5 · 8-bay protected storageUltra 265 · low storage4K HDMI · + VGA independentONVIF · certified38 languages · local interface

CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE

Rule of thumb: count your cameras, then leave room to grow — the 16B suits a single building; step up to the 32B or 64B for campus or multi-building sites that need RAID-protected storage. Highlighted rows in the spec table below show every difference between the three.

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

16/32/64Channel options

320 MbpsIncoming bandwidth

8× SATAHDD bays (RAID 1/5)

4KHDMI output

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Multi-building & campus sites64 channels and 8 HDD bays cover a large site from one recorder — fewer boxes to manage across buildings.

Growing deploymentsBuy channels ahead: the 32B/64B lets you add cameras later without swapping the recorder.

Mission-critical footageRAID 1/5 across the 8 bays plus N+1 hot spare protects recordings if a disk fails — footage survives a single drive failure.

Unreliable network linksANR technology keeps recording locally when the network drops, then backfills the gap once the connection is restored.

Investigation & retrievalFace, vehicle (LPR), human body and heat-map search narrow hours of multi-channel footage down to the right clip.

Mixed-brand projectsONVIF certification means existing third-party IP cameras are more likely to keep working — no need to replace the whole site.

Multi-language deployments38 GUI languages including Spanish (Latin America), Portuguese (Brazil) and French — your customer operates it in their own language.

Not the right pick if you need…

PoE ports — cameras need a separate PoE switch (we bundle one at combo price)
Hot-swap drive trays — the manual doesn't describe hot-swap bays; the 8 SATA drives mount inside the chassis
A redundant/dual power supply — Power Supply is a single AC 100–240V input, not described as dual
RAID 6 or RAID 10 — Disk Array Type supports only RAID 1 and RAID 5
RS232 serial control — this series has no RS232 port (RS485 only)

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the three models:NVR508-16B · 16-chNVR508-32B · 32-chNVR508-64B · 64-ch

Decoding

Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	16B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30 \| H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 16×960P@3032B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30, 32×960P@25 \| H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 28×960P@25, 30×720P@30, 32×D164B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30, 32×960P@25, 36×720P@30, 64×D1 \| H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 28×960P@25, 30×720P@30, 64×D1
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Audio Compression	G.711A, G.711U

Network

Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	160 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input	16B · 16-ch32B · 32-ch64B · 64-ch
RCA Audio Input	1-ch

Video/Audio Output

HDMI Output	4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
VGA Output	1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
RCA Audio Output	1-ch
Liveview Display	16B · 1/4/6/8/9/1632B · 1/4/6/8/9/16/25/3664B · Simultaneous Output — VGA: 1/4/6/8/9/16/25/36/64, HDMI: 1/4/6/8/9/16/25/36/64; Independent Output — VGA: 1/4/6/8/9/16/25/32, HDMI: 1/4/6/8/9/16/25/32
Corridor Mode Screen	16B · 3/4/5/7/9/10/12/1632B · 3/4/5/7/9/10/12/16/3264B · 3/4/5/7/9/10/12/16/32

Two-way Audio

1-ch, RCA (Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot

4-ch snapshot (max. 8 MP (3840×2160) video resolution, with 1080P snapshot resolution)

Recording

Recording Resolution	16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback in Local	16-ch

Smart Function

Smart by IPC	All channels (up to 8 images/s in total): Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VCA Search	Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map

Alarm

General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA	8 SATA Interfaces
Capacity	Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40 °C)
Disk Group	Support
Redundant Storage	Support
Disk Array Type	RAID 1, 5

External Interface

Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interfaces
USB	Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0
RS485	1
RS232	N/A
Alarm In	16-ch
Alarm Out	4-ch
Power Supply	AC 100 to 240 V
Power Switch	Support

Working Environment

Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 25 W

Dimensions

Weight (without HDD)	≤ 5.5 kg (12.13 lb)
Dimensions	16B · 442 mm × 431.4 mm × 88.6 mm (17.4" × 17.0" × 3.5")32B · 442 mm × 426 mm × 89 mm (17.4" × 16.8" × 3.5")64B · 442 mm × 426 mm × 89 mm (17.4" × 16.8" × 3.5")

Certification

Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

NVR508-16 / 32 / 64B

Is this the right recorder for you?

Worried about counterfeits? Order under your own company name.

Using your own freight forwarder? No problem.

Key Features

RAID-protected storage. Investigation-ready search.

Protected against drive failure

Find the moment across 64 channels

Which size fits your project?

Full Specifications

Decoding

Network

Video/Audio Input

Video/Audio Output

Two-way Audio

Snapshot

Recording

Smart Function

Alarm

GUI Language

Hard Disk

External Interface

Working Environment

Dimensions

Certification

Dimensions

Optional Mounting Accessories

Related Solutions & Products

Dimensions (NVR508-16B)	442 × 431.4 × 88.6 mm (17.4" × 17.0" × 3.5")
Dimensions (NVR508-32B / 64B)	442 × 426 × 89 mm (17.4" × 16.8" × 3.5")
Weight (without HDD)	≤ 5.5 kg (12.13 lb)
Power supply	AC 100 to 240 V
Consumption (without HDD)	≤ 25 W
