IP Cameras › IPC265EB-DX12K-I0
IPC265EB-DX12K-I0
view 1

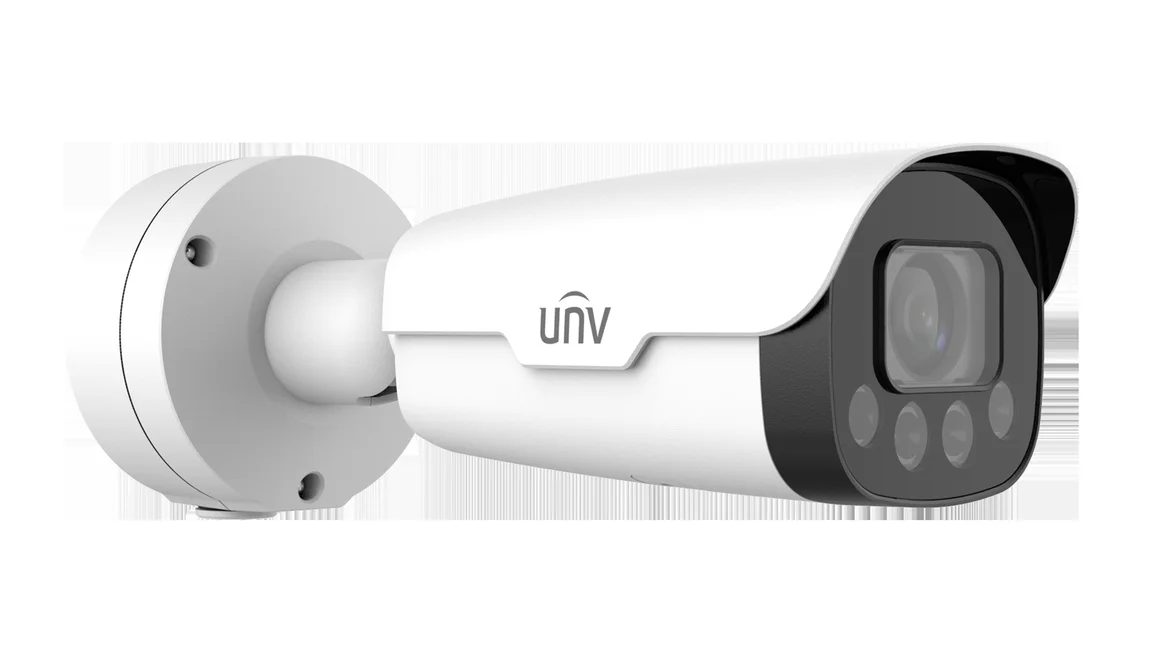

view 2

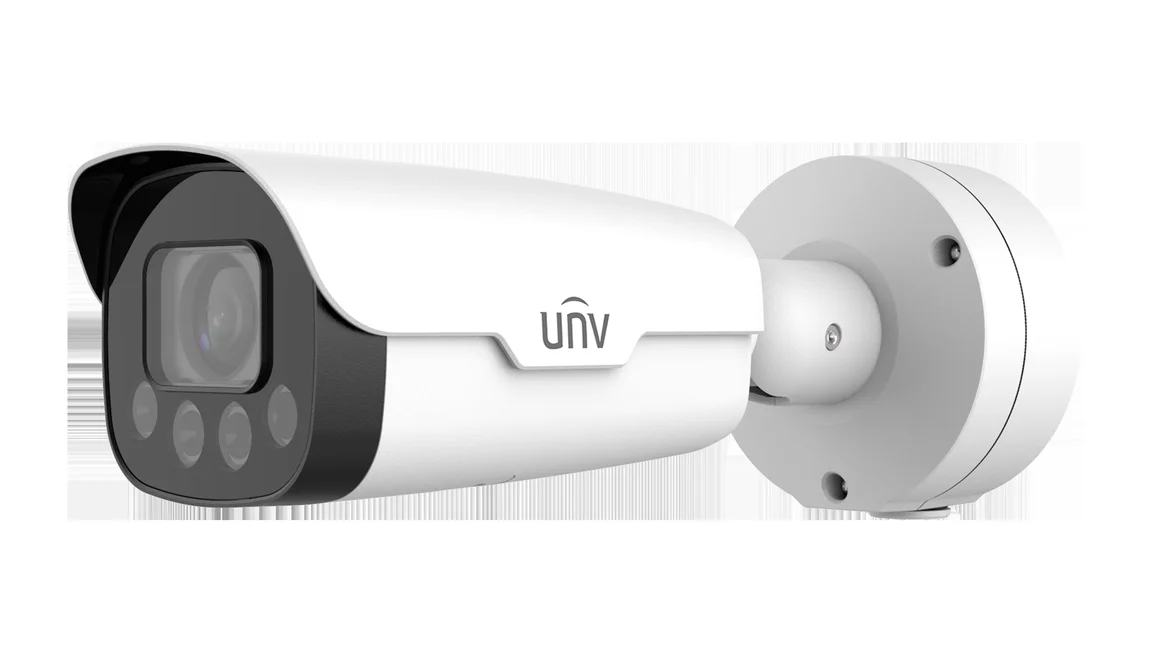

view 3
Uniview · Bullet5MP · 12X Zoom
5MP LightHunter WDR · 12X Zoom Bullet

IPC265EB-DX12K-I0

5MP network bullet camera with a 12X motorized zoom lens (5-60mm) — LightHunter low-light imaging, 120dB WDR, Smart IR to 100m, PoE+ single-cable install, IP67 outdoor body.

5 MP · 2880×1620@30fpsUltra 265 · low bandwidth12X Zoom · 5–60mm motorizedPoE+ · 802.3atIP67 · outdoorTwo-way Audio · built-in mic + speaker
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
100 mIR night vision
12XOptical zoom
IP67Outdoor rated
13 WPoE+ max power

The Uniview IPC265EB-DX12K-I0 is a 5MP network bullet camera built around a 12X motorized zoom lens covering 5 to 60mm, with 16X additional digital zoom for closer inspection of distant subjects. LightHunter low-light imaging and 120dB wide dynamic range keep footage usable in mixed light, while Smart IR reaches up to 100m at night and smart intrusion prevention, people counting and traffic monitoring run on the camera itself. It draws up to 13W over PoE+ (IEEE 802.3at) or 12V DC, carries an IP67 outdoor rating, and — with its built-in heater — starts normally down to −40°C.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long perimeters & fence lines12X motorized zoom (5–60mm) reaches deep down a fence line or driveway, plus 16X digital zoom to inspect distant details.
Warehouse & construction sitesSmart intrusion prevention (cross line, intrusion, enter/leave area) classifies human, non-motor vehicle and vehicle to cut false alarms.
Parking lots & access roadsPeople counting and traffic monitoring (up to 4 lanes, license-plate capture on tripwire) run on the camera itself.
Sites without an on-site NVRMicroSD edge storage (up to 512 GB) and ANR keep footage on the camera itself if the network drops.
Reception desks & gatehousesBuilt-in two-way audio (mic + speaker) lets staff talk to visitors directly through the camera.
Harsh outdoor climatesIP67 + IK10 body and a built-in heater keep it running from −40 °C to 60 °C, with normal start-up even in extreme cold.
Not the right pick if you need…
  • Wi-Fi — this is a wired RJ45 camera
  • Visible warm-light deterrence — the illuminator is invisible IR only, no built-in white/warm light
  • Discreet, compact mounting — this is a large 354mm/1.93kg motorized-zoom body, not a mini bullet

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 5 MP, 1/2.7" CMOS sensor
2880 × 1620@30 fps in the main stream
Ultra 265, H.265, H.264, MJPEG
Triple streams offer more choices for different clients in an integrated solution
12X optical zoom allows for closer viewing of subjects
Smart intrusion prevention: cross line, intrusion, enter area, leave area detection with false-alarm filtering
Automatic selection of best snapshots, supports face detection masked area
People counting: people flow counting and crowd density monitoring
LightHunter technology ensures ultra-high image quality in low illumination
Up to 120 dB optical WDR (wide dynamic range)
Built-in heater, supports normal start-up at low temperature
DC 12 V, PoE+ (IEEE 802.3at) power supply

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Figures below are at full 12X zoom (60mm) — at the wide end (5mm) ranges are shorter but the field of view is much wider.

Detectsomething is there
1417.5 m4650.6 ft
Observewhat is happening
567 m1860.2 ft
Recognizesomeone you know
283.5 m930.1 ft
Identifya stranger's face
141.8 m465.1 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor1/2.7" CMOS
Min. IlluminationColor: 0.001 Lux (F1.6, AGC ON), 0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
WDR120 dB
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N> 56 dB

Lens

Focal Length5 to 60 mm
Optical Zoom12X
Digital Zoom16X
IrisF1.6
Iris TypeDC-iris
Field of View (H)59.99° to 5.73°
Field of View (V)35.03° to 3.39°
Field of View (D)67.01° to 6.61°

DORI

DORI Distance (Lens)5 to 60 mm
DORI Distance (Detect)119.3 m to 1417.5 m (391.2 ft. to 4650.6 ft.)
DORI Distance (Observe)47.7 m to 567.0 m (156.5 ft. to 1860.2 ft.)
DORI Distance (Recognize)23.9 m to 283.5 m (78.2 ft. to 930.1 ft.)
DORI Distance (Identify)11.9 m to 141.8 m (39.1 ft. to 465.1 ft.)

Illuminator

Illumination Distance (IR)100 m (328.1 ft.)
IR On/Off ControlAuto/Manual
Wavelength850 nm

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
ROISupport
Video StreamTriple streams
Privacy MaskUp to 4 areas
OSDUp to 10 OSDs
Frame Rate-Main Stream5 MP (2880 × 1620), max. 30 fps
Frame Rate-Sub Stream1080P (1920 × 1080), max. 30 fps
Frame Rate-Third StreamD1 (720 × 576), max. 30 fps

Intelligent

Exception DetectionObject removed, Object Left Behind
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People CountingSupport people flow counting and crowd density monitoring
Traffic MonitoringSupport capturing car license picture when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLCSupport
BLCSupport
DefogDigital defog
Heatwave ReductionSupport

Events

Basic DetectionMotion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate16 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, UNV-Link, UNV-Link Pro
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O2/1
Serial Port1 × RS485
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output1 BNC (for debugging)

Certification

EMCCE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1:2019, EN IEC 61000-3-2: 2019+A1:2021, EN 55035: 2017+A11:2020); FCC (FCC CFR 47 part15, Subpart B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002)

General

PowerDC 12 V (±25%), PoE+ (IEEE 802.3at)
Power ConsumptionMax. 13 W
Power InterfaceØ5.5 mm coaxial power plug
Dimensions354 mm × 105 mm × 98 mm (13.9" × 4.1" × 3.9") (L × W × H)
Weight1.93 kg (4.25 lb.)
Working Environment-40 °C to 60 °C (-40 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Reset ButtonSupport
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
HeaterSupport
Configurable P/NSupport

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
Dimensions354 × 105 × 98 mm (13.9" × 4.1" × 3.9")
Weight1.93 kg (4.25 lb.)
Mount adjustmentPan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

Related Solutions & Products

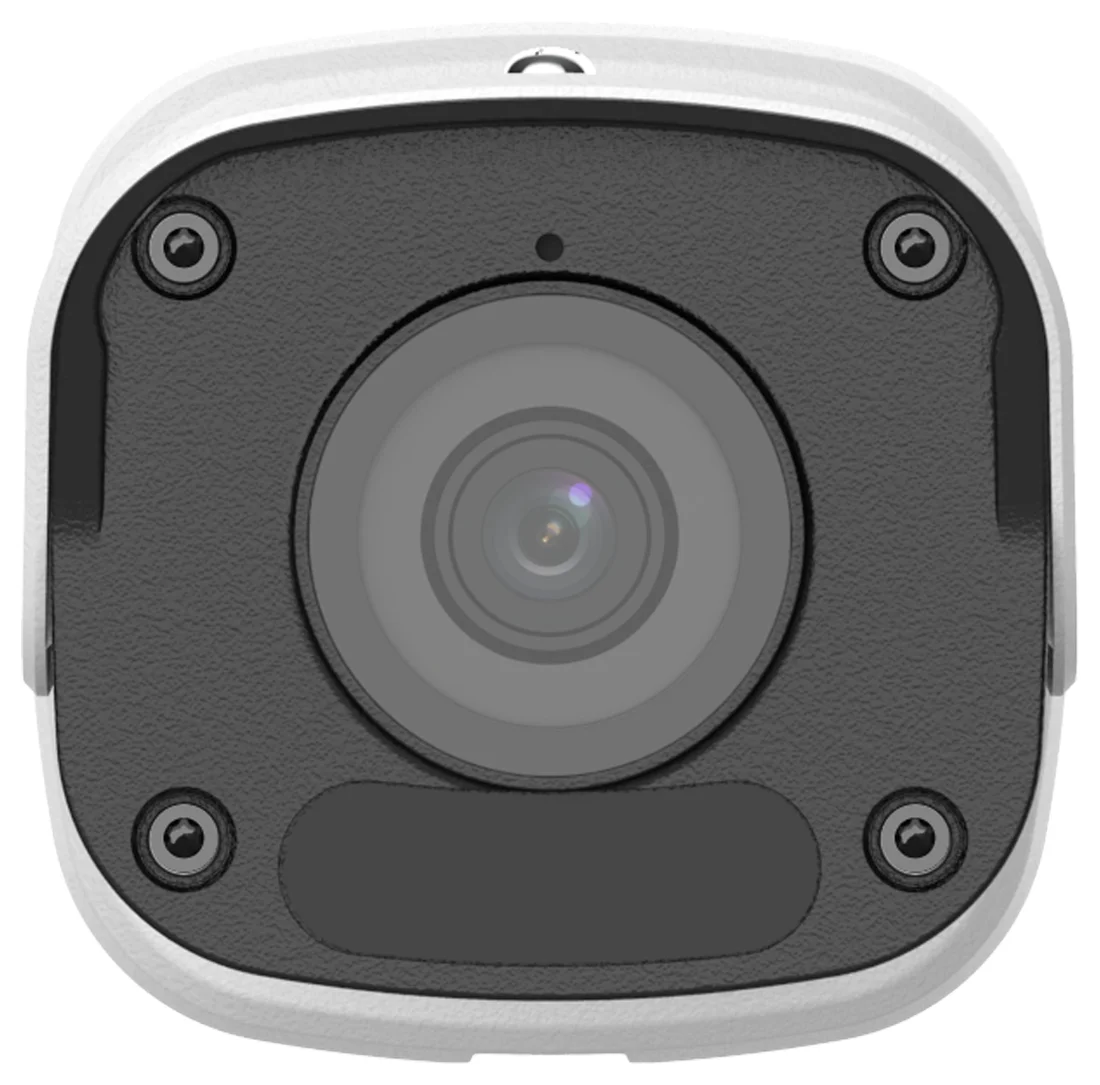

Manufacturing Plant Security solution
Solution · Manufacturing Plant Security
A factory: gatehouse, production lines, tool cribs, finished-goods dock. A motorised-zoom bullet like this one is the piece that does the looking.
Gas Station Security solution
Solution · Gas Station Security
A filling station: forecourt pumps, canopy, shop counter, tanker unloading bay. A motorised-zoom bullet like this one is the piece that does the looking.

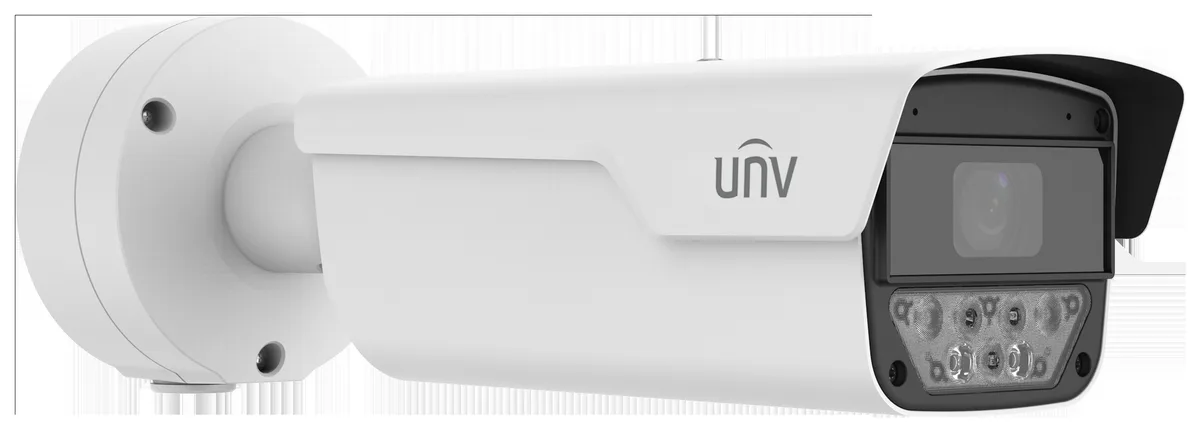

IPC264EA-AHDZK-I1 / IPC264EA-AHDX4K-I1
