Uniview · BulletLightHunter · Motorized Zoom

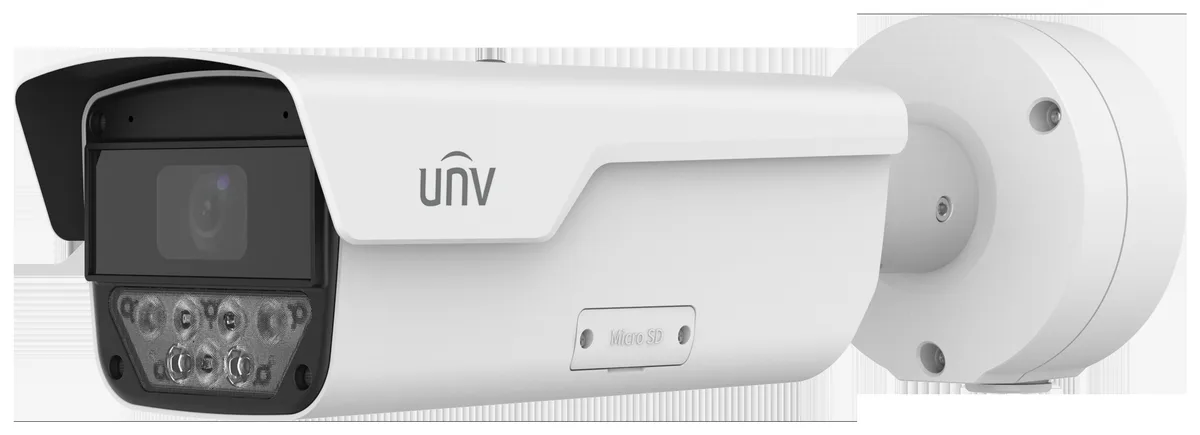

4MP LightHunter WDR Bullet · Motorized Zoom

IPC264EA-AHDZK / AHDX4K-I1

Name: Uniview IPC264EA-AHDZK / AHDX4K-I1
Brand: Uniview

4MP LightHunter WDR network bullet camera with motorized zoom — AHDZK covers 2.8-12mm for wide coverage, AHDX4K covers 8-32mm for long-range reach. Both: 140dB WDR, PoE+, IP67/IK10 outdoor body.

4 MP · 2688×1520@60fpsUltra 265 · low bandwidthLightHunter · 1/1.8" sensor + 140dB WDRPoE+ · 802.3atIP67 / IK10 · outdoor + vandal-resistantMic+Speaker · 2-way audio

CHOOSE YOUR ZOOM RANGE — TWO MODELS ON THIS PAGE

Both variants are motorized 4X optical zoom lenses, not fixed focal points — install, then dial in the exact angle on site. AHDZK (2.8-12mm, F1.2) is built for wide-to-normal coverage close to the camera. AHDX4K (8-32mm, F1.6) trades width for reach — its telephoto end detects objects out to roughly 497 m. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67IK10ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

140 dBOptical WDR

100 mIR night vision

4XOptical zoom

IP67Outdoor rated

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Perimeters & long-range sitesPorts, highways and large compounds — AHDX4K's telephoto end detects objects out to roughly 497 m.

Access control & watchlistsFace recognition against up to 16 libraries and 100,000 faces, with blocklist/allowlist comparison.

Traffic & vehicle monitoringMetadata analysis captures and classifies motor vehicles and non-motor vehicles alongside people.

Retail & transit crowd analyticsBuilt-in people flow counting and crowd density monitoring for footfall reporting.

Cold or harsh outdoor sitesBuilt-in heater plus -40°C to 60°C rating, IK10 impact resistance, and IP67 keep it running through rain, dust and cold.

Sites needing on-site audioBuilt-in mic and speaker support two-way audio — warn or talk to visitors directly from the camera.

Not the right pick if you need…

Wi-Fi — this is a wired RJ45 Gigabit camera, no wireless radio
Battery or solar-only power — it needs DC 12V or PoE+ (802.3at) wired power
One lens covering ultra-wide and super-telephoto at once — pick AHDZK (2.8-12mm) or AHDX4K (8-32mm), not both together
Discreet or compact mounting — this is a full-size 406mm bullet body, not a mini/covert form factor

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/1.8" CMOS sensor

2688 × 1520@60 fps in the main stream, offering smoother live video and more details

Ultra 265, H.265, H.264, MJPEG

Wise-ISP technology, comprehensive improvement in image quality

Metadata analysis, supports human body, motor vehicle and non-motor vehicle image capture and attribute collection, realizes data visualization management, allows users to get target information for further data analysis

Supports front-end comparison, supports blocklist and allowlist comparison, increases the concurrent detection number up to 120

Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection

People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios

LightHunter technology ensures ultra high image quality in low illumination environment

Up to 140 dB optical WDR (wide dynamic range)

DC 12 V, PoE (IEEE 802.3at) power supply

Wide voltage range of ±25% in DC

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:AHDZK = 2.8–12 mm zoomAHDX4K = 8–32 mm zoom

Camera

Sensor	1/1.8" CMOS
Min. Illumination	AHDZK · Color: 0.0003 Lux (F1.2, AGC ON), BW: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IRAHDX4K · Color: 0.0005 Lux (F1.6, AGC ON), BW: 0.0003 Lux (F1.6, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	140 dB
S/N	> 56 dB

Lens

Focal Length	AHDZK · 2.8 to 12 mmAHDX4K · 8 to 32 mm
Optical Zoom	4X
Iris	AHDZK · F1.2AHDX4K · F1.6
Field of View (H)	AHDZK · 106.6° to 51.3°AHDX4K · 42.6° to 15.2°
Field of View (V)	AHDZK · 56.9° to 28.6°AHDX4K · 23.5° to 8.9°
Field of View (D)	AHDZK · 131.1° to 63.1°AHDX4K · 52.4° to 17.9°
Iris Type	P-iris

DORI

DORI Distance (Detect)	AHDZK · 68.0 to 166.2 m (223.0 to 545.2 ft.)AHDX4K · 124.1 to 496.6 m (407.3 to 1629.1 ft.)
DORI Distance (Observe)	AHDZK · 27.2 to 66.5 m (89.2 to 218.1 ft.)AHDX4K · 49.7 to 198.6 m (163.1 to 651.6 ft.)
DORI Distance (Recognize)	AHDZK · 13.6 to 33.2 m (44.6 to 109.0 ft.)AHDX4K · 24.8 to 99.3 m (81.4 to 325.8 ft.)
DORI Distance (Identify)	AHDZK · 6.8 to 16.6 m (22.3 to 54.5 ft.)AHDX4K · 12.4 to 49.7 m (40.7 to 162.9 ft.)

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
ROI	Support
Video Stream	Triple streams
Privacy Mask	Up to 8 areas (8 blacks / 8 mosaics)
OSD	Up to 10 OSDs
Frame Rate-Main Stream	4 MP (2688 × 1520), max. 60 fps
Frame Rate-Sub Stream	1080P (1920 × 1080), max. 60 fps
Frame Rate-Third Stream	D1 (720 × 576), max. 60 fps
Frame Rate Recommendation	2688 × 1520@60 fps + 1080P@60 fps + D1@60 fps

Intelligent

Recognition	Face recognition: Max support 16 face libraries; Max supports 100000 faces in face library
Metadata Analyse	Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection
Exception Detection	AHDZK · Object removed \| Object Left Behind \| Scene change \| Defocus detectionAHDX4K · Object removed \| Object Left Behind
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring


White Balance	Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLC	Support
Smart IR	Support
Defog	Digital defog

Events

Basic Detection	AHDZK · Motion detection \| Tampering alarm \| Audio detection \| Object removed \| Object Left Behind \| Scene change \| Defocus detectionAHDX4K · Motion detection \| Tampering alarm \| Audio detection \| Object removed \| Object Left Behind
General Function	Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication, Alarm input, Alarm output

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Sampling Rate	16 KHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3
Compatible Integration	API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ · Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+

Illuminator

Illumination Distance (IR)	100 m (328.1 ft.)
IR On/Off Control	Auto/Manual
Wavelength	850 nm

Interface

Audio I/O	2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	3/2
Serial Port	1 × RS485
Built-in Mic	Support, built-in mic×2
Built-in Speaker	Support
Network	1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet

Certification

EMC	CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002)

General

Power	DC 12 V (±25%), PoE+ (IEEE 802.3at)
Power Consumption	AHDZK · 16 WAHDX4K · 19 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	406 mm × 126 mm × 130 mm (16.0" × 5.0" × 5.1") (L × W × H)
Weight	AHDZK · 1.92 kg (4.23 lb.)AHDX4K · 1.86 kg (4.10 lb.)
Working Environment	-40 °C to 60 °C (-40 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Heater	Support
