NVR / Recorders › NVR304-16B-IQ / 32B-IQ

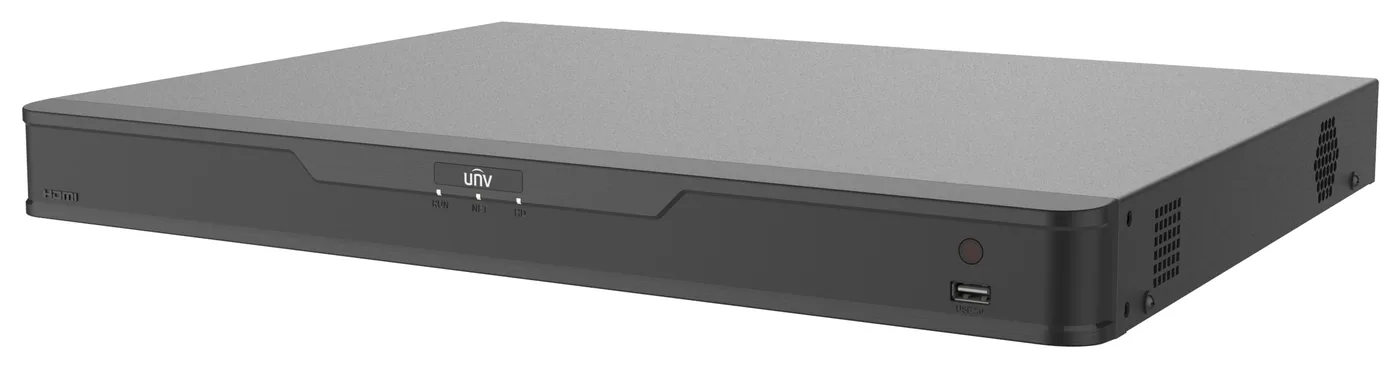

Uniview NVR304-B-IQ Series
view 1
view 2
view 3
view 4
UniviewNVR304-B-IQ Series · 4× SATA HDD
4-HDD Network Video Recorder · NVR304-B-IQ Series

NVR304-16 / 32B-IQ

16 / 32-channel network video recorder — four SATA bays for large-capacity storage, Ultra 265 compression, 4K HDMI output, records cameras up to 12MP, with onboard Face Detection, Vehicle Detection (LPR) and AI smart search.

12MP · max recordingUltra 265 · low storage4× SATA · up to 24 TB eachAI Search · face & vehicle detection4K HDMI · + VGA simultaneous38 languages · local interface
CHOOSE YOUR SIZE — TWO MODELS ON THIS PAGE
Rule of thumb: count your cameras across the whole site, then leave room to grow — 16 channels covers most single buildings; step up to the 32B-IQ if you're combining several buildings or expect to add cameras later. Highlighted rows in the spec table below show every difference between the two.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
16/32Channel options
160 MbpsIncoming bandwidth
4×24 TBSATA bays, max capacity each
4KHDMI output

The Uniview NVR304-B-IQ Series is a 4-HDD network video recorder offered in two sizes: NVR304-16B-IQ (16-ch) and NVR304-32B-IQ (32-ch). Both record cameras up to 12MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over 4K HDMI and VGA, and include built-in Face Detection, Face Comparison, Vehicle Detection (LPR) and AcuSearch / AcuTrack smart search. Four independent SATA bays each take a hard disk up to 24 TB, and the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Large sites & multi-building campuses16 or 32 channels in one box covers a full warehouse, factory floor, or multi-story retail location without stacking multiple recorders.
Long-term evidence retentionFour SATA bays, up to 24 TB each (up to 96 TB total), keep months of footage online instead of overwriting after a few weeks.
Growing camera countsBuy channels you don't use yet: the 32B-IQ lets you add cameras later without replacing the recorder.
Remote viewing on phoneP2P protocol built in — the manager checks every site from a phone app without a fixed IP or network skills.
Local-language interface38 GUI languages including Spanish (Latin America), Portuguese (Brazil) and French — your customer operates it in their own language.
Longer video retention per driveUltra 265 roughly halves file size versus H.264 — the same 24 TB disk keeps weeks more footage.
Quick incident lookup across many channelsBuilt-in Face Detection, Face Comparison and Vehicle Detection (LPR) feed AcuSearch, AcuTrack and Face Snapshot Search — jump straight to the clip you need instead of scrubbing hours of footage across 16 or 32 channels.
Not the right pick if you need…
  • PoE ports — cameras need a separate PoE switch (this recorder has no built-in PoE ports)
  • Serial PTZ control from the NVR itself — RS485 and RS232 are both listed N/A on this series
  • Physical alarm input/output terminals — Alarm In and Alarm Out are both N/A on the rear panel
  • A fifth hard disk or more — this series tops out at 4 SATA bays (up to 96 TB total with four 24 TB drives)
  • Redundant/dual power input — it runs on a single DC 12 V/5 A power supply, no built-in PSU redundancy

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra H.265/H.265/H.264 video formats
Support 16/32 channel input
Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
Support HDMI and VGA simultaneous output
Support up to 12 Megapixels resolution recording
Support ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Four bays of storage. AI finds the moment.

Two real capabilities that define this series: large multi-bay storage and onboard AI search.

4-BAY STORAGE

Room to grow, in one box

Four independent SATA bays each take a disk up to 24 TB — up to 96 TB in one recorder, useful for high channel counts or long retention without an external storage array.

AI SEARCH

Find the moment, not the footage

Built-in Face Detection, Face Comparison and Vehicle Detection (LPR) on the camera side feed AcuSearch, AcuTrack, Face Snapshot Search and Human Body Search on the recorder — narrow hours of footage down to the exact clip.

Which size fits your project?

Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.

NVR304-16B-IQ16-ch input · Smart Off decoding up to 2×12MP@30 · live view split up to 16
16cameras
NVR304-32B-IQ32-ch input · Smart Off decoding up to 2×12MP@30 · live view split up to 32
32cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:NVR304-16B-IQ · 16-chNVR304-32B-IQ · 32-ch

Decoding

Decoding FormatUltra 265, H.265, H.264
Decoding Capability16B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 16×720P@30 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@3032B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 20×720P@30, 32×D1 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@30, 32×D1
Decoding Capability DescriptionThe resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio CompressionG.711A, G.711U

Network

Incoming Bandwidth160 Mbps
Outgoing Bandwidth128 Mbps
Remote Users128
ProtocolsTCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input16B-IQ · 16-ch32B-IQ · 32-ch
RCA Audio Input1-ch
Peripheral Input — Ip Speaker16-ch
Peripheral Input — POSAll channels

Video/Audio Output

HDMI Output4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output1-ch
Liveview Display16B-IQ · 1/4/6/8/9/1632B-IQ · 1/4/6/8/9/16/25/32
Corridor Mode Screen16B-IQ · 3/4/5/7/9/10/12/1632B-IQ · 3/4/5/7/9/10/12/16/32
Two-way Audio1-ch, RCA (Using the audio input and output)
SnapshotFTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local16-ch

Smart Function

Smart by IPCAll channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring
Smart by NVRFace Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA SearchAcuSearch, AcuTrack, Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
AcuSearchAll channels with UNV SIP/UMD Camera
AcuTrackAll channels with UNV SIP/UMD Camera
by NVRUp to 8-ch with UNV Face Detection Camera, Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)
Vehicle Picture LibraryUp to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR with normal camerasUp to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP)
UMD by NVR with normal camerasUp to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)

Alarm

General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA4 SATA Interfaces
CapacityUp to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40°C)

External Interface

Network Interface2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USBFront panel: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0
RS485N/A
RS232N/A
Alarm InN/A
Alarm OutN/A
Power SupplyDC 12 V / 5 A

Working Environment

Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 12 W

Dimensions

Weight (without HDD)≤ 3.4 kg (7.5 lb)
Dimensions440 mm × 350 mm × 48 mm (17.3" × 13.8" × 1.9")

Certification

CertificationCE; FCC; UL; RoHS; WEEE
CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
Dimensions440 mm × 350 mm × 48 mm (17.3" × 13.8" × 1.9")
Weight (without HDD)≤ 3.4 kg (7.5 lb)
Power supplyDC 12 V / 5 A
Consumption (without HDD)≤ 12 W
NVR304-B-IQ series rear panel
Rear panel — all interfaces
