Uniview · Dome2MP · Vandal-resistant IK10

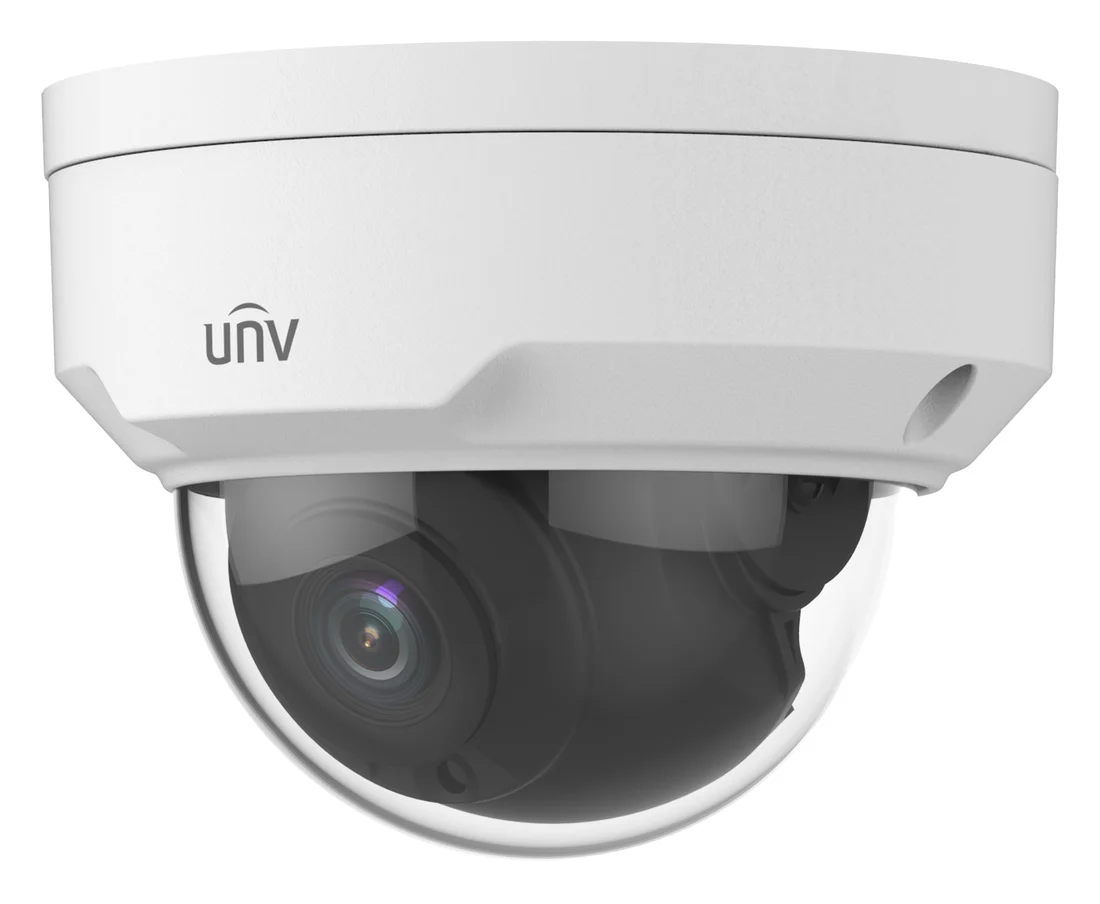

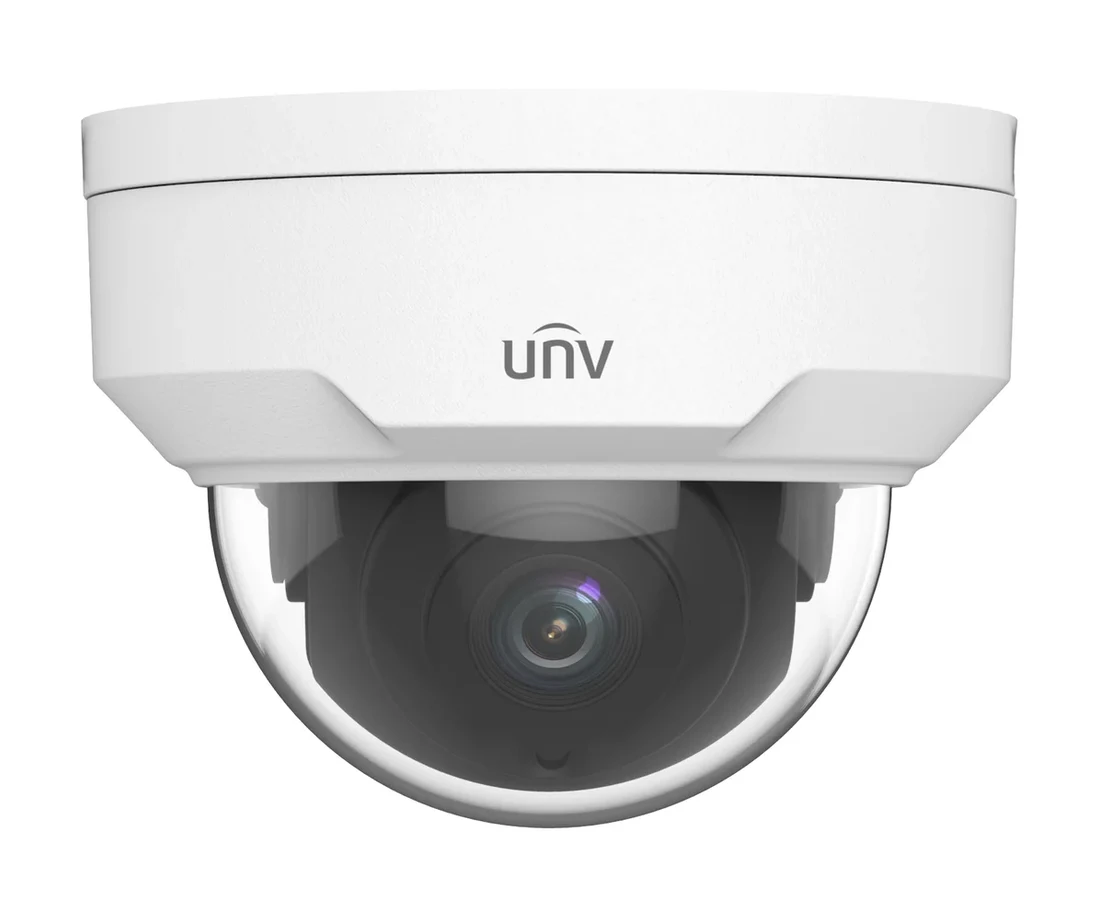

2MP Vandal-resistant IR Fixed Dome

IPC322LB-SF28(40)-A

Name: Uniview IPC322LB-SF28(40)-A
Brand: Uniview

2MP vandal-resistant fixed dome network camera — Smart IR night vision up to 30m, PoE single-cable install, IK10 + IP67 rated body.

2 MP · 1080P@30fpsUltra 265 · low bandwidthSmart IR · up to 30mPoE · 802.3afIK10 · vandal-resistantIP67 · outdoorNDAA · compliant

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

SF28 (2.8 mm, 101.1° view) covers a wide area near the camera — lobbies, small rooms, counters. SF40 (4.0 mm, 82.5° view) trades width for reach — corridors, entrances, longer sightlines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCUL/CULRoHSWEEEIP67IK10ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

IK10Vandal-resistant

30 mSmart IR distance

IP67Outdoor rated

NDAACompliant

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Retail counters & entrances prone to tamperingIK10 impact-resistant housing keeps recording even after someone tries to hit or kick the camera off the wall.

Corridors, stairwells & lift lobbiesThe low-profile dome shape sits flush against ceilings and walls. SF28's 101.1° view covers a wide landing from one corner.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. SF40 watches longer approach lanes and fence lines.

Government & critical-infrastructure projectsThe camera is NDAA compliant, relevant for procurement that requires equipment from non-restricted sources.

Small offices & multi-camera sitesUltra 265 compression and dual video streams keep bandwidth and NVR storage use low across many cameras.

Network-security-conscious deploymentsHTTPS encryption, RTSP/HTTP/ONVIF authentication, ARP protection and watermarking harden the camera against common network attacks.

Not the right pick if you need…

Two-way talk — no built-in microphone or speaker at all
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
MicroSD card recording — it records to an NVR, no local storage slot
Color night vision — this camera has Smart IR (black & white) only, no warm-light illuminator
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:SF28 = 2.8 mmSF40 = 4.0 mm

Camera

Max Resolution	2 MP
Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 3° to 360°, Tilt: 0° to 75°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	SF28 · 2.8 mmSF40 · 4.0 mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	SF28 · 101.1°SF40 · 82.5°
Field of View (V)	SF28 · 56.5°SF40 · 44.5°
Field of View (D)	SF28 · 117°SF40 · 93°

DORI

DORI Distance (Detect)	SF28 · 45.0 m (147.6 ft.)SF40 · 64.3 m (211.0 ft.)
DORI Distance (Observe)	SF28 · 18.0 m (59.1 ft.)SF40 · 24.8 m (81.4 ft.)
DORI Distance (Recognize)	SF28 · 9.0 m (29.5 ft.)SF40 · 12.4 m (40.7 ft.)
DORI Distance (Identify)	SF28 · 4.5 m (14.8 ft.)SF40 · 6.2 m (20.3 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support (main stream)
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration	ONVIF (Profile S, Profile T), API, SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529); IK10 (IEC 62262)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 5.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø109 mm × 81 mm (Ø4.3" × 3.2") (Ø × H)
Weight	0.35 kg (0.77 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	1 Language: English

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-G-INJunction box for mini fix-dome (supports wiring from behind)

TR-UM06-E-INSlant mounting bracket for fixed dome

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendant mounting pole, 200 mm

TR-SE24-A-INDome pendant mounting pole, 500 mm

TR-CM24-INDome pendant mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for mini fix-dome & plastic turret

TR-WM03-D-IN-V2Wall mounting bracket for mini fix-dome & plastic turret

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-FM116In-ceiling bracket for fix-dome

TR-WM07P-BDome wall mounting plastic bracket
