IP Cameras › IPC324LE-ADF28(40)K-H
IPC324LE-ADF28(40)K-H
view 1

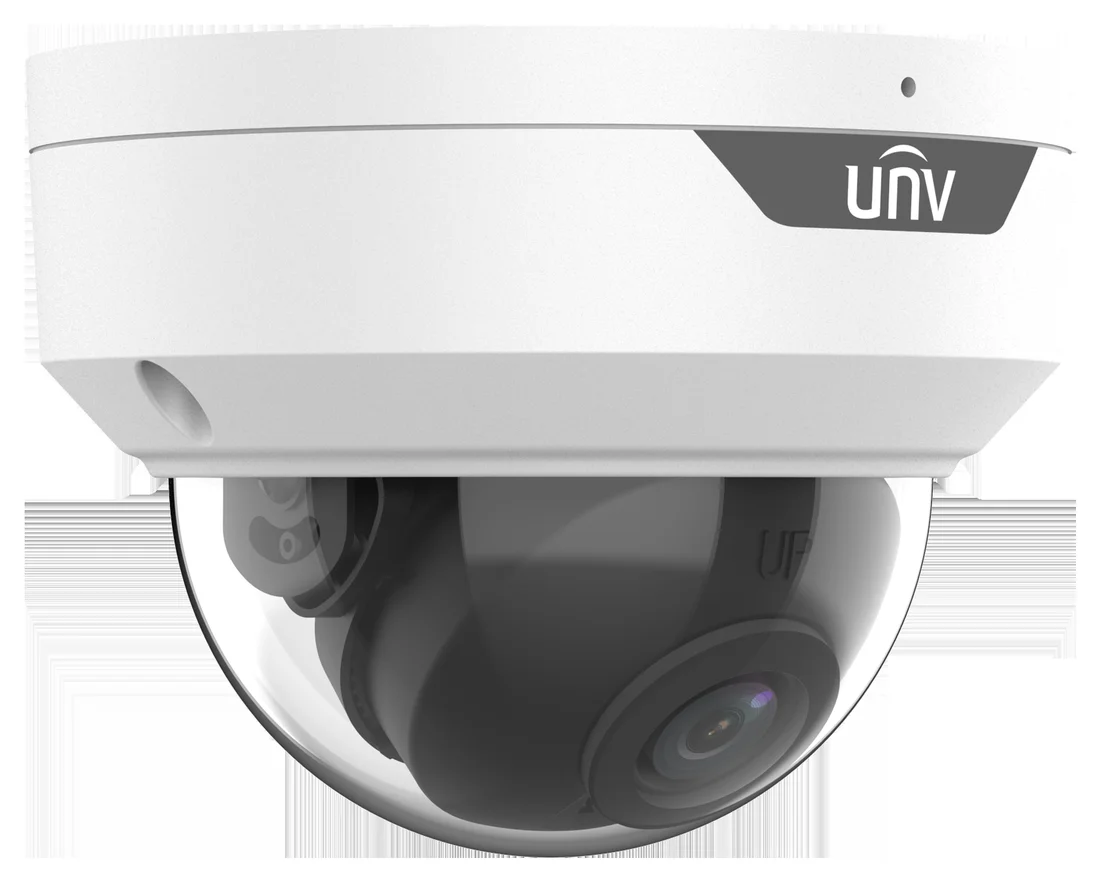

view 2

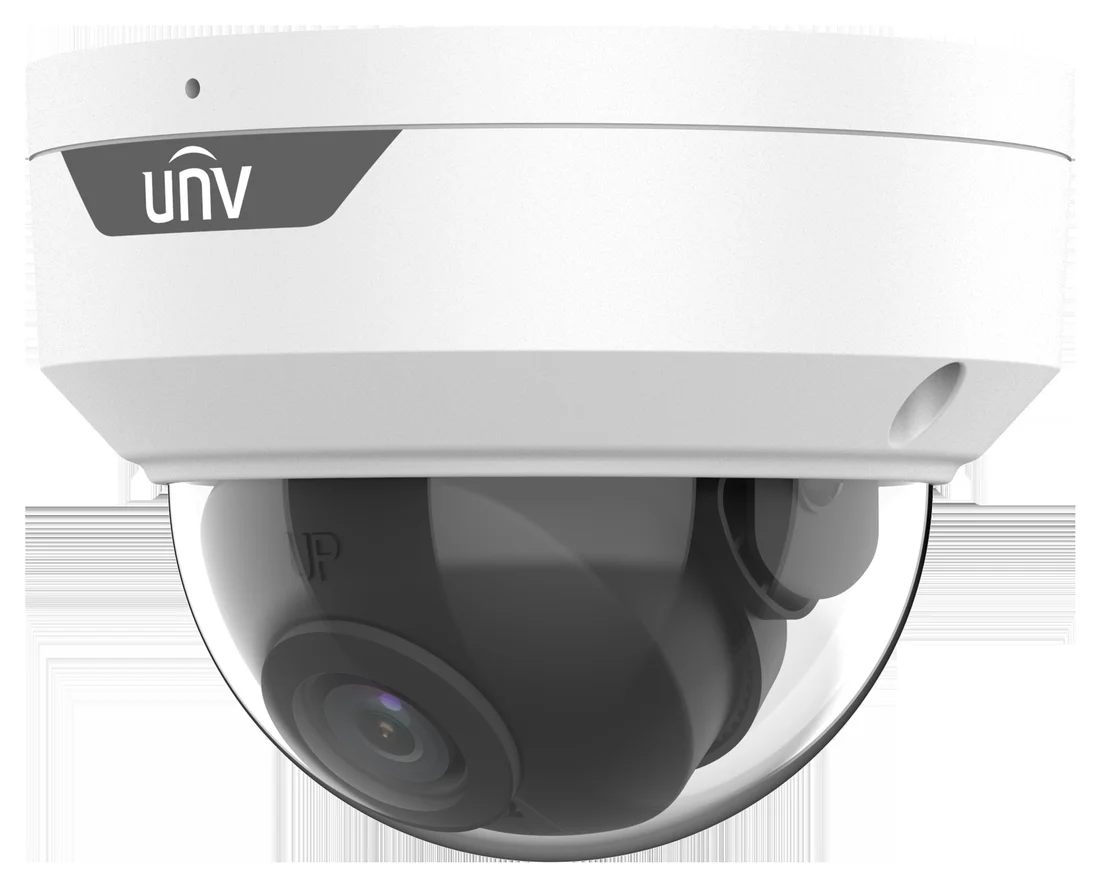

view 3
Uniview · DomeVandal-resistant IR Fixed Dome
4MP Vandal-resistant IR Fixed Dome

IPC324LE-ADF28(40)K-H

4MP fixed IR dome network camera — IK10 vandal-resistant, IP67 outdoor housing, Smart IR to 30 m, PoE single-cable install, built-in mic.

4 MP · 2688×1520@25fpsUltra 265 · low bandwidthIK10 · vandal resistantPoE · 802.3afIP67 · outdoorMic · built-in audio
CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE
ADF28K (2.8 mm, 97° view) covers a wide area near the camera — lobbies, small rooms, retail counters. ADF40K (4.0 mm, 79° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCUL/CULRoHSWEEEIP67ONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
4 MPResolution
30 mIR night vision
IK10Vandal resistant
IP67Outdoor rated

The Uniview IPC324LE-ADF28(40)K-H is a 4MP fixed IR dome network camera with an IK10 vandal-resistant, IP67 outdoor-rated housing. Smart IR reaches 30 m (98.4 ft.), 120 dB true WDR keeps strong-backlight scenes readable, and a MicroSD slot up to 512 GB can back up recordings locally — all powered over a single PoE cable. It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Retail entrances & lobbies9:16 corridor mode plus a wide 97° view (ADF28K) cover a doorway or narrow aisle from one corner; the built-in mic picks up the counter conversation.
Stairwells, lifts & public toiletsThe IK10 housing shrugs off knocks and thrown objects — built to keep working in high-vandalism spots.
Outdoor gates & perimetersIP67 body and −30 to 60 °C rating handle rain, dust and heat; ADF40K watches further down a fence line or driveway.
Warehouses & loading docks120 dB true WDR keeps footage readable against bright dock doors or vehicle headlights.
Small offices & receptionBuilt-in mic plus a MicroSD slot (up to 512 GB) keep a local backup even if the network or NVR drops.
Residential walkways & compoundsCross-line and intrusion alarms based on human body detection cut false alerts from stray animals or moving branches.
Not the right pick if you need…
  • Two-way talk — it has a mic but no speaker
  • Wi-Fi — this is a wired RJ45 camera
  • Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
  • Alarm in/out wiring for sirens or sensors
  • Motorized pan/tilt — the mounting angle is set by hand at install, not driven by a motor

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/3.0" CMOS sensor
4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
Smart IR, up to 30 m (98.4 ft.) IR distance
MicroSD, up to 512 GB
IK10 vandal resistant
IP67 protection
Supports PoE power supply
3-axis

Built for low light and hard scenes

Two real image technologies from the datasheet — not marketing language.

SMART IR

Invisible infrared night vision, up to 30 m

Smart IR automatically adjusts intensity by distance up to 30 m (98.4 ft.); Easystar technology keeps images usable in very low light.

TRUE WDR

120 dB true WDR for backlit scenes

Strong backlight — a doorway at noon, headlights at night — stays balanced at 120 dB instead of washing out to white or black.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there
63 m206.7 ft
Observewhat is happening
25.2 m82.7 ft
Recognizesomeone you know
12.6 m41.3 ft
Identifya stranger's face
6.3 m20.7 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:AF28 = 2.8 mmAF40 = 4.0 mm

Camera

Max Resolution4 MP
Sensor1/3.0" CMOS
Min. IlluminationColor: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
Adjustment AnglePan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360°
S/N> 52 dB
WDR120 dB

Lens

Focal LengthAF28 · 2.8 mmAF40 · 4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)AF28 · 97.0°AF40 · 79.0°
Field of View (V)AF28 · 52.2°AF40 · 42.3°
Field of View (D)AF28 · 107.5°AF40 · 85.1°

DORI

DORI Distance (Lens)AF28 · 2.8 mmAF40 · 4 mm
DORI Distance (Detect)AF28 · 63.0 m (206.7 ft.)AF40 · 90.0 m (295.3 ft.)
DORI Distance (Observe)AF28 · 25.2 m (82.7 ft.)AF40 · 36.0 m (118.1 ft.)
DORI Distance (Recognize)AF28 · 12.6 m (41.3 ft.)AF40 · 18.0 m (59.1 ft.)
DORI Distance (Identify)AF28 · 6.3 m (20.7 ft.)AF40 · 9.0 m (29.5 ft.)

Illuminator

Supplemental LightIR
Illumination Distance (IR)30 m (98.4 ft.)
Wavelength850 nm
IR On/Off ControlAuto/Manual

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4 MP (2688×1520) max. 25 fps; 4 MP (2560×1440) max. 25 fps; 3 MP (2304×1296) max. 30 fps; 1080P (1920×1080) max. 30 fps; 720P (1280×720) max. 30 fps · Sub Stream: 720P (1280×720) max. 30 fps; D1 (720×576) max. 30 fps; 640×360 max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog

Events

Basic DetectionCross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529); IK10 (IEC 62262)

General

PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 4.4 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ111 mm × 83 mm (Ø4.4" × 3.3") (Ø × H)
Weight0.35 kg (0.77 lb.)
MaterialMetal + Plastic
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
DimensionsØ111 × 83 mm (Ø4.4" × 3.3") (Ø × H)
Weight0.35 kg (0.77 lb.)
MaterialMetal + Plastic
Mount adjustmentPan 8–360° · Tilt 0–68° · Rotate 10–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-G-INJunction box for mini fix-dome (rear wiring)
HS-205SSunshade shell for fixed focus dome
TR-UM06-E-INSlant mounting bracket for fixed dome
TR-A01-INNPT 3/4" waterproof cable gland
TR-SE24-INDome pendant mounting pole 200 mm
TR-SE24-A-INDome pendant mounting pole 500 mm
TR-CM24-INDome pendant mounting bracket (indoor)
TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for 32-series fix-dome, mini fix-dome & plastic turret camera
TR-WM03-D-IN-V2Wall mounting bracket for 32-series fix-dome, mini fix-dome & plastic turret camera
TR-UC08-C-V2Bullet & dome corner mounting bracket
TR-WM07P-BDome wall mounting plastic bracket
TR-FM116In-ceiling bracket for fix-dome
TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only
