Uniview · Dome5MP · Fixed Lens

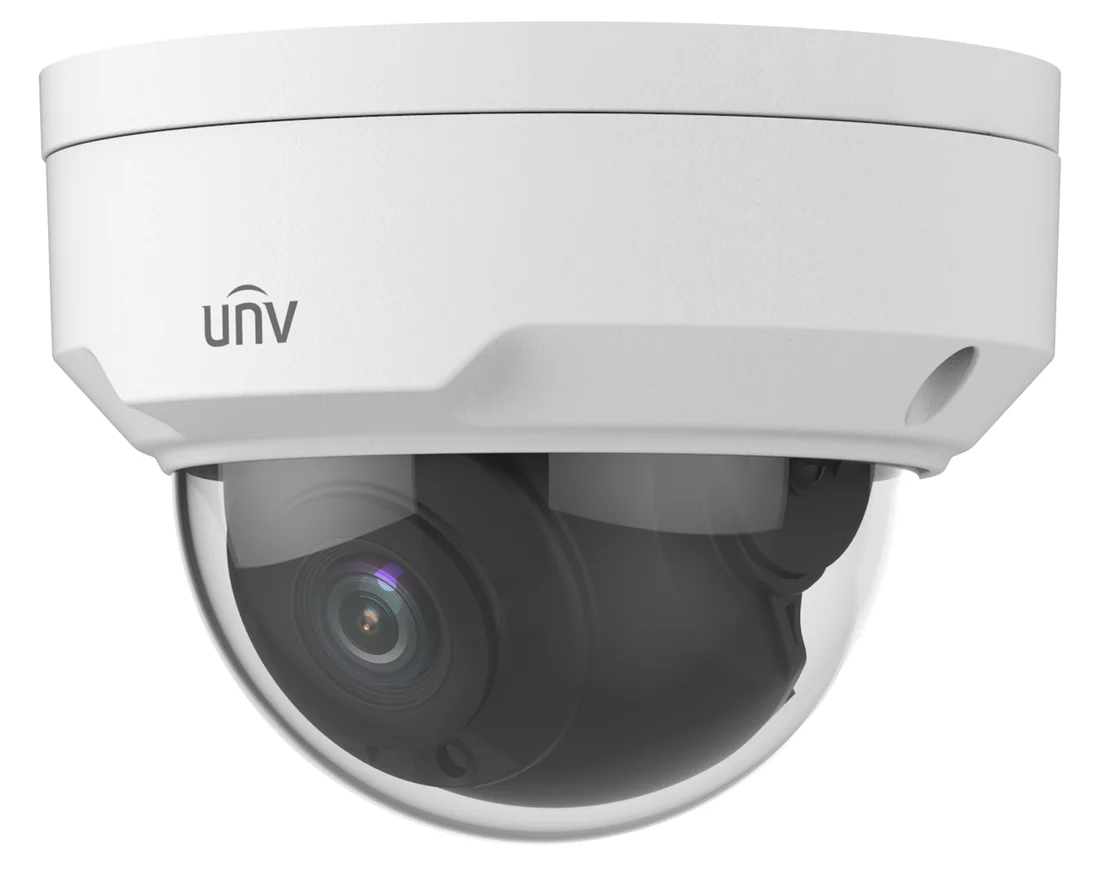

5MP Fixed IR Dome · IK10 Vandal-Resistant

IPC325LB-SF28(40)-A

Name: Uniview IPC325LB-SF28(40)-A
Brand: Uniview

5MP fixed IR dome network camera — Smart IR night vision up to 30 m, IK10 vandal-resistant and IP67 outdoor body, PoE single-cable install.

5 MP · 2592 × 1944 @20fpsUltra 265 · low bandwidthSmart IR · up to 30mIK10 · vandal resistantIP67 · outdoorPoE · 802.3af

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

SF28 (2.8 mm, 97° view) covers a wide area near the camera — lobbies, small rooms, reception desks. SF40 (4.0 mm, 79° view) trades width for reach — corridors, driveways, perimeter fences. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCUL/CULRoHSWEEEIP67IK10ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

IK10Vandal resistant

IP67Outdoor rated

5.0 WPoE max power

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Lobbies & reception areasThe low-profile dome blends into ceilings while covering the room from corner to corner.

Parking garages & stairwellsIK10 vandal-resistant housing survives impacts, kicks and tampering attempts in high-traffic public areas.

Building perimeters & loading docksIP67 body and −30 to 60 °C rating handle rain, dust and heat outdoors; Smart IR sees 30 m into the dark.

Warehouses & corridors2-axis adjustment lets you aim the lens after ceiling mounting, without taking the dome back down.

ATMs & cash pointsTampering alarm flags anyone messing with the housing, on top of motion detection.

Small offices & receptionUltra 265 compression keeps recordings small — more days of footage on the same NVR disk.

Not the right pick if you need…

Any audio — no mic, no speaker, no audio input/output at all
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
MicroSD card recording — it records to an NVR, no local storage slot
Warm-light or color night vision — this model is Smart IR only, with no visible-light illuminator

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:SF28 = 2.8 mmSF40 = 4.0 mm

Camera

Max Resolution	5 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.01 Lux (F2.1, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 3° to 360°, Tilt: 0° to 68°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	SF28 · 2.8 mmSF40 · 4.0 mm
Iris Type	Fixed
Iris	F2.1
Field of View (H)	SF28 · 97.0°SF40 · 79.0°
Field of View (V)	SF28 · 52.2°SF40 · 42.3°
Field of View (D)	SF28 · 107.5°SF40 · 85.1°

DORI

DORI Distance (Lens)	SF28 · 2.8 mmSF40 · 4 mm
DORI Distance (Detect)	SF28 · 63.0 m (206.7 ft.)SF40 · 90.0 m (295.3 ft.)
DORI Distance (Observe)	SF28 · 25.2 m (82.7 ft.)SF40 · 36.0 m (118.1 ft.)
DORI Distance (Recognize)	SF28 · 12.6 m (41.3 ft.)SF40 · 18.0 m (59.1 ft.)
DORI Distance (Identify)	SF28 · 6.3 m (20.7 ft.)SF40 · 9.0 m (29.5 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 5 MP (2592×1944), max. 20 fps; 4 MP (2560×1440), max. 20 fps; 3 MP (2304×1296), max. 20 fps; 1080P (1920×1080), max. 30 fps · Sub Stream: D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Tampering alarm
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration	ONVIF (Profile S, Profile T), API, SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529); IK10 (IEC 62262)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 5.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø109 mm × 81 mm (Ø4.3" × 3.2") (Ø × H)
Weight	0.32 kg (0.71 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	1 Language: English

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-G-INJunction box for mini fix-dome (support wiring from behind)

HS-205SSunshade shell for fixed focus dome

TR-UM06-E-INSlant mounting bracket for fixed dome

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendant mounting pole, 200 mm

TR-SE24-A-INDome pendant mounting pole, 500 mm

TR-CM24-INDome pendant mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for fix-dome, mini fix-dome & plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for fix-dome, mini fix-dome & plastic turret camera

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-FM116In-ceiling bracket for fix-dome

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-WM07P-BDome wall mounting plastic bracket
