IPC3614LB-AF28K-DL2
view 1

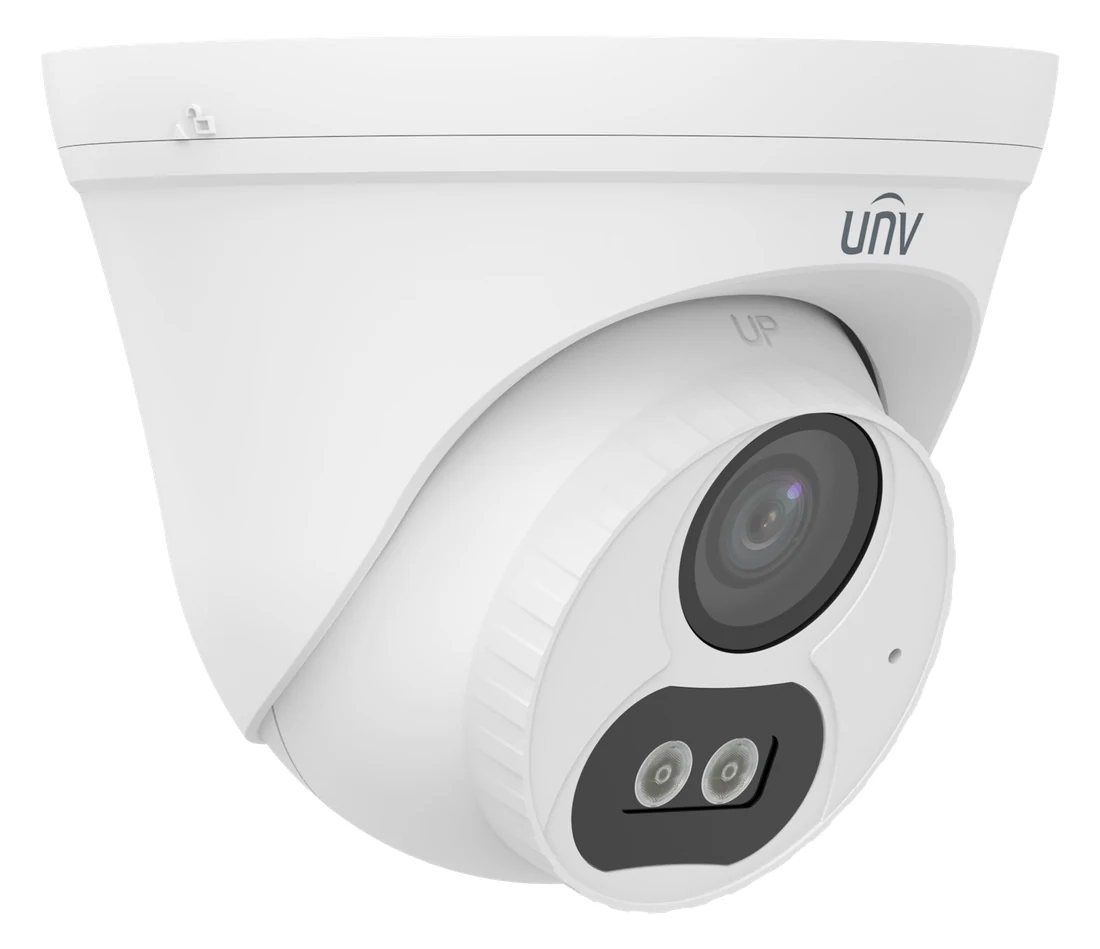

view 2

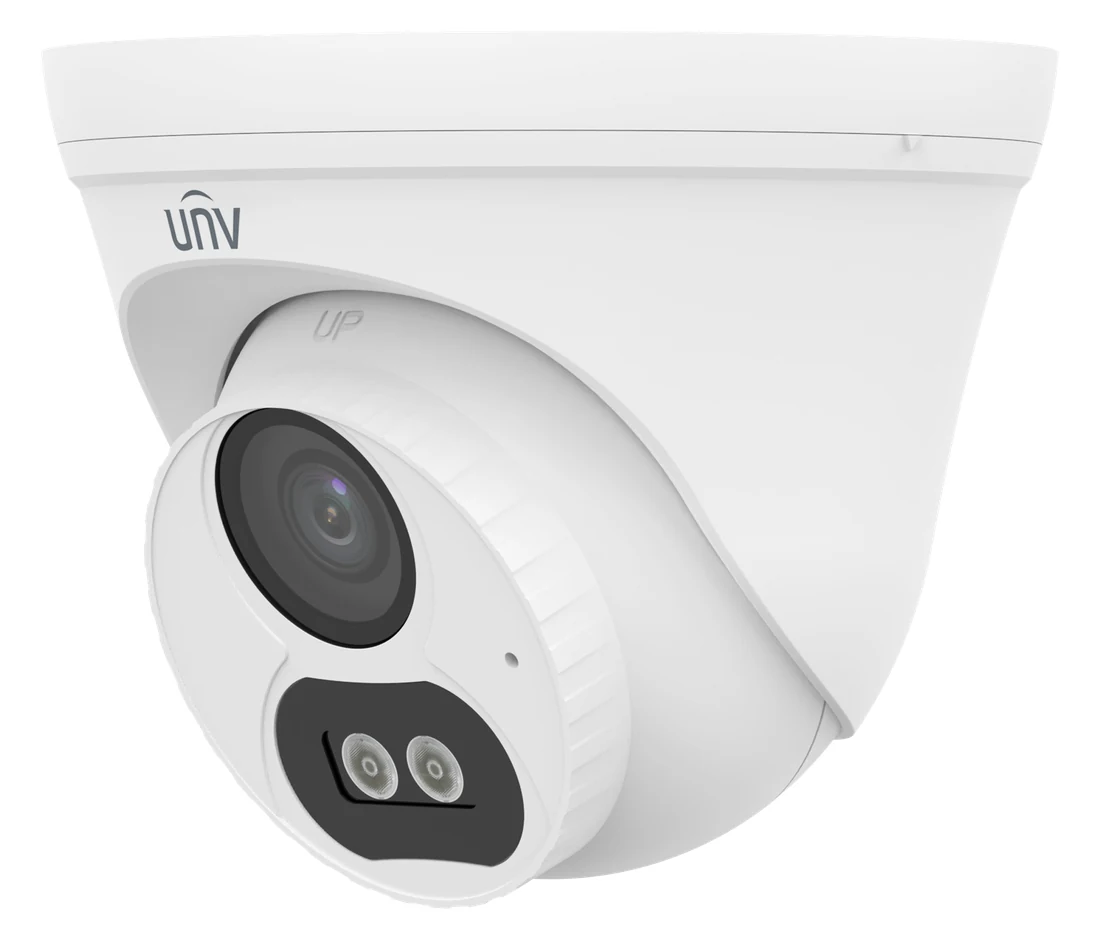

view 3
UniviewDual Light Series · Turret
4MP Smart Dual Light Turret · Fixed 2.8mm

IPC3614LB-AF28K-DL2

4MP fixed 2.8mm turret network camera with Smart Dual Light — 30 m IR plus 30 m warm light, PoE single-cable install, built-in mic, MicroSD up to 512GB, IP67 outdoor body.

4 MP · 2560×1440@25fpsUltra 265 · low bandwidthSmart Dual Light · IR 30m + warm 30mPoE · 802.3afIP67 · outdoorMic · built-in audio
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67ONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
30 mIR night vision
30 mWarm light
IP67Outdoor rated
4.2 WPoE max power

The Uniview IPC3614LB-AF28K-DL2 is a 4MP fixed 2.8 mm turret network camera built around Smart Dual Light illumination, pairing 30 m infrared with 30 m warm light for both discreet and full-color night views. It records to a MicroSD card of up to 512 GB or over the network, adds ultra motion detection and corridor mode for narrow spaces, and powers over a single PoE cable. The camera carries an IP67 outdoor rating with a −30 °C to 60 °C working range and is NDAA compliant.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Entrances & receptionSee who enters, and the built-in mic picks up what is said at the counter. Turret angle adjusts to cover the doorway from a corner.
Home gates & yardsThe warm light turns on at night — visitors are visible in color and intruders know they are seen.
Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. A 512 GB MicroSD card keeps footage on site even if the network drops.
Narrow corridors & aislesCorridor mode reframes the view to match tall, narrow spaces — no wasted image on the walls either side.
Small offices & receptionUltra 265 compression keeps recordings small, and tampering alarm flags if the camera is covered or redirected.
Kiosks & fuel stationsOne PoE cable does power + video, and ultra motion detection cuts false alerts from wind-blown debris or light changes.
Not the right pick if you need…
  • Two-way talk — it has a mic but no speaker
  • Wi-Fi — this is a wired RJ45 camera
  • Zoom — the lens is fixed at 2.8 mm
  • Alarm in/out wiring for sirens or sensors
  • External mic/speaker wiring — audio uses the built-in mic only, no audio I/O jacks

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/3" CMOS sensor
4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Smart dual-light ensures high quality image
Ultra 265, H.265, H.264
Supports ultra motion detection
Built-in mic
Up to 30 m (98.4 ft.) IR and warm light distance
MicroSD, up to 512 GB
IP67 protection
3-axis
Supports PoE power supply
Supports corridor mode

Smart Dual Light: two ways to see the night

Switchable Auto/Manual — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording.

WARM LIGHT MODE

Visible warm light — full-time color and active deterrence

Warm white light up to 30 m (98.4 ft.) keeps faces and clothing colors visible at night — and tells intruders the area is watched.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there
63 m206.7 ft
Observewhat is happening
25.2 m82.7 ft
Recognizesomeone you know
12.6 m41.3 ft
Identifya stranger's face
6.3 m20.7 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution4 MP
Sensor1/3.0" CMOS
Min. IlluminationColor: 0.01 Lux (F1.6, AGC ON), 0 Lux with light
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N> 52 dB
WDRDWDR

Lens

Focal Length2.8 mm
Iris TypeFixed
IrisF1.6
Field of View (H)93.2°
Field of View (V)51.5°
Field of View (D)108.0°
Lens TypeFixed

DORI

DORI Distance (Lens)2.8 mm
DORI Distance (Detect)63.0 m (206.7 ft.)
DORI Distance (Observe)25.2 m (82.7 ft.)
DORI Distance (Recognize)12.6 m (41.3 ft.)
DORI Distance (Identify)6.3 m (20.7 ft.)

Illuminator

Supplemental LightDual light
Illumination Distance (IR)30 m (98.4 ft.)
Illumination Distance (Warm Light)30 m (98.4 ft.)
Wavelength850 nm

Video

Video CompressionUltra 265, H.265, H.264
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps · Sub Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog
Image StabilizationN/A

Events

Basic DetectionUltra motion detection, Motion detection, Audio detection, Tampering alarm
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SNMP
Compatible IntegrationONVIF (Profile S, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4); FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)

General

PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 4.2 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ117.8 mm × 100.3 mm (Ø4.6" × 3.9") (Ø × H)
Weight0.26 kg (0.57 lb.)
MaterialGraphene + Plastic
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language4 Languages: English, Russian, Spanish, Vietnamese

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
DimensionsØ117.8 mm × 100.3 mm (Ø4.6" × 3.9") (Ø × H)
Weight0.26 kg (0.57 lb.)
MaterialGraphene + Plastic
Mount adjustmentPan 0–360° · Tilt 0–80° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for plastic turret camera (support wiring from behind)
TR-A01-INNPT 3/4" waterproof cable gland
TR-SE24-INDome pendent mounting pole, 200 mm
TR-SE24-A-INDome pendent mounting pole, 500 mm
TR-CM24-INDome pendent mounting bracket (indoor)
TR-WM07P-BDome wall mounting plastic bracket
TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for 32 fix-dome & mini fix-dome & plastic turret camera
TR-WM03-D-IN-V2Wall mounting bracket for 32 fix-dome & mini fix-dome & plastic turret camera
TR-UC08-C-V2Bullet & dome corner mounting bracket
TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only
