IP Cameras › IPC3618LE-ADF28(40)K-H

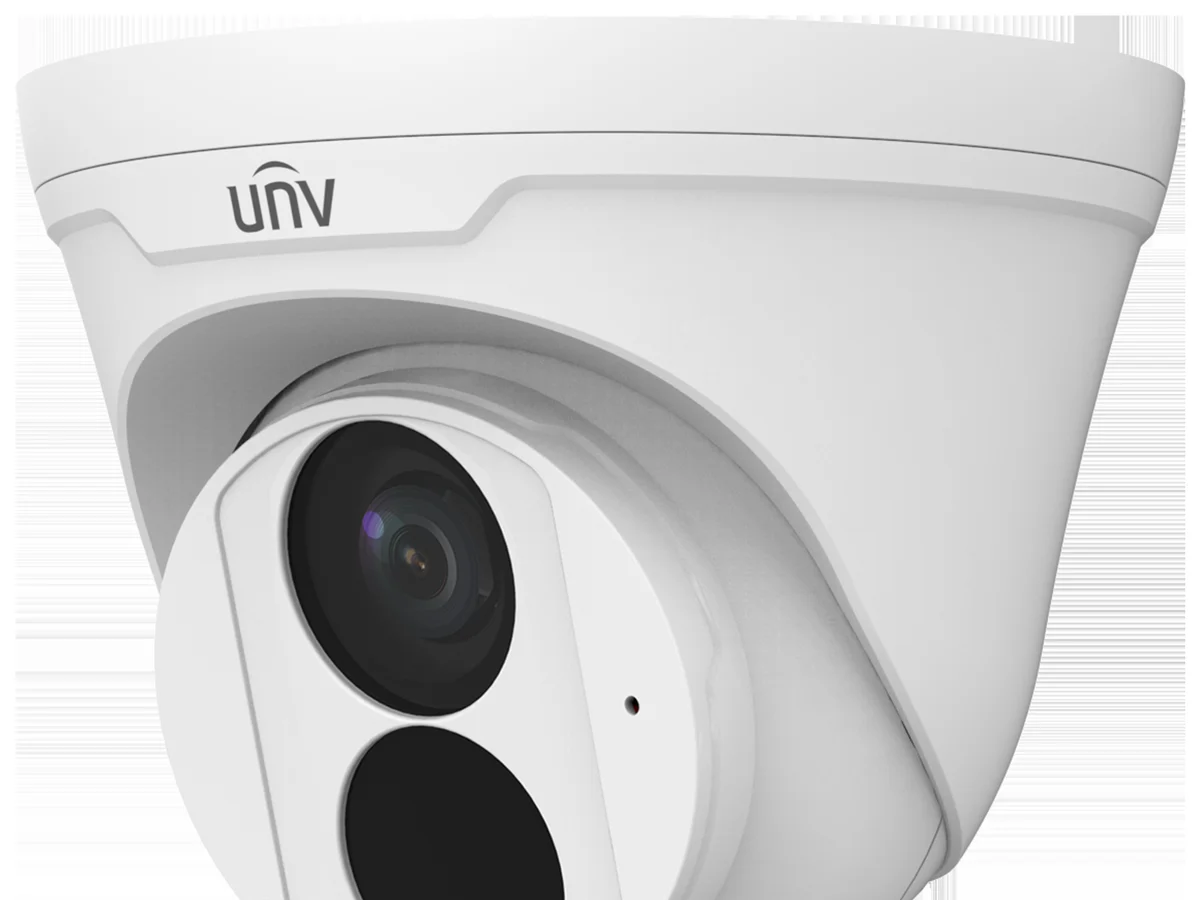

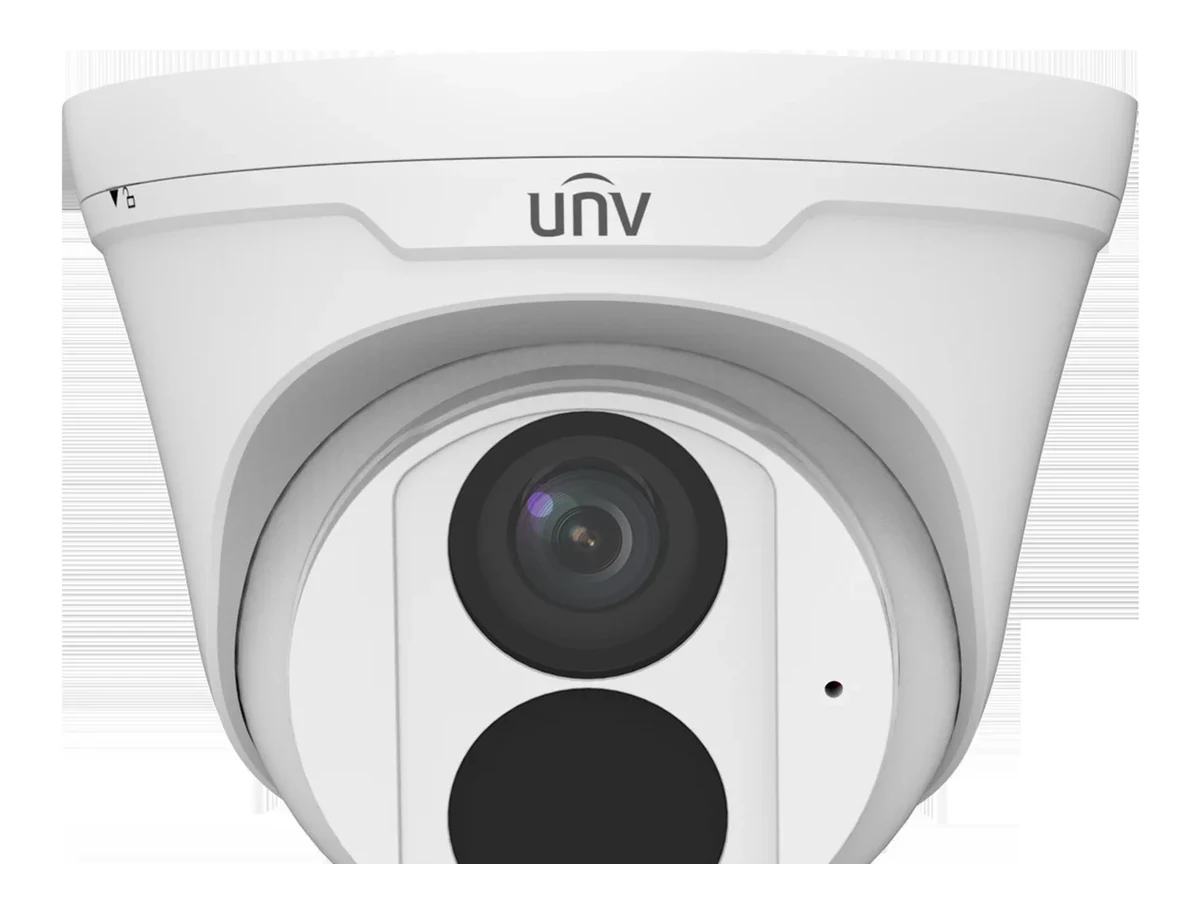

IPC3618LE-ADF28(40)K-H
view 1
view 2
view 3
Uniview · Eyeball8MP · Smart IR Eyeball
8MP HD IR Fixed Eyeball

IPC3618LE-ADF28(40)K-H

8MP fixed eyeball network camera — smart IR night vision up to 30 m, 120 dB true WDR, PoE single-cable install, built-in mic, IP67 outdoor-rated body.

8 MP · 3840×2160@20fpsUltra 265 · low bandwidth120 dB · true WDRPoE · 802.3afIP67 · outdoorMic · built-in audioMicroSD · up to 512 GB
CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE
ADF28K (2.8 mm, 98.7° view) covers a wide area near the camera — doorways, small rooms, shop counters. ADF40K (4.0 mm, 83.1° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67ONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
8 MPMax resolution
30 mSmart IR distance
120 dBTrue WDR
IP67Outdoor rated

The Uniview IPC3618LE-ADF28(40)K-H is an 8MP fixed eyeball network camera with Easystar low-light imaging and 120 dB true WDR. Smart IR reaches up to 30 m, the body carries an IP67 outdoor rating with a −30 °C to 60 °C working range and DC 12 V/PoE power input, and a built-in mic plus MicroSD slot (up to 512 GB) support local audio pickup and edge recording. It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsThe built-in mic hears what is said at the counter, and 8MP resolution keeps faces sharp enough to review on playback.
Corridors & hallways9:16 corridor mode turns the image portrait to fit narrow hallways, without wasting resolution on bare walls.
Reception & lobby ceilingsThe compact eyeball body mounts flush to the ceiling, and 120 dB true WDR balances a bright entrance against a dark interior in the same frame.
Warehouse aisles & loading docksIP67 body and −30 to 60 °C rating survive dust and temperature swings; ADF40K reaches further down long aisles.
Residential compoundsCross line and intrusion detection are based on human body detection, raising alerts for people, not stray animals or moving branches.
Small offices & receptionA MicroSD slot (up to 512 GB) keeps a local recording backup even if the NVR or network connection drops.
Not the right pick if you need…
  • Two-way talk — it has a mic but no speaker
  • Full-color night vision — this is IR-only; images are black & white after dark
  • Wi-Fi — this is a wired RJ45 camera
  • Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
  • Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 8 MP, 1/2.8" CMOS sensor
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
Smart IR, up to 30 m (98.4 ft.) IR distance
MicroSD, up to 512 GB
IP67 protection
Supports PoE power supply
3-axis

Night Vision: Smart IR

Auto/Manual switchable — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there
86.9 m285.1 ft
Observewhat is happening
34.8 m114.2 ft
Recognizesomeone you know
17.4 m57.1 ft
Identifya stranger's face
8.7 m28.5 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28K = 2.8 mmADF40K = 4.0 mm

Camera

Max Resolution8 MP
Sensor1/2.8" CMOS
Min. IlluminationSupport Easystar: color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N> 52 dB
WDR120 dB

Lens

Focal LengthADF28K · 2.8 mmADF40K · 4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)ADF28K · 98.7°ADF40K · 83.1°
Field of View (V)ADF28K · 53.9°ADF40K · 48.0°
Field of View (D)ADF28K · 103.6°ADF40K · 86.5°

DORI

DORI Distance (Detect)ADF28K · 86.9 m (285.1 ft.)ADF40K · 124.1 m (407.2 ft.)
DORI Distance (Observe)ADF28K · 34.8 m (114.2 ft.)ADF40K · 49.7 m (163.1 ft.)
DORI Distance (Recognize)ADF28K · 17.4 m (57.1 ft.)ADF40K · 24.8 m (81.4 ft.)
DORI Distance (Identify)ADF28K · 8.7 m (28.5 ft.)ADF40K · 12.4 m (40.7 ft.)

Illuminator

Supplemental LightIR
Illumination Distance (IR)30 m (98.4 ft.)
Wavelength850 nm
IR On/Off ControlAuto/Manual

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 8 MP (3840×2160), max. 20 fps; 5 MP (3072×1728), max. 30 fps; 4 MP (2560×1440), max. 30 fps; 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog

Events

Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)

General

PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 5.0 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ118 mm × 95 mm (Ø4.6" × 3.8") (Ø × H)
Weight0.32 kg (0.71 lb.)
MaterialMetal + Plastic
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
DimensionsØ118 mm × 95 mm (Ø4.6" × 3.8") (Ø × H)
Weight0.32 kg (0.71 lb.)
MaterialMetal + Plastic
Mount adjustmentPan 0–360° · Tilt 0–75° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for plastic turret camera (wiring from behind)
TR-A01-INNPT 3/4" waterproof cable gland
TR-SE24-INDome pendant mounting pole, 200 mm
TR-SE24-A-INDome pendant mounting pole, 500 mm
TR-CM24-INDome pendant mounting bracket (indoor)
TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for fix-dome, mini fix-dome & plastic turret cameras
TR-WM03-D-IN-V2Wall mounting bracket for fix-dome, mini fix-dome & plastic turret cameras
TR-UC08-C-V2Bullet & dome corner mounting bracket
TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only
TR-WM07P-BDome wall mounting plastic bracket
