IP Cameras › IPC3622LE-ADF28(40)K-WP
IPC3622LE-ADF28(40)K-WP
view 1

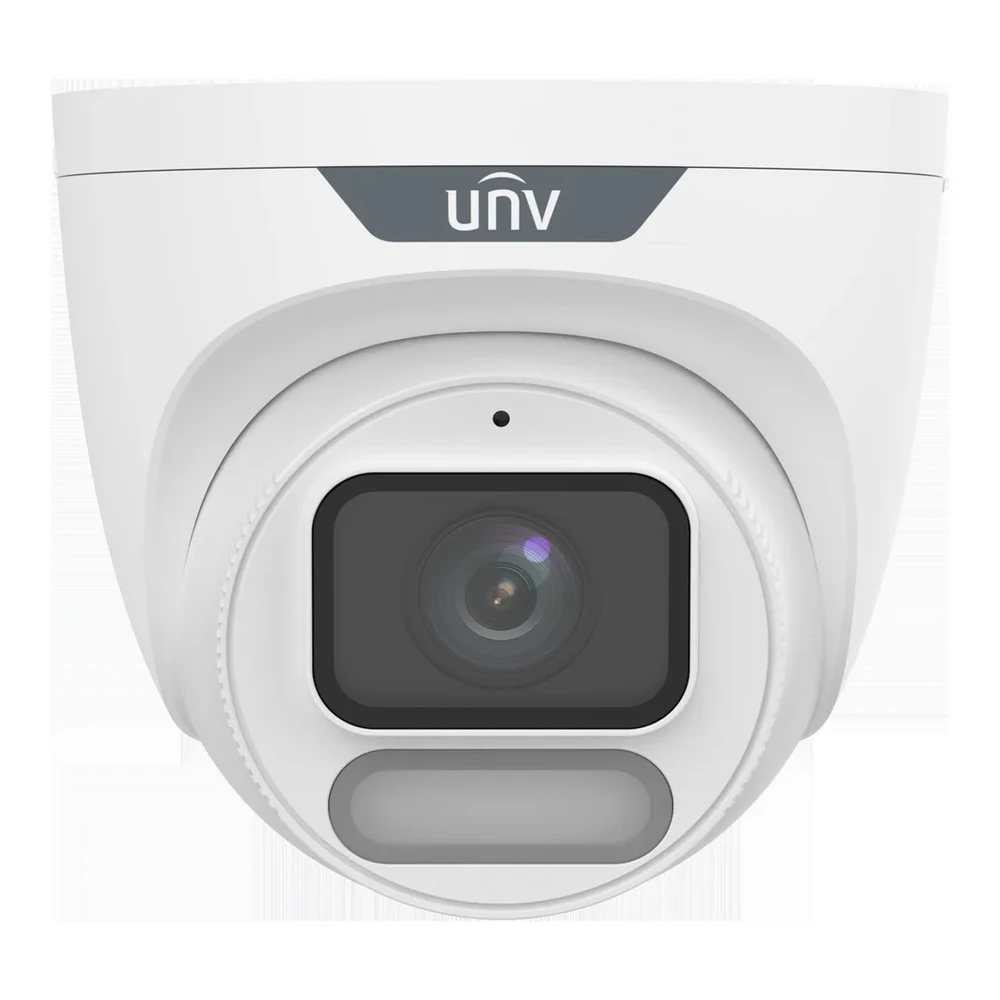

view 2

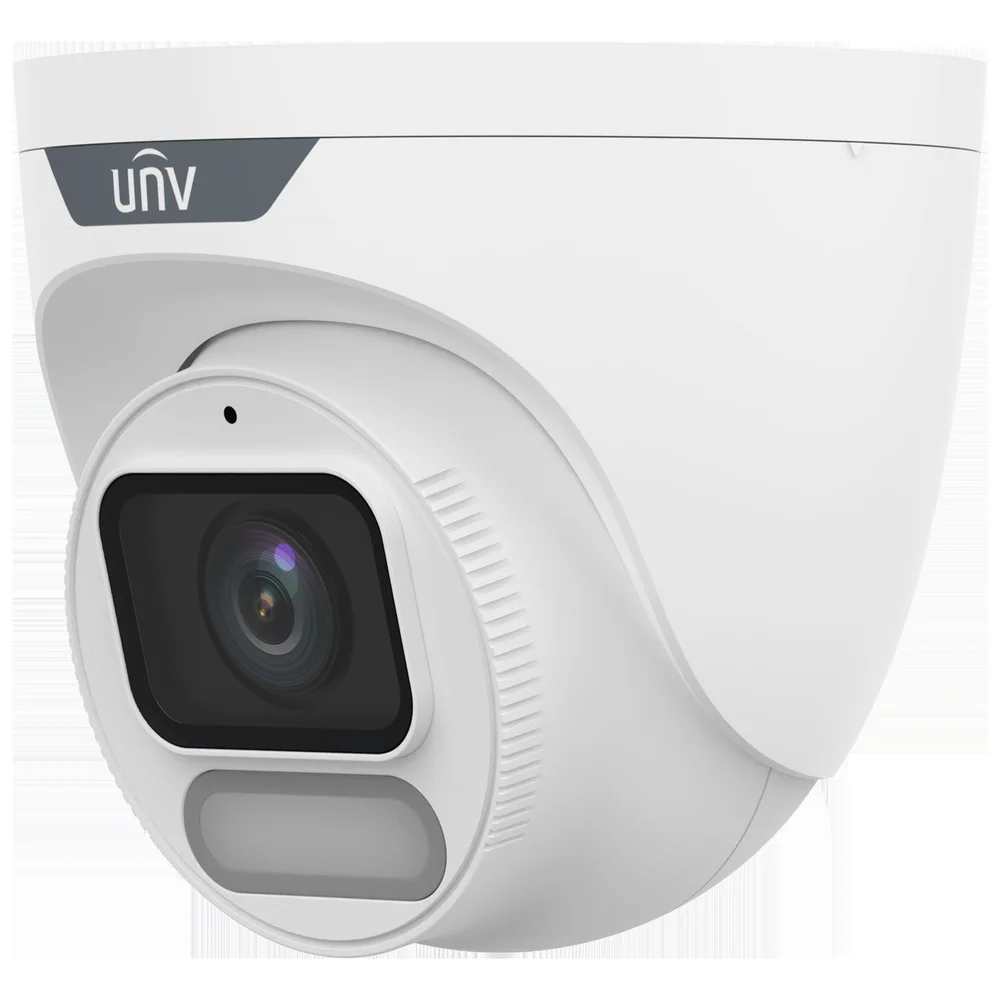

view 3
UniviewColorHunter Series · Eyeball
2MP ColorHunter Eyeball · Wise-ISP

IPC3622LE-ADF28(40)K-WP

2MP fixed eyeball network camera with ColorHunter and Wise-ISP — built-in warm-light color night vision up to 30 m, 120 dB true WDR, PoE single-cable install, built-in mic, IP67 outdoor body.

2 MP · 1080P@30fpsUltra 265 · low bandwidthColorHunter · Wise-ISP color night visionWarm Light · up to 30 mPoE · 802.3afIP67 · outdoor
CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE
ADF28K (2.8 mm, 99° horizontal view) covers a wide area close to the camera — entrances, small rooms, shop counters. ADF40K (4.0 mm, 85.4° horizontal view) trades width for reach — corridors, driveways, longer yards. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCUL/CULRoHSWEEEIP67ONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
30 mWarm-light distance
120 dBTrue WDR
IP67Outdoor rated
2.6 WPoE max power

The Uniview IPC3622LE-ADF28(40)K-WP is a 2MP ColorHunter fixed eyeball network camera built around Wise-ISP image processing. Instead of infrared, it uses a built-in warm-light illuminator (up to 30 m) so night footage stays in full color, adds 120 dB true WDR for strong-light scenes, and powers over a single PoE cable inside an IP67, −30 °C to 60 °C outdoor body. It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsFull-color footage day and night thanks to ColorHunter + warm light, and the built-in mic records what is said at the counter.
Home gates & yardsThe warm light turns on at night — visitors are visible in color and intruders know they are seen.
Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. ADF40K watches longer fence lines.
Residential compoundsUltra motion detection and Smart Intrusion Prevention (Lite) raise alerts for people and vehicles, not stray animals or moving branches.
Small offices & receptionUltra 265 compression keeps recordings small, and a microSD slot (up to 512 GB) backs up footage on the camera itself.
Kiosks & fuel stationsOne PoE cable does power + video — no electrician needed on site, quick to install.
Not the right pick if you need…
  • Covert IR night vision — this model uses visible warm light, not infrared, so the illuminator is not hidden
  • Two-way talk — it has a mic but no speaker
  • Wi-Fi — this is a wired RJ45 camera
  • Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
  • Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.7" CMOS sensor and F1.0 large aperture lens
1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
Ultra 265, H.265, H.264, MJPEG compression
Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
White light, up to 30 m (98.4 ft.) warm light distance
MicroSD, up to 512 GB
IP67 protection
Supports PoE power supply
3-axis adjustment

Color Night Vision: Warm Light + ColorHunter

Switchable Auto/Manual warm-light illumination, paired with Wise-ISP color processing — no infrared on this model.

WARM LIGHT + COLORHUNTER

Built-in warm white light — full-color night vision, no infrared

Warm white light up to 30 m (98.4 ft.), switchable Auto/Manual. Paired with ColorHunter and Wise-ISP image processing, the camera keeps faces, clothing and vehicle colors visible at night instead of switching to black-and-white — this model has no infrared illuminator.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there
45 m147.6 ft
Observewhat is happening
18 m59.1 ft
Recognizesomeone you know
9 m29.5 ft
Identifya stranger's face
4.5 m14.8 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28K = 2.8 mmADF40K = 4.0 mm

Camera

Max Resolution2 MP
Sensor1/2.7" CMOS
Min. IlluminationColor: 0.0003 Lux (F1.0, AGC ON)
ShutterAuto/Manual, 1 to 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N> 52 dB
WDR120 dB

Lens

Focal LengthADF28K · 2.8 mmADF40K · 4.0 mm
Iris TypeFixed
IrisF1.0
Field of View (H)ADF28K · 99.0°ADF40K · 85.4°
Field of View (V)ADF28K · 53.0°ADF40K · 47.5°
Field of View (D)ADF28K · 118.0°ADF40K · 98.5°
Lens TypeFixed

DORI

DORI Distance (Detect)ADF28K · 45.0 m (147.6 ft.)ADF40K · 64.3 m (211.0 ft.)
DORI Distance (Observe)ADF28K · 18.0 m (59.1 ft.)ADF40K · 25.7 m (84.3 ft.)
DORI Distance (Recognize)ADF28K · 9.0 m (29.5 ft.)ADF40K · 12.9 m (42.3 ft.)
DORI Distance (Identify)ADF28K · 4.5 m (14.8 ft.)ADF40K · 6.4 m (21.0 ft.)

Illuminator

Supplemental LightWarm light
Light On/Off ControlAuto/Manual
Illumination Distance (Warm Light)30 m (98.4 ft.)

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 1080P (1920×1080) max. 30 fps; 720P (1280×720) max. 30 fps · Sub Stream: 720P (1280×720) max. 30 fps; D1 (720×576) max. 30 fps; 640×360 max. 30 fps; 2CIF (704×288) max. 30 fps; CIF (352×288) max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams


Smart IlluminationSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog

Intelligent

Smart Intrusion Prevention (Lite)Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Events

Basic DetectionMotion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users, 2 user levels: administrator and common user
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
ProtectionIP67 (IEC 60529)
SafetyCE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)

General

PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 2.6 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
Weight0.47 kg (1.04 lb.)
MaterialMetal + Plastic
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
DimensionsØ118 mm × 106 mm (Ø4.6" × 4.2")
Weight0.47 kg (1.04 lb.)
MaterialMetal + Plastic
Mount adjustmentPan 0–360° · Tilt 0–75° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for turret camera (support wiring from behind)
TR-CM24-INDome pendant mounting bracket (indoor)
TR-SE24-A-INDome pendant mounting pole, 500 mm
TR-SE24-INDome pendant mounting pole, 200 mm
TR-A01-INNPT 3/4" waterproof cable gland
TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for fix-dome, mini fix-dome & plastic turret camera
TR-WM03-D-IN-V2Wall mounting bracket for fix-dome, mini fix-dome & plastic turret camera
TR-UC08-C-V2Bullet & dome corner mounting bracket
TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only
