IP Cameras › IPC3624LE-ADF28(40)K-WP
IPC3624LE-ADF28(40)K-WP
view 1
view 2

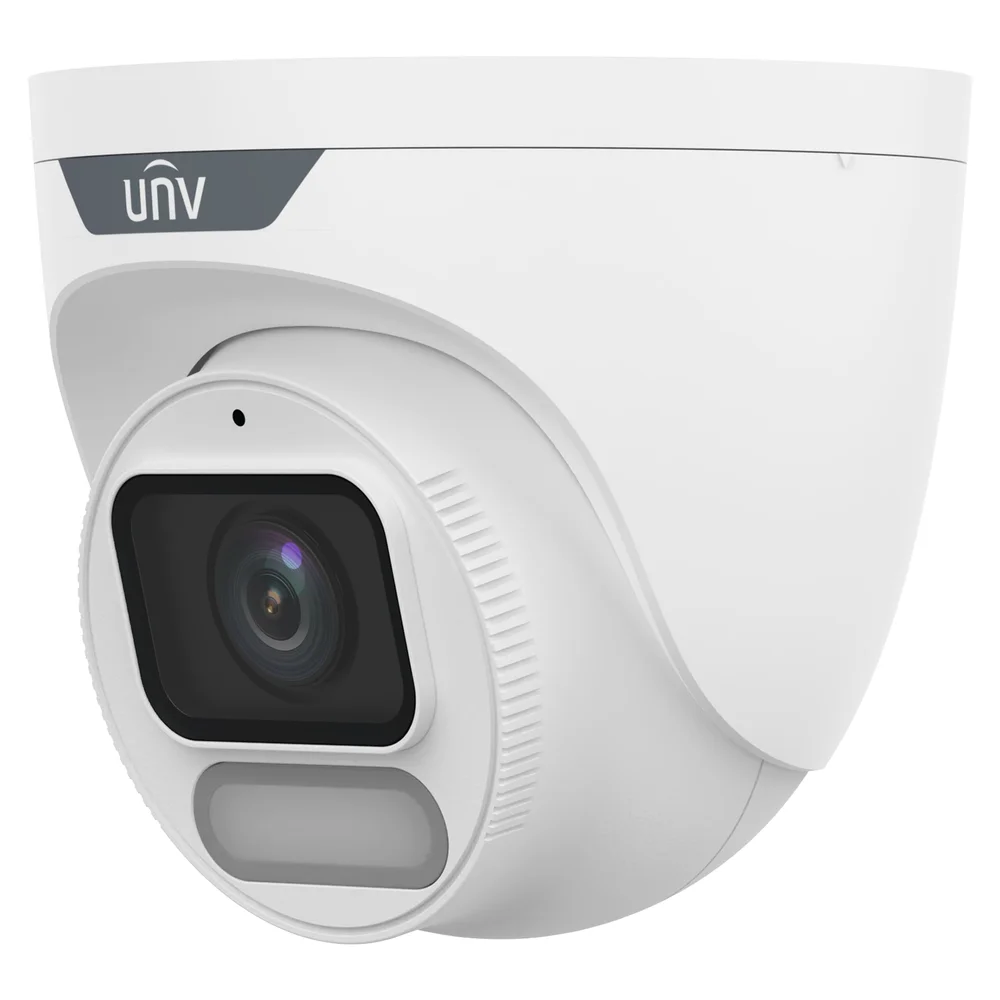

view 3
Uniview · Eyeball4MP ColorHunter · Wise-ISP
4MP ColorHunter Eyeball · Wise-ISP

IPC3624LE-ADF28(40)K-WP

4MP fixed ColorHunter eyeball network camera with Wise-ISP — 30 m warm-light night vision, 120 dB true WDR, PoE single-cable install, built-in mic, IP67 outdoor body.

4 MP · 2688×1520@25fpsUltra 265 · low bandwidthColorHunter · Wise-ISP low-light colorPoE · 802.3afIP67 · outdoorMic · built-in audio
CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE
ADF28K (2.8 mm, 124.3° view) covers a wide area near the camera — doorways, small rooms, shop counters. ADF40K (4.0 mm, 96.1° view) trades width for reach — corridors, driveways, longer rooms. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIFULNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
30 mWarm light distance
120 dBTrue WDR
IP67Outdoor rated
2.8 WPoE max power

The Uniview IPC3624LE-ADF28(40)K-WP is a 4MP fixed eyeball network camera with ColorHunter and Wise-ISP technology, deeply optimizing color, detail, and smear in extremely low-light scenes. A built-in warm-light illuminator reaches up to 30 m, 120 dB true WDR keeps images clear against strong backlight, a single PoE cable handles power and data, and a built-in mic can record audio to a MicroSD card (up to 512 GB). It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsColorHunter with Wise-ISP keeps color and detail even in near-darkness, and the built-in mic records what is said at the counter. 120 dB WDR keeps faces visible against bright doorways or windows.
Narrow corridors & hallways9:16 corridor mode reshapes the image to fit narrow passages — office floors, hotel corridors, apartment hallways — without wasted wall-to-wall footage.
Home entryways & drivewaysThe warm-light illuminator (up to 30 m, Auto/Manual) keeps visitors visible in full color at night and tells intruders the area is watched.
Small offices & receptionA MicroSD card (up to 512 GB) keeps a local recording backup even if the NVR or network goes down, alongside built-in mic audio.
Residential compounds & parkingSmart Intrusion Prevention (Lite) — crossline and intrusion detection based on human body and vehicle detection, plus ultra motion detection — cuts down false alarms.
Outdoor & rooftop installsIP67 body and −30 to 60 °C rating handle rain, dust and heat; 3-axis pan/tilt/rotate adjustment makes ceiling or wall mounting easy to aim.
Not the right pick if you need…
  • Traditional infrared night vision — this model uses ColorHunter with a warm-light illuminator, not an IR array
  • Two-way talk — it has a mic but no speaker
  • Wi-Fi — this is a wired RJ45 camera
  • Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
  • Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/1.8" CMOS sensor and F1.0 large aperture lens
4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
White light, up to 30 m (98.4 ft.) warm light distance
MicroSD, up to 512 GB
IP67 protection
Supports PoE power supply
3-axis

ColorHunter with Wise-ISP: built for near-darkness

Two technologies working together — full-color image processing plus a warm-light boost, switchable Auto/Manual.

COLORHUNTER + WISE-ISP

Full-color imaging engineered for near-darkness

Wise-ISP deeply optimizes color, detail, and smear in extremely low-light scenes, working with the F1.0 large-aperture lens and 1/1.8" sensor to keep footage usable when light is almost gone.

WARM LIGHT

Visible warm-white illumination, Auto or Manual

A warm-light illuminator reaches up to 30 m (98.4 ft.), switchable Auto/Manual, adding just enough visible light for full-color detail at night — with 120 dB true WDR balancing backlit scenes.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there
43.4 m142.4 ft
Observewhat is happening
17.4 m57.1 ft
Recognizesomeone you know
8.7 m28.5 ft
Identifya stranger's face
4.3 m14.1 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28K = 2.8 mmADF40K = 4.0 mm

Camera

Max Resolution4 MP
Sensor1/1.8" CMOS
Min. IlluminationColor: 0.0003 Lux (F1.0, AGC ON)
ShutterAuto/Manual, 1 to 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N> 52 dB
WDR120 dB

Lens

Focal LengthADF28K · 2.8 mmADF40K · 4.0 mm
Iris TypeFixed
IrisF1.0
Field of View (H)ADF28K · 124.3°ADF40K · 96.1°
Field of View (V)ADF28K · 61.4°ADF40K · 52.2°
Field of View (D)ADF28K · 135°ADF40K · 113.5°

DORI

DORI Distance (Lens)ADF28K · 2.8 mmADF40K · 4 mm
DORI Distance (Detect)ADF28K · 43.4 m (142.4 ft.)ADF40K · 62.1 m (203.7 ft.)
DORI Distance (Observe)ADF28K · 17.4 m (57.1 ft.)ADF40K · 24.8 m (81.4 ft.)
DORI Distance (Recognize)ADF28K · 8.7 m (28.5 ft.)ADF40K · 12.4 m (40.7 ft.)
DORI Distance (Identify)ADF28K · 4.3 m (14.1 ft.)ADF40K · 6.2 m (20.3 ft.)

Illuminator

Supplemental LightWarm light
Light On/Off ControlAuto/Manual
Illumination Distance (Warm Light)30 m (98.4 ft.)

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4 MP (2688 × 1520), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps · Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IlluminationSupport
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog

Intelligent

Smart Intrusion Prevention (Lite)Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Events

Basic DetectionMotion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)

General

PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 2.8 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
Weight0.48 kg (1.06 lb.)
MaterialMetal + Plastic
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
DimensionsØ118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
Weight0.48 kg (1.06 lb.)
MaterialMetal + Plastic
Mount adjustmentPan 0–360° · Tilt 0–75° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for turret camera (wiring from behind)
TR-A01-INNPT 3/4" waterproof cable gland
TR-SE24-INDome pendant mounting pole, 200 mm
TR-SE24-A-INDome pendant mounting pole, 500 mm
TR-CM24-INDome pendant mounting bracket (indoor)
TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for 32-series fix-dome / mini fix-dome / plastic turret camera
TR-WM03-D-IN-V2Wall mounting bracket for 32-series fix-dome / mini fix-dome / plastic turret camera
TR-UC08-C-V2Bullet & dome corner mounting bracket
TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only
