IP Cameras › IPC8544EA-KM-I1
IPC8544EA-KM-I1
view 1

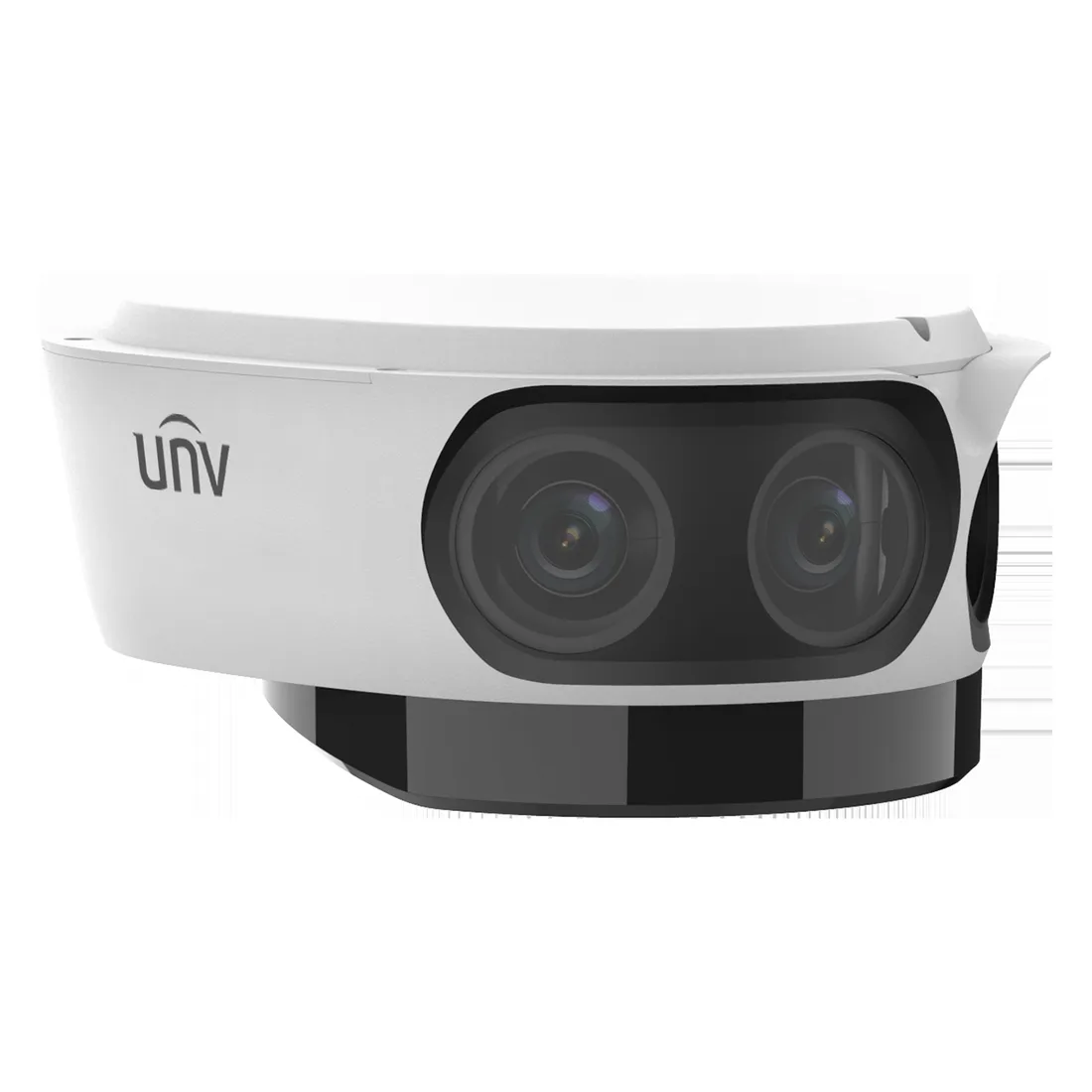

view 2

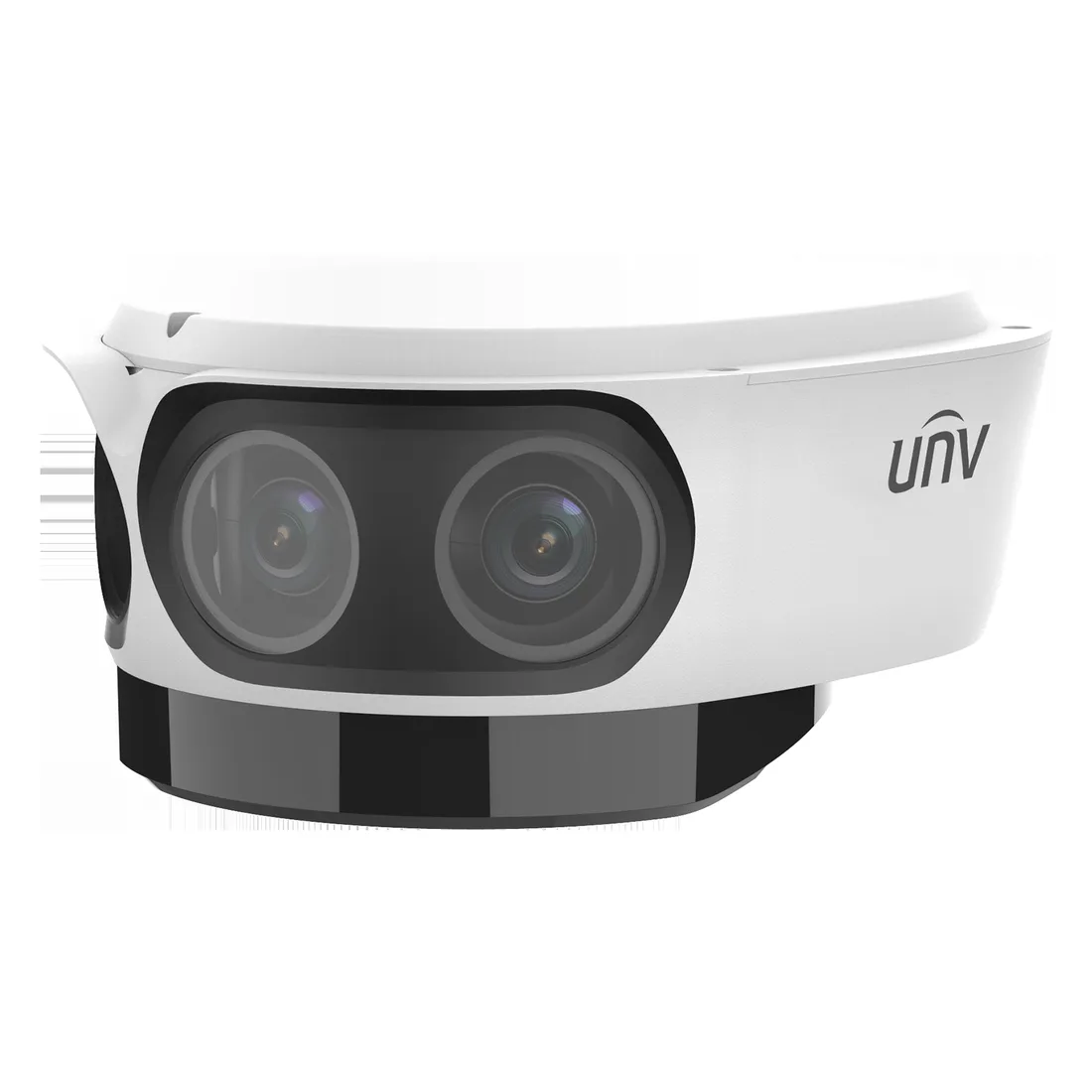

view 3
Uniview · Panoramic16MP LightHunter OmniView
16MP LightHunter · Panoramic OmniView

IPC8544EA-KM-I1

16MP panoramic network camera — single-stream 180°(H)/90°(V) stitched view, 50m Smart IR, built-in fan, PoE+/AC/DC power, IP67 outdoor body.

16 MP · 4800×2688@30fps180° Panoramic · single stitched streamUltra 265 · low bandwidthSmart IR · up to 50mPoE+ · 802.3at / AC-DC 24VIP67 · outdoorTwo-way Audio · mic + speakerBuilt-in Fan · heat + fog control
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67ONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
180°/90°Panoramic FOV (H/V)
16 MPSingle-stream resolution
50 mSmart IR distance
-40~70°CWorking temperature

The Uniview IPC8544EA-KM-I1 is a 16MP LightHunter OmniView network camera that combines multiple built-in lenses into a single stitched 4800 × 2688 (16:9) video stream covering a full 180° horizontal by 90° vertical field of view. Smart IR reaches up to 50 m, a built-in fan clears heat and window mist, and the camera runs on AC/DC 24 V or PoE+ (802.3at) with MicroSD edge storage up to 512 GB and an IP67, −40 °C to 70 °C outdoor rating. Two-way audio, alarm I/O and an RS485 port round out the interfaces, letting one corner-mounted unit cover a wide scene that would otherwise need several fixed cameras.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long hallways & corridorsOne corner-mounted unit stitches a single 180° stream across the full width of a corridor — no seam where two overlapping cameras would normally need to meet.
Open-plan retail floors & lobbiesMounted in a corner or on a wall, the 180°/90° view covers an entire room from one position — aisles and the till area share one continuous picture instead of several separate feeds.
Warehouse aisles & loading docksWide aisles between racks are covered end-to-end by the single panoramic stream — fewer cameras and NVR channels for the same floor area.
Parking areas & building perimetersThe IP67 body, −40 to 70 °C rating and 50 m Smart IR keep the wide view usable outdoors at night and in harsh weather.
Reception areas needing intercomBuilt-in mic and speaker let staff talk to visitors anywhere across the wide shot, without adding a separate intercom device.
Sites wanting fewer cameras overallTriple streams (4800×2688 main, 2688×1520 sub, 1280×720 third) let one wide camera feed a full-resolution wall display and lightweight mobile monitoring at the same time.
Not the right pick if you need…
  • Zoom or pan/tilt movement — the lens system is fixed at 180°(H)/90°(V), no motorized zoom or PTZ
  • Separately switchable channels — this outputs one stitched panoramic stream, not several independent camera views to pick between
  • Wi-Fi — this is a wired RJ45 camera
  • Full-color night vision — this is Smart IR only, night video is black & white, not color
  • A small, discreet housing — this is a large 2.271 kg outdoor unit (259×211×115 mm), not a compact mini-dome

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 16 MP, 1/1.8" CMOS sensor, 4800 × 2688@30 fps in the main stream offers 180° panoramic view, and 16:9 ratio can better fit the screen
Smart IR, up to 50 m (164.0 ft.) IR distance
Built-in fan, allows dissipating heat and eliminating the mist of window
Ultra 265, H.265, H.264, MJPEG
2D/3D DNR (digital noise reduction)
AC 24 V, DC 24 V, PoE (IEEE 802.3at) power supply
MicroSD, up to 512 GB
Alarm I/O: 2/1, audio I/O: 1/1
IP67 ingress protection

Night Vision: Smart Infrared

Switchable Auto/Manual — set it per site, per customer.

IR MODE

Invisible infrared — the full 180° view stays dark and discreet at night

Smart IR up to 50 m (164.0 ft.) at 850 nm across the entire stitched panorama — the wide view keeps working after dark without lighting up the scene. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there
63 m206.7 ft
Observewhat is happening
25.2 m82.7 ft
Recognizesomeone you know
12.6 m41.3 ft
Identifya stranger's face
6.3 m20.7 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor1/1.8" CMOS
Min. IlluminationColor: 0.001 Lux (F1.6, AGC ON), 0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
WDRDWDR
S/N> 56 dB

Lens

Focal Length2.8 mm
IrisF1.6
Iris TypeFixed
Field of View (H)180°
Field of View (V)90°
Field of View (D)221.4°

DORI

DORI Distance (Lens)2.8 mm
DORI Distance (Detect)63.0 m (206.7 ft.)
DORI Distance (Observe)25.2 m (82.7 ft.)
DORI Distance (Recognize)12.6 m (41.3 ft.)
DORI Distance (Identify)6.3 m (20.7 ft.)

Illuminator

Illumination Distance (IR)50 m (164.0 ft.)
Wavelength850 nm
IR On/Off ControlAuto/Manual


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
HLCSupport
BLCSupport
DefogDigital defog
Heatwave ReductionN/A

Events

Basic DetectionMotion detection, Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
Frame Rate-Main Stream4800 × 2688, max. 30 fps
Frame Rate-Sub Stream2688 × 1520, max. 30 fps
Frame Rate-Third Stream1280 × 720, max. 30 fps
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
ROISupport
Video StreamTriple streams
OSDUp to 10 OSDs
Privacy MaskUp to 8 areas (8 blacks/8 mosaics)

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate16 KHZ

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, UNV-Link, UNV-Link Pro
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O2/1
Serial Port1 × RS485
Network1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet

Certification

EMCCE-EMC (EN 55032:2015+A1:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019+A1:2021, EN 55035:2017+A11:2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

PowerAC 24 V±25%/DC 24 V±25%, PoE (IEEE 802.3at)
Power ConsumptionMax. 23 W
Power InterfaceWires with cold-pressed terminal
Dimensions259 mm × 211 mm × 115 mm (10.2" × 8.3" × 4.5") (L × W × H)
Weight2.271 kg (5.01 lb.)
Working Environment-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Reset ButtonSupport
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
Dimensions259 mm × 211 mm × 115 mm (10.2" × 8.3" × 4.5") (L × W × H)
Weight2.271 kg (5.01 lb.)

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB07-D-INBullet junction box (support wiring from behind)
TR-WE45-D-INPanoramic camera wall mounting bracket
TR-CM06-C-INPanoramic camera ceiling mounting bracket
TR-UV06-C-INPanoramic camera 2D mounting bracket
TR-UP06-INUniversal pole mounting bracket
TR-UP06-B-INBullet pole mounting bracket

Related Solutions & Products

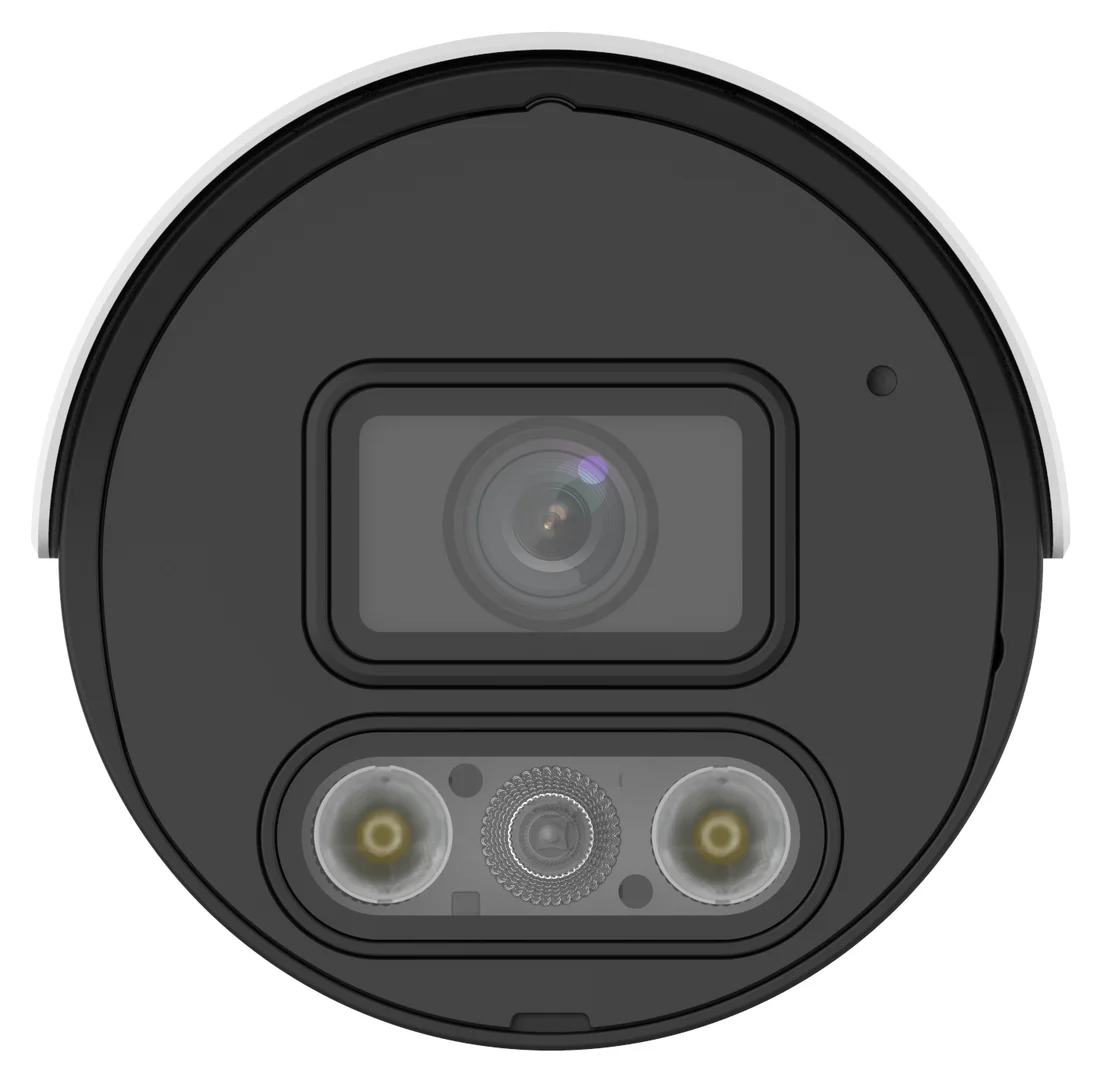

Shopping Mall Security solution
Solution · Shopping Mall Security
A shopping mall: atrium, corridors, anchor-store fronts, service lifts. A panoramic multi-sensor camera like this one is the piece that does the looking.

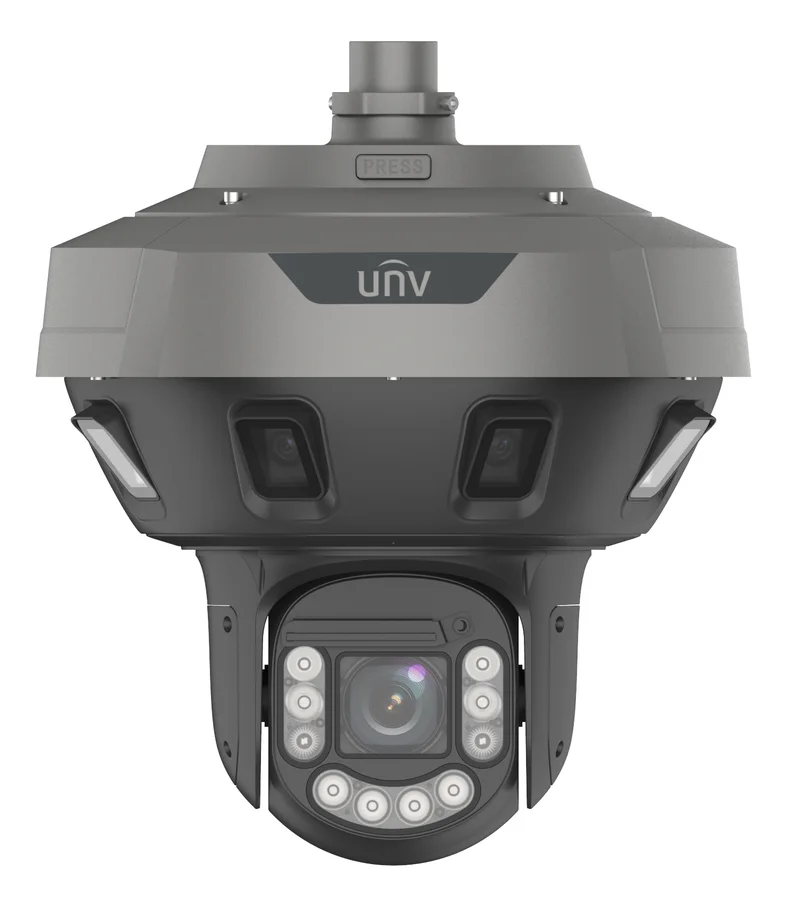

Smart Airport solution
Solution · Smart Airport
An airport: apron, taxiways, terminal kerbside, baggage hall. A panoramic multi-sensor camera like this one is the piece that does the looking.

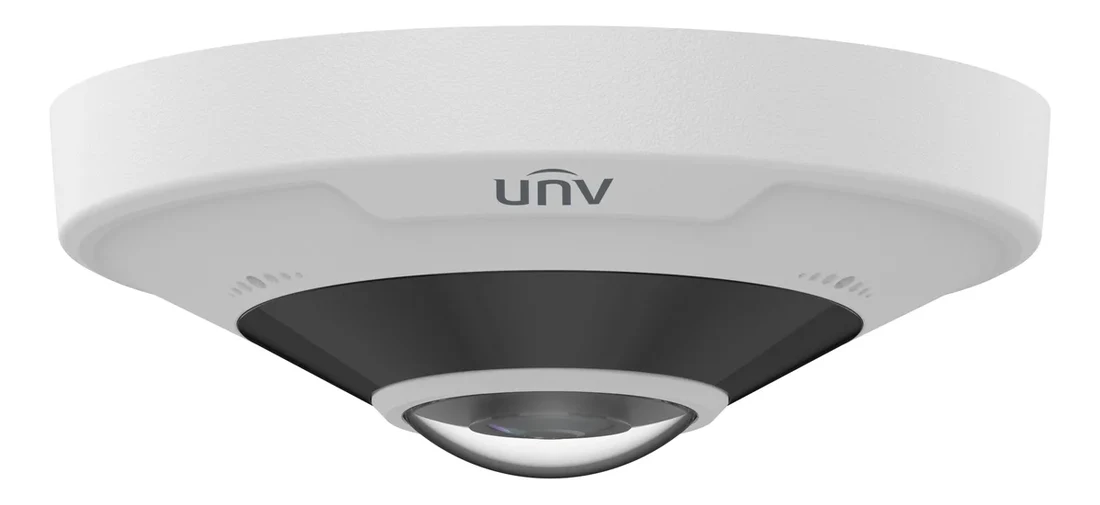

IPC86CEB-AF18KC-I0
IPC86CEB-AF18KC-I0 · 12MP
Same family, 12MP instead of 16MP — the resolution step that decides your storage bill.

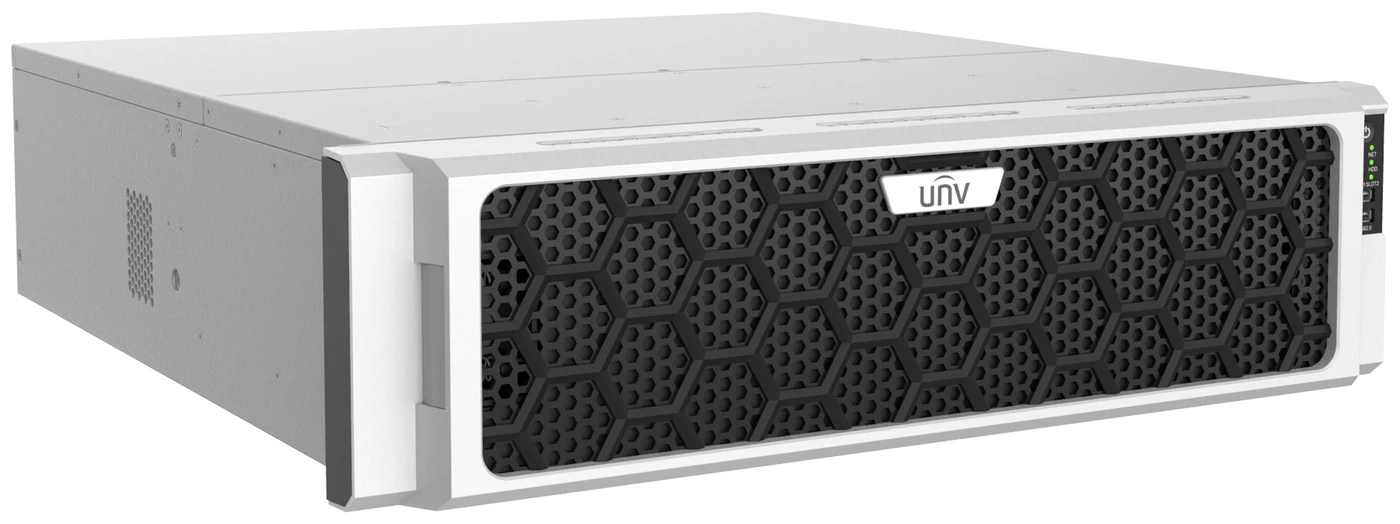

NVR816-64 / NVR816-128
