UniviewFisheye Dome

12MP Fisheye Dome · 360° Panoramic + Dewarp

IPC86CEB-AF18KC-I0

Name: Uniview IPC86CEB-AF18KC-I0
Brand: Uniview

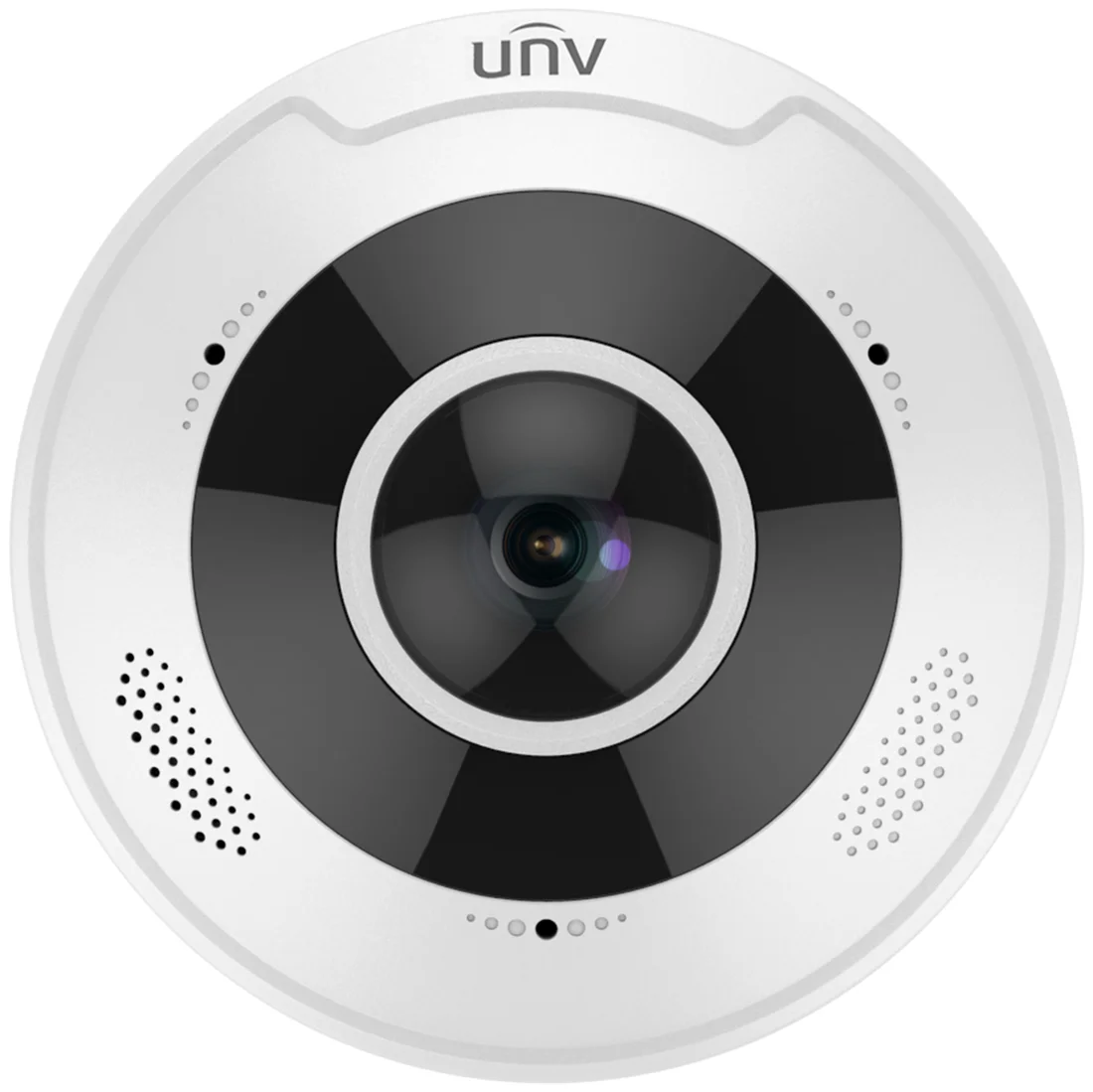

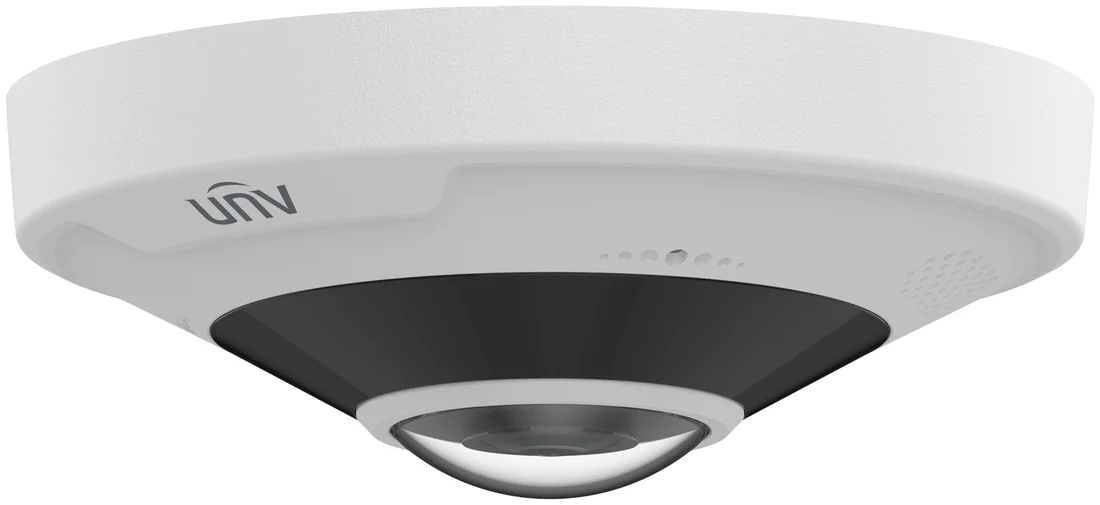

12MP fisheye fixed dome network camera — single 1.8 mm lens, 180° hemispherical view, switchable Fisheye / Panorama / PTZ decoding, IK10 vandal-resistant, IP67 outdoor body.

12 MP · 4000×3000 max1.8mm Fisheye · 180° hemispherical lensFisheye/Panorama/PTZ · switchable decode modesIK10 + IP67 · vandal & weather resistantPoE · 802.3afMicroSD · up to 512 GB edge storage

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67IK10ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

12 MPMax resolution

15 mIR fill light

IK10Vandal resistant

IP67Outdoor rated

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Retail floors & small storesOne ceiling-mount camera sees the whole shop in Fisheye view, then Panorama or virtual PTZ zooms into the counter — no blind corners.

Lobbies & reception hallsHeatmap analytics count footfall on an intuitive color map when paired with a management platform — useful for measuring visitor flow.

Warehouse floors & open-plan officesA single 180° hemispherical image replaces several fixed cameras — Panorama view straightens the whole floor into one readable strip.

Meeting rooms & service countersBuilt-in mic and speaker support two-way audio, so the same fisheye that watches the room can also talk through it.

Parking garages & covered outdoor areasIK10 vandal-resistant housing and IP67 protection let a ceiling or wall mount survive impact, dust and rain in exposed public areas.

Sites needing fewer NVR channelsOne fisheye with Fisheye+3/4/8PTZ multi-window decoding can cover what would otherwise take several fixed cameras and channels.

Not the right pick if you need…

Long-range identification — fixed 1.8 mm lens, DORI Identify range is only 4.4 m (14.4 ft.)
Wi-Fi — wired RJ45 camera only
Full-color night vision — supplemental light is IR only (850 nm); no warm/white light
MicroSD cards larger than 512 GB — edge storage capped at 512 GB

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

One Lens, Three Ways to Watch

A fisheye lens has no separate horizontal/vertical field of view — it captures one 180° circular image that decoding then reshapes into the view you need.

FISHEYE VIEW

The full picture, one raw frame

12 MP (4000×3000)@20 fps circular fisheye image — nothing cropped, nothing corrected. Best for reviewing the whole scene at a glance before zooming into any part of it.

PANORAMA VIEW

Straightened out, wall-to-wall

Dewarped into 4000×3000@20 fps or 3000×2000 / 3000×1500 @20-25 fps horizontal or vertical panorama — the curved fisheye image is corrected into a normal-looking wide scene for ceiling, table or wall mounts.

PTZ VIEW

Virtual pan-tilt-zoom, no motor

1920×1080@20/25 fps — software crops and follows a subject inside the fisheye image like a real PTZ camera, with fisheye+3/4/8PTZ multi-window layouts and zero moving parts to wear out.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	12 MP
Sensor	1/1.7" CMOS
Min. Illumination	Color: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000 s
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	1.8 mm
Iris Type	Fixed
Field of View (H)	180°
Field of View (V)	180°
Field of View (D)	180°
Iris	F2.0
Lens Type	Fixed

DORI

DORI Distance (Lens)	1.8 mm
DORI Distance (Detect)	43.8 m (143.7 ft.)
DORI Distance (Observe)	17.5 m (57.4 ft.)
DORI Distance (Recognize)	8.8 m (28.9 ft.)
DORI Distance (Identify)	4.4 m (14.4 ft.)

Illuminator

Illumination Distance (IR)	15 m (49.3 ft.)
Supplemental Light	IR
IR On/Off Control	Auto/Manual
Wavelength	850 nm

Video

Main Stream	Fisheye View: 12 MP (4000×3000)@20 fps; 3000×3000@20 fps; 2560×2560@25 fps Panorama View: 12 MP (4000×3000)@20 fps; 3000×2000@20/25 fps; 3000×1500@20/25 fps PTZ View: 1920×1080@20/25 fps
Sub Stream	Fisheye View: 2000×1500@20 fps; 2000×2000@25 fps
Video Compression	Ultra 265, H.265, H.264, MJPEG
Third Stream	Fisheye View: D1 (720×576)@20/25 fps; CIF (352×288)@20/25 fps
H.264 Code Profile	Baseline profile, Main profile, High profile
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams

Live View Display

Hardware Decoding	Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view
Software Decoding	Ceiling / Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	Support
Defog	Digital defog

Intelligent

Smart Intrusion Prevention	Cross line detection, intrusion detection
Statistical Analysis	Heat map (Working with management platform)

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Interface

Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	2/1
Serial Port	1 × RS485
Built-in Mic	Built-in dual-mic
Built-in Speaker	Support
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	1 BNC, impedance 75 Ω, amplitude 1 V [p-p]

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 12.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø149 mm × 55 mm (Ø5.9" × 2.2") (Ø × H)
Weight	0.524 kg (1.16 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
