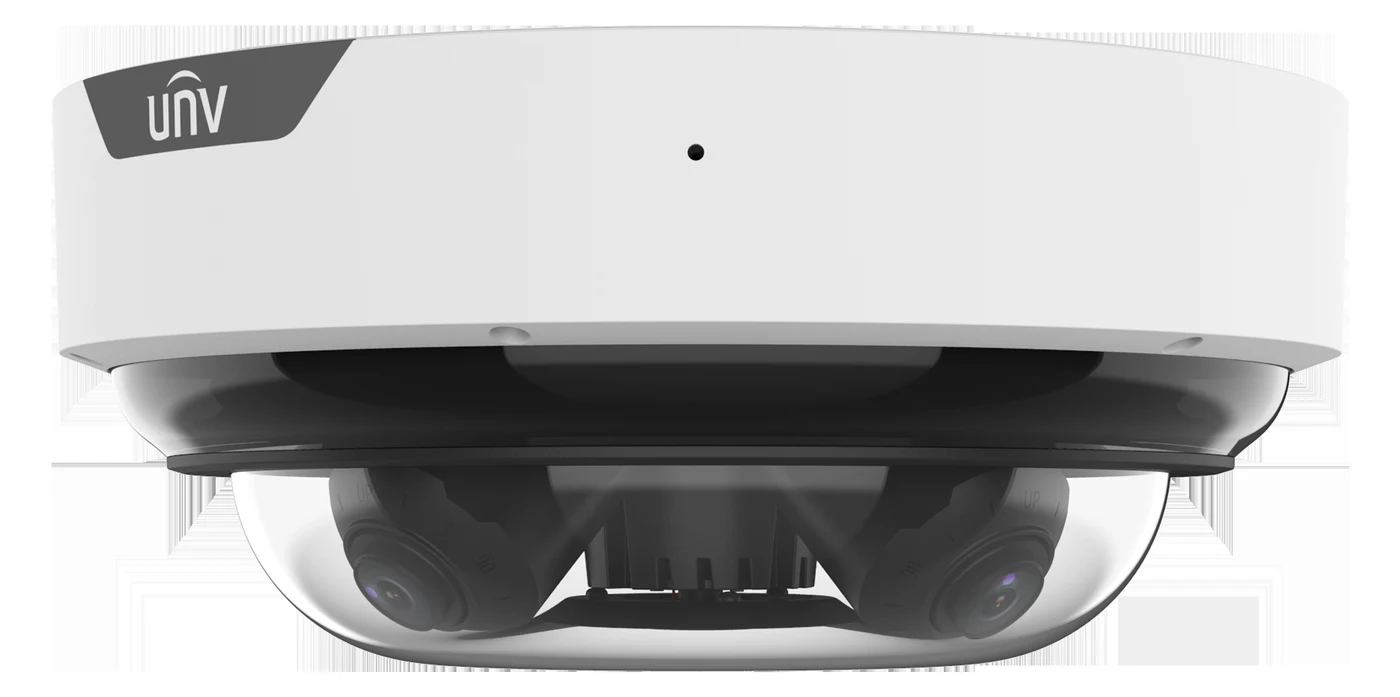

Uniview · Dome4 x 5MP MultiView Wise-ISP

4 x 5MP MultiView Dome · One IP, Four Channels

IPC8645EA-ADZKM-I1

Name: Uniview IPC8645EA-ADZKM-I1
Brand: Uniview

One IP camera with four independently adjustable 5MP lenses — 2.7–13.5mm 5X motorized zoom per channel, 130dB true WDR, 50m smart IR, IP67 + IK10 outdoor and vandal-resistant housing.

5MP × 4 · one IP, four channels5X · 2.7–13.5mm motorized zoomIndependent PTZ · per-lens pan/tilt/rotate130dB WDR · Lighthunter low-lightIP67 / IK10 · outdoor + vandal-resistantPoE · 802.3bt

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67IK10ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4Independent 5MP channels

5XMotorized zoom per lens

130 dBTrue WDR

IP67/IK10Outdoor + vandal-resistant

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Warehouses & logistics yardsOne dome replaces up to four single-lens cameras — four 5MP views, one IP address, one PoE cable, fewer poles and switch ports to manage.

Parking lots & plazasAim each of the four lenses at a different lane or entrance, then zoom 2.7–13.5mm independently on each — wide for the whole lot, tele for a single gate.

Pedestrian counting & crowd monitoringPeople counting with crowd density monitoring runs per channel — useful for entrances, plazas and transit hubs shared across all four views.

Perimeters & restricted areasSmart intrusion prevention classifies human, non-motor vehicle and vehicle targets with false-alarm filtering, on cross-line, intrusion, enter-area and leave-area events.

Harsh outdoor & vandal-prone sitesIP67 and IK10 housing survives rain, dust and impact; −30°C to 60°C working range keeps it running through heat and cold.

24-hour low-light operationLighthunter imaging plus 130dB true WDR and up to 50m smart IR keep every one of the four channels usable from bright daylight through to night.

Not the right pick if you need…

Wi-Fi — wired RJ45 (10M/100M/1000M) only
Visible warm-light illumination — this model is IR-only, up to 50m
Zoom beyond 13.5mm — each lens tops out at 5X (2.7–13.5mm)
Standard low-power PoE (802.3af/at) alone — this model needs PoE 802.3bt, DC 24V or AC 24V (max. 31W)
Four fully independent power/network feeds — all 4 channels share one Ethernet connection and one power input

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

One IP with four channels

Supports multiple intelligent functions — different functions on each channel can be enabled at the same time for various analysis requirements

Pan, tilt and rotation angle of each lens can be adjusted independently, suitable for more complicated scenes

4-channel video output, 2880 × 1620@30 fps in the main stream of each channel, provides high definition image

Ultra 265, H.265, H.264, MJPEG

Smart intrusion prevention, supports false alarm filtering, realizes accurate detection based on specific targets

People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios

Lighthunter technology ensures ultra-high image quality in low illumination environments

130 dB true WDR technology ensures clear image in strong backlight scene

IP67 ingress and IK10 protection

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
WDR	130 dB
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 65°, Rotate: 0° to 355° (per lens)
S/N	> 56 dB

Lens

Focal Length	2.7 to 13.5 mm (per lens)
Optical Zoom	5X
Iris	F1.2 × 4
Iris Type	Fixed
Field of View (H)	(W) 110.3° to (T) 31°
Field of View (V)	(W) 57.1° to (T) 17.5°
Field of View (D)	(W) 143.4° to (T) 38.1°

DORI

DORI Distance (Detect)	70.9 m to 247.5 m (232.5 ft. to 812.0 ft.)
DORI Distance (Observe)	28.4 m to 99.0 m (93.2 ft. to 324.8 ft.)
DORI Distance (Recognize)	14.2 m to 49.5 m (46.5 ft. to 162.4 ft.)
DORI Distance (Identify)	7.1 m to 24.8 m (23.3 ft. to 81.4 ft.)

Illuminator

Illumination Distance (IR)	50 m (164.0 ft.)
IR On/Off Control	Auto/Manual

Intelligent

Exception Detection	Scene change, Defocus detection, Object removed, Object Left Behind
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring

Events

Motion Detection	Support
Tampering Detection	Support
Audio Detection	Support
UMD (Ultra Motion Detection)	Support


Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Defog	Digital defog

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate-Main Stream	Channel × 4 5 MP (2880 × 1620), max. 30 fps; 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Frame Rate-Sub Stream	Channel × 4 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Frame Rate-Third Stream	Channel × 4 D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Frame Rate Recommendation	Channel × 4 — 2880 × 1620@30 fps + 1080P@30 fps + D1@30 fps
Video Bit Rate	128 Kbps ~ 16 Mbps × 4 Channel
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 10 OSDs × 4 Channel
Privacy Mask	Up to 8 × 4 Channel

Audio

Audio Compression	G.711U, G.711A
Two-way Audio	Support
Sampling Rate	8 kHz

Network

Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	APP, Uniview client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	3/2
Built-in Mic	Support
Network	1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529), IK10 (IEC 62262)

Other

Corridor Mode

Support

General

Power	DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3bt)
Built-in DC12V Output	Support
Power Consumption	Max. 31 W
Power Interface	Wires with cold-pressed terminal
Dimensions	Ø318 mm × 136.6 mm (Ø 12.52" × 5.38") (Ø × H)
Weight	4.77 kg (10.52 lb.)
Working Environment	-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: 5%~95% RH
Storage Environment	-40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: 5%~95% RH
Surge Protection	6 KV
