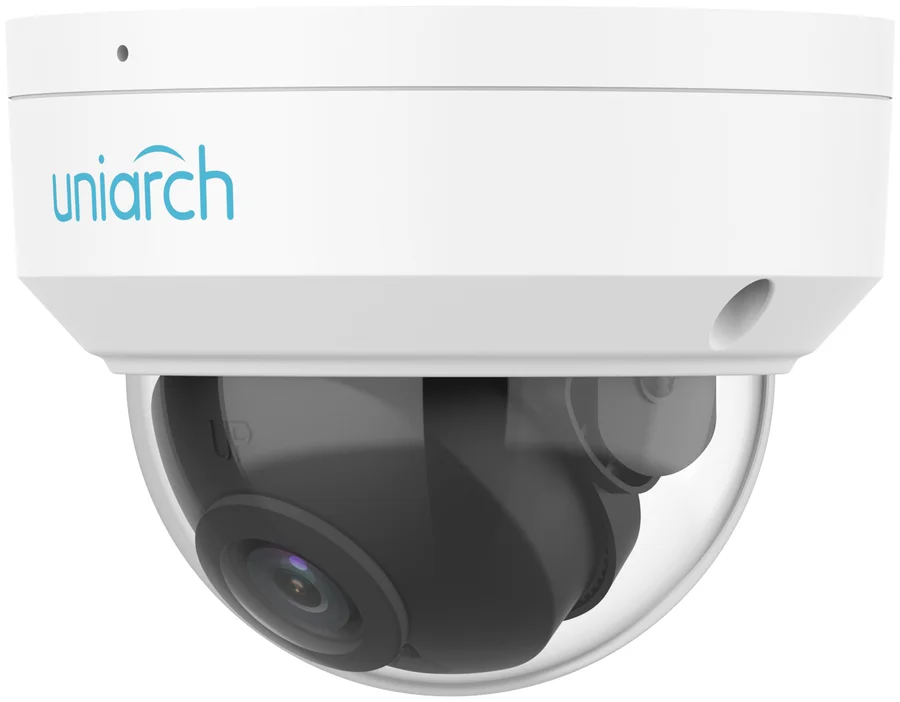

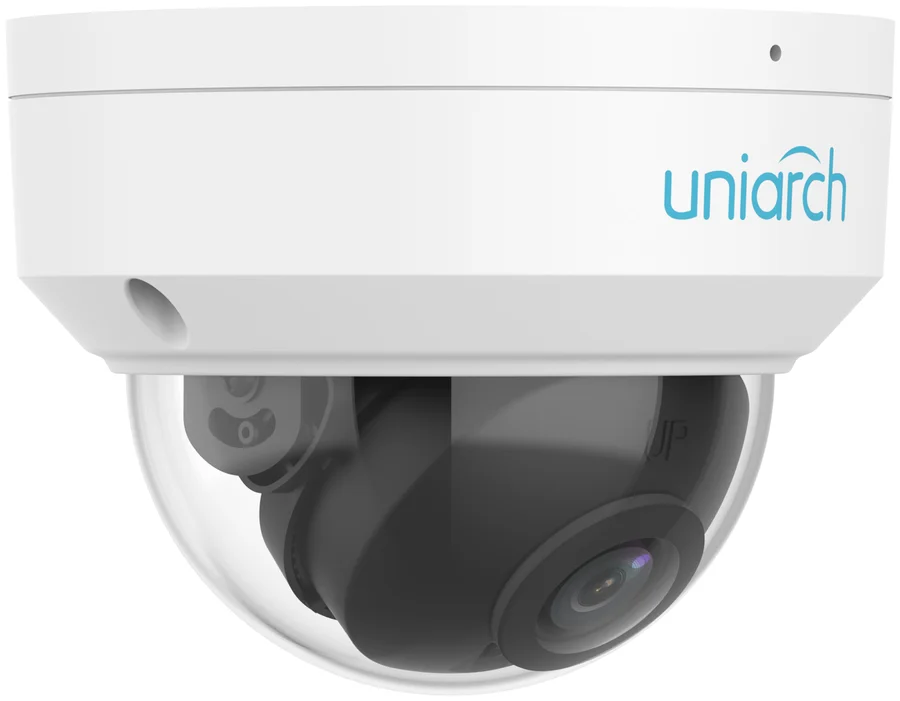

UniarchWi-Fi IR Dome

2MP Wi-Fi IR Dome

Uho-D1R-M2F3-A

Name: Uniarch Uho-D1R-M2F3-A
Brand: Uniarch

2MP fixed-lens Wi-Fi dome camera — no network cable to the camera, just power and connect over 2.4GHz Wi-Fi. IR night vision to 30m, IK10 vandal-resistant, IP67 body, built-in mic.

2 MP · 1080P@25fpsWi-Fi · 2.4GHz built-in antennaUltra Motion · human/vehicleIK10 · vandal-resistantIP67 · outdoorMic · built-in audio

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67IK10

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

IK10Vandal resistant

IP67Outdoor rated

2.2 WMax power

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Rentals & sites without spare network runsNo PoE switch or NVR cable run needed — plug into any nearby outlet and join the site Wi-Fi. Move it to a new spot without touching a cable.

Home gates & yardsUltra motion detection tells people from passing cars and stray animals, cutting false phone alerts to what actually matters.

Warehouse & site perimetersIK10 vandal-resistant body plus IP67 and −30 to 60 °C rating survive impact, rain, dust and heat outdoors, day after day.

Checking in from your phonePair it with the Uniarch APP for live view, push alerts and playback from anywhere — no NVR required for basic remote viewing.

Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.

Quick DIY installsNo electrician or cable-puller needed — mount, plug in, and connect to Wi-Fi from the app in a few minutes.

Not the right pick if you need…

PoE power — this camera has no PoE port, it needs its own outlet with the included DC12V adapter
Full-color night vision — this is IR-only, night video is black & white, not color
Two-way talk — it has a built-in mic but no speaker
Zoom or a choice of focal lengths — the lens is fixed at 2.8 mm only, not adjustable and not offered in other focal lengths
Rock-solid connectivity regardless of Wi-Fi signal — performance depends on the strength of the site's 2.4GHz Wi-Fi signal at the mounting spot

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	2 MP
Sensor	1/3.0" CMOS
Min. Illumination	Colour: 0.01 lux (F2.0, AGC ON), 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 352°, Tilt: 0° to 70°, Rotate: 0° to 350°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	2.8 mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	103.0°
Field of View (V)	60.7°
Field of View (D)	108.4°

DORI

DORI Distance (Detect)	46.7 m (153.1 ft.)
DORI Distance (Observe)	18.7 m (61.2 ft.)
DORI Distance (Recognize)	9.3 m (30.6 ft.)
DORI Distance (Identify)	4.7 m (15.3 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 1080P (1920×1080), max. 25 fps; 720P (1280×720), max. 25 fps · Sub Stream: 640×360, max. 25 fps; 2CIF (704×288), max. 25 fps; CIF (352×288), max. 25 fps
Video Bit Rate	128 Kbps to 2048 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	Support
Defog	Digital defog

Events

Basic Detection	Ultra motion detection (based on human body and vehicle detection), Tampering alarm, High-Decibel detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Security	Password protection, Strong Password, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP
Compatible Integration	API, SDK
User/Host	Up to 6 users. 2 user levels: administrator and common user
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20 MHz Support
Modulation Mode	802.11b: DSSS(CCK, DQPSK, DBPSK); 802.11g/n: OFDM(BPSK, QPSK, QAM16, QAM64)
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 14±1.5 dBm@54 Mbps; 802.11n: 12.5±1.5 [email protected] Mbps
Receive Sensitivity	802.11b: -90 dBm@11 Mbps (Typical); 802.11g: -75 dBm@54 Mbps (Typical); 802.11n: -74 [email protected] Mbps (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 72.2 Mbps

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

Protection	IP67 (IEC 60529); IK10 (IEC 62262)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN IEC 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power	DC 12 V±25%
Power Consumption	Max. 2.2 W
Power Interface	Ø5.5 mm coaxial power plug
Material	Metal + Plastic
Dimensions	Ø109 mm × 83 mm (Ø4.3" × 3.3") (Ø × H)
Weight	0.33 kg (0.73 lb.)
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
RTC	Support
Web Client Language	1 Language: English

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-G-INJunction box for mini fix-dome (support wiring from behind)

HS-205SSunshade shell for fixed focus dome

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for 32 fix-dome & mini fix-dome & plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for 32 fix-dome & mini fix-dome & plastic turret camera

TR-UM06-E-INSlant mounting bracket for fixed dome

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-SE24-INDome pendent mounting pole, 200 mm

TR-SE24-A-INDome pendent mounting pole, 500 mm

TR-CM24-INDome pendent mounting bracket (indoor)

TR-WM07P-BDome wall mounting plastic bracket

TR-FM116In-ceiling bracket for fix-dome
