IP Cameras › IPC3628LE-ADF28(40)K-WP
IPC3628LE-ADF28(40)K-WP
view 1

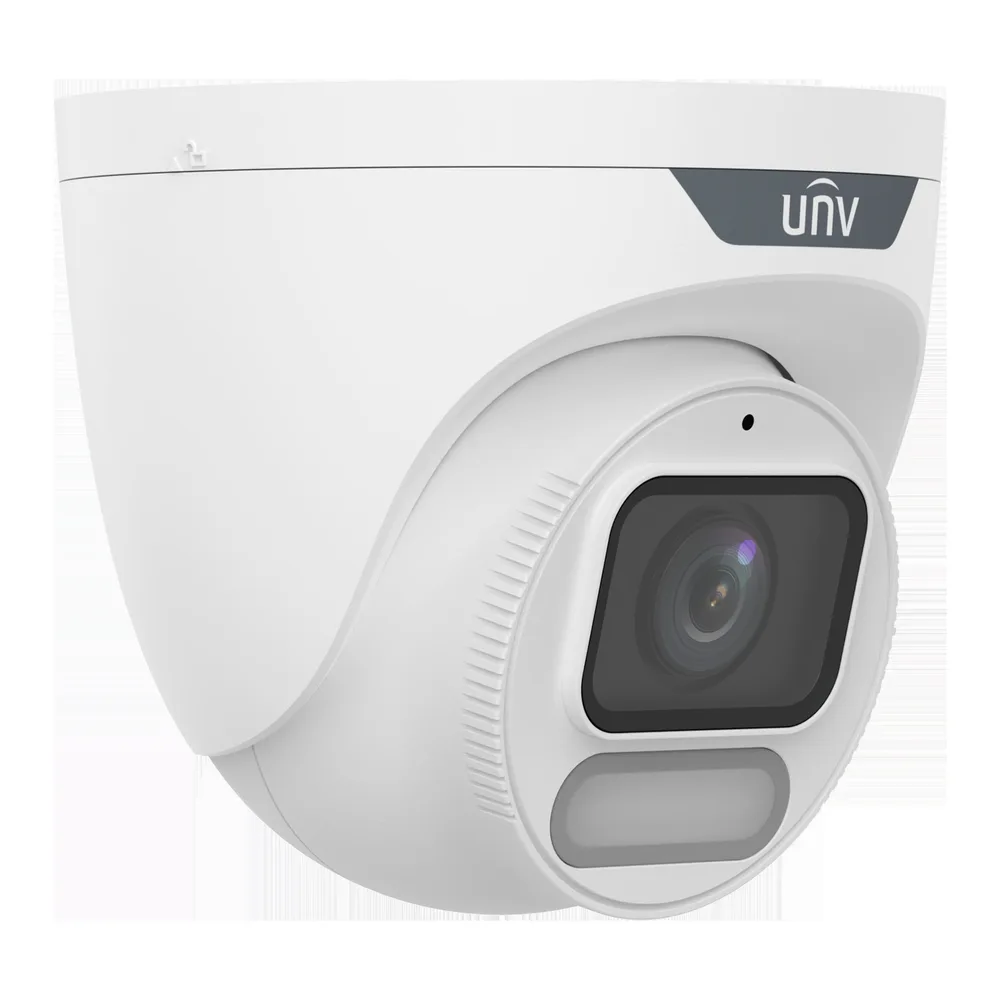

view 2

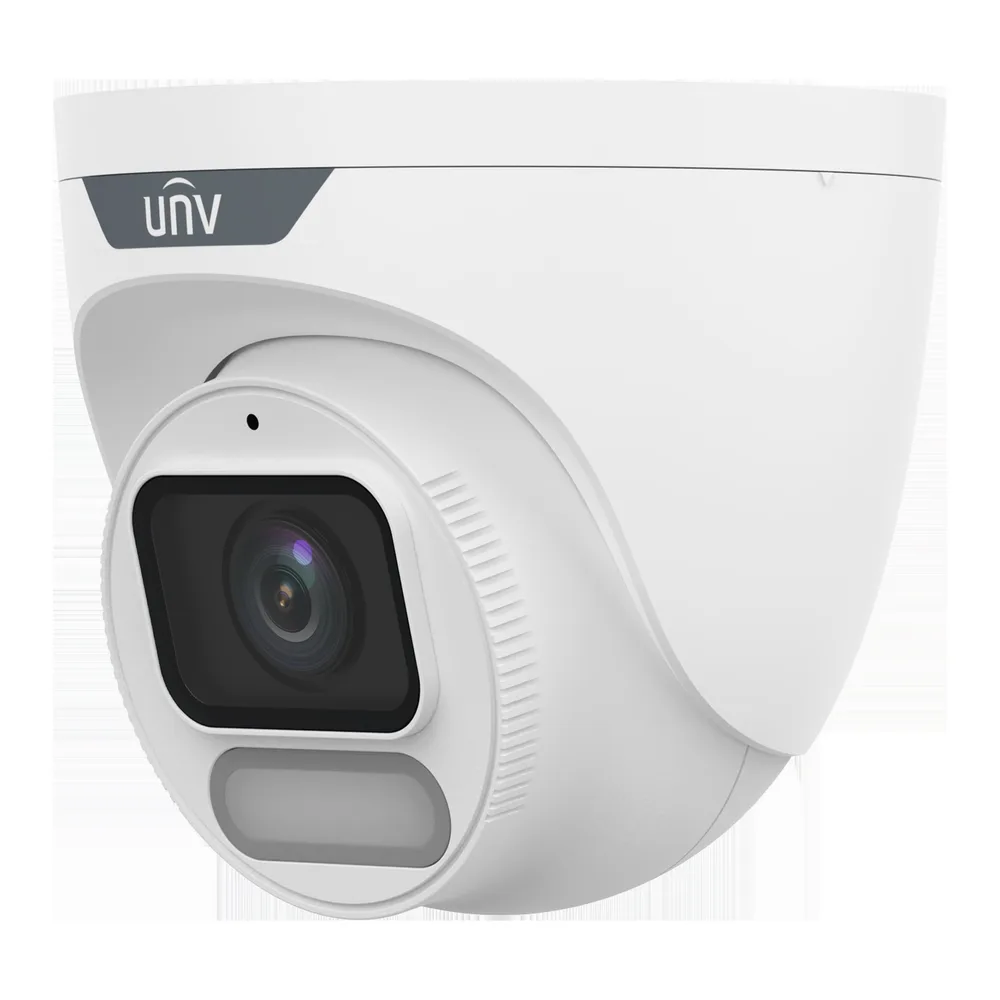

view 3
Uniview · Eyeball8MP ColorHunter · Wise-ISP
8MP ColorHunter Eyeball · Wise-ISP

IPC3628LE-ADF28(40)K-WP

8MP fixed eyeball network camera with ColorHunter + Wise-ISP for 24-hour full color, 120 dB true WDR, warm light up to 30 m, single-cable PoE, IP67 outdoor body.

8 MP · 3840×2160@20fpsUltra 265 · low bandwidthColorHunter · 24h full colorPoE · 802.3afIP67 · outdoorMic · built-in audio
CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE
ADF28K (2.8 mm, 111° horizontal view) covers a wide area close to the camera — small rooms, entrances, shop counters. ADF40K (4.0 mm, 94.2° horizontal view) trades a little width for reach — hallways, driveways, longer yards. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67ONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
24HFull-color imaging
30 mWarm light distance
IP67Outdoor rated
3.9 WPoE max power

The Uniview IPC3628LE-ADF28(40)K-WP is an 8MP fixed eyeball network camera built around a 1/1.8" CMOS sensor and an F1.0 large-aperture lens, with ColorHunter and Wise-ISP processing for full-color images around the clock. Warm white light reaches up to 30 m (98.4 ft.) after dark, 120 dB true WDR handles strong-light scenes, and the camera powers over a single PoE cable (or 12 V DC) with an IP67 rating for outdoor use. It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsColorHunter keeps colors true from the ceiling — the wide 111° ADF28K view covers a small shop floor from one corner.
Building entrances & lobbiesWarm light switches on after dark so faces and clothing colors stay visible — no harsh IR flare on glass doors.
Parking areas & drivewaysUltra motion detection and Smart Intrusion Prevention are based on human body and vehicle detection — fewer false alerts from blowing leaves or shadows.
Covered outdoor areasIP67 and −30 to 60 °C let the low-profile eyeball body sit under an eave or canopy through rain, dust and heat.
Small offices without an NVR license to spareMicroSD (up to 512 GB) records locally, with ANR and NAS (NFS) as network-side backup options.
Sites without a PoE switch on handPower over a single PoE cable, or fall back to a 12 V DC adapter through the 5.5 mm coaxial jack — whichever is already on site.
Not the right pick if you need…
  • Infrared night vision — this model uses warm white light, not IR
  • Two-way talk — it has a mic but no speaker
  • Wi-Fi — this is a wired RJ45 camera
  • Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
  • Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 8 MP, 1/1.8" CMOS sensor and F1.0 large aperture lens
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
ColorHunter with Wise-ISP technology ensures 24-hour full-color images
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
White light, up to 30 m (98.4 ft.) warm light distance
MicroSD, up to 512 GB
IP67 protection
Supports PoE power supply
3-axis adjustment

ColorHunter with Wise-ISP: color around the clock

Large sensor, large aperture and warm light work together — no infrared switching involved.

COLORHUNTER + WISE-ISP

24-hour full-color imaging

An 8MP 1/1.8" CMOS sensor paired with an F1.0 large-aperture lens gathers enough light for Wise-ISP to render full color day and night, while 120 dB true WDR keeps strong-light scenes — a sunlit gate, headlight glare — from blowing out.

WARM LIGHT

30 m warm white light for after dark

When ambient light runs out, warm white light switches in — Auto or Manual — up to 30 m (98.4 ft.). Colors and clothing stay visible, and visitors know the area is watched.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there
63 m206.7 ft
Observewhat is happening
25.2 m82.7 ft
Recognizesomeone you know
12.6 m41.3 ft
Identifya stranger's face
6.3 m20.7 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28K = 2.8 mmADF40K = 4.0 mm

Camera

Max Resolution8 MP
Sensor1/1.8" CMOS
Min. IlluminationColor: 0.0003 Lux (F1.0, AGC ON)
ShutterAuto/Manual, 1 ~ 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N> 52 dB
WDR120 dB

Lens

Focal LengthADF28K · 2.8 mmADF40K · 4.0 mm
Iris TypeFixed
IrisF1.0
Field of View (H)ADF28K · 111.0°ADF40K · 94.2°
Field of View (V)ADF28K · 63.0°ADF40K · 51.0°
Field of View (D)ADF28K · 131.0°ADF40K · 111.7°
Lens TypeFixed

DORI

DORI Distance (Lens)ADF28K · 2.8 mmADF40K · 4 mm
DORI Distance (Detect)ADF28K · 63.0 m (206.7 ft.)ADF40K · 90.0 m (295.3 ft.)
DORI Distance (Observe)ADF28K · 25.2 m (82.7 ft.)ADF40K · 36.0 m (118.1 ft.)
DORI Distance (Recognize)ADF28K · 12.6 m (41.3 ft.)ADF40K · 18.0 m (59.1 ft.)
DORI Distance (Identify)ADF28K · 6.3 m (20.7 ft.)ADF40K · 9.0 m (29.5 ft.)

Illuminator

Supplemental LightWarm light
Illumination Distance (Warm Light)30 m (98.4 ft.)
Light On/Off ControlAuto/Manual

Video

Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 8 MP (3840×2160), max. 20 fps; 5 MP (3072×1728), max. 30 fps; 4 MP (2560×1440), max. 30 fps; 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams


White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IlluminationSupport
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog
Image StabilizationN/A

Events

Basic DetectionMotion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Smart Intrusion Prevention (Lite)Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users, 2 user levels: administrator and common user
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)

General

PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 3.9 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
Weight0.48 kg (1.06 lb.)
MaterialMetal + Plastic
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
DimensionsØ118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
Weight0.48 kg (1.06 lb.)
MaterialMetal + Plastic
Mount adjustmentPan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for turret camera (rear wiring)
TR-SE24-INDome pendant mounting pole, 200 mm
TR-A01-INNPT 3/4" waterproof cable gland
TR-SE24-A-INDome pendant mounting pole, 500 mm
TR-CM24-INDome pendant mounting bracket (indoor)
TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for fix-dome, mini fix-dome & plastic turret cameras
TR-WM03-D-IN-V2Wall mounting bracket for fix-dome, mini fix-dome & plastic turret cameras
TR-UC08-C-V2Bullet & dome corner mounting bracket
TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only
