TIC7626EL-GAF75-4X56-VH1
view 1

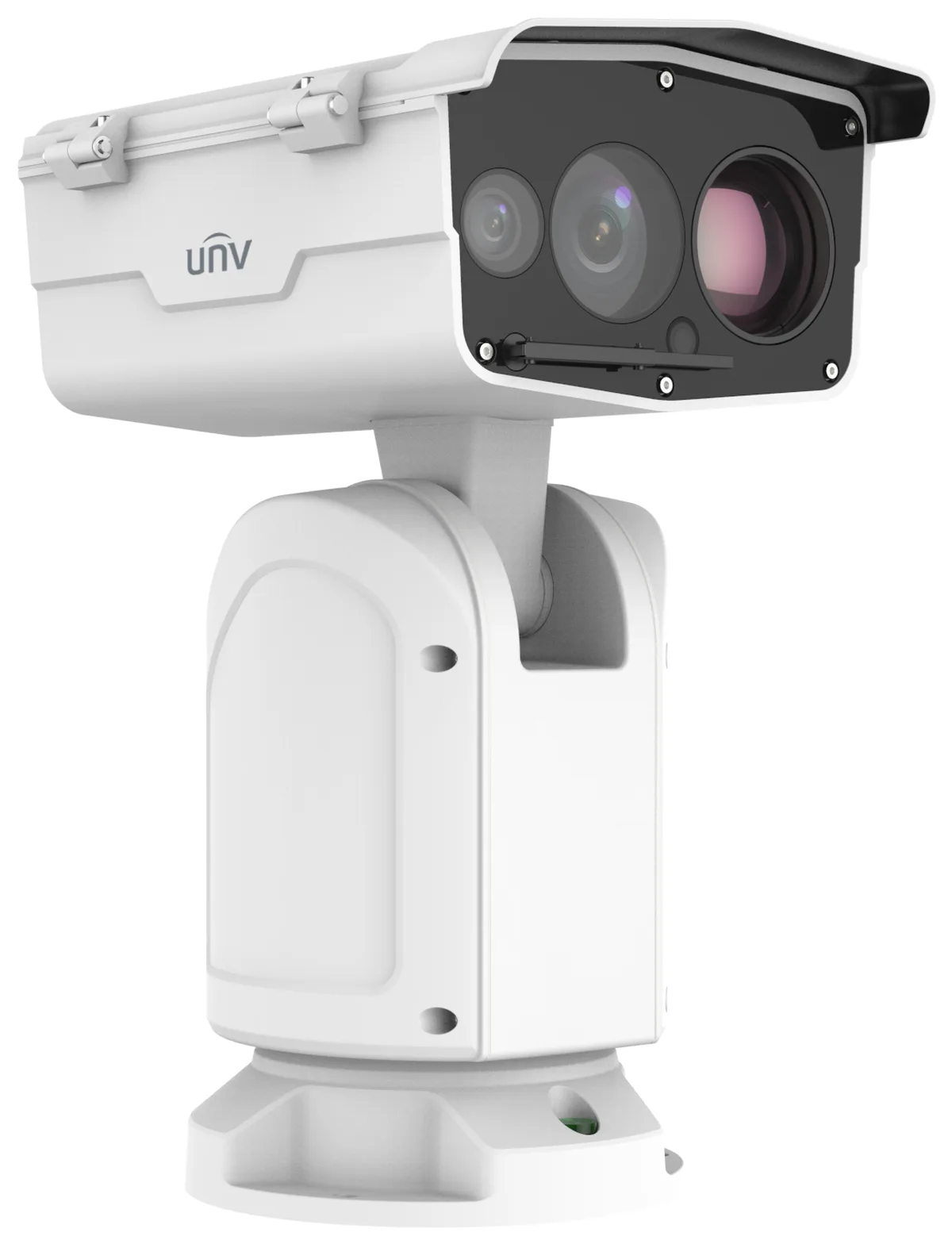

view 2

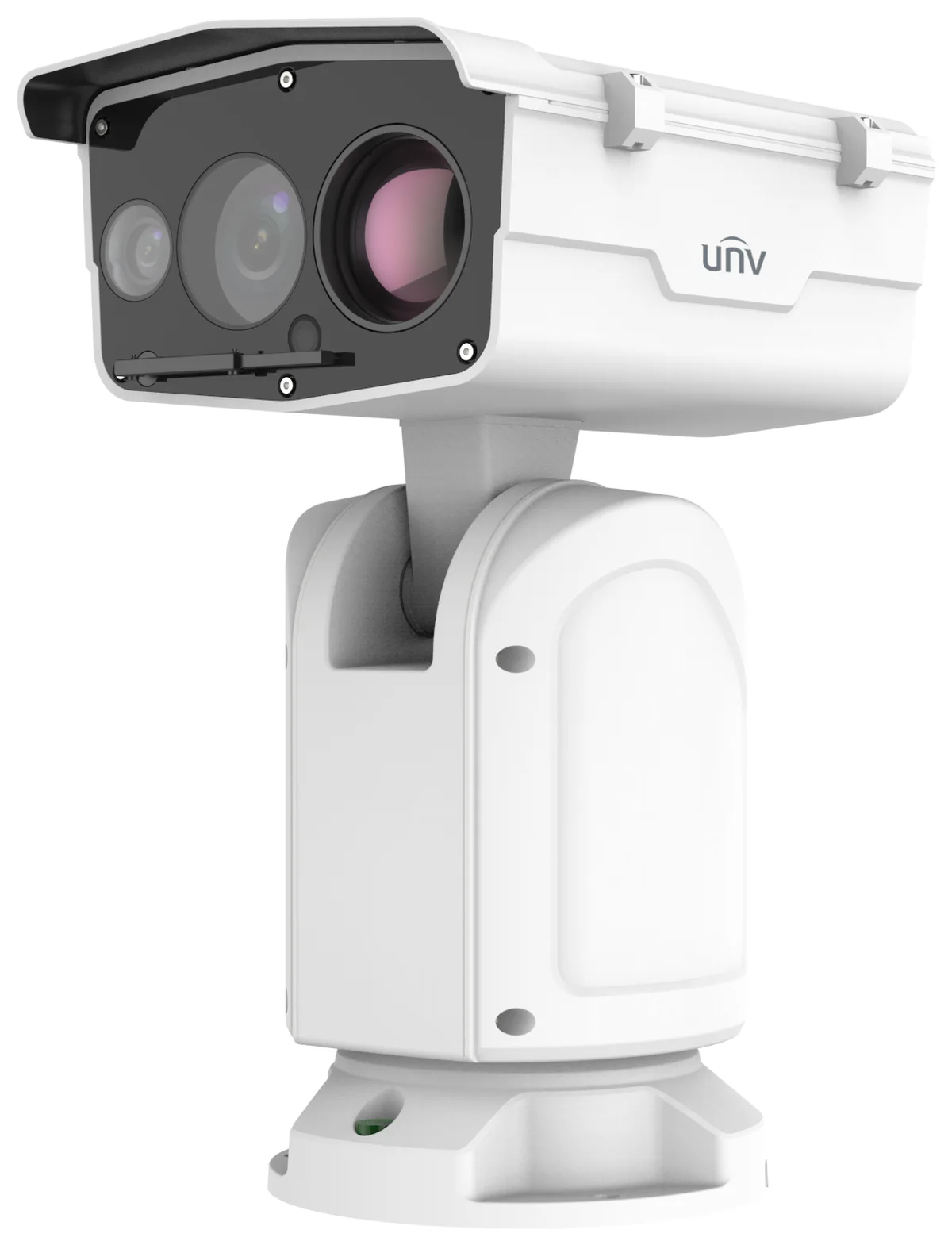

view 3
Uniview · PTZ Positioning SystemThermal & Optical · 56X Zoom + Laser
Thermal & Optical Bi-Spectrum PTZ · 56X Zoom + 800 m Laser

TIC7626EL-GAF75-4X56-VH1

Motorized pan-tilt positioning camera pairing a 75 mm-class thermal channel with a 56X optical zoom (6–336 mm) visible channel and an 800 m laser illuminator — long-range perimeter surveillance under one IP address.

4 MP · Optical channel2 MP · Thermal channel56X · Optical zoom (6–336 mm)Laser · up to 800 mPan · 360° endlessIP66 · outdoor rated
PAN-TILT POSITIONING SYSTEM — SINGLE SKU
This is a complete motorized pan-tilt turret, not a fixed-lens camera and not sold with lens/model options — the 75 mm thermal lens and 56X (6–336 mm) optical zoom lens are both built in. It ships as one unit: turret head, thermal + optical dual-sensor module, and rotating base.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP66ONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
56XOptical zoom reach
800 mLaser illuminator range
4,500 mThermal fire-detection range
360°Endless pan rotation

The Uniview TIC7626EL-GAF75-4X56-VH1 is a motorized pan-tilt positioning camera that pairs a 75 mm-class thermal channel with a 56X optical zoom (6–336 mm) visible channel and an 800 m vari-focal laser illuminator under one IP address. Pan rotates a full 360° endlessly and tilt covers -90° to 45°, with 1,024 presets, 16 patrol routes and auto-tracking, so the system can scan a wide perimeter and then zoom straight in on anything it flags. Its thermal channel alone is rated to trigger a fire alarm out to 4,500 m and to detect vehicles and people at 1,500 m and 750 m respectively, making this a long-range positioning system built for wide-area perimeter, critical-site and wildfire-watch surveillance rather than a fixed-position camera.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long perimeter fences & borders360° endless pan plus 1,024 presets and 16 patrol routes let the head auto-scan a long line unattended, then zoom straight in on whatever it flags.
Oilfields, substations & industrial sitesThe thermal channel alone can trigger a fire alarm out to 4,500 m and works day or night, rain or fog — critical for unmanned or hard-to-reach industrial sites.
Ports, coastlines & waterfronts56X optical zoom plus an 800 m vari-focal laser identifies vessels or vehicles far offshore at night, while the thermal channel keeps watch even in fog and heavy weather.
Wildfire & forest watch towersPassive thermal imaging sees through smoke and is unaffected by fog, rain, snow or total darkness, exactly as the datasheet's own feature list emphasizes for this camera.
Automated intrusion tracking over a wide areaCross line, intrusion, enter-area and leave-area detection can run on both channels at once, with false-alarm filtering and automatic target tracking.
Extreme heat, cold, rain & dustIP66 sealing, a rain-sensing auto wiper and a -40 °C to 70 °C rating keep the turret working through weather that would sideline a standard fixed camera.
Not the right pick if you need…
  • PoE single-cable power — this unit runs on DC 48 V/24 V or AC 24 V wiring with cold-pressed terminals, up to 135 W, not 802.3af/at PoE
  • A compact or discreet form factor — this is an 18 kg motorized turret built for pole/wall mounting, not a small bullet or dome
  • Wi-Fi connectivity — wired RJ45 Ethernet plus an optional SFP fiber port only
  • A constant wide field of view — at full 56X zoom the optical channel narrows to roughly 1.6°–1.9°; pair it with the thermal wide channel or a fixed-lens camera for permanent wide coverage

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to various scenes
Passive infrared thermal imaging, meets the requirement of concealed monitoring and is not affected by bad weather conditions such as fog, smoke, rain, snow, and night
Thermal channel supports fire detection, and the optical channel can link to the fire position and zoom in for more accurate fire situation judgment
Thermal & optical dual-spectrum smart intrusion prevention can be enabled simultaneously: cross line, enter area, leave area, intrusion, support smart tracking
Optical channel supports 4 MP@60 fps, providing smoother motion images
Optical channel supports gyroscope stabilization for stable pictures
Optical channel supports heat wave reduction, which can reduce heat wave phenomena and improve image quality
Vari-focal laser: 800 m (2,624.7 ft.) distance, proportional to optical zoom of camera module
Rain-sensing auto wiper, providing clear images in harsh weather
Supports 1/1 audio in/out, 7/2 alarm in/out, 1 serial port RS485
Power supply: DC 48 V±25%, DC 24 V±15%, AC 24 V±25%
IP66

Two channels, one system

The thermal and optical channels stream simultaneously under a single IP address and can link to each other (e.g. thermal fire alert → optical zoom-in).

OPTICAL CHANNEL

56X optical zoom with an 800 m laser illuminator

4 MP 1/1.8" CMOS sensor, 6–336 mm (56X) zoom lens, F1.2–F4.6 iris, ColorHunter low-light color and gyroscope-stabilized image, plus a vari-focal laser illuminator reaching 800 m that scales automatically with the zoom position.

THERMAL CHANNEL

Passive thermal imaging that sees through fog, smoke and total darkness

75 mm-class lens, 640×512 vanadium-oxide uncooled sensor, NETD ≤40 mk. On its own it detects vehicles to 1,500 m, people to 750 m, and can trigger a fire alarm out to 4,500 m — with zero reliance on visible light.

How far can the 56X zoom see? (Optical DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Because this channel has a 56X zoom (6–336 mm) instead of a fixed lens, every DORI tier is shown at both ends of the zoom range.

DORI tierWide end (6 mm)Full 56X zoom (336 mm)
Detect155.5 m (510.1 ft.)4,829.4 m (15,844.5 ft.)
Observe62.2 m (204.0 ft.)1,931.8 m (6,337.8 ft.)
Recognize31.1 m (102.0 ft.)965.9 m (3,168.9 ft.)
Identify15.5 m (51.0 ft.)482.9 m (1,584.4 ft.)

Figures are the manufacturer's official DORI distances for the optical channel at the wide (6 mm) and full-telephoto 56X (336 mm) ends of its zoom range.

How far can the thermal channel see?

The datasheet gives thermal range two different ways: a theoretical Johnson's Criteria table, and separate practical distances at which the onboard AI reliably auto-triggers an alarm.

Johnson's Criteria tierVehicle (4.0×1.4 m)Human (1.8×0.5 m)
Detection (≥1.5 px)8,385 m3,248 m
Recognition (≥6 px)2,096 m812 m
Identification (≥12 px)1,398 m541 m

Per the datasheet's own DRI Description: Detection = object covered by ≥1.5 pixels; Recognition = object classifiable (animal/human/vehicle) at ≥6 pixels; Identification = object describable in detail at ≥12 pixels — theoretical optical limits, not AI-triggered alarm distances.

1,500 mAI smart detection — vehicles (4×1.4 m)
750 mAI smart detection — personnel (1.8×0.5 m)
4,500 mAI smart detection — fire (2×2 m)

These three figures are the datasheet's separate "smart detection distance" specs — the practical range at which onboard thermal analytics auto-classify and alarm on a target, distinct from the theoretical Johnson's Criteria table above.

Pan-Tilt Positioning System

The mechanical heart of this camera — what sets it apart from every fixed-lens model in this catalog.

Pan Range360° (endless)
Pan Speed0.02°/s to 140°/s
Tilt Range-90° to 45°
Number of Presets1,024
3D PositioningSupport

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English). Rows with two colored tags show the Optical channel (cyan, OPT) and Thermal channel (orange, THM) values side by side; other rows apply to the whole system.

Camera

Max ResolutionOPT · 4 MPTHM · 2 MP
Original Resolution (Thermal)640 × 512
SensorOPT · 1/1.8" CMOSTHM · Vanadium oxide uncooled focal plane arrays
Min. Illumination (Optical)Colour: 0.0003 Lux (F1.2, AGC ON) · B/W: 0.0001 Lux (F1.2, AGC ON) · 0 Lux with Laser
Day/Night (Optical)IR-cut filter with auto switch (ICR)
Pixel Size (Thermal)12 μm
NETD (Thermal)≤ 40 mk @ F1.0 @ 25 °C
Shutter (Optical)Auto/Manual, 1 to 1/100000 s
WDR (Optical)120 dB
S/N (Optical)> 52 dB

Lens

Focal LengthOPT · 6 – 336 mmTHM · 75 mm
Optical Zoom (Optical)56X
IrisOPT · F1.2 to F4.6THM · F1.0
Field of View (H)OPT · 57.9° – 1.6°THM · 6.1°
Field of View (V)OPT · 34.6° – 0.9°THM · 4.8°
Field of View (D)OPT · 71.2° – 1.9°THM · 7.2°

Long-Range Detection

DORI Distance – Detect (Optical, wide → 56X zoom)155.5 m (510.1 ft.) – 4,829.4 m (15,844.5 ft.)
DORI Distance – Observe (Optical, wide → 56X zoom)62.2 m (204.0 ft.) – 1,931.8 m (6,337.8 ft.)
DORI Distance – Recognize (Optical, wide → 56X zoom)31.1 m (102.0 ft.) – 965.9 m (3,168.9 ft.)
DORI Distance – Identify (Optical, wide → 56X zoom)15.5 m (51.0 ft.) – 482.9 m (1,584.4 ft.)
Johnson DRI – Detection Range, Vehicle / Human (Thermal)8,385 m / 3,248 m
Johnson DRI – Recognition Range, Vehicle / Human (Thermal)2,096 m / 812 m
Johnson DRI – Identification Range, Vehicle / Human (Thermal)1,398 m / 541 m
Smart Detection Distance – Vehicle, 4×1.4 m (Thermal AI)1,500 m
Smart Detection Distance – Personnel, 1.8×0.5 m (Thermal AI)750 m
Smart Detection Distance – Fire, 2×2 m (Thermal AI)4,500 m
Illumination Distance – Laser (Optical)Up to 800 m (2,624.7 ft.), scales with optical zoom

Video

Video ResolutionOPT · Main: 4MP (2688×1520) max.60fps · Sub: 2MP (1920×1080) max.60fps · Third: D1 (720×576) max.60fpsTHM · 1080P (1920×1080), max.30fps
Video CompressionUltra 265, H.265, H.264, MJPEG
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
ROISupport
Video StreamTriple streams
OSDUp to 8 OSDs
Privacy Mask (Optical)24 areas, up to 8 areas per scene
Video OutputOPT · N/ATHM · 1 BNC (for debugging)


White Balance (Optical)Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°
Defog (Optical)Digital defog, Optical defog
Low-Light CharacteristicsColorHunter with Wise-ISP

Intelligent & Events

Smart Intrusion PreventionOPT · Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)THM · Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle)
Smoke Detection (Optical)Support
Auto TrackingSupport — tracks targets automatically, capturing detailed information at a distance
Fire Detection (Thermal)Support
Basic Detection (Optical)Motion detection, Tampering alarm, Audio detection
UMD – Ultra Motion Detection (Optical)Support
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
Sampling Rate16 kHz

Storage

Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)

Network

ProtocolsIGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
ClientEZStation, UNV-Link, UNV-Link Pro

PTZ

Pan Range360° (endless)
Pan Speed0.02°/s to 140°/s
Tilt Range-90° to 45°
Tilt Speed0.02°/s to 50°/s
Number of Presets1,024
Preset Image FreezeSupport
Home PositionSupport
3D PositioningSupport
Number of Patrol Routes16

Interface

Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p] · 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O7 / 2
Serial Port1 × RS485
Network1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP

General

PowerDC 48 V ±25%, DC 24 V ±15%, AC 24 V ±25%
Power ConsumptionMax. 135 W
Power InterfaceWires with cold-pressed terminal
Dimensions366 × 283 × 509 mm (14.4" × 11.1" × 20.0") (L × W × H)
Weight17.98 kg (39.64 lb.)
Working Environment-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Reset ButtonSupport
RTCSupport
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

Certification

ProtectionIP66
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)

Live View

OSD FontVector
OSD Character Number40

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet — rear mounting-hole view plus front and side profiles of the full turret.

dimensions
unit: mm (in.)
Dimensions366 × 283 × 509 mm (14.4" × 11.1" × 20.0") (L × W × H)
Weight17.98 kg (39.64 lb.)
Mount adjustmentPan: 0°–360° (endless) · Tilt: -90° to 45°
Rear mounting bolt circleØ230.0 mm outer / Ø208.0 mm inner, 3 × Ø10.0 mm holes

Mounting Accessory

The official datasheet lists one mounting bracket for this turret. Order together with the camera to save on shipping.

TR-WM08-BWall mounting bracket for explosion-proof pan-tilt (name as listed in the official datasheet)

Related Solutions & Products

Warehouse & Logistics Security solution
Solution · Warehouse & Logistics Security
A distribution yard: fence line, dock doors, racking aisles, trailer park. A thermal / optical bi-spectrum camera like this one is the piece that does the looking.
PV Plant Security solution
Solution · PV Plant Security
A PV plant: panel rows, inverter stations, and kilometres of fence line. A thermal / optical bi-spectrum camera like this one is the piece that does the looking.

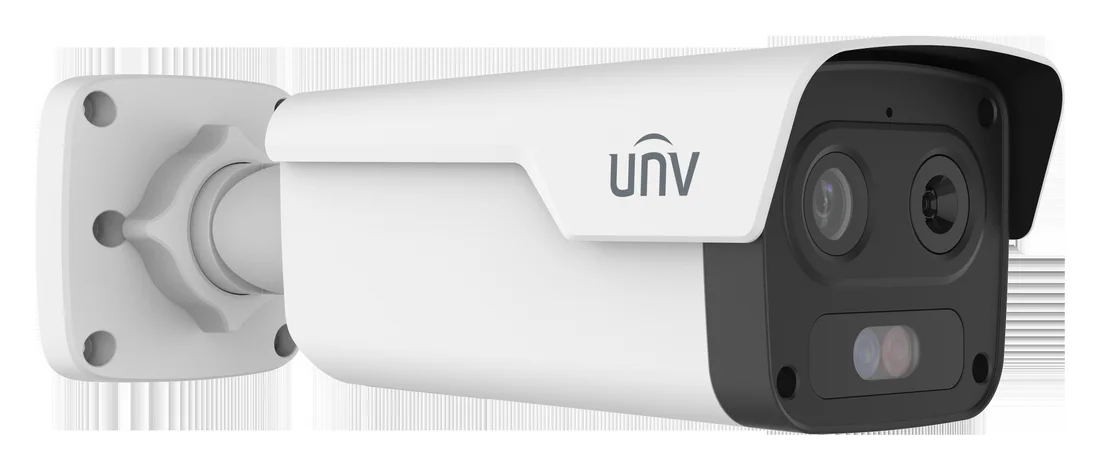

TIC2A32SA-F3/F7/F10-4F(4/6/8)AC-I1
