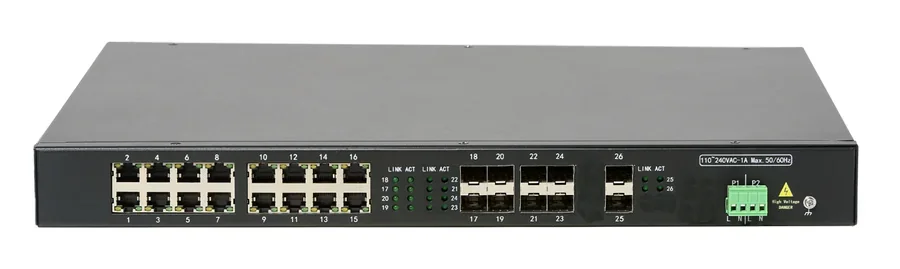

Genuine product photo · 19-inch 1U rack
ZJIES1000-16T8S2GB
Unmanaged · 19″ Rack
Unmanaged 19-inch Rack Industrial Ethernet Switch · 16×10/100 + 8×100Base-FX + 2×SFP
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
✓ Project-level customization & OEM supported
Get Best Price on WhatsApp
Need the PDF datasheet? Get it on WhatsApp →
HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆-40 ~ 75°C
◆IP40 Metal
◆19-inch 1U Rack
◆26 Ports Total
◆5-Year Warranty
Overview
The ZJIES1000-16T8S2GB is an industrial unmanaged 19-inch 1U rack-mount switch with 16 × 10/100Base-T copper ports, 8 × 100Base-FX fixed fiber ports and 2 × 1000Base-X SFP gigabit uplink slots (fiber connectors SC/ST/FC/LC optional) — 26 ports in a single rack unit. Powered by AC 220V wide-range (AC/DC 100–240V) input with reverse-polarity and overload protection and strong EMC immunity, it provides an aggregation-layer solution for small and medium industrial networks. Other port configurations in the ZJIES1000 series (24 × 10/100Base-T, or 24T + 2 × fiber) are available.
Key Features
- 16 × 10/100Base-T Fast Ethernet ports
- 8 × 100Base-FX fixed fiber ports
- 2 × 1000Base-X SFP gigabit uplink slots
- Fiber connectors optional: SC / ST / FC / LC
- AC 220V wide-range input (AC/DC 100–240V), reverse & overload protection
- Standard 19-inch 1U rack mounting
- IP40 metal enclosure · wide temperature -40 ~ +75°C
Specifications
IEEE Standards
| IEEE802.3 | 10BaseT Ethernet |
| IEEE802.3u | 100Base-T(X) & 100Base-FX Fast Ethernet |
| IEEE802.3z | 1000Base-X Ethernet |
| IEEE802.3x | Flow Control |
Switching
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Forwarding | Store-and-forward |
Interfaces
| RJ45 Ports | 16 × 10/100Base-T |
| Fiber Ports | 8 × 100Base-FX fixed + 2 × 1000Base-X SFP slots |
| Fiber Connectors | SC / ST / FC / LC optional |
| LED Indicators | Power, Link, Fiber |
Power
| Terminal | 4-pin power terminal |
| Input | Single/dual optional; AC/DC 100–240V |
| Alarm | 220V, max 2A |
| Power Consumption | Max 15 W |
| Power Protection | Reverse-polarity & overload |
Physical
| Housing | IP40 metal enclosure |
| Mounting | 19-inch standard 1U rack |
| Dimensions | 440 (W) × 44 (H) × 240 (D) mm |
Certification
| EMC | CE, FCC |
| EMI | FCC Part 15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2/3/4/5/6/8 Level 3 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Green | RoHS, WEEE |
Environment
| Standard Temp | -10 ~ +60°C |
| Wide Temp | -40 ~ +75°C |
| Storage Temp | -40 ~ +85°C |
| Humidity | 5–95% non-condensing |
Reliability
| MTBF | 320,000 hours |
| Warranty | 5 years |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| ZJIES1000-24T-AC | Unmanaged 19-inch rack Ethernet switch — 24 × 10/100Base-T, AC 220V (AC/DC 100–240V) power. | |
| ZJIES1000-24T2S-AC | Unmanaged 19-inch rack Ethernet switch — 24 × 10/100Base-T + 2 × 100Base-FX fixed fiber, AC 220V (AC/DC 100–240V). Multimode dual-fiber 2 km / single-mode dual-fiber 10 km, single- or dual-fiber optional. | |
| ZJIES1000-16T8S2GB-AC | Unmanaged 19-inch rack Ethernet switch — 16 × 10/100Base-T + 8 × 100Base-FX fixed fiber + 2 × 1000Base-X SFP slots, AC 220V (AC/DC 100–240V). Multimode dual-fiber 2 km / single-mode dual-fiber 10 km, single- or dual-fiber optional. |
SFP gigabit slots do not include optical modules; 100Base-FX ports are fixed fiber with SC/ST/FC/LC connector optional.
Dimensions
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Protocol-level customization · Small batches welcome.
Custom & OEM →Industrial Rack Fiber Switch FAQ — ZJIES1000-16T8S2GB
What port combination does the ZJIES1000-16T8S2GB offer?
26 ports in a single 1U rack unit: 16 × 10/100Base-T RJ45, 8 × 100Base-FX fixed fiber ports and 2 × 1000Base-X SFP gigabit uplink slots. Fiber connectors come as SC, ST, FC or LC on request, so it drops into an existing fiber plant without adapters.
Can it aggregate video from remote camera nodes over fiber?
Yes, aggregation is its job: the 8 × 100Base-FX ports terminate fiber runs from field nodes, the 16 copper ports serve local devices, and the 2 gigabit SFP uplinks carry combined traffic to the core. Store-and-forward switching with an 8K MAC table and 4 Mbit buffer handles the load.
Is the ZJIES1000-16T8S2GB a managed switch?
No, it is unmanaged: plug and play with zero configuration, which suits installers who need the aggregation layer running immediately. It follows IEEE 802.3, 802.3u and 802.3z with 802.3x flow control, and a 220V/2A alarm output gives basic fault signalling to the cabinet.
How is it powered?
It takes AC 220V wide-range input (AC/DC 100–240V) on a 4-pin power terminal, with single or dual supply optional. Maximum consumption is 15 W for all 26 ports, and reverse-polarity plus overload protection are built in — practical where grid voltage fluctuates.
What temperatures and environments does it tolerate?
The wide-temperature option runs from -40 to +75°C, the standard from -10 to +60°C, at 5–95% non-condensing humidity. The IP40 metal chassis passes EN61000-4 Level 3 EMS, IEC60068 shock and vibration tests, and is rated 320,000 hours MTBF with a 5-year warranty.
Are other port configurations available in this series?
Yes. The ZJIES1000 rack series is also offered as 24 × 10/100Base-T copper-only, or 24 copper ports plus 2 fiber. All versions share the standard 19-inch 1U chassis of 440 × 44 × 240 mm, so you can mix models in one rack as the site grows.
