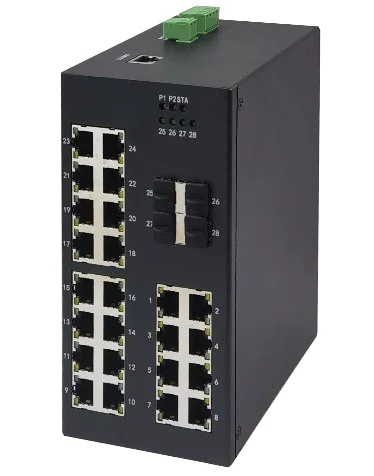

Manufacturer product photo · 24×GE + 4×SFP
ZJIES3000D-24GT4GB
Industrial · Managed L2
Managed DIN-Rail Industrial Ethernet Switch · 24×GE + 4×SFP
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
✓ Project-level customization & OEM supported
Get Best Price on WhatsApp
Need the PDF datasheet? Get it on WhatsApp →
HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆24×GE + 4×SFP
◆-40 ~ 75°C
◆IP40 Fanless
◆ZJRing <10ms
◆4094 VLANs
◆5-Year Warranty
Overview
The ZJIES3000D-24GT4GB is an industrial managed Gigabit Ethernet switch with 24 × 10/100/1000Base-T ports and 4 × 1000Base-X SFP fiber slots — the highest port count in the ZJIES3000D DIN-rail switch series. It offers full management — QoS, VLAN, IGMP Snooping/GMRP, Port Trunking, SNMP v1/v2/v3 — and multiple ring-redundancy protocols (STP/RSTP/MSTP/ERPS/ZJRing) for high reliability and interoperability. Its wide-temperature, EMC-hardened design meets demanding industrial field conditions, well suited for building large fully-gigabit self-healing ring networks.
Is This the Right Fit?
Six real deployment scenarios matched to this model's actual datasheet specifications.
High-Density CCTV & PLC Aggregation Uplink24 × 10/100/1000Base-T ports plus 4 × 1000Base-X SFP fiber slots make this the highest port-count model in the ZJIES3000D DIN-rail series, aggregating a large local camera or PLC cluster onto one switch before uplinking over fiber.
Factory Production-Line Ring NetworkSTP/RSTP/MSTP, ERPS (G.8032), and the private ZJRing protocol (self-healing <10ms) let all 24 copper ports and 4 fiber uplinks participate in a resilient managed ring for factory or campus production lines.
DIN-Rail Cabinet InstallationDIN-rail (or wall-mount) design with selectable DC 24V (12–36V) / DC 48V (36–56V) dual-redundant or AC 220V (100–240V) input fits directly inside a compact electrical cabinet alongside PLC and control gear.
Extreme-Temperature Outdoor CabinetThe wide-temperature build operates from -40 to +75°C with strong EMC immunity (EN61000-4-2/3/4/5/6/8 Level 3), suited to unheated outdoor cabinets facing seasonal extremes while keeping all 28 ports online.
Tunnel & Substation M&E Redundant PowerDC 24V/48V dual-redundant power input plus reverse-polarity and overload protection keeps the switch running if one feed fails — suited to tunnel, substation, or other electromechanical rooms where a single power interruption cannot be tolerated.
Fanless Silent Equipment RoomFully fanless IP40 metal enclosure with passive convection cooling keeps all 24 copper ports and 4 SFP fiber slots running silently in noise-sensitive control rooms or monitoring centers, with no moving parts to fail.
Not a good fit if:
- Standard package does not include SFP optical transceiver modules — order separately to activate the 4 fiber ports.
- IP40 enclosure only — needs a cabinet or additional protection for direct outdoor rain/dust exposure.
- No PoE output on the 24 copper ports — for camera or AP power delivery over the same cable, choose a PoE-enabled model in this series.
Key Features
- 24 × 10/100/1000Base-T + 4 × 1000Base-X SFP fiber slots
- Selectable DC 24V / 48V or AC 220V power input
- Redundancy: STP / RSTP / MSTP / ERPS / ZJRing
- Management: QoS, VLAN, IGMP Snooping / GMRP
- DIN-rail or wall mounting
- Wide operating temperature -40 ~ +75°C
- IP40 ingress protection
Specifications
IEEE Standards
| IEEE802.3 | 10BaseT Ethernet |
| IEEE802.3u | 100Base-T(X) & 100Base-FX Fast Ethernet |
| IEEE802.3ab | 1000Base-T(X) Ethernet |
| IEEE802.3z | 1000Base-X Ethernet |
| IEEE802.3x | Flow Control |
| IEEE802.3d | Spanning Tree Protocol |
| IEEE802.1w | Rapid Spanning Tree Protocol |
| IEEE802.1s | Multiple Spanning Tree Protocol |
| ITU-T G.8032 | Ethernet Ring Protection Switching (ERPS) |
| IEEE802.1p | Class of Service |
| IEEE802.1Q | VLAN Tag |
| IEEE802.3ad | LACP (Link Aggregation) |
| IEEE802.1x | User Authentication |
| IEEE802.1ab | LLDP |
Switching
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Forwarding | Store-and-forward |
Interfaces
| RJ45 Ports | 24 × 10/100/1000Base-T |
| SFP Fiber | 4 × 1000Base-X SFP slots |
| LED Indicators | Power, Link, Fiber, Status |
| Console | RS-232, RJ45, 9600bps, 8/N/1 |
Power
| DC 24V Input | 4-pin terminal, dual redundant; 12–36 VDC |
| DC 48V Input | 4-pin terminal, dual redundant; 36–56 VDC |
| AC 220V Input | 4-pin terminal, single input; 100–240 VAC |
| Power Consumption | Max 20 W |
| Power Protection | Reverse-polarity & overload |
| Alarm | 2-pin terminal |
Environment
| Standard Temp | -10 ~ +60°C |
| Wide Temp | -40 ~ +75°C |
| Storage Temp | -40 ~ +85°C |
| Humidity | 5–95% non-condensing |
Certification
| EMC | CE, FCC |
| EMI | FCC Part 15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2/3/4/5/6/8 Level 3 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Green | RoHS, WEEE |
Software Features
| MIB | RFC1215, RFC1213 MIB-II, RFC1157 SNMP-MIB, RFC1493 Bridge-MIB, RFC2674 VLAN-MIB, RFC1643, RFC1757, RSTP-MIB, Private MIB, LLDP-MIB |
| Management | SNMP v1/v2/v3; Web, Telnet, serial CLI; DHCP client; login password |
| Security | ACL L2–L4 filtering; port MAC filtering; MAC binding; 802.1X; RADIUS; DDoS self-defense |
| VLAN | Port & 802.1Q VLAN; up to 4094 VLANs (VID 1–4094); management VLAN |
| Link Aggregation | Static LACP; 2 groups × up to 4 ports |
| Ring Redundancy | STP/RSTP/MSTP; ERPS (G.8032); ZJRing self-healing ring <10ms |
| QoS | 4 priority classes (absolute / relative scheduling), mapped by 802.1p/DSCP into 8 hardware queues per port |
| Port Mirroring | One-way & two-way port mirroring |
| IGMP Multicast | IGMP Snooping v1/v2; up to 256 groups |
| Rate Limiting | Ingress/egress limiting, min 64 Kbps |
| Storm Suppression | Broadcast, multicast & unknown-unicast |
| Maintenance | Syslog, RMON, Ping, LLDP |
| SNTP | SNTP supported |
| Firmware | Web & serial TFTP upgrade |
| Config File | Import / export supported |
Physical
| Housing | IP40 metal enclosure |
| Mounting | DIN-rail (default), wall-mount optional |
| Dimensions | 85 (W) × 175 (H) × 146 (D) mm |
Reliability
| MTBF | 320,000 hours |
| Warranty | 5 years |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| ZJIES3000D-24GT4GB-AC | Industrial managed DIN-rail Ethernet switch — 24 × 10/100/1000Base-T, 4 × 1000Base-X SFP fiber slots, AC 220V (100–240 VAC) power. | |
| ZJIES3000D-24GT4GB-DCL | Industrial managed DIN-rail Ethernet switch — 24 × 10/100/1000Base-T, 4 × 1000Base-X SFP fiber slots, DC 24V (12–36 VDC) with redundant power input. | |
| ZJIES3000D-24GT4GB-DCH | Industrial managed DIN-rail Ethernet switch — 24 × 10/100/1000Base-T, 4 × 1000Base-X SFP fiber slots, DC 48V (36–56 VDC) with redundant power input. |
Standard package does not include SFP optical modules.
Dimensions
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Protocol-level customization · Small batches welcome.
Custom & OEM →24-Port Managed Industrial Switch FAQ — ZJIES3000D-24GT4GB
How many devices can I connect to the ZJIES3000D-24GT4GB?
It offers 24 x 10/100/1000Base-T copper ports for end devices plus 4 x 1000Base-X SFP fiber slots for uplinks — 28 gigabit ports, the highest count in the ZJIES3000D DIN-rail series. That covers a full cabinet of cameras, controllers or workstations from a single switch.
What is the power consumption and how is it powered?
Maximum consumption is 20 W for all 28 ports. Power comes from DC 24V (12-36V) or DC 48V (36-56V) dual redundant inputs on 4-pin terminals, or a single AC 220V input covering 100-240V, with reverse-polarity and overload protection and a 2-pin alarm terminal.
Can it build a self-healing fiber ring for large sites?
Yes — that is its intended role. STP/RSTP/MSTP, ERPS per ITU-T G.8032 and the ZJRing self-healing ring are supported, and the 4 SFP slots provide the fiber ports to close large gigabit rings while still leaving spare uplinks toward the core.
What management and traffic control features does it have?
Full management includes QoS (802.1p), 802.1Q VLAN, IGMP Snooping/GMRP multicast control, LACP port trunking, 802.1X authentication and LLDP. Administration runs over SNMP v1/v2/v3, web, Telnet or the RS-232 console at 9600 bps, with DHCP client and password login.
Is it rugged enough for outdoor cabinets and factories?
The wide-temperature version runs from -40 to +75 C (storage to +85 C) at 5-95% non-condensing humidity, on a DIN-rail mount. EMC immunity reaches EN61000-4 level 3 and the unit passes IEC60068 shock, free-fall and vibration tests, with CE, FCC and RoHS compliance.
