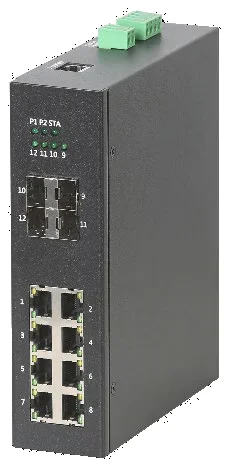

Manufacturer product photo · industrial managed Gigabit DIN-rail switch
ZJIES3000D-10GT4GB
Industrial · Managed L2
Managed DIN-Rail Industrial Ethernet Switch · 10×GE + 4×SFP
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
✓ Project-level customization & OEM supported
Get Best Price on WhatsAppTerms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆-40 ~ 75°C
◆IP40 Fanless
◆ERPS Ring <10ms
◆4094 VLANs
◆5-Year Warranty
Overview
The ZJIES3000D-10GT4GB is an industrial managed DIN-rail Ethernet switch with 10 × 10/100/1000Base-T ports and 4 × 1000Base-X SFP fiber slots. It offers full management — QoS, VLAN, IGMP Snooping/GMRP, Port Trunking, SNMP v1/v2/v3 — and multiple ring-redundancy protocols (STP/RSTP/MSTP/ERPS/ZJRing) for high reliability and interoperability. Its wide-temperature, EMC-hardened design is well suited for building fully-gigabit switching networks in demanding industrial field conditions.
Is This the Right Fit?
Six real deployment scenarios matched to this model’s actual datasheet specifications.
Factory Production-Line Ring Network10 managed Gigabit ports support STP/RSTP/MSTP, ERPS (G.8032), and the private ZJRing protocol with self-healing under 10ms, letting this switch anchor a resilient ring network across a mid-size production cell.
DIN-Rail Cabinet InstallationDIN-rail (or wall-mount) design with a choice of DC 24V (12–36V), DC 48V (36–56V) dual-redundant input, or AC 220V (100–240V) fits directly inside a compact electrical cabinet alongside PLCs and relays.
Multi-Direction Fiber Uplink Aggregation4 × 1000Base-X SFP slots let one unit run multimode dual-fiber links up to 2 km or single-mode dual-fiber links up to 10 km toward up to four separate directions simultaneously, ideal for roadside or campus fiber backbones.
Extreme-Temperature Outdoor CabinetWide-temperature operation from -40 to +75°C (storage to +85°C) with EN61000-4-2/3/4/5/6/8 Level 3 EMC immunity suits unheated outdoor cabinets facing seasonal extremes.
10-Port Mid-Density AggregationWith 10 × 10/100/1000Base-T ports, this model sits between the smaller 8-port and larger 16-port units in the ZJIES3000D-4GB switch family — sized for equipment rooms or branch cells with up to 10 wired devices without over-provisioning to a bigger chassis.
Secure VLAN Segmentation for Multi-Zone FacilitiesUp to 4094 port/802.1Q VLANs combined with ACL L2–L4 filtering, port MAC binding, 802.1X + RADIUS authentication, and DDoS self-defense let one switch isolate production, office, and security VLANs on a single physical network.
Not a good fit if:
- No PoE output on any port — cameras, IP phones, or wireless APs needing PoE require a separate injector or the -P PoE variant switch line.
- Standard package does not include SFP optical transceiver modules — order separately to activate the 4 fiber ports.
- IP40 enclosure only — needs a cabinet or additional protection for direct outdoor rain/dust exposure.
Key Features
- 10 × 10/100/1000Base-T + 4 × 1000Base-X SFP fiber slots
- Selectable DC 24V / 48V or AC 220V power input
- Redundancy: STP / RSTP / MSTP / ERPS / ZJRing
- Management: QoS, VLAN, IGMP Snooping / GMRP
- DIN-rail or wall mounting
- Wide operating temperature -40 ~ +75°C
- IP40 ingress protection
Specifications
IEEE Standards
| IEEE802.3 | 10BaseT Ethernet |
| IEEE802.3u | 100Base-T(X) & 100Base-FX Fast Ethernet |
| IEEE802.3ab | 1000Base-T(X) Ethernet |
| IEEE802.3z | 1000Base-X Ethernet |
| IEEE802.3x | Flow Control |
| IEEE802.3d | Spanning Tree Protocol |
| IEEE802.1w | Rapid Spanning Tree Protocol |
| IEEE802.1s | Multiple Spanning Tree Protocol |
| ITU-T G.8032 | Ethernet Ring Protection Switching (ERPS) |
| IEEE802.1p | Class of Service |
| IEEE802.1Q | VLAN Tag |
| IEEE802.3ad | LACP (Link Aggregation) |
| IEEE802.1x | User Authentication |
| IEEE802.1ab | LLDP |
Switching
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Forwarding | Store-and-forward |
Interfaces
| RJ45 Ports | 10 × 10/100/1000Base-T |
| SFP Fiber | 4 × 1000Base-X SFP slots |
| LED Indicators | Power, Link, Fiber, Status |
| Console | RS-232, RJ45, 9600bps, 8/N/1 |
Power
| DC 24V Input | 4-pin terminal, dual redundant; 12–36 VDC |
| DC 48V Input | 4-pin terminal, dual redundant; 36–56 VDC |
| AC 220V Input | 4-pin terminal, single input; 100–240 VAC |
| Power Consumption | Max 15 W |
| Power Protection | Reverse-polarity & overload |
| Alarm | 2-pin relay terminal |
Environment
| Standard Temp | -10 ~ +60°C |
| Wide Temp | -40 ~ +75°C |
| Storage Temp | -40 ~ +85°C |
| Humidity | 5–95% non-condensing |
Certification
| EMC | CE, FCC |
| EMI | FCC Part 15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2/3/4/5/6/8 Level 3 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Green | RoHS, WEEE |
Software Features
| MIB | RFC1215, RFC1213 MIB-II, RFC1157 SNMP-MIB, RFC1493 Bridge-MIB, RFC2674 VLAN-MIB, RFC1643, RFC1757, RSTP-MIB, Private MIB, LLDP-MIB |
| Management | SNMP v1/v2/v3; Web, Telnet, serial CLI; DHCP client; login password |
| Security | ACL L2–L4 filtering; port MAC filtering; MAC binding; 802.1X; RADIUS; DDoS self-defense |
| VLAN | Port & 802.1Q VLAN; up to 4094 VLANs (VID 1–4094); management VLAN |
| Link Aggregation | Static LACP; 2 groups × up to 4 ports |
| Ring Redundancy | STP/RSTP/MSTP; ERPS (G.8032); ZJRing self-healing ring <10ms |
| QoS | 4 priority classes (absolute / relative scheduling), mapped by 802.1p/DSCP into 8 hardware queues per port |
| Port Mirroring | One-way & two-way port mirroring |
| IGMP Multicast | IGMP Snooping v1/v2; up to 256 groups |
| Rate Limiting | Ingress/egress limiting, min 64 Kbps |
| Storm Suppression | Broadcast, multicast & unknown-unicast |
| Maintenance | Syslog, RMON, Ping, LLDP |
| SNTP | SNTP supported |
| Firmware | Web & serial TFTP upgrade |
| Config File | Import / export supported |
Physical
| Housing | IP40 metal enclosure |
| Mounting | DIN-rail (default), wall-mount optional |
| Dimensions | 47 (W) × 175 (H) × 150 (D) mm |
Reliability
| MTBF | 320,000 hours |
| Warranty | 5 years |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| ZJIES3000D-10GT4GB-AC | Industrial managed DIN-rail Ethernet switch — 10 × 10/100/1000Base-T, 4 × 1000Base-X SFP fiber slots, AC 220V (100–240 VAC) power. Multimode dual-fiber 2 km / single-mode dual-fiber 10 km, single- or dual-fiber optional. | |
| ZJIES3000D-10GT4GB-DCL | Industrial managed DIN-rail Ethernet switch — 10 × 10/100/1000Base-T, 4 × 1000Base-X SFP fiber slots, DC 24V (12–36 VDC) with redundant power input. Multimode dual-fiber 2 km / single-mode dual-fiber 10 km, single- or dual-fiber optional. | |
| ZJIES3000D-10GT4GB-DCH | Industrial managed DIN-rail Ethernet switch — 10 × 10/100/1000Base-T, 4 × 1000Base-X SFP fiber slots, DC 48V (36–56 VDC) with redundant power input. Multimode dual-fiber 2 km / single-mode dual-fiber 10 km, single- or dual-fiber optional. |
Standard package does not include SFP optical modules.
Dimensions
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Protocol-level customization · Small batches welcome.
Custom & OEM →10-Port Managed Industrial Switch FAQ — ZJIES3000D-10GT4GB
What is the port configuration of the ZJIES3000D-10GT4GB?
You get 10 x 10/100/1000Base-T copper ports plus 4 x 1000Base-X SFP fiber slots, 14 gigabit ports in total. Store-and-forward switching, an 8K MAC table and a 4 Mbit packet buffer make it a full-gigabit access node with four independent fiber directions.
Which ring redundancy protocols does it run?
It supports STP, RSTP and MSTP spanning tree, ERPS ring protection to ITU-T G.8032, and the ZJRing self-healing ring. That lets you build redundant fiber rings through the 4 SFP slots so a single cable break does not take down cameras or PLCs on the loop.
How can I manage and monitor the switch?
Management runs over SNMP v1/v2/v3, a web interface, Telnet and a serial CLI on the RS-232 RJ45 console at 9600 bps, 8/N/1. QoS, VLAN, IGMP Snooping/GMRP, port trunking, DHCP client and login password are included, with standard MIBs for NMS integration.
What are the power and alarm wiring options?
Choose DC 24V (12-36V) or DC 48V (36-56V) dual redundant inputs on 4-pin terminals, or a single AC 220V input covering 100-240V. Maximum draw is 15 W with reverse-polarity and overload protection, and a 2-pin relay terminal signals alarms to your control system.
Is it suitable as a CCTV or PLC network backbone in the field?
Yes. All 14 ports are gigabit, VLAN and QoS separate camera streams from control traffic, and IGMP Snooping/GMRP keeps multicast video efficient. The wide-temperature design runs from -40 to +75 C with EN61000-4 level 3 EMC immunity, suited to demanding industrial field cabinets.
