ZJIC200-1F2S
Protocol Converter · Fiber-to-Serial · 1000Base-X + 2×RS232/485
Industrial Gigabit Fiber-to-Serial Protocol Converter · 1×1000Base-X + 2×RS232/485 · AC 220V/DC 24V/48V
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Get Best Price on WhatsApp
Need the PDF datasheet? Get it on WhatsApp →
HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆Gigabit 1000Base-X
◆Fiber-to-Serial Conversion
◆Desktop/DIN-Rail/Wall Mount
◆AC220V / DC 24V/48V
◆-40 ~ 75°C · IP40 Fanless
◆5-Year Warranty
Overview
The ZJIC200-1F2S is an industrial gigabit fiber-to-serial protocol converter that converts a single 1000Base-X fiber port (SC/ST/FC, single-mode or multimode) into 2 × RS232/485 serial channels for long-distance transmission of serial data over fiber. It ships in AC 220V (100–240V) single-input, DC 24V (12–36V) or DC 48V (36–56V) dual-input power variants, with reverse-polarity and overload protection, drawing a maximum of 3 W. Housed in a fanless IP40 metal enclosure (120×32×95 mm) that supports desktop, DIN-rail or wall mounting, it operates from -10 to +60°C in the standard version or -40 to +75°C in the wide-temperature version — suited for industrial sites that need to carry legacy RS232/485 serial equipment over a gigabit fiber link.
Is This the Right Fit?
Six real deployment scenarios matched to this model's actual fiber-to-serial specifications.
Fiber-to-Serial Conversion PointGenuine photoelectric conversion: the 1000Base-X fiber signal is converted directly to 2 × RS232/485 electrical serial channels — a true fiber media/protocol conversion point, not a copper Ethernet pass-through.
Legacy Serial Equipment NetworkingBuilt for exactly 2 × RS232/485 channels (5-pin terminal) — the right port count to bring PLCs, RTUs or meters with only a serial interface onto a gigabit fiber network.
DIN-Rail Cabinet Mount for Wide-Voltage RetrofitDefault DIN-rail installation plus selectable AC 220V (100–240V) or DC 24V/48V (12–36V/36–56V) input lets the unit drop straight into an existing electrical cabinet alongside other DIN-rail gear, no separate power adapter needed.
Outdoor Wide-Temperature CabinetThe wide-temperature variant operates from -40 to +75°C (storage to -40~85°C) with strong EMC immunity (EN61000-4 series, Level 3) — suited to unheated outdoor cabinets in cold or hot climates.
Desktop Plug-and-Play DeploymentUnlike DIN-rail-only fiber converters, the -1F2S also supports desktop mounting — place it on a bench or shelf for quick commissioning or a temporary serial-over-fiber test link, no cabinet or rail required.
Tunnel / Underground M&E MonitoringDual power input (DC 24V/48V models) plus Level-3 EMC immunity and reverse-polarity/overload protection support the reliability tunnels and underground electromechanical rooms demand.
Not a good fit if:
- Not for direct copper-Ethernet extension or camera/PoE aggregation — this model bridges 1000Base-X fiber to RS232/485 serial only; it has no RJ45 Ethernet ports.
- Not a managed switch — no VLAN, ERPS/RSTP ring redundancy or L2 management; it is a fixed point-to-point protocol converter.
- Fiber interface is fixed (1000Base-X, non-SFP) — fiber mode, connector (SC/ST/FC) and single/dual-fiber must be chosen at order time, not swapped in the field.
Key Features
- Converts 1 × 1000Base-X fiber to 2 × RS232/485 serial channels (5-pin terminal)
- Fiber port SC/ST/FC connector · single-mode/multimode · single-fiber/dual-fiber optional
- Transmission distance: multimode 2 km / single-mode 20, 40, 60 or 120 km
- AC 220V (100–240V) single input or DC 24V (12–36V)/48V (36–56V) redundant dual input
- Fanless IP40 metal enclosure · desktop/DIN-rail/wall-mount · max 3 W consumption
- Wide temperature -40 ~ +75°C (wide-temp model) · reverse-polarity & overload protection · 5-year warranty
Specifications
IEEE Standards
| IEEE802.3 | 10BaseT Ethernet |
| IEEE802.3u | 100BaseT(X) and 100BaseFX Fast Ethernet |
| IEEE802.3ab | 1000BaseT(X) Ethernet |
| IEEE802.3z | 1000BaseX Ethernet |
| IEEE802.3x | Flow Control |
Switching
| MAC Address Table | 1K |
| Packet Buffer | 1 Mbit |
| Forwarding | Store-and-forward |
Interfaces
| Serial Ports | 2 × RS232/485 (5-pin terminal) |
| 1000Base-X Port | 1000Base-X (fixed), single-mode/multimode optional, SC/ST/FC optional, single/dual fiber optional |
| 1000Base-FX Distance | Multimode 2 km; single-mode 20/40/60/120 km optional |
| LED Indicators | Power, Fiber Port, Serial Port |
Power
| 24V Input | 4-pin terminal, dual redundant input; 24VDC range 12–36VDC |
| 48V Input | 4-pin terminal, dual redundant input; 48VDC range 36–56VDC |
| 220V Input | 4-pin terminal, single power; 220V range 100–240VAC |
| Power Consumption | Max 3 W |
| Power Protection | Reverse-polarity & overload |
Physical
| Housing | IP40 metal enclosure |
| Mounting | DIN-rail (default), desktop/wall-mount optional |
| Dimensions | 120 (W) × 32 (H) × 95 (D) mm |
Certification
| EMC | CE, FCC |
| EMI | FCC Part 15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2 (ESD) Level 3, EN61000-4-3 (RS) Level 3, EN61000-4-4 (EFT) Level 3, EN61000-4-5 (Surge) Level 3, EN61000-4-6 (CS) Level 3, EN61000-4-8 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Green | RoHS, WEEE |
Environment
| Standard Temp | -10 ~ +60°C |
| Wide Temp | -40 ~ +75°C |
| Storage Temp | -40 ~ +85°C |
| Humidity | 5–95% non-condensing |
Reliability
| MTBF | 320,000 hours |
| Warranty | 5 years |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| ZJIC200-1F2S-AC | Industrial protocol converter — 1 × 1000Base-X fixed fiber port (SC/ST/FC, single-mode/multimode, single/dual fiber optional), 2 × RS232/485 serial (5-pin terminal), AC 220V power. | |
| ZJIC200-1F2S-DCL | Industrial protocol converter — 1 × 1000Base-X fixed fiber port (SC/ST/FC, single-mode/multimode, single/dual fiber optional), 2 × RS232/485 serial (5-pin terminal), DC 24V power. | |
| ZJIC200-1F2S-DCH | Industrial protocol converter — 1 × 1000Base-X fixed fiber port (SC/ST/FC, single-mode/multimode, single/dual fiber optional), 2 × RS232/485 serial (5-pin terminal), DC 48V power. |
This page covers all power variants: -AC = AC 220V (100–240V) single input; -DCL = DC 24V (12–36V) redundant dual input; -DCH = DC 48V (36–56V) redundant dual input. The 1000Base-X fiber port is fixed (non-SFP): single-mode or multimode, SC/ST/FC connector, single or dual fiber optional; multimode 2 km, single-mode 20/40/60/120 km. The requested model is ZJIC200-1F2S.

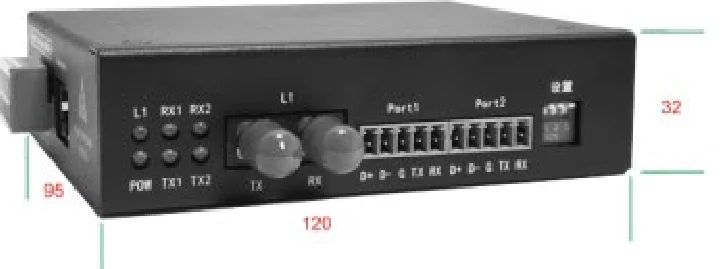

Dimensions
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.
Custom & OEM →Fiber-to-Serial Converter FAQ — ZJIC200-1F2S
What does the ZJIC200-1F2S convert?
It links one 1000Base-X gigabit fiber port to two RS232/485 serial channels on 5-pin terminals, carrying serial data from PLCs, meters or access controllers over fiber for long distances. Forwarding is store-and-forward with a 1K MAC address table and 1 Mbit packet buffer.
How far can the fiber link reach?
Multimode fiber covers 2 km; single-mode options reach 20, 40, 60 or 120 km. The fixed optical port is available with SC, ST or FC connectors, in single-mode or multimode and single- or dual-fiber versions — specify the distance and connector when ordering.
Which power supply options are available?
Three variants: AC 220V (100–240V) single input, or DC 24V (12–36V) and DC 48V (36–56V), both DC versions with dual redundant inputs on a 4-pin terminal. Consumption is just 3 W maximum, with reverse-polarity and overload protection built in.
Can it work in hot or freezing outdoor cabinets?
The standard version operates from -10 to +60 degC and the wide-temperature version from -40 to +75 degC, at 5–95% non-condensing humidity with storage from -40 to +85 degC. The IP40 metal housing carries EN61000-4 Level 3 EMC immunity for electrically noisy industrial sites.
How is it mounted and what warranty applies?
The compact 120 x 32 x 95 mm metal case mounts on a DIN-rail by default, with desktop or wall-mount as options. LEDs show power, fiber-port and serial-port status at a glance. MTBF is rated at 320,000 hours and the converter carries a 5-year warranty.
