ZJIC200-2
Unmanaged Fiber Media Converter · 100/1000M
Industrial 100/1000M Fiber Media Converter · 1×RJ45 + 1×Fiber (SC/ST/FC) · DIN-Rail / Wall / Card-Insert
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Get Best Price on WhatsAppTerms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆100/1000M Fiber Media Converter
◆SC/ST/FC Selectable
◆DIN-Rail / Wall / Card-Insert
◆DC 24/48V & AC 220V
◆-40 ~ 75°C Wide Temp
◆5-Year Warranty
Overview
The ZJIC200-2 series is an industrial 100/1000M fiber media converter that converts a 10/100/1000Base-T electrical signal to a 100Base-FX or 1000Base-X optical signal over a single fixed fiber port (SC/ST/FC, single-mode/multimode, single/dual-fiber selectable). It uses a redundant power design with wide-voltage input, offering overload protection, reverse-polarity protection and a power-failure alarm. An optional wide-temperature version and strong EMC immunity meet demanding industrial environments, delivering economical and reliable network access.
Is This the Right Fit?
Six real deployment scenarios matched to this model's actual datasheet specifications.
Fiber media conversion for copper-to-fiber uplink pointsConverts a 10/100/1000Base-T copper port to 100Base-FX or 1000Base-X fiber over a single fixed fiber port, with SC/ST/FC and single/dual-fiber options.
DIN-rail media converter for control-cabinet fiber uplinksDIN-rail mounting with AC 220V, DC 24V (12–36V) or DC 48V (10–52V) input, DC models with redundant dual power.
Wide-temperature fiber media converter for outdoor roadside cabinetsOptional wide-temperature version operates from -40 to +75°C, with -40 to +85°C storage range, for harsh outdoor sites.
Low-power, maintenance-free media conversion for unattended sitesIP40 metal enclosure, max 3 W power draw and 320,000-hour MTBF support long-term unattended operation in cabinets.

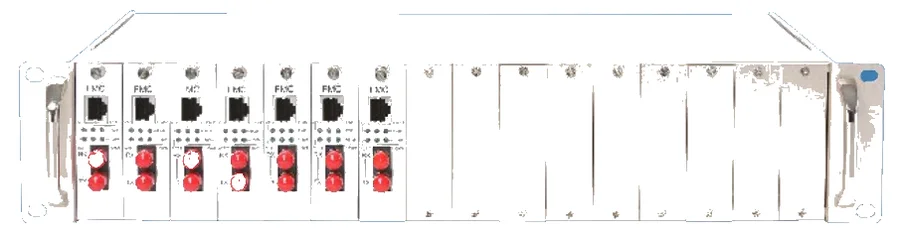

Card-insert (slot-in) fiber media converter for chassis integrationAlso offered in card-insert form (ZJIC200-1T1S-DC / -1GT1F-DC), 26×88×110 mm with DC 5V gold-finger power, for slot-based chassis deployment alongside the DIN-rail/wall-mount models.
Long-distance fiber uplink for roadside camera backhaul100Base-FX reaches 2 km multimode or 20/40/60/120 km single-mode; 1000Base-X reaches 0.5/2 km multimode or 20/40/60/120 km single-mode, with SC/ST/FC connector options.
Not a good fit if:
- No PoE output — connected cameras or APs on the copper side need their own power source or an external PoE injector.
- Unmanaged, single fixed fiber port per unit — no VLAN/RSTP/ring-network redundancy; not a substitute for a managed ring-topology switch.
- IP40 enclosure only — needs a cabinet or additional protection for direct outdoor rain/dust exposure.
Key Features
- Supports 1×10/100Base-T or 10/100/1000Base-T electrical port
- Supports 1×100Base-FX or 1000Base-X (fixed fiber port)
- SC/ST/FC fiber connector optional, transmission distance selectable
- DIN-rail: DC 24V/48V or AC 220V power input optional; card-insert: DC 5V power input
- Industrial IP40 protection rating
- DIN-rail / wall-mount / card-insert installation supported
- -40 ~ +75°C wide-temperature operation (optional)
Specifications
IEEE Standards
| IEEE802.3 | 10BaseT Ethernet |
| IEEE802.3u | 100BaseT(X) and 100BaseFX Fast Ethernet |
| IEEE802.3ab | 1000BaseT(X) Ethernet |
| IEEE802.3z | 1000BaseX Ethernet |
| IEEE802.3x | Flow Control |
Switching
| MAC Address Table | 1K |
| Packet Buffer | 1 Mbit |
| Forwarding | Store-and-forward |
Interfaces
| RJ45 Port | 1 × 10/100Base-T or 10/100/1000Base-T |
| Fiber Port | 1 × 100Base-FX or 1000Base-X (fixed), single-mode/multimode, SC/ST/FC and single/dual-fiber selectable |
| 100Base-FX Distance | Multimode 2 km; single-mode 20/40/60/120 km optional |
| 1000Base-X Distance | Multimode 0.5/2 km; single-mode 20/40/60/120 km optional |
| LED Indicators | Power, electrical port, fiber port |
Power
| 5V Input | DC 5V, gold-finger (card-insert) |
| 24V Input | 4-pin terminal, dual redundant input; 24VDC supports 12–36VDC |
| 48V Input | 4-pin terminal, dual redundant input; 48VDC supports 36–56VDC |
| 220V Input | 4-pin terminal, single power input; 220V supports 100–240VAC |
| Power Consumption | Max 3 W |
| Power Protection | Reverse-polarity & overload |
Physical
| Housing | IP40 metal enclosure |
| Mounting | DIN-rail, wall-mount, or card-insert |
| Dimensions | DIN-rail/wall-mount 32(W)×144(H)×95(D)mm; card-insert 26(W)×88(H)×110(D)mm |
Certification
| EMC | CE, FCC |
| EMI | FCC Part 15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2/3/4/5/6/8 Level 3 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Green | RoHS, WEEE |
Environment
| Standard Temp | -10 ~ +60°C |
| Wide Temp | -40 ~ +75°C |
| Storage Temp | -40 ~ +85°C |
| Humidity | 5–95% non-condensing |
Reliability
| MTBF | 320,000 hours |
| Warranty | 5 years |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| ZJIC200-D-1T1S-AC | DIN-rail industrial fiber media converter — 1×10/100Base-T + 1×100Base-FX (SC/ST/FC optional), AC 220V (100–240V). | |
| ZJIC200-D-1T1S-DCH | DIN-rail industrial fiber media converter — 1×10/100Base-T + 1×100Base-FX (SC/ST/FC optional), DC 48V (10–52V), redundant input. | |
| ZJIC200-D-1T1S-DCL | DIN-rail industrial fiber media converter — 1×10/100Base-T + 1×100Base-FX (SC/ST/FC optional), DC 24V (12–36V), redundant input. | |
| ZJIC200-D-1GT1F-AC | DIN-rail industrial fiber media converter — 1×10/100/1000Base-T + 1×1000Base-X (fixed), AC 220V (100–240V). | |
| ZJIC200-D-1GT1F-DCH | DIN-rail industrial fiber media converter — 1×10/100/1000Base-T + 1×1000Base-X (fixed), DC 48V (10–52V), redundant input. | |
| ZJIC200-D-1GT1F-DCL | DIN-rail industrial fiber media converter — 1×10/100/1000Base-T + 1×1000Base-X (fixed), DC 24V (12–36V), redundant input. | |
| ZJIC200-1T1S-DC | Card-insert industrial fiber media converter — 1×10/100Base-T + 1×100Base-FX (SC/ST/FC optional), DC 5V (gold-finger). | |
| ZJIC200-1GT1F-DC | Card-insert industrial fiber media converter — 1×10/100/1000Base-T + 1×1000Base-X (fixed), DC 5V (gold-finger). |
Fiber interface options across the series: 100Base-FX reaches 2 km multimode or 20/40/60/120 km single-mode; 1000Base-X reaches 0.5/2 km multimode or 20/40/60/120 km single-mode; SC/ST/FC connector and single/dual-fiber selectable. DIN-rail models accept AC 220V, DC 24V or DC 48V (DC models have redundant dual input); card-insert models are powered by DC 5V via gold-finger connector.
Dimensions
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.
Custom & OEM →Industrial Media Converter FAQ — ZJIC200-2
What does the ZJIC200-2 media converter do?
It converts one RJ45 copper port — 10/100Base-T or 10/100/1000Base-T depending on version — into a fixed 100Base-FX or 1000Base-X fiber port, extending Ethernet far beyond copper limits for roadside or plant links. Switching is store-and-forward with a 1K MAC table and 1 Mbit buffer.
What fiber distances are supported?
At 100M: multimode 2 km, single-mode 20/40/60/120 km optional. At gigabit: multimode 0.5 or 2 km, single-mode 20/40/60/120 km optional. Connectors are SC, ST or FC in single- or dual-fiber versions — state the speed, distance and connector when ordering.
How is the ZJIC200-2 powered?
Four options: DC 5V gold-finger for the card-insert version, DC 24V (12–36V) or DC 48V (36–56V) with dual redundant terminal inputs, or AC 220V (100–240V) single input. Maximum draw is 3 W, with reverse-polarity protection, overload protection and a power-failure alarm.
Which mounting versions exist?
Three: DIN-rail and wall-mount versions share a 32 x 144 x 95 mm case, while the card-insert version (26 x 88 x 110 mm) slides into a media-converter chassis and takes DC 5V through a gold-finger connector — convenient for high-density equipment-room installations.
Is it suitable for harsh industrial environments?
Yes — the standard version runs from -10 to +60 degC and the wide-temperature option from -40 to +75 degC, at 5–95% non-condensing humidity. The IP40 metal housing carries CE/FCC EMC with EN61000-4 Level 3 immunity, MTBF of 320,000 hours and a 5-year warranty.
