ZJIC200-JJ
16-Slot Chassis · Dual PSU · SC/ST/FC
Industrial 2U Rack-Mount Media Conversion Chassis · 16 Slots · Dual PSU
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Get Best Price on WhatsAppTerms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆16-Slot Chassis
◆100M/1000M Mixed Cards
◆Dual Power Redundant
◆SC/ST/FC Optical
◆IP40 · 2U Rack-Mount
◆5-Year Warranty
Overview
The ZJIC200-JJ is an industrial fiber media converter chassis built in a standard 2U rack-mount enclosure with 16 card slots for 1-electrical/1-optical Fast Ethernet or Gigabit conversion modules. Each slot accepts mixed 100M and 1000M cards with SC/ST/FC optical connector options and multimode (0.5km/2km) or single-mode (20/40/60/120km) fiber reach. The chassis integrates two independent 220V power inputs for redundancy inside an IP40 metal housing rated -10~60°C standard (-40~75°C wide-temperature cards available), carries CE/FCC/RoHS EMC and EN61000-4 series EMS certification, and ships with a 5-year warranty.
Is This the Right Fit?
Six real deployment scenarios matched to the ZJIC200-JJ chassis's actual datasheet specifications.
Fiber Media Conversion PointEach of the 16 slots accepts a dedicated 1-electrical/1-optical conversion card (100M or Gigabit, SC/ST/FC), turning the chassis into a dense photoelectric conversion point for copper-to-fiber handoff.
Mixed 100M/1000M Card Flexible Configuration100M and Gigabit conversion cards can be freely mixed across the 16 slots per the datasheet, so one chassis serves legacy Fast Ethernet links and newer Gigabit fiber links side by side without needing a separate frame for each speed.
Centralized 16-Port Media Conversion Rack for Equipment RoomsThe datasheet frames this 2U chassis as its solution for high-density photoelectric conversion needs — instead of 16 separate desktop converters scattered across an equipment room, one rack position with 16 slots centralizes every CCTV or network fiber uplink in one place.
Redundant Dual-Power Supply for Mission-Critical RoomsThe datasheet states the chassis supports two independent 220V power paths (redundant dual power supply) plus EN61000-4-2/3/4/5/6/8 EMS immunity — built for tunnel, mine, and mechanical/electrical equipment rooms where a single power-line fault must not take the whole conversion rack offline.
Extreme-Temperature Equipment CabinetA wide-temperature card option is rated -40~75°C per the datasheet, letting the chassis keep converting inside unheated outdoor cabinets through winter cold and summer heat.
19-Inch Rack Cabinet InstallationThe datasheet specifies rack-mount installation (480×90×290mm, 2U) rather than DIN-rail or wall-mount — the chassis bolts directly into a standard 19-inch rack cabinet, keeping all 16 conversion slots organized in one rack unit alongside other rack gear in the equipment room.
Not a Good Fit If:
- No PoE output on any card slot — cameras/APs still need a separate PoE injector or PoE switch upstream.
- No built-in management interface (Web/SNMP) — per-slot link status cannot be monitored remotely from a NOC.
- Not a desktop or DIN-rail form factor — needs a 19" rack position (480×90×290mm), unsuitable for compact wall-mount cabinets.
Key Features
- 16 card slots for 1-electrical/1-optical Fast Ethernet or Gigabit conversion modules
- Mixed 100M / 1000M card insertion in any slot combination
- SC/ST/FC optical connectors · multimode 0.5/2km or single-mode 20/40/60/120km
- Dual built-in 220V power modules — independent redundant supply
- 2U rack-mount IP40 metal chassis · reverse-polarity & overload protection
- Store-and-forward switching per card · 1K MAC table · 1Mbit buffer
- IEEE 802.3/802.3u/802.3ab/802.3z compliant · CE/FCC/RoHS certified · 5-year warranty
Specifications
IEEE Standards
| IEEE802.3 | 10BaseT Ethernet |
| IEEE802.3u | 100Base-T(X) & 100Base-FX Fast Ethernet |
| IEEE802.3ab | 1000Base-T(X) Ethernet |
| IEEE802.3z | 1000Base-X Ethernet |
| IEEE802.3x | Flow Control |
Switching
| MAC Address Table | 1K |
| Packet Buffer | 1 Mbit |
| Forwarding | Store-and-forward |
Interfaces
| RJ45 Port | 1 per card, 100M or Gigabit |
| Fiber Port | 1 fixed per card, 100M or Gigabit, SC/ST/FC selectable |
| Optical Reach | Multimode 0.5km/2km; single-mode 20/40/60/120km selectable |
| LED Indicators | Power, electrical port, optical port |
Power
| 220V Input | Two independent power paths (redundant) |
| Power Consumption | Max 25 W |
| Power Protection | Reverse-polarity & overload |
Physical
| Housing | IP40 metal enclosure |
| Mounting | Rack-mount (2U) |
| Dimensions | 480 (W) × 90 (H) × 290 (D) mm |
Certification
| EMC | CE, FCC |
| EMI | FCC Part 15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2/3/4/5/6 (Level 3), EN61000-4-8 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Green | RoHS, WEEE |
Environment
| Standard Temp | -10 ~ +60°C |
| Wide Temp | -40 ~ +75°C |
| Storage Temp | -40 ~ +85°C |
| Humidity | 5–95% non-condensing |
Reliability
| MTBF | 320,000 hours |
| Warranty | 5 years |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| ZJIC200-JJ | 2U rack-mount chassis, 16 slots, 2 built-in power modules. |
This page covers the ZJIC200-JJ 16-slot chassis itself. 1-electrical/1-optical conversion cards (100M/1000M, SC/ST/FC, multimode/single-mode reach options) are ordered separately according to project requirements.

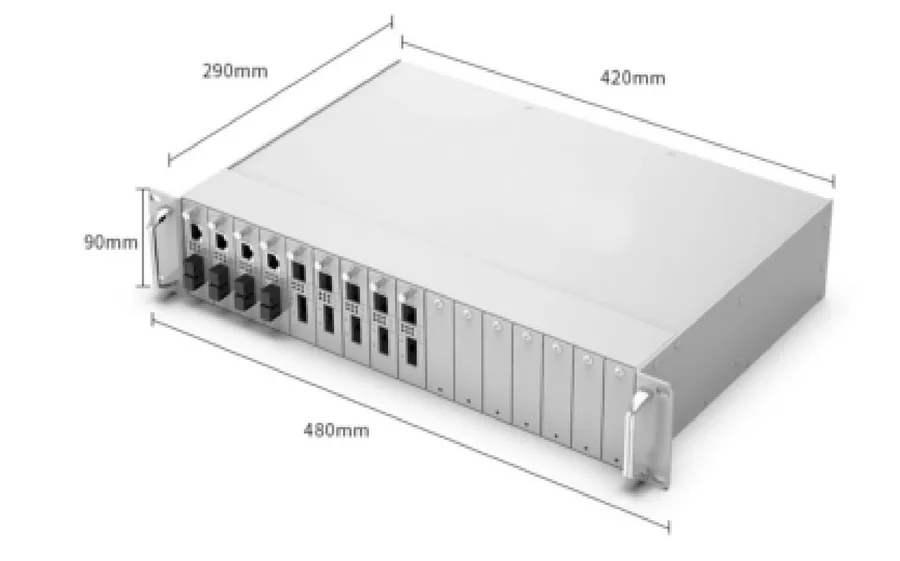

Dimensions
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.
Custom & OEM →Media Converter Chassis FAQ — ZJIC200-JJ
What is the ZJIC200-JJ chassis and how many links does it hold?
It is a 2U 19-inch rack enclosure with 16 card slots for 1-electrical/1-optical media-converter cards. Fast Ethernet and gigabit cards can be mixed in the same chassis, centralizing up to 16 fiber links from field converters into one tidy unit in the equipment room.
What fiber reach and connectors do the cards support?
Each card carries one RJ45 port (100M or gigabit) and one fixed fiber port with SC, ST or FC connector options. Optical reach is 0.5 or 2 km on multimode and 20, 40, 60 or 120 km selectable on single-mode, so mixed short and long links coexist in one chassis.
Does it have redundant power?
Yes — the chassis integrates two independent 220V power inputs, so a failure on one feed does not drop the 16 links. Total consumption is 25 W maximum with reverse-polarity and overload protection, low enough that the enclosure needs no special cooling arrangements.
What are its dimensions and operating conditions?
The IP40 metal enclosure measures 480 x 90 x 290 mm and mounts in a standard 19-inch rack as a 2U unit. Standard operating range is -10 to +60 degC at 5–95% non-condensing humidity, and wide-temperature cards rated -40 to +75 degC are available for harsh rooms.
Which certifications and warranty does it carry?
EMC certification covers CE and FCC (FCC Part 15, CISPR EN55022 Class A) with EN61000-4 series immunity, plus IEC60068 shock, free-fall and vibration tests and RoHS/WEEE compliance. MTBF is rated 320,000 hours and the chassis is backed by a 5-year warranty.
