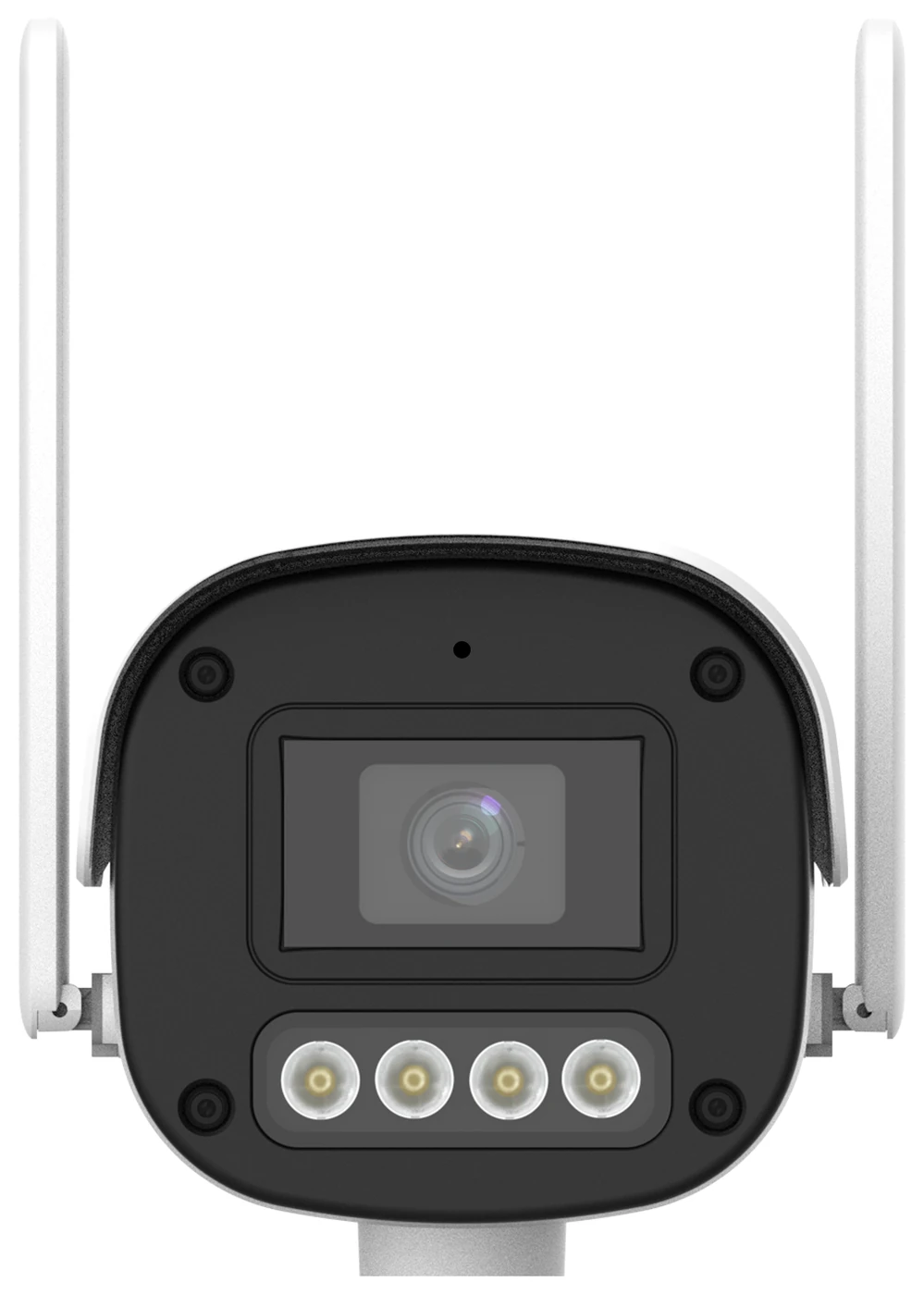

2MP HD 4G ColorHunter Fixed Bullet Network Camera IPC2A12LP-ADF40(60)KC-4G-E

2MP HD 4G ColorHunter Fixed Bullet Network Camera IPC2A12LP-ADF40(60)KC-4G-E — view 1

2MP HD 4G ColorHunter Fixed Bullet Network Camera IPC2A12LP-ADF40(60)KC-4G-E — view 2

2MP HD 4G ColorHunter Fixed Bullet Network Camera IPC2A12LP-ADF40(60)KC-4G-E — view 3

Uniview (UNV) · Bullet4G Cellular · ColorHunter

2MP 4G ColorHunter Bullet · Cellular Series

IPC2A12LP-ADF40(60)KC-4G-E

Name: Uniview IPC2A12LP-ADF40(60)KC-4G-E
Brand: Uniview
SKU: IPC2A12LP-ADF40(60)KC-4G-E

2MP fixed bullet network camera with 4G cellular connectivity and ColorHunter dual-light night vision — IR 50 m + warm light 30 m, built-in mic & speaker, IP67 outdoor body.

2 MP · 1080P@30fpsUltra 265 · low bandwidth4G SIM · Nano-SIM cellularColorHunter · IR 50m + warm 30mIP67 · outdoorMic+Speaker · 2-way audio

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF40KC (4.0 mm, 92.4° diagonal FoV) covers a wide area near the camera. ADF60KC (6.0 mm, 61.5° diagonal FoV) trades width for reach — longer fence lines and driveways. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:IP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

50 mIR night vision

30 mWarm light

IP67Outdoor rated

6.5 WMax power (DC 12V)

The Uniview IPC2A12LP-ADF40(60)KC-4G-E is a 2MP fixed bullet network camera with ColorHunter dual-light illumination — Smart IR up to 50 m for discreet night vision and warm light up to 30 m for full-color night vision down to 0 Lux. It connects over a 4G Nano-SIM cellular link (or wired RJ45 Ethernet), is powered by a DC 12V adapter rather than PoE, and carries an IP67 outdoor rating for -30°C to 60°C operation. It ships with two fixed lens options: 4.0 mm (ADF40KC, wider view) or 6.0 mm (ADF60KC, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Remote sites with no network cableFarms, remote gates, construction sites — the 4G Nano-SIM connects to the network without running any Ethernet cable; only a DC 12V power source is needed nearby.

Temporary & mobile deploymentsJob sites, events, pop-up monitoring — move the camera without waiting for cabling or PoE infrastructure to be installed.

Long perimeter fences & drivewaysADF60KC's narrower 6.0 mm lens watches long fence lines and driveways from a distance.

Home gates & entrances at nightWarm light gives full-color night vision up to 30 m — visitors are seen in color and intruders know it.

Small shops needing two-way audioBuilt-in mic and speaker support two-way talk — warn or greet visitors remotely through the camera itself.

Sites needing local backup recordingMicroSD edge storage up to 512 GB keeps footage safe on the camera even if the cellular link drops.

Not the right pick if you need…

Solar or battery-only power — this model needs a wired DC 12V adapter connection, it does not run on solar or battery
PoE single-cable install — power is DC 12V via adapter; video/data goes over the 4G SIM or a separate RJ45 Ethernet cable
Wi-Fi connection — there is no Wi-Fi radio; it connects via 4G cellular SIM or wired Ethernet
Optical zoom — the lens is fixed (4.0 mm or 6.0 mm, chosen at purchase)
Serial/RS-485 control wiring — Serial Port: N/A on this model

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.8" CMOS sensor

1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps

Supports 4G access to the network

Alarm I/O: 1/1

Audio I/O: 1/1

Built-in mic and speaker

Smart IR, up to 50 m (164.0 ft.) IR distance

White light, up to 30 m (98.4 ft.) white light distance

MicroSD, up to 512 GB

IP67 protection

Dual Light: two ways to see the night

Switchable Auto/Manual — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 50 m (164.0 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording.

WARM LIGHT MODE

Visible warm/white light — full-color night vision down to 0 Lux

Warm/white light up to 30 m (98.4 ft.) keeps full color visible at night, down to 0 Lux with the light on — and tells intruders the area is watched.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

62.1 m203.7 ft

Observewhat is happening

24.8 m81.4 ft

Recognizesomeone you know

12.4 m40.7 ft

Identifya stranger's face

6.2 m20.3 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	KC · 87.5°	KC · 54.2°
5 m16 ft	9.6 m31.4 ft	5.1 m16.8 ft
10 m33 ft	19.1 m62.8 ft	10.2 m33.6 ft
15 m49 ft	28.7 m94.2 ft	15.4 m50.4 ft
20 m66 ft	38.3 m126 ft	20.5 m67.2 ft
30 m98 ft	57.4 m188 ft	30.7 m101 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF40KC = 4.0 mmADF60KC = 6.0 mm

Camera

Max Resolution	2 MP
Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	ADF40KC · 4.0 mmADF60KC · 6.0 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	ADF40KC · 87.5°ADF60KC · 54.2°
Field of View (V)	ADF40KC · 46.3°ADF60KC · 28.9°
Field of View (D)	ADF40KC · 92.4°ADF60KC · 61.5°

DORI

DORI Distance (Lens)	ADF40KC · 4 mmADF60KC · 6 mm
DORI Distance (Detect)	ADF40KC · 62.1 m (203.7 ft.)ADF60KC · 93.1 m (305.5 ft.)
DORI Distance (Observe)	ADF40KC · 24.8 m (81.4 ft.)ADF60KC · 37.2 m (122.1 ft.)
DORI Distance (Recognize)	ADF40KC · 12.4 m (40.7 ft.)ADF60KC · 18.6 m (61.0 ft.)
DORI Distance (Identify)	ADF40KC · 6.2 m (20.3 ft.)ADF60KC · 9.3 m (30.5 ft.)

Illuminator

Supplemental Light	Dual light
Illumination Distance (Warm Light)	30 m (98.4 ft.)
Illumination Distance (IR)	50 m (164.0 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080) max. 30 fps; 720P (1280×720) max. 30 fps · Sub Stream: 720P (1280×720) max. 30 fps; D1 (720×576) max. 30 fps; 640×360 max. 30 fps
Video Bit Rate	128 Kbps to 2048 Kbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Intelligent

Smart Intrusion Prevention

Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Network

4G Network Frequency	LTE-TDD: Band 38/40/41 · LTE-FDD: Band 1/3/5/7/8/20/28
4G Network Standard	LTE-TDD, LTE-FDD, GSM, EGSM, DCS, PCS
4G Card Type	Nano-SIM
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, QoS, SMTP, 802.1x, SSL/TLS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ · Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Interface

Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

Protection

IP67 (IEC 60529)

General

Power	DC 12 V±25%
Power Consumption	Max. 6.5 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	169 mm × 113 mm × 96 mm (6.7" × 4.4" × 3.8") (L × W × H)
Weight	0.47 kg (1.04 lb.)
Material	Graphene + Metal
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

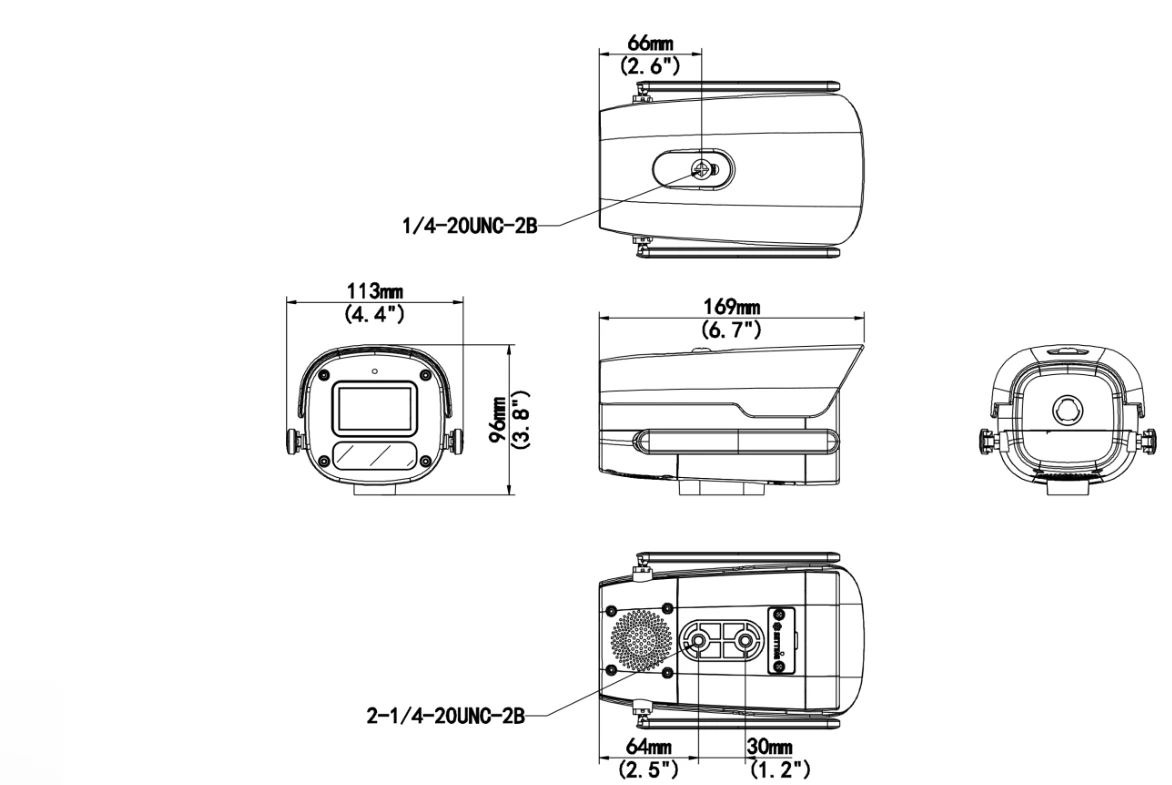

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	169 × 113 × 96 mm (6.7" × 4.4" × 3.8")
Weight	0.47 kg (1.04 lb.)
Material	Graphene + Metal

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-WM06-C-INWall mounting bracket for 6-inch bullet camera

TR-UP06-B-INBullet pole mounting bracket

TR-WM07P-ABullet wall mounting plastic bracket

TR-UM06-A-INBullet camera desktop bracket

TR-CM08P-ABullet pendant mounting plastic bracket

2MP 4G SIM Camera FAQ — IPC2A12LP-ADF40(60)KC-4G-E

Can it work at a site with no internet or network cable?

Yes — that is the point of this model. Insert a Nano-SIM and it streams over the 4G mobile network, so farms, construction sites and remote compounds without fixed lines can still be monitored. You only need to bring DC 12V power to the camera position.

What SIM card does it take, and which operator should I use?

It takes a Nano-SIM. Choose any local operator with solid 4G coverage at the exact mounting point — test the signal with a phone at the pole before installing. A data plan sized to your viewing habits is enough, since the stream is capped at 2048 Kbps.

How much mobile data will it consume?

The bitrate is adjustable from 128 Kbps to 2048 Kbps, and Ultra 265 with U-code compression cuts the stream size substantially versus H.264. The main stream is 1080P at up to 30 fps with a 720P sub stream — view the sub stream remotely to save data.

What night vision does it have?

Dual light: invisible 850 nm IR up to 50 m for discreet black-and-white viewing, plus warm white light up to 30 m for full-color night video down to 0 lux — which also signals to intruders that the site is watched. Control is Auto or Manual.

How do I power it in the field?

The camera runs on DC 12V — a mains adapter where grid power exists, or whatever regulated 12V supply your installation already provides. It does not draw power over a network cable, and the IP67 housing is sealed against outdoor dust and rain.

Which lens option covers my scene, 4.0 mm or 6.0 mm?

4.0 mm gives an 87.5° horizontal view, detecting at 62.1 m and identifying at 6.2 m — for yards and entrances. 6.0 mm narrows to 54.2° but detects at 93.1 m and identifies at 9.3 m — for lanes, gates and longer approaches on open land.
