4MP Vandal-resistant IR Fixed Dome Network Camera IPC324LE-ADF28(40)K-H

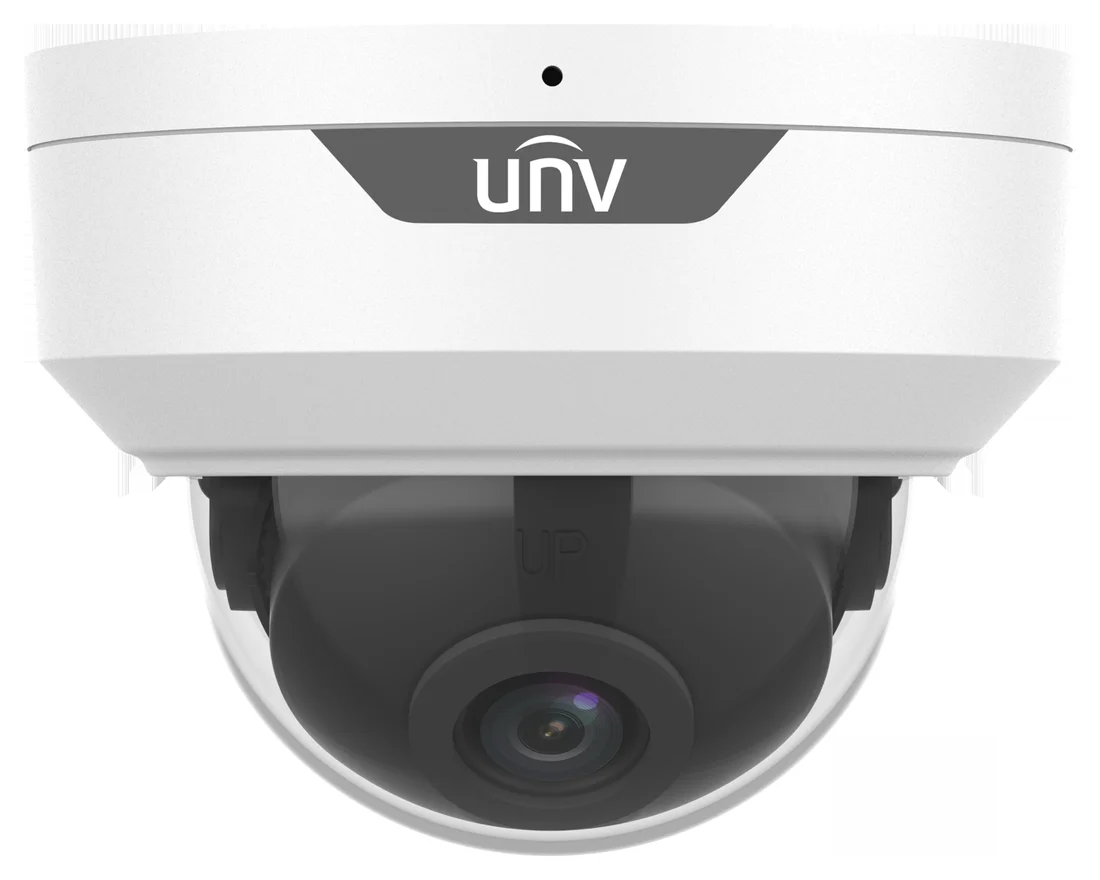

4MP Vandal-resistant IR Fixed Dome Network Camera IPC324LE-ADF28(40)K-H — view 1

4MP Vandal-resistant IR Fixed Dome Network Camera IPC324LE-ADF28(40)K-H — view 2

Uniview (UNV) · DomeVandal-resistant IR Fixed Dome

4MP Vandal-resistant IR Fixed Dome

IPC324LE-ADF28(40)K-H

Name: Uniview IPC324LE-ADF28(40)K-H
Brand: Uniview
SKU: IPC324LE-ADF28(40)K-H

4MP fixed IR dome network camera — IK10 vandal-resistant, IP67 outdoor housing, Smart IR to 30 m, PoE single-cable install, built-in mic.

4 MP · 2688×1520@25fpsUltra 265 · low bandwidthIK10 · vandal resistantPoE · 802.3afIP67 · outdoorMic · built-in audio

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28K (2.8 mm, 97° view) covers a wide area near the camera — lobbies, small rooms, retail counters. ADF40K (4.0 mm, 79° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCUL/CULRoHSWEEEIP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4 MPResolution

30 mIR night vision

IK10Vandal resistant

IP67Outdoor rated

The Uniview IPC324LE-ADF28(40)K-H is a 4MP fixed IR dome network camera with an IK10 vandal-resistant, IP67 outdoor-rated housing. Smart IR reaches 30 m (98.4 ft.), 120 dB true WDR keeps strong-backlight scenes readable, and a MicroSD slot up to 512 GB can back up recordings locally — all powered over a single PoE cable. It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Retail entrances & lobbies9:16 corridor mode plus a wide 97° view (ADF28K) cover a doorway or narrow aisle from one corner; the built-in mic picks up the counter conversation.

Stairwells, lifts & public toiletsThe IK10 housing shrugs off knocks and thrown objects — built to keep working in high-vandalism spots.

Outdoor gates & perimetersIP67 body and −30 to 60 °C rating handle rain, dust and heat; ADF40K watches further down a fence line or driveway.

Warehouses & loading docks120 dB true WDR keeps footage readable against bright dock doors or vehicle headlights.

Small offices & receptionBuilt-in mic plus a MicroSD slot (up to 512 GB) keep a local backup even if the network or NVR drops.

Residential walkways & compoundsCross-line and intrusion alarms based on human body detection cut false alerts from stray animals or moving branches.

Not the right pick if you need…

Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors
Motorized pan/tilt — the mounting angle is set by hand at install, not driven by a motor

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/3.0" CMOS sensor

4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

Easystar technology ensures high image quality in low illumination environment

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Built-in mic

Smart IR, up to 30 m (98.4 ft.) IR distance

MicroSD, up to 512 GB

IK10 vandal resistant

IP67 protection

Supports PoE power supply

3-axis

Built for low light and hard scenes

Two real image technologies from the datasheet — not marketing language.

SMART IR

Invisible infrared night vision, up to 30 m

Smart IR automatically adjusts intensity by distance up to 30 m (98.4 ft.); Easystar technology keeps images usable in very low light.

TRUE WDR

120 dB true WDR for backlit scenes

Strong backlight — a doorway at noon, headlights at night — stays balanced at 120 dB instead of washing out to white or black.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

63 m206.7 ft

Observewhat is happening

25.2 m82.7 ft

Recognizesomeone you know

12.6 m41.3 ft

Identifya stranger's face

6.3 m20.7 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	AF28 · 97.0°	AF40 · 79.0°
5 m16 ft	11.3 m37.1 ft	8.2 m27.0 ft
10 m33 ft	22.6 m74.2 ft	16.5 m54.1 ft
15 m49 ft	33.9 m111 ft	24.7 m81.1 ft
20 m66 ft	45.2 m148 ft	33.0 m108 ft
30 m98 ft	67.8 m222 ft	49.5 m162 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:AF28 = 2.8 mmAF40 = 4.0 mm

Camera

Max Resolution	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	AF28 · 2.8 mmAF40 · 4.0 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	AF28 · 97.0°AF40 · 79.0°
Field of View (V)	AF28 · 52.2°AF40 · 42.3°
Field of View (D)	AF28 · 107.5°AF40 · 85.1°

DORI

DORI Distance (Lens)	AF28 · 2.8 mmAF40 · 4 mm
DORI Distance (Detect)	AF28 · 63.0 m (206.7 ft.)AF40 · 90.0 m (295.3 ft.)
DORI Distance (Observe)	AF28 · 25.2 m (82.7 ft.)AF40 · 36.0 m (118.1 ft.)
DORI Distance (Recognize)	AF28 · 12.6 m (41.3 ft.)AF40 · 18.0 m (59.1 ft.)
DORI Distance (Identify)	AF28 · 6.3 m (20.7 ft.)AF40 · 9.0 m (29.5 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2688×1520) max. 25 fps; 4 MP (2560×1440) max. 25 fps; 3 MP (2304×1296) max. 30 fps; 1080P (1920×1080) max. 30 fps; 720P (1280×720) max. 30 fps · Sub Stream: 720P (1280×720) max. 30 fps; D1 (720×576) max. 30 fps; 640×360 max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529); IK10 (IEC 62262)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 4.4 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111 mm × 83 mm (Ø4.4" × 3.3") (Ø × H)
Weight	0.35 kg (0.77 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

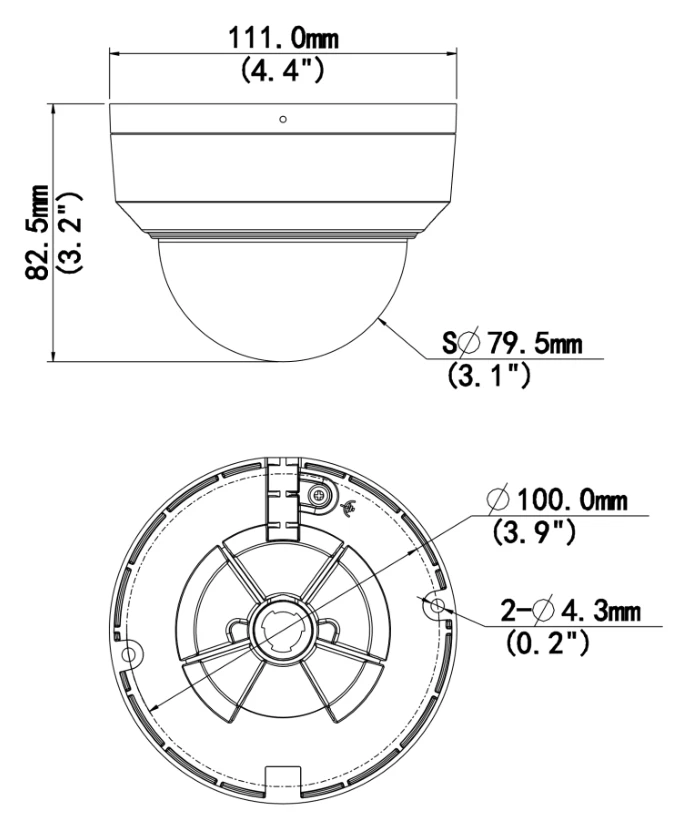

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø111 × 83 mm (Ø4.4" × 3.3") (Ø × H)
Weight	0.35 kg (0.77 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 8–360° · Tilt 0–68° · Rotate 10–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-G-INJunction box for mini fix-dome (rear wiring)

HS-205SSunshade shell for fixed focus dome

TR-UM06-E-INSlant mounting bracket for fixed dome

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendant mounting pole 200 mm

TR-SE24-A-INDome pendant mounting pole 500 mm

TR-CM24-INDome pendant mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for 32-series fix-dome, mini fix-dome & plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for 32-series fix-dome, mini fix-dome & plastic turret camera

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-WM07P-BDome wall mounting plastic bracket

TR-FM116In-ceiling bracket for fix-dome

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

4MP WDR PoE Dome FAQ — IPC324LE-ADF28(40)K-H

My entrance is badly backlit at noon — will this camera cope?

Yes, that is the target use case. 120 dB true WDR balances a bright doorway or headlight glare against the dark interior in the same frame, backed by HLC, BLC and digital defog. Faces coming through a sunlit entrance stay readable instead of turning into silhouettes.

How does it perform in very low light?

The F1.6 lens and Easystar technology keep color images usable down to 0.003 Lux with AGC on — streetlight-level scenes stay in color. Below that, Smart IR takes over with invisible 850 nm light up to 30 m, auto-adjusting intensity by distance.

Does it tell people apart from other movement?

Yes. Cross-line and intrusion detection are based on human body detection, so alerts trigger on people rather than every branch, bird or headlight sweep. Standard motion detection and ultra motion detection remain available when you want to catch all movement.

What resolution and lens options are available?

The main stream reaches 4 MP at 2688×1520, 25 fps, with 1080p at 30 fps if preferred. Two lens builds: 2.8 mm with a 97.0° view detecting to 63 m, or 4.0 mm with 79.0° detecting to 90 m and identifying at 9 m — choose by scene width versus reach.

Is installation complicated for a small team?

No. PoE means one network cable per camera for power and video, and the 3-axis mount (pan 8–360°, tilt 0–68°, rotate 10–360°) aims the view from ceiling or wall. The IK10 and IP67 housing needs no extra enclosure outdoors, and the built-in mic removes separate audio wiring.
