IP Cameras › Uho-P1A-M3F4D

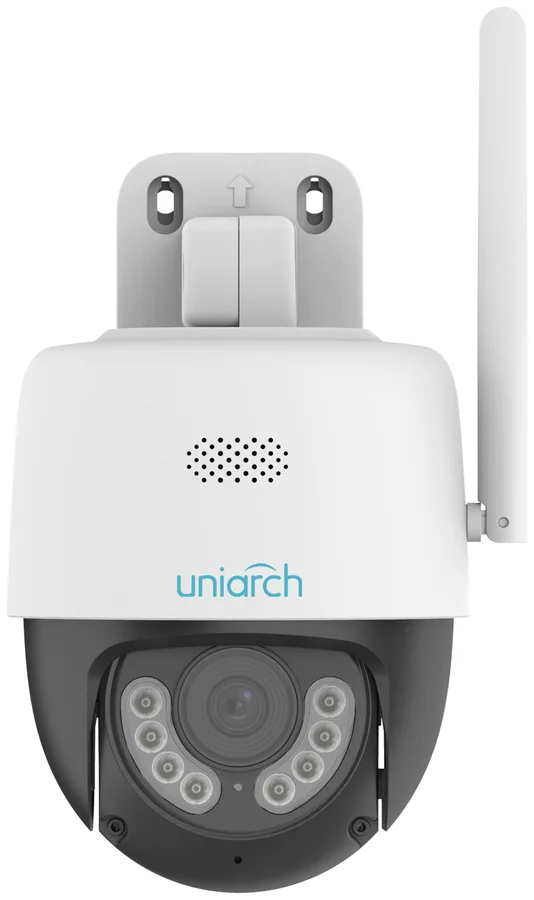

3MP HD Outdoor Pan & Tilt Wi-Fi Camera Uho-P1A-M3F4D — view 1

3MP HD Outdoor Pan & Tilt Wi-Fi Camera Uho-P1A-M3F4D — view 2

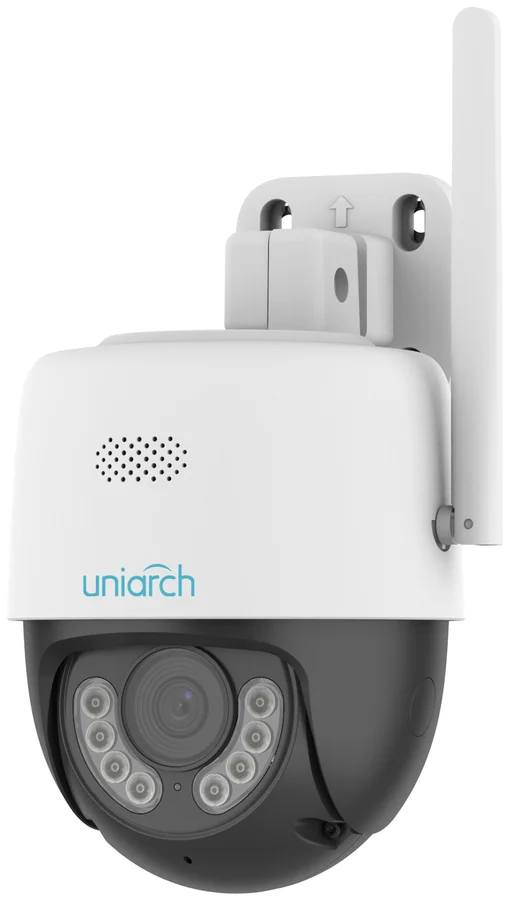

3MP HD Outdoor Pan & Tilt Wi-Fi Camera Uho-P1A-M3F4D — view 3

UniarchWi-Fi Pan & Tilt

3MP Wi-Fi Pan & Tilt

Uho-P1A-M3F4D

Name: Uniarch Uho-P1A-M3F4D
Brand: Uniarch
SKU: Uho-P1A-M3F4D

3MP Wi-Fi pan & tilt camera — motorized 345° pan / 90° tilt with Auto Tracking, no network cable needed. Dual-light illuminator (IR + warm light), two-way audio, IP66 outdoor body.

3 MP · 2304×1296@20fpsWi-Fi · 2.4GHz built-in antennaPTZ · 345° pan · 90° tilt · 20 presetsAuto Tracking · follows moving subjectsTwo-way Audio · mic + speakerDC12V · adapter powerIP66 · outdoor

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP66

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

345°Motorized pan range

Wi-Fi2.4GHz, no cable needed

IP66Outdoor rated

10.0 WMax power

The Uniarch Uho-P1A-M3F4D is a 3MP Wi-Fi pan & tilt camera that covers a wide area from a single mounting point, instead of needing several fixed cameras. It powers from a standard DC12V adapter and connects over built-in 2.4GHz Wi-Fi — no PoE switch or NVR cabling required, just a power outlet nearby. Motorized pan (345°) and tilt (90°) with 20 presets and Auto Tracking follow a moving person or vehicle automatically, while the dual-light illuminator switches between discreet IR (30m) and full-color warm light (10m) with sound-and-light alarm. Built-in mic and speaker allow two-way audio, and the IP66 metal-and-plastic body is rated for −30°C to 60°C.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Rentals & sites without spare network runsNo PoE switch or NVR cable run needed — plug into any nearby outlet and join the site Wi-Fi. Move it to a new spot without touching a cable.

Wide-area coverage from one mounting pointMotorized 345° pan and 90° tilt let one camera cover a yard, gate or driveway that would otherwise need several fixed cameras.

Active deterrence at the door or gateSound-and-light alarm plus two-way audio let you flash, alert and speak directly to whoever the camera sees.

Keeping a moving subject in frameAuto Tracking pans and tilts the camera to follow a detected person or vehicle across its range automatically.

Checking in from your phonePair it with the Uniarch APP for live view, pan/tilt control, push alerts and playback from anywhere — no NVR required for basic remote viewing.

Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.

Not the right pick if you need…

PoE power — this camera has no PoE port, it needs its own outlet with the included DC12V adapter
Continuous full-color night video — night video is black & white by default (IR mode); full color needs the warm light switched on, which lights up the scene and isn't discreet
A catalog of optional pole/corner mounting accessories — the datasheet lists no separate accessories for this model, it ships with its own self-contained pan-tilt bracket only
True optical zoom — the lens is fixed at 4.0mm with 4× digital zoom only (crops the image), it does not physically zoom in
Rock-solid connectivity regardless of Wi-Fi signal — performance depends on the strength of the site's 2.4GHz Wi-Fi signal at the mounting spot

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 3MP, 1/2.8" CMOS sensor

2304×1296@20fps in the main stream

Ultra 265, H.265, H.264

Support digital WDR (Wide Dynamic Range)

Built-in Mic & Speaker, support two-way audio, offer better interaction

Support sound and light warning, makes warning and alarming more noticeable

Smart IR, up to 30 m (98 ft) IR and 10m (33 ft) warm light distance, suitable for more scenes

Self-contained bracket, support two kinds of mounting

Supports 512 GB Micro SD card

Wi-Fi connection and easy installation

IP66 ingress protection

The front face is made of grapheme, which has better heat dissipation and more environmental protection

Night vision: dual-light (IR + warm light)

Switchable Auto/Manual — set it per site.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording.

WARM LIGHT MODE

Visible warm light — full-color footage and active deterrence

Warm light up to 10 m (33 ft.) keeps faces and clothing colors visible at night, and can be paired with the sound-and-light alarm to actively warn off intruders.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

73.5 m241.0 ft

Observewhat is happening

29.4 m96.4 ft

Recognizesomeone you know

14.7 m48.2 ft

Identifya stranger's face

7.3 m24.1 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	90.5°
5 m16 ft	10.1 m33.1 ft
10 m33 ft	20.2 m66.2 ft
15 m49 ft	30.3 m99.3 ft
20 m66 ft	40.4 m132 ft
30 m98 ft	60.5 m199 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	3 MP
Sensor	1/2.8" CMOS
Min. Illumination	Colour: 0.005 lux (F1.6, AGC ON), 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000 s
S/N	> 52 dB
WDR	DWDR

Lens

Digital Zoom	4X
Focal Length	4.0 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	90.5°
Field of View (V)	44.4°
Field of View (D)	111.3°

DORI

DORI Distance (Lens)	4.0 mm
DORI Distance (Detect)	73.5 m (241.0 ft.)
DORI Distance (Observe)	29.4 m (96.4 ft.)
DORI Distance (Recognize)	14.7 m (48.2 ft.)
DORI Distance (Identify)	7.3 m (24.1 ft.)

Illuminator

Supplemental Light	Dual light
Illumination Distance (IR)	Up to 30 m (98 ft.)
Illumination Distance (Warm Light)	Up to 10 m (33 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 3MP (2304×1296), Max 20 fps; Sub Stream: 640×360, Max 20 fps
Video Bit Rate	128 Kbps to 2048 Kbps
U-code	Support
OSD	Up to 2 OSDs
Privacy Mask	Support (only NVR)
ROI	Up to 8 areas
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	N/A
Defog	Digital defog

Intelligent

Auto Tracking

Support

Events

Basic Detection	Human body detection, Motion detection, Audio detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
User/Host	Up to 6 users. 2 user levels: administrator and common user
Compatible Integration	API
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20 MHz Support
Modulation Mode	802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM/HT
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 14±1.5 dBm@54 Mbps; 802.11n: 12.5±1.5 dBm@150 Mbps
Receive Sensitivity	802.11b: -90 dBm@11 Mbps (Typical); 802.11g: -75 dBm@54 Mbps (Typical); 802.11n: -74 dBm@150 Mbps (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps

PTZ

Pan Range	0° ~ 345°
Pan Speed	1°/s ~ 40°/s; Preset speed: 40°/s
Tilt Range	0° ~ 90°
Tilt Speed	1°/s ~ 30°/s; Preset speed: 30°/s
Number of Presets	20

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

Protection	IP66 (IEC 60529)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power	DC 12 V±25%
Power Consumption	Max 10.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Φ118 mm × 118 mm × 199 mm (Φ4.6" × 4.6" × 7.8")
Weight	0.53 kg (1.17 lb.)
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
LED Indicator	1, red/green

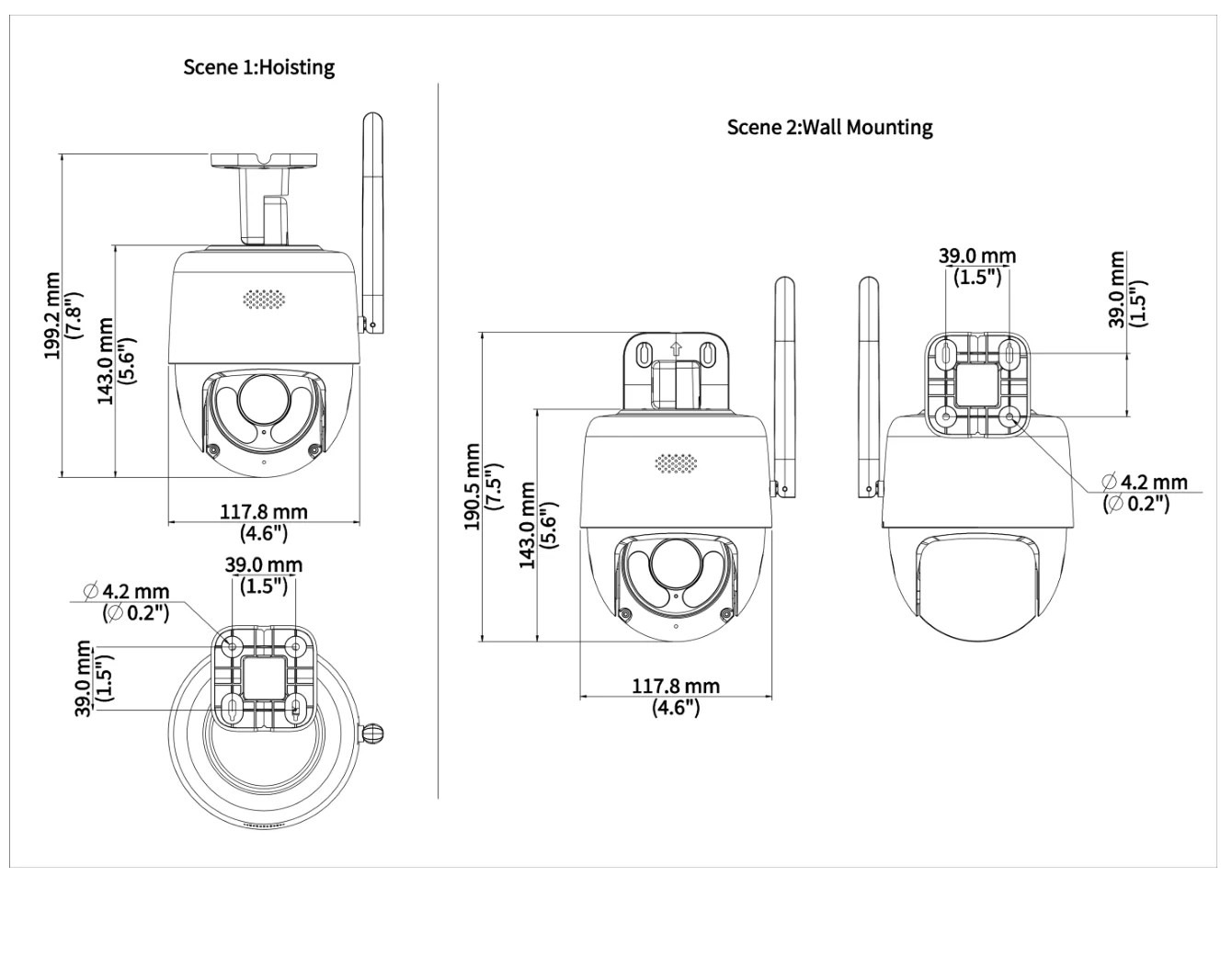

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Φ118 × 118 × 199 mm (Φ4.6" × 4.6" × 7.8")
Weight	0.53 kg (1.17 lb.)
Mounting	Self-contained bracket — hoisting or wall mounting
PTZ range	Pan 0–345° · Tilt 0–90°, 20 presets

3MP Pan-Tilt Wi-Fi Camera FAQ — Uho-P1A-M3F4D

How does auto tracking work on this model?

Human body detection spots a person and the motorized head follows them across its 345° pan and 90° tilt range, so the subject stays in frame instead of walking out of a fixed view. A 4X digital zoom on the 4.0 mm lens lets you punch in on detail afterwards.

How do I power and connect it?

Power is DC12V from an adapter and the network link is 2.4 GHz Wi-Fi — no PoE switch, no LAN cable to pull. The IP66-rated body mounts on outdoor walls and poles, which keeps installation quick on houses, small shops and farm gates.

What does night footage look like?

Dual light gives you both modes: invisible 850 nm IR up to 30 m for discreet black-and-white video, or a warm light up to 10 m that keeps faces and clothing colors visible. Pair the warm light with the sound-and-light alarm to actively warn off intruders.

Can I speak to people on site through the camera?

Yes — two-way audio (G.711U/A at 64 Kbps) lets you hear the scene and answer back, whether that is greeting a customer, instructing a worker or challenging a stranger at the gate. Audio detection can also trigger alerts on unusual sound.

What image detail and bandwidth should I expect?

The main stream is 3 MP (2304×1296) at up to 20 fps across a 90.5° horizontal view, with DORI detection at 73.5 m and identification at 7.3 m. Ultra 265/H.265/H.264 compression runs 128–2048 Kbps, so one camera uses about 2 Mbps of Wi-Fi at full quality.
