IP Cameras › Uho-S2E-M3-A

3MP Indoor Pan & Tilt Wi-Fi Camera Uho-S2E-M3-A — view 1

3MP Indoor Pan & Tilt Wi-Fi Camera Uho-S2E-M3-A — view 2

UniarchIndoor Pan & Tilt Wi-Fi

3MP Indoor Pan & Tilt Wi-Fi

Uho-S2E-M3-A

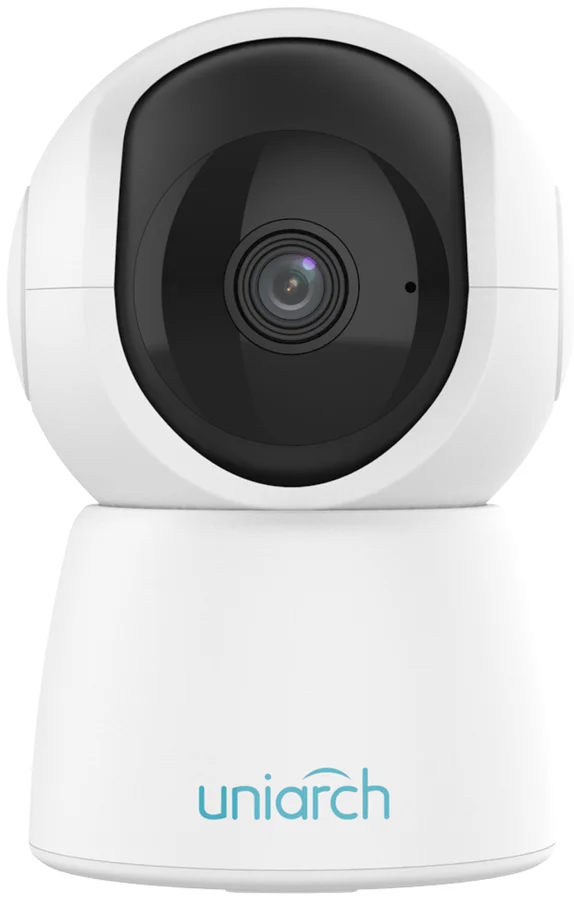

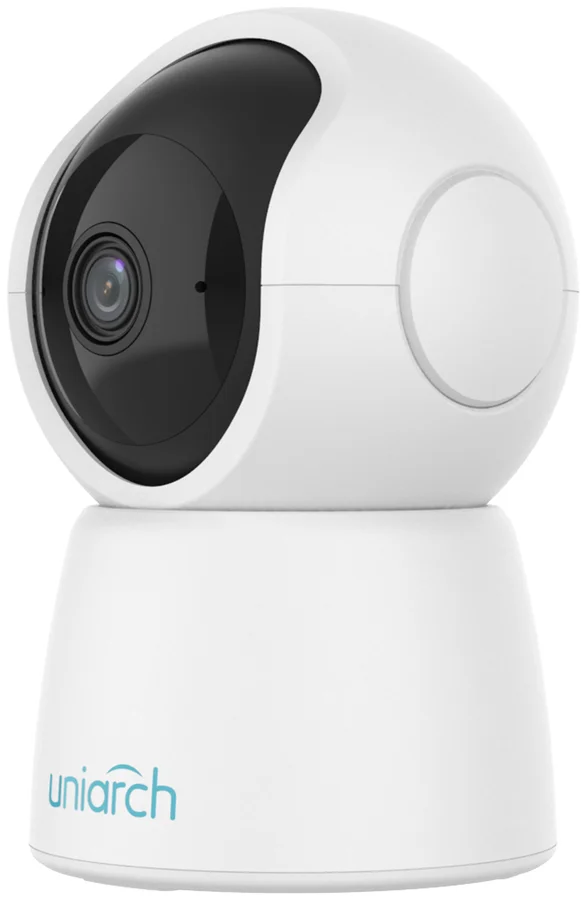

Name: Uniarch Uho-S2E-M3-A
Brand: Uniarch
SKU: Uho-S2E-M3-A

3MP indoor Wi-Fi camera with a real motorized pan-tilt head — 338° pan, -5° to 55° tilt, Auto Tracking and two-way audio. No network cable, just power and connect over 2.4GHz Wi-Fi.

3 MP · 2304×1296@25fpsWi-Fi · 2.4GHz built-in antennaEthernet · 1×RJ45 wired fallbackAuto Tracking · follows moving subjects2-Way Audio · mic + speakerHuman/Vehicle/Pet · + crying detectionMicroSD · up to 512GB

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEE

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

3 MP2304×1296 recording

Wi-Fi2.4GHz, no cable needed

338°Motorized pan range

AutoAuto Tracking

The Uniarch Uho-S2E-M3-A is a 3MP indoor Wi-Fi camera with a real motorized pan-tilt head, not just a fixed mount angle. It pans 338° and tilts from -5° to 55°, with Auto Tracking that follows moving subjects and 20 presets for jumping straight to a spot you check often. Built-in mic and speaker support two-way audio, and it detects humans, vehicles, pets and even crying, all over Wi-Fi with no network cable required.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Baby & pet monitoring, hands-freeAuto Tracking follows your baby or pet around the room on its own, and Crying detection alerts you the moment your baby cries.

Whole-room coverage from one cornerMotorized 338° pan and -5° to 55° tilt reach corners a fixed camera can't, and 20 presets jump straight to the doorway, crib or desk.

Check in and talk backBuilt-in mic and speaker support two-way audio — talk to family, pets or visitors remotely through the phone app.

Small offices & countersHuman and vehicle detection cuts down false alerts versus plain motion detection, and the built-in RJ45 port lets you plug in a wired connection instead of Wi-Fi wherever that's more reliable.

Local recording you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.

5-minute DIY setupNo electrician needed — plug in the Micro-USB power, join your Wi-Fi from the app, and start watching in minutes.

Not the right pick if you need…

Outdoor or weatherproof installation — this is an indoor-only camera with no IP-rated enclosure
PoE power — there's no PoE port, it runs on its own DC5V/1.5A Micro-USB adapter
Long-distance night vision — IR reaches 10m (33ft), built for room-scale distances, not yards
On-screen privacy masking from the phone app — Privacy Mask only works when the camera is connected to an NVR

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 3MP, 1/3" CMOS sensor

3MP (2304×1296)@25/20fps; 2MP (1920×1080)@30/25fps; 720P (1280×720)@30/25fps

Ultra 265, H.265, H.264

Built-in Mic & Speaker, support two-way audio, offer better interaction

IR night vision, up to 10m (33ft) IR distance

Support 512 G Micro SD card

Wi-Fi connection and easy installation

Night vision: infrared only

Switchable Auto/Manual IR — set it per room.

IR MODE

Invisible infrared — discreet black & white night vision

IR night vision up to 10 m (32.8 ft.) at 850 nm, with Auto/Manual IR On/Off control. This model has a single IR illuminator only, no warm-light module.

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	67.3°
5 m16 ft	6.7 m21.8 ft
10 m33 ft	13.3 m43.7 ft
15 m49 ft	20.0 m65.5 ft
20 m66 ft	26.6 m87.4 ft
30 m98 ft	39.9 m131 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	3 MP
Sensor	1/3.0" CMOS
Min. Illumination	Colour: 0.02 lux (F2.0, AGC ON), 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1/4 to 1/100000 s
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	4.0 mm
Iris	F2.0
Field of View (H)	67.3°
Field of View (V)	37.2°
Field of View (D)	77.8°
Lens Type	Fixed
Iris Type	Fixed

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	10 m (32.8 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 3MP (2304×1296), max. 25 fps; 2MP (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 2048 Kbps
U-code	Support
OSD	Up to 2 OSDs
Privacy Mask	Support (only NVR)
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection (human/vehicle/pet), Crying detection, High-Decibel detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Auto Tracking

Support

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration	API, SDK
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20 MHz Support
Modulation Mode	802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM/HT
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 14±1.5 dBm@54 Mbps; 802.11n: 12.5±1.5 dBm@150 Mbps
Receive Sensitivity	802.11b: -90 dBm@11 Mbps (Typical); 802.11g: -75 dBm@54 Mbps (Typical); 802.11n: -74 dBm@150 Mbps (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps

PTZ

Pan Range	0° ~ 338°
Pan Speed	17°/s ~ 50°/s, Preset speed: 50°/s
Tilt Range	-5° ~ 55°
Tilt Speed	17°/s ~ 50°/s, Preset speed: 50°/s
Number of Presets	20

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power Consumption	Max. 7.5 W
Power	DC 5 V/1.5 A, Micro USB interface
LED Indicator	1, red/blue
Dimensions	Φ80 mm × 120 mm (Ø3.1" × 4.8")
Weight	0.18 kg (0.40 lb.)
Working Environment	-10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Reset Button	Support

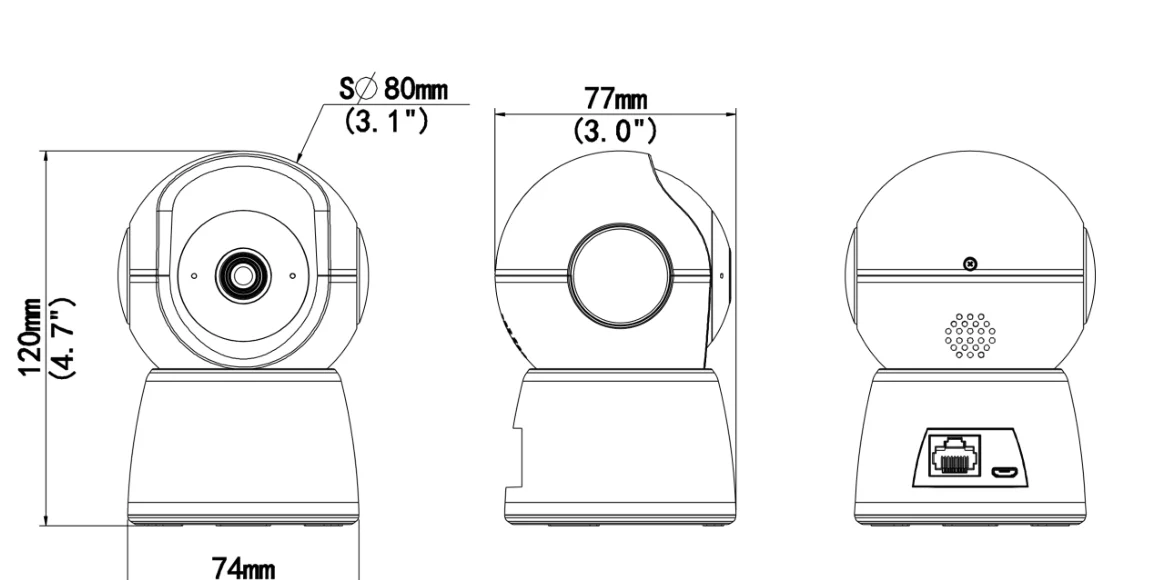

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Φ80 × 120 mm (Ø3.1" × 4.8")
Weight	0.18 kg (0.40 lb.)
Pan range	0° – 338°
Tilt range	-5° – 55°

3MP Wi-Fi Camera with RJ45 FAQ — Uho-S2E-M3-A

Can I use the Uho-S2E-M3-A with a network cable instead of Wi-Fi?

Yes — that is the point of the E version. It normally connects over 2.4G Wi-Fi (IEEE 802.11 b/g/n, built-in antenna), but a wired RJ45 Ethernet fallback port lets you plug it straight into a router or switch where Wi-Fi is congested or unreliable.

What can it detect besides simple motion?

Ultra motion detection classifies human, vehicle and pet targets to cut false alarms, while crying detection and high-decibel detection listen for a baby or unusual loud sounds. Auto tracking then keeps the moving subject in frame across the 338° pan range.

How is the night vision indoors?

Smart IR at 850 nm covers up to 10 m (32.8 ft) with auto or manual control — right for room-scale distances. Color video works down to 0.02 lux (F2.0, AGC on) and 0 lux with IR, while BLC and digital defog handle windows and haze.

How many days of recording fit on the MicroSD card?

The slot accepts cards up to 512 GB. At the top 2048 Kbps bit rate that is about three weeks of continuous 3MP recording; U-code smart encoding or a lower bit rate extends it well beyond. ANR back-fills a recorder after any network interruption.

What are the pan, tilt and lens coverage figures?

The motorized mount pans 338° and tilts from -5° to 55°; the fixed 4.0 mm F2.0 lens gives 67.3° horizontal and 77.8° diagonal views. Main stream is 3MP (2304×1296) at up to 25 fps, with two-way audio for talking to whoever is in the room.
